Abstract

The utility model discloses an adjustable machining workbench, comprising a base, a first motor is fixedly installed in the middle of the bottom of the base, a rotating column is fixedly installed on an output shaft of the first motor, and the rotating column is Passing through the base, a support plate is fixedly installed at the top of the rotating column, a groove is formed in the support plate, an electric push rod is fixedly installed at the bottom end of the groove, and the electric push rod penetrates out of the groove, A platform is fixedly installed on the top of the electric push rod, and a plurality of sleeves are fixedly installed on the upper part of the support plate. The utility model is provided with an electric push rod, a sleeve, a connecting plate and a first motor, so that the staff can adjust the angle and height of the platform according to different requirements when using the workbench, thereby improving its practicability; Two motors, a rotating rod, a driving bevel gear, a driven bevel gear, a threaded rod and a sliding plate, so that when the work requires, the sliding plate can be slid out to increase the working length of the workbench.

Description

Machining workstation with adjustable

Technical Field

The utility model relates to a machining technical field specifically is a machining workstation with adjustable.

Background

Machining refers to a process of changing the overall dimension or performance of a workpiece through a mechanical device, and can be divided into cutting machining and pressure machining according to differences in machining modes, and the machining modes are required to be carried out on a workbench, but most of existing machining workbenches are simple in structure and single in function.

The following problems exist when using conventional machining tables:

1. most of the existing machining workbenches do not have the height and angle adjusting function, the height and the angle of the workbench are not beneficial to corresponding adjustment according to different requirements of workers, and the workbench is inconvenient to use;

2. most of the existing machining workbenches are large in size, the length of the machining workbench is fixed, and the length of the machining workbench cannot be adjusted according to different requirements of workers.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a machining workstation with adjustable to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: an adjustable machining workbench comprises a base, wherein a first motor is fixedly mounted in the middle of the bottom of the base, a rotating column is fixedly mounted on an output shaft of the first motor, the rotating column penetrates through the base, a supporting plate is fixedly mounted at the top end of the rotating column, a groove is formed in the supporting plate, an electric push rod is fixedly mounted at the bottom end of the groove, the electric push rod penetrates through the groove, a platform is fixedly mounted at the top end of the electric push rod, a plurality of sleeves are fixedly mounted at the upper part of the supporting plate, a first sliding groove is formed in each sleeve, a connecting plate is slidably mounted in each first sliding groove, the top end of each connecting plate is fixedly connected with the bottom of the platform, a second sliding groove is formed in each platform, a rotating rod is rotatably mounted in each second sliding groove, and a driving bevel gear is fixedly mounted on each rotating rod, the bottom fixed mounting of platform has the second motor, the output shaft of second motor and the bottom fixed connection of dwang, the equal fixed mounting in the left and right sides in the second spout has the riser, the threaded rod is installed to the screw thread on the riser, just the threaded rod runs through the riser, two the equal fixed mounting in one side that the threaded rod is close to each other has driven bevel gear, initiative bevel gear and driven bevel gear meshing, the slide is installed to the screw thread on the threaded rod, slide and second spout sliding connection, the upper portion left side fixed mounting of base has the controller, first motor, second motor and electric push rod all with controller electric connection.

Preferably, four supporting legs are fixedly mounted at the bottom of the base and are distributed in a rectangular shape.

Preferably, the bottom fixed mounting of connecting plate has the limiting plate, just limiting plate and first spout sliding connection, the bottom fixed mounting of limiting plate has the spring, the bottom of spring and the inner wall fixed connection of first spout.

Preferably, the bottom of the supporting plate is provided with a plurality of balls, the upper surface of the base is provided with a circular groove, and the balls are in sliding connection with the circular groove.

Preferably, a thread groove is formed in the sliding plate, and a threaded rod is installed in the thread groove through internal threads.

Preferably, the number of the sleeves is four.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model is provided with the electric push rod, the sleeve, the connecting plate and the first motor, so that the angle and the height of the platform can be adjusted according to different requirements when a worker uses the workbench, and the practicability of the workbench is improved;

2. the utility model discloses still set up second motor, dwang, initiative conical gear, driven conical gear, threaded rod and slide simultaneously, thereby the messenger can make the slide roll-off increase the use length of workstation when work needs.

Drawings

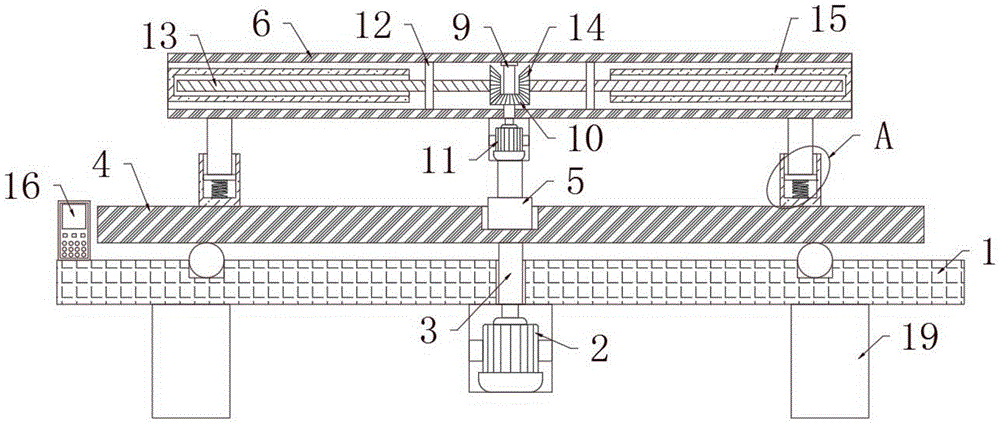

Fig. 1 is a front sectional view of an adjustable machining table according to the present invention;

fig. 2 is a front view of an adjustable machining table according to the present invention;

fig. 3 is an enlarged schematic view of a portion a of fig. 1.

In the figure: 1. a base; 2. a first motor; 3. rotating the column; 4. a support plate; 5. an electric push rod; 6. a platform; 7. a sleeve; 8. a connecting plate; 9. rotating the rod; 10. a driving bevel gear; 11. a second motor; 12. a vertical plate; 13. a threaded rod; 14. a driven bevel gear; 15. a slide plate; 16. a controller; 17. a limiting plate; 18. a spring; 19. and (7) supporting legs.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: an adjustable machining workbench comprises a base 1, a first motor 2 is welded in the middle of the bottom of the base 1, a rotating column 3 is welded on an output shaft of the first motor 2, the rotating column 3 penetrates through the base 1, a support plate 4 is welded at the top end of the rotating column 3, a groove is formed in the support plate 4, an electric push rod 5 is welded at the bottom end of the groove, the electric push rod 5 penetrates through the groove, a platform 6 is welded at the top end of the electric push rod 5, a plurality of sleeves 7 are welded at the upper portion of the support plate 4, a first sliding groove is formed in each sleeve 7, a connecting plate 8 is slidably installed in each first sliding groove, the top end of each connecting plate 8 is welded with the bottom of the platform 6, a second sliding groove is formed in each platform 6, a rotating rod 9 is rotatably installed in each second sliding groove, a driving bevel gear 10 is welded on each rotating rod 9, a second motor 11 is welded at the bottom of each platform 6, an output shaft of each second motor 11 is welded with the bottom end of each rotating rod 9, vertical plates 12 are welded on the left side and the right side in the second sliding groove, threaded rods 13 are installed on the vertical plates 12 in a threaded mode, the threaded rods 13 penetrate through the vertical plates 12, driven bevel gears 14 are welded on the sides, close to each other, of the two threaded rods 13, a driving bevel gear 10 is meshed with the driven bevel gears 14, sliding plates 15 are installed on the threaded rods 13 in a threaded mode, the sliding plates 15 are connected with the second sliding groove in a sliding mode, a controller 16 is welded on the left side of the upper portion of the base 1, and the first motor 2, the second motor 11 and the electric push rod 5 are all electrically connected with the controller 16;

four landing legs 19 of base 1's bottom welding, four landing legs 19 are the rectangle and distribute, the welding of the bottom of connecting plate 8 has limiting plate 17, and limiting plate 17 and first spout sliding connection, the welding of the bottom of limiting plate 17 has spring 18, the bottom of spring 18 and the inner wall welding of first spout, the bottom of backup pad 4 is provided with a plurality of balls, the circular recess has been seted up to base 1's upper surface, ball and circular recess sliding connection, the thread groove has been seted up in slide 15, threaded rod 13 is installed to the thread groove internal thread, the quantity of sleeve 7 is four.

The working principle is as follows: when the utility model is used, the electric push rod 5 is operated by the controller 16, the electric push rod 5 drives the platform 6 to move upwards, the connecting plate 8 also moves upwards in the first chute when the platform 6 moves upwards, and the connecting plate 8 and the sleeve 7 play a role of limiting, so that the height of the platform 6 can be adjusted, different processing requirements can be met, the first motor 2 operates to drive the rotating column 3 to rotate, the rotating column 3 rotates to drive the supporting plate 4 to rotate, the platform 6 also rotates, different processing requirements can be met through angle adjustment, when the length of the platform 6 needs to be correspondingly adjusted, the second motor 11 operates to drive the rotating rod 9 to rotate, the rotating rod 9 rotates to drive the driving conical gear 10 to rotate, the driving conical gear 10 rotates to drive the driven conical gear 14 to rotate, the driven conical gear 14 rotates to drive the threaded rod 13 to rotate, the threaded rod 13 rotates to drive the sliding plate 15 to slide left in the second chute, therefore, the length of the platform 6 is increased, the use space of the platform 6 is increased, and the adjustable platform has the advantages that the height and the angle of the platform 6 during working can be adjusted according to working requirements, the length of the platform 6 can be increased, the operation is simple, and the use is convenient.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a machining workstation with adjustable, includes base (1), its characterized in that: the bottom middle part of the base (1) is fixedly provided with a first motor (2), an output shaft of the first motor (2) is fixedly provided with a rotating column (3), the rotating column (3) penetrates through the base (1), the top end of the rotating column (3) is fixedly provided with a support plate (4), a groove is formed in the support plate (4), the bottom end of the groove is fixedly provided with an electric push rod (5), the electric push rod (5) penetrates through the groove, the top end of the electric push rod (5) is fixedly provided with a platform (6), the upper part of the support plate (4) is fixedly provided with a plurality of sleeves (7), a first sliding groove is formed in each sleeve (7), a connecting plate (8) is slidably arranged in each first sliding groove, the top end of the connecting plate (8) is fixedly connected with the bottom of the platform (6), and a second sliding groove is formed in each platform (6), dwang (9) is installed in the second spout internal rotation, fixed mounting has initiative conical gear (10) on dwang (9), the bottom fixed mounting of platform (6) has second motor (11), the output shaft of second motor (11) and the bottom fixed connection of dwang (9), the equal fixed mounting in the left and right sides in the second spout has riser (12), threaded rod (13) are installed to the last screw thread of riser (12), just threaded rod (13) run through riser (12), two equal fixed mounting has driven conical gear (14) in the one side that threaded rod (13) are close to each other, initiative conical gear (10) and driven conical gear (14) mesh, threaded rod (13) are gone up the screw thread and are installed slide (15), slide (15) and second spout sliding connection, the upper portion left side fixed mounting of base (1) has controller (16), the first motor (2), the second motor (11) and the electric push rod (5) are electrically connected with the controller (16).

2. An adjustable machining table according to claim 1, wherein: the bottom of base (1) fixed mounting has four landing legs (19), four landing leg (19) are the rectangle and distribute.

3. An adjustable machining table according to claim 1, wherein: the bottom fixed mounting of connecting plate (8) has limiting plate (17), just limiting plate (17) and first spout sliding connection, the bottom fixed mounting of limiting plate (17) has spring (18), the bottom of spring (18) and the inner wall fixed connection of first spout.

4. An adjustable machining table according to claim 1, wherein: the bottom of the supporting plate (4) is provided with a plurality of balls, the upper surface of the base (1) is provided with a circular groove, and the balls are connected with the circular groove in a sliding mode.

5. An adjustable machining table according to claim 1, wherein: a thread groove is formed in the sliding plate (15), and a threaded rod (13) is installed in the thread groove through internal threads.

6. An adjustable machining table according to claim 1, wherein: the number of the sleeves (7) is four.
