CN214519744U

CN214519744U - Holder for processing crystal element

Info

Publication number: CN214519744U
Application number: CN202120356235.XU
Authority: CN
Inventors: 陈振先
Original assignee: Fuzhou Hongyao Photoelectric Technology Co ltd
Current assignee: Fuzhou Hongyao Photoelectric Technology Co ltd
Priority date: 2021-02-06
Filing date: 2021-02-06
Publication date: 2021-10-29
Anticipated expiration: 2031-02-06

Abstract

The utility model relates to the technical field of crystal element processing, and discloses a holder for crystal element processing, which comprises a frame, the left and right ends of the inner side of the frame are slidably connected with a splint, and the splint is provided with a groove, so that the The upper and lower ends of the splint are provided with sliders, the left and right ends of the inner bottom of the frame are fixedly connected with a first bearing seat, the inner side of the first bearing seat is fixedly connected with a screw rod, and the upper and lower sides of the outer surface of the screw rod are fixedly connected. Both ends are threadedly connected with threaded blocks, the opposite sides of the left and right two sets of threaded blocks are hinged with connecting rods, and the top of the frame is movably connected with a protective cover through mounting bolts. The crystal element processing holder has a simple overall structure. By converting the rotational force of the rotating shaft into the moving force of the two clamping plates, and quickly clamping multiple crystal elements through the grooves on the clamping plates, the processing time is accelerated. high efficiency, and easy to operate and use.

Description

Holder for processing crystal element

Technical Field

The utility model relates to a crystal element processing technology field specifically is a holder is used in crystal element processing.

Background

With the progress of society, the development of the electronic industry is more rapid, and various electric appliances emerge endlessly, and a crystal element is required to be arranged in some electric appliances, and a clamp is generally required to be used in the production process of the crystal element.

The clamp holder is a device for clamping a crystal element, the existing clamp holder for processing the crystal element on the market at present has the defect of inconvenient use, and in the using process, the traditional clamp holder for processing the crystal element can only clamp a single crystal element generally, so that the processing efficiency is reduced, and the clamp holder is inconvenient to clamp and inconvenient to use, so that the clamp holder for processing the crystal element is provided to solve the problems.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a holder is used in crystal element processing possesses advantages such as convenient to use, has solved in the use, and traditional holder is used in crystal element processing generally can only carry out the centre gripping to single crystal element, when having reduced machining efficiency, and the centre gripping is inconvenient, the problem of inconvenient use.

(II) technical scheme

In order to realize the purpose of convenient use, the utility model provides a following technical scheme: a gripper for processing a crystal element comprises a frame, wherein clamping plates are connected to the left end and the right end of the inner side of the frame in a sliding manner, grooves are formed in the clamping plates, sliding blocks are arranged at the upper end and the lower end of each clamping plate, first bearing seats are fixedly connected to the left end and the right end of the inner bottom of the frame, a screw rod is fixedly connected to the inner side of each first bearing seat, threaded blocks are connected to the upper end and the lower end of the outer surface of the screw rod in a threaded manner, connecting rods are hinged to opposite sides of the left threaded block and the right threaded block, the top of the frame is movably connected with a protective cover through a mounting bolt, a driven wheel is fixedly connected to the top of the screw rod, a second bearing seat positioned in the protective cover is fixedly connected to the center of the top of the frame, a rotating shaft is fixedly connected to the inner side of the second bearing seat, and driving wheels are fixedly connected to the upper end and the lower end of the outer surface of the rotating shaft, the outer surface of the driving wheel is movably connected with a transmission belt positioned on the outer surface of the driven wheel, and the top of the rotating shaft is fixedly connected with a hand wheel.

Preferably, the left and right sides at both ends all has seted up the spout about the frame, the slider is located the inside of spout and with spout sliding connection.

Preferably, the inside fixedly connected with rubber protection pad of recess, the recess is the echelonment, the upper and lower both ends of splint are sliding connection with the upper and lower both ends of frame inboard respectively.

Preferably, the upper end and the lower end of the outer surface of the screw rod are fixedly connected with threads in opposite directions, and the inner side of the thread block is provided with a thread groove matched with the threads on the outer surface of the screw rod.

Preferably, one end of the connecting rod, which is far away from the thread block, is hinged with the side wall of the clamping plate, and the top of the screw rod penetrates through and extends into the protective cover.

Preferably, the left driven wheel and the top driving wheel are located on the same horizontal straight line, and the right driven wheel and the bottom driving wheel are located on the same horizontal straight line.

(III) advantageous effects

Compared with the prior art, the utility model provides a holder is used in processing of crystal element possesses following beneficial effect:

the gripper for processing the crystal element drives the rotating shaft to rotate forwards and backwards through the hand wheel which rotates forwards and backwards through the hand, the driving wheel is in transmission connection with the driven wheel through the transmission belt, so that the two driven wheels respectively drive the two screw rods to rotate synchronously and forwards, the upper end and the lower end of the outer surface of each screw rod are fixedly connected with the threads in opposite directions, the inner sides of the thread blocks are provided with thread grooves matched with the threads on the outer surfaces of the screw rods, the slide blocks and the slide grooves on the frame limit the thread blocks to move circularly along with the screw rods, the two thread blocks move towards one side opposite to each other or back to each other, the two clamping plates are driven to move towards one side opposite to each other or back to each other through the connecting rods, so that the crystal element is clamped through the grooves, a plurality of crystal elements can be clamped, meanwhile, the rubber protection pads are arranged on the grooves, the crystal elements can be protected, and the stability during clamping is improved, the device overall structure is simple, through the revolving force with the pivot, converts the removal power into two splint to carry out quick centre gripping to a plurality of crystal element through the recess on the splint, accelerated the efficiency of adding man-hour, and easy and simple to handle, convenient to use.

Drawings

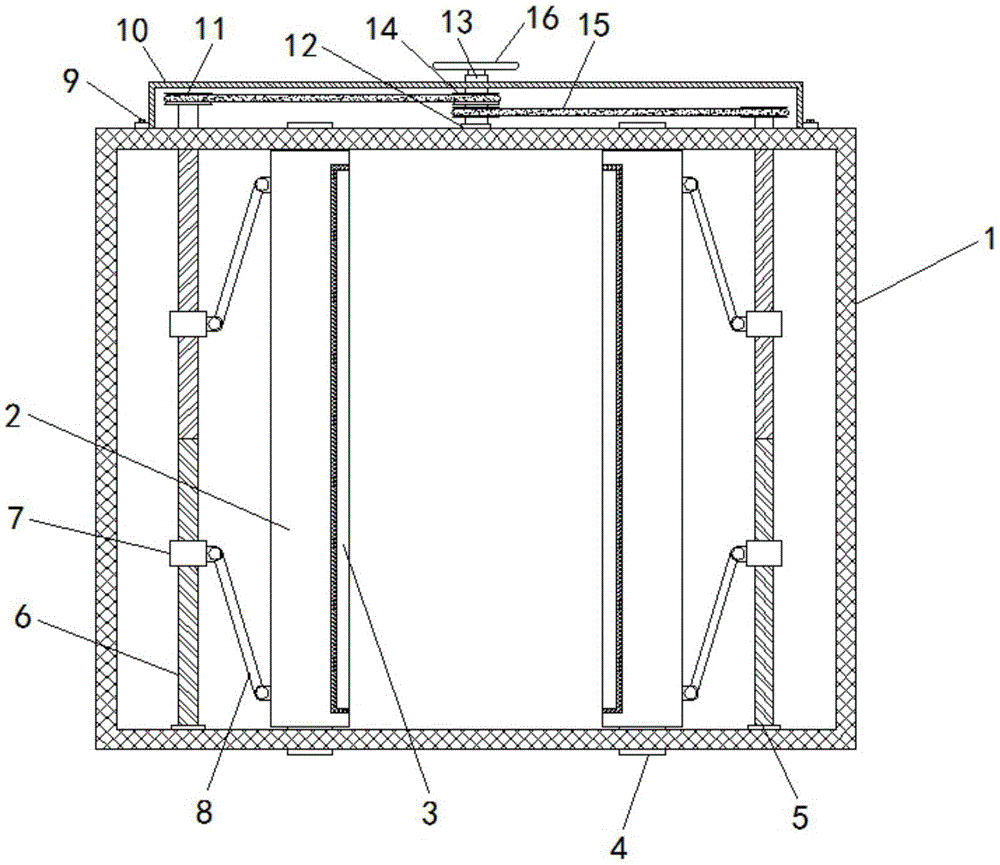

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a perspective view of the connection between the clamp plate and the groove of the present invention;

fig. 3 is a perspective view of the frame and the protective cover of the present invention.

In the figure: the device comprises a frame 1, a clamping plate 2, a groove 3, a sliding block 4, a first bearing seat 5, a screw rod 6, a thread block 7, a connecting rod 8, a mounting bolt 9, a protective cover 10, a driven wheel 11, a second bearing seat 12, a rotating shaft 13, a driving wheel 14, a transmission belt 15 and a hand wheel 16.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, a holder for processing a crystal element comprises a frame 1, a clamping plate 2 is slidably connected to the left and right ends of the inner side of the frame 1, a groove 3 is formed in the clamping plate 2, a rubber protection pad is fixedly connected to the inner side of the groove 3, the groove 3 is stepped, the upper and lower ends of the clamping plate 2 are slidably connected to the upper and lower ends of the inner side of the frame 1, a sliding block 4 is formed at the upper and lower ends of the clamping plate 2, sliding grooves are formed at the left and right sides of the upper and lower ends of the frame 1, the sliding block 4 is located inside the sliding grooves and slidably connected to the sliding grooves, a first bearing seat 5 is fixedly connected to the left and right ends of the inner bottom of the frame 1, a screw 6 is fixedly connected to the inner side of the first bearing seat 5, threaded blocks 7 are threadedly connected to the upper and lower ends of the outer surface of the screw 6, threads with opposite directions are fixedly connected to the upper and lower ends of the outer surface of the screw 6, and threaded blocks 7 are provided with threaded grooves adapted to the outer surface of the screw 6, the opposite sides of the left and right groups of thread blocks 7 are respectively hinged with a connecting rod 8, the top of the frame 1 is movably connected with a protective cover 10 through a mounting bolt 9, one end of the connecting rod 8 far away from the thread blocks 7 is hinged with the side wall of the clamping plate 2, the top of the screw rod 6 penetrates and extends to the inside of the protective cover 10, the top of the screw rod 6 is fixedly connected with a driven wheel 11, the center of the top of the frame 1 is fixedly connected with a second bearing seat 12 positioned in the protective cover 10, the inner side of the second bearing seat 12 is fixedly connected with a rotating shaft 13, the top of the rotating shaft 13 penetrates and extends to the outside of the protective cover 10, the upper end and the lower end of the outer surface of the rotating shaft 13 are respectively fixedly connected with a driving wheel 14, the left driven wheel 11 and the top driving wheel 14 are positioned on the same horizontal straight line, the right driven wheel 11 and the bottom driving wheel 14 are positioned on the same horizontal straight line, and the outer surface of the driving wheel 14 is movably connected with a transmission belt 15 positioned on the outer surface of the driven wheel 11, the top of the rotating shaft 13 is fixedly connected with a hand wheel 16.

In summary, the crystal element processing clamp holder rotates the hand wheel 16 forward and backward by hand, and drives the rotating shaft 13 and the driving wheel 14 to rotate forward and backward, and the driving wheel 14 is connected with the driven wheel 11 by the transmission belt 15, so that the two driven wheels 11 respectively drive the two screw rods 6 to rotate forward and backward synchronously, the upper end and the lower end of the outer surface of the screw rods 6 are fixedly connected with threads with opposite directions, the inner side of the thread block 7 is provided with a thread groove matched with the threads on the outer surface of the screw rods 6, the slide block 4 and the slide groove on the frame 1 limit the thread block 7 to follow the screw rods 6 to do circular motion, and the two thread blocks 7 move towards one side opposite or opposite to each other, and drive the two clamping plates 2 to move towards one side opposite or opposite to each other by the connecting rod 8, so as to clamp the crystal element by the groove 3, and clamp a plurality of crystal elements, and the groove 3 is provided with a rubber protection pad, can protect crystal element, stability when improving the centre gripping, the device overall structure is simple, through the revolving force with pivot 13, convert the removal power into two splint 2, and carry out quick centre gripping to a plurality of crystal element through recess 3 on splint 2, accelerated the efficiency of adding man-hour, and easy and simple to handle, high durability and convenient use, solved in the use, traditional holder for crystal element processing can only carry out the centre gripping to single crystal element generally, when having reduced machining efficiency, the centre gripping is inconvenient, the problem of inconvenient use.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A gripper for processing a crystal component, comprising a frame (1), characterized in that: the novel protective frame is characterized in that the left end and the right end of the inner side of the frame (1) are both slidably connected with clamping plates (2), grooves (3) are formed in the clamping plates (2), sliders (4) are formed in the upper end and the lower end of each clamping plate (2), the left end and the right end of the inner bottom of the frame (1) are both fixedly connected with first bearing seats (5), a screw rod (6) is fixedly connected to the inner side of each first bearing seat (5), threaded blocks (7) are respectively in threaded connection with the upper end and the lower end of the outer surface of the screw rod (6), connecting rods (8) are respectively hinged to the opposite sides of the left threaded block and the right threaded block (7), the top of the frame (1) is movably connected with a protective cover (10) through mounting bolts (9), a driven wheel (11) is fixedly connected to the top of the screw rod (6), and a second bearing seat (12) located inside the protective cover (10) is fixedly connected to the center of the top of the frame (1), the inboard fixedly connected with pivot (13) of second bearing frame (12), the equal fixedly connected with action wheel (14) in upper and lower both ends of pivot (13) surface, the surface swing joint of action wheel (14) has drive belt (15) that are located from driving wheel (11) surface, the top fixedly connected with hand wheel (16) of pivot (13).

2. A holder for processing a crystal member according to claim 1, wherein: the left and right sides at both ends all has seted up the spout about frame (1), slider (4) are located the inside of spout and with spout sliding connection.

3. A holder for processing a crystal member according to claim 1, wherein: the rubber protective pad is fixedly connected to the inner portion of the groove (3), the groove (3) is in a ladder shape, and the upper end and the lower end of the clamping plate (2) are in sliding connection with the upper end and the lower end of the inner side of the frame (1) respectively.

4. A holder for processing a crystal member according to claim 1, wherein: the upper end and the lower end of the outer surface of the screw rod (6) are fixedly connected with threads in opposite directions, and the inner side of the thread block (7) is provided with a thread groove matched with the threads on the outer surface of the screw rod (6).

5. A holder for processing a crystal member according to claim 1, wherein: one end of the connecting rod (8), which is far away from the thread block (7), is hinged with the side wall of the clamping plate (2), and the top of the screw rod (6) penetrates through and extends into the protective cover (10).

6. A holder for processing a crystal member according to claim 1, wherein: the left driven wheel (11) and the top driving wheel (14) are located on the same horizontal straight line, and the right driven wheel (11) and the bottom driving wheel (14) are located on the same horizontal straight line.
