Auxiliary material mixing and feeding device for production of long-acting stain-resistant exterior wall latex paint Download PDFInfo
- Publication number
- CN214513922U CN214513922U CN202120359802.7U CN202120359802U CN214513922U CN 214513922 U CN214513922 U CN 214513922U CN 202120359802 U CN202120359802 U CN 202120359802U CN 214513922 U CN214513922 U CN 214513922U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- rotating shaft
- gear
- feeding
- fixing frame
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Mixers Of The Rotary Stirring Type (AREA)
- Coating Apparatus (AREA)
Abstract
本实用新型公开了一种长效耐污外墙乳胶漆生产用辅料混合加料装置，包括U形固定架，U形固定架的内顶面通过调节组件固定安装有固定板，固定板的下表面设置有两个加料组件，U形固定架的内底面转动安装有转轴一，转轴一上固定连接有搅拌桶；通过设置转盘，通过加料管将辅料导入至加料箱中，启动电机一，转轴二带动齿轮二进行旋转，利用齿轮一与齿轮二之间相啮合的关系，使转轴三带动转盘进行旋转，当通孔与出料管的出料口相对应时，加料箱中的加料管落入到搅拌桶中，转轴二带动搅拌辊对搅拌桶中的辅料进行混合，从而可以将辅料进行间歇性定量的投放，避免造成辅料加料过多或过少的情况发生，有利于提高乳胶漆的生产质量。
The utility model discloses an auxiliary material mixing and feeding device for the production of long-acting antifouling exterior wall latex paint, which comprises a U-shaped fixing frame. A fixing plate is fixedly installed on the inner top surface of the U-shaped fixing frame through an adjustment component. There are two feeding components. The inner bottom surface of the U-shaped fixing frame is rotatably installed with a rotating shaft 1, and a stirring barrel is fixedly connected to the rotating shaft 1. By setting the turntable, the auxiliary materials are introduced into the feeding box through the feeding pipe, and the motor 1 and the rotating shaft 2 are started. Drive the second gear to rotate, and use the meshing relationship between the first gear and the second gear to make the shaft three drive the turntable to rotate. When the through hole corresponds to the discharge port of the discharge pipe, the feeding pipe in the feeding box falls into the In the mixing bucket, the second rotating shaft drives the mixing roller to mix the auxiliary materials in the mixing bucket, so that the auxiliary materials can be intermittently and quantitatively added, avoiding the occurrence of excessive or too little auxiliary materials, which is conducive to improving the production of latex paint. quality.
Description
Technical Field
The utility model belongs to the technical field of mix feeding device, concretely relates to long-term resistant dirty outer wall emulsion paint production mixes feeding device with auxiliary material.
Background
The emulsion paint is a water-based paint prepared by adding pigment, filler and various additives into a synthetic resin emulsion serving as a base material, is also called a synthetic resin emulsion paint, is one of organic paints, is called a water-based paint by taking water as a solvent or a dispersion medium, comprises three types of water-soluble paint, water-dilutable paint and water-dispersible paint (latex paint), and various auxiliary materials need to be mixed by a feeding device in the production process of the emulsion paint.
Feeding device among the prior art simple structure, the function is single, and the auxiliary material can directly fall from the feed opening when the unloading, and the auxiliary material volume that falls is uncontrollable, influences the production quality of emulsion paint.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a long-term resistant dirty outer wall emulsion paint production is with auxiliary material mixing feeding device to solve the problem that provides in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a long-acting stain-resistant auxiliary material mixing and feeding device for production of exterior wall latex paint comprises a U-shaped fixing frame, wherein a fixing plate is fixedly arranged on the inner top surface of the U-shaped fixing frame through an adjusting assembly, two feeding assemblies are arranged on the lower surface of the fixing plate, a first rotating shaft is rotatably arranged on the inner bottom surface of the U-shaped fixing frame, a first stirring barrel is fixedly connected to the first rotating shaft, a first motor is fixedly arranged on the lower surface of the fixing plate, a second rotating shaft is fixedly connected to the end portion of an output shaft of the first motor and is located inside the stirring barrel, a plurality of stirring rollers are fixedly connected to the second rotating shaft, the feeding assemblies comprise a feeding box, a first gear, a third rotating shaft and a turntable, the top of the feeding box is fixedly connected with the lower surface of the fixing plate, the side surface of the feeding box is communicated with a feeding pipe, the bottom of the feeding box is communicated with a material guide pipe, the top of the third rotating shaft is rotatably connected with the bottom of the feeding box, the stirring device comprises a stirring barrel, a gear I, a gear II, a turntable, a through hole, a material guide pipe and a valve, wherein the gear I is fixedly connected to a rotating shaft III, the rotating shaft II is fixedly connected with the gear II, the gear I is meshed with the gear II, the turntable is fixedly connected to the rotating shaft III, the turntable is provided with a through hole matched with the material guide pipe discharging hole, the side surface of the stirring barrel is communicated with the material discharging pipe, and the valve is fixedly mounted on the pipe section of the material discharging pipe.
Adopt above-mentioned scheme, through setting up the carousel, it is leading-in to the reinforced case with the auxiliary material through the filling tube, starter motor one, two drive gear two of pivot are rotatory, utilize the engaged relation between gear one and the gear two, it is rotatory to make three drive carousels of pivot rotate, when the discharge gate of through-hole and discharging pipe corresponds, the filling tube in the reinforced case falls into the agitator, two drive stirring roller of pivot mix the auxiliary material in to the agitator, thereby can carry out intermittent type nature quantitative input with the auxiliary material, avoid causing the reinforced too much or too little condition of auxiliary material to take place, be favorable to improving the production quality of emulsion paint.
As a preferable embodiment, a fixing rod is fixedly connected to the second rotating shaft, an L-shaped scraper is fixedly connected to the fixing rod, and the L-shaped scraper is in contact with the inner wall surface of the stirring barrel.
By adopting the scheme, the two rotating shafts drive the L-shaped scraper blades to rotate through the L-shaped scraper blades, the L-shaped scraper blades can scrape the inner wall surface and the inner bottom surface of the stirring barrel, the phenomenon that auxiliary materials are remained in the stirring barrel to cause waste is avoided, and the practicability of the device is improved.
As a preferred embodiment, the adjusting component comprises a sliding rod, a rack, a half gear and two first sliding blocks, a second motor is fixedly mounted on the inner top surface of the U-shaped fixing frame, a fourth rotating shaft is rotatably mounted inside the U-shaped fixing frame, the top of the fourth rotating shaft penetrates through the inner top surface of the U-shaped fixing frame and is fixedly connected with the end portion of an output shaft of the second motor, the half gear is fixedly mounted on the fourth rotating shaft, a sliding groove is formed in the inner top surface of the U-shaped fixing frame, the sliding rod is fixedly mounted inside the sliding groove, the two first sliding blocks slide on the sliding rod, the first sliding block is fixedly connected with a fixing plate, one end of the rack is fixedly connected with the fixing plate, a spring is fixedly connected to the inner wall surface of the U-shaped fixing frame, and one end of the spring is fixedly connected with the rack.
Adopt above-mentioned scheme, through setting up rack and half-gear, starter motor two, pivot four drive half-gear and rotate, utilize the relation of meshing mutually between rack and the half-gear, the fixed plate drives slider one and moves right on the slide bar, when rack and half-gear separation, utilize the elasticity of spring, reset the rack, motor one drives the inside of stirring roller in the agitator and carries out reciprocating motion about, thereby can make more abundant of auxiliary material stirring, be favorable to improving the production quality of emulsion paint.
In the above scheme, it should be noted that the first motor and the second motor are both electrically connected to an external power supply.
As a preferred embodiment, an expansion link is fixedly connected to an inner wall surface of the U-shaped fixing frame, one end of the expansion link is fixedly connected to the rack, the other end of the expansion link is fixedly connected to the inner wall surface of the U-shaped fixing frame, and the spring is sleeved on the expansion link.
By adopting the scheme, the telescopic rod can limit the position of the rack, ensure that the rack is always meshed with the semi-gear, and improve the stability of the device.
As a preferred embodiment, a first belt pulley is fixedly connected to the fourth rotating shaft, a second belt pulley is fixedly connected to the stirring barrel, and the first belt pulley and the second belt pulley are in transmission connection through a belt.
Adopt above-mentioned scheme, through setting up belt pulley one and belt pulley two, the pivot four drive belt pulley one rotatory, utilize the transmission relation between belt pulley one and the belt pulley two, belt pulley two drive the agitator and do the motion opposite with the stirring roller to can make more abundant of auxiliary material stirring, be favorable to improving the production quality of emulsion paint.
As a preferred embodiment, an annular groove is formed in the inner bottom surface of the U-shaped fixing frame, a plurality of second sliding blocks are fixedly connected to the lower surface of the stirring barrel, and the second sliding blocks are slidably mounted inside the annular groove.
By adopting the scheme, the second sliding block is arranged, the second sliding block is driven by the stirring barrel to rotate in the annular groove, and the stability of the stirring barrel in the rotating process is improved.
Compared with the prior art, the beneficial effects of the utility model are that:
the auxiliary material mixing and feeding device for producing the long-acting stain-resistant exterior wall emulsion paint is characterized in that a turntable is arranged, auxiliary materials are guided into a feeding box through a feeding pipe, a first motor is started, a second gear is driven by a second rotating shaft to rotate, the first gear and the second gear are meshed, the third rotating shaft drives the turntable to rotate, when a through hole corresponds to a discharge hole of a discharge pipe, the feeding pipe in the feeding box falls into a stirring barrel, and the second rotating shaft drives a stirring roller to mix the auxiliary materials in the stirring barrel, so that the auxiliary materials can be intermittently and quantitatively fed, the situation that the auxiliary materials are too much or too little is avoided, and the production quality of the emulsion paint is improved;
this long-term resistant dirty outer wall emulsion paint production is with auxiliary material mixing feeding device, through setting up rack and half-gear, starter motor two, the fourth drive half-gear of pivot is rotatory, utilize the engaged with relation between rack and the half-gear, the fixed plate drives slider one and moves right on the slide bar, when rack and half-gear separation, utilize the elasticity of spring, reset the rack, reciprocating motion about the inside of a motor drive stirring roller in the agitator carries out, thereby can make more abundant of auxiliary material stirring, be favorable to improving the production quality of emulsion paint.
Drawings

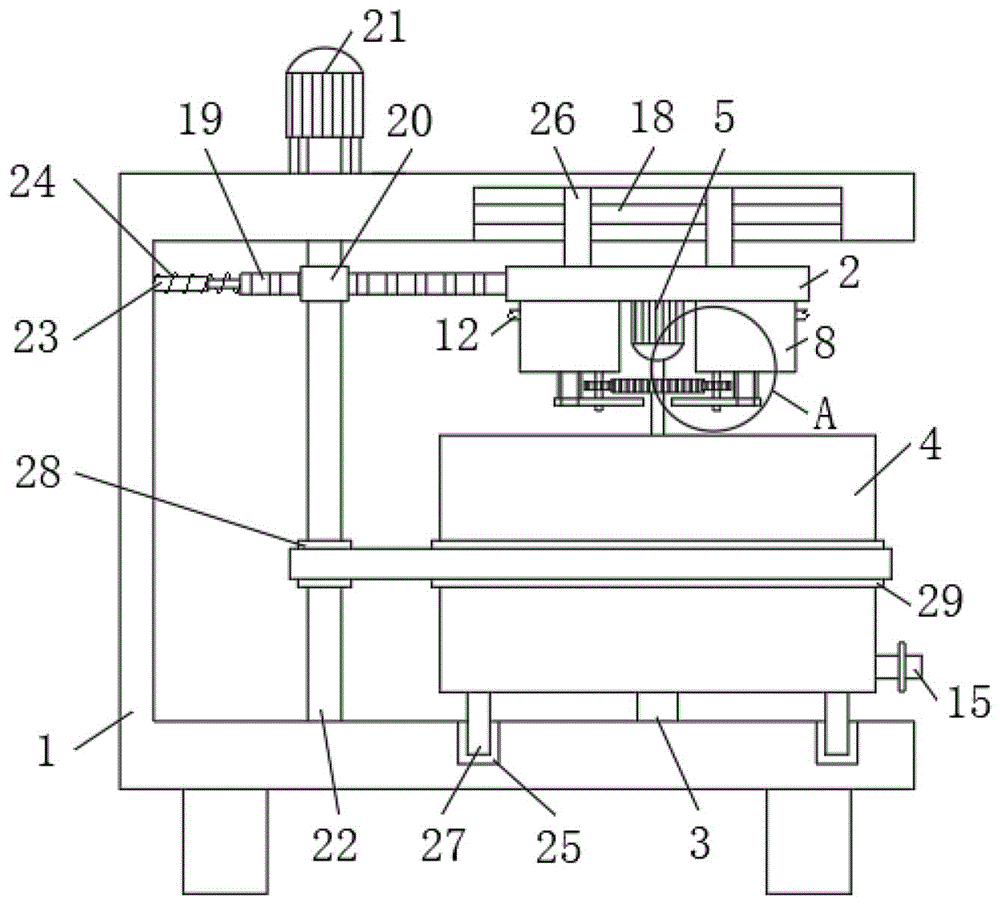

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the structure A of the present invention;
fig. 3 is a top view of the turntable of the present invention;
fig. 4 is a sectional view of the mixing tank of the present invention.
In the figure: 1. a U-shaped fixing frame; 2. a fixing plate; 3. a first rotating shaft; 4. a stirring barrel; 5. a first motor; 6. a second rotating shaft; 7. a stirring roller; 8. a feed box; 9. a first gear; 10. a rotating shaft III; 11. a turntable; 12. a feed tube; 13. a material guide pipe; 14. a second gear; 15. a discharge pipe; 16. fixing the rod; 17. an L-shaped scraper; 18. a slide bar; 19. a rack; 20. a half gear; 21. a second motor; 22. a rotating shaft IV; 23. a telescopic rod; 24. a spring; 25. an annular groove; 26. a first sliding block; 27. a second sliding block; 28. a first belt pulley; 29. and a second belt pulley.
Detailed Description
The present invention will be further described with reference to the following examples.
The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention. The condition in the embodiment can be further adjusted according to concrete condition the utility model discloses a it is right under the design prerequisite the utility model discloses a simple improvement of method all belongs to the utility model discloses the scope of claiming.
Referring to fig. 1-4, the utility model provides a long-acting stain-resistant auxiliary material mixing and feeding device for exterior wall latex paint production, which comprises a U-shaped fixing frame 1, wherein a fixing plate 2 is fixedly arranged on the inner top surface of the U-shaped fixing frame 1 through an adjusting component, two feeding components are arranged on the lower surface of the fixing plate 2, a first rotating shaft 3 is rotatably arranged on the inner bottom surface of the U-shaped fixing frame 1, a first stirring barrel 4 is fixedly connected on the first rotating shaft 3, a first motor 5 is fixedly arranged on the lower surface of the fixing plate 2, a second rotating shaft 6 is fixedly connected on the end part of an output shaft of the first motor 5, the second rotating shaft 6 is positioned in the stirring barrel 4, a plurality of stirring rollers 7 are fixedly connected on the second rotating shaft 6, the feeding components comprise a feeding box 8, a first gear 9, a third rotating shaft 10 and a turntable 11, the top of the feeding box 8 is fixedly connected with the lower surface of the fixing plate 2, the side surface of the feeding box 8 is communicated with a feeding pipe 12, the bottom of the feeding box 8 is communicated with a material guide pipe 13, the top of a rotating shaft III 10 is rotatably connected with the bottom of the feeding box 8, a gear I9 is fixedly connected to the rotating shaft III 10, a gear II 14 is fixedly connected to a rotating shaft II 6, the gear I9 is meshed with the gear II 14, a rotary disc 11 is fixedly connected to the rotating shaft III 10, a through hole matched with a discharging opening of the material guide pipe 13 is formed in the rotary disc 11, a discharging pipe 15 is communicated with the side surface of the stirring barrel 4, and a valve is fixedly mounted on a pipe section of the discharging pipe 15; through setting up carousel 11, it is leading-in to the charging box 8 with the auxiliary material through charging tube 12, a starter motor 5, two 6 drive gears two 14 of pivot are rotatory, utilize the relation of meshing mutually between gear 9 and the two 14 gears, it is rotatory to make three 10 drive carousel 11 of pivot, when the discharge gate of through-hole and discharging pipe 15 corresponds, charging tube 12 in the charging box 8 falls into agitator 4, two 6 drive stirring roller 7 of pivot mix the auxiliary material in the agitator 4, thereby can carry out intermittent type nature quantitative input with the auxiliary material, avoid causing the reinforced too much or too little condition of auxiliary material to take place, be favorable to improving the production quality of emulsion paint.
In the utility model, a fixed rod 16 is fixedly connected to the second rotating shaft 6, an L-shaped scraper 17 is fixedly connected to the fixed rod 16, and the L-shaped scraper 17 is in contact with the inner wall surface of the stirring barrel 4; through setting up L shape scraper blade 17, two 6 drive L shape scraper blades 17 rotations of pivot, L shape scraper blade 17 can strike off 4 internal face of agitator and interior bottom surface, and it causes extravagant condition to take place to avoid remaining the auxiliary material on the inside of agitator 4, has improved the device's practicality.
The utility model discloses in, the adjusting part includes slide bar 18, rack 19, half gear 20 and two sliders one 26, the interior top surface fixed mounting of U-shaped mount 1 has motor two 21, the inside rotation of U-shaped mount 1 installs pivot four 22, the top of pivot four 22 passes the interior top surface of U-shaped mount 1 and with motor two 21 output shaft end fixed connection, half gear 20 fixed mounting is on pivot four 22, the spout has been seted up to the interior top surface of U-shaped mount 1, slide bar 18 fixed mounting is in the inside of spout, two sliders one 26 all slide on slide bar 18, slider one 26 and fixed plate 2 fixed connection, one end and fixed plate 2 fixed connection of rack 19, the internal face fixed connection of U-shaped mount 1 has spring 24, one end and rack 19 fixed connection of spring 24; through setting up rack 19 and half-gear 20, starter motor two 21, pivot four 22 drives half-gear 20 and rotates, utilize the engaged relation between rack 19 and the half-gear 20, fixed plate 2 drives slider 26 and moves right on slide bar 18, when rack 19 and half-gear 20 separate, utilize spring 24's elasticity, reset rack 19, motor one 5 drives the inside of stirring roller 7 in agitator 4 and carries out reciprocating motion about, thereby can make more abundant of auxiliary material stirring, be favorable to improving the production quality of emulsion paint.
In the utility model, the inner wall surface of the U-shaped fixing frame 1 is fixedly connected with a telescopic rod 23, one end of the telescopic rod 23 is fixedly connected with the rack 19, the other end of the telescopic rod 23 is fixedly connected with the inner wall surface of the U-shaped fixing frame 1, and a spring 24 is sleeved on the telescopic rod 23; through setting up telescopic link 23, telescopic link 23 can carry out the position to the rack 19 and prescribe a limit to, ensures rack 19 and half-gear 20 mesh mutually all the time, has improved the device's stability.
In the utility model, a first belt pulley 28 is fixedly connected to the fourth rotating shaft 22, a second belt pulley 29 is fixedly connected to the stirring barrel 4, and the first belt pulley 28 and the second belt pulley 29 are connected through belt transmission; through setting up belt pulley 28 and belt pulley two 29, pivot four 22 drive belt pulley 28 is rotatory, utilizes the transmission relation between belt pulley 28 and belt pulley two 29, and belt pulley two 29 drives agitator 4 and makes the motion opposite with stirring roller 7 to can make the auxiliary material stirring more abundant, be favorable to improving the production quality of emulsion paint.
In the utility model, the inner bottom surface of the U-shaped fixing frame 1 is provided with a ring groove 25, the lower surface of the stirring barrel 4 is fixedly connected with a plurality of second sliding blocks 27, and the second sliding blocks 27 are slidably arranged in the ring groove 25; through setting up two slider 27, agitator 4 drives two slider 27 and rotates in the inside of ring channel 25, is favorable to improving the stability of the rotatory process kind of agitator 4.
In conclusion, when the auxiliary material mixing and feeding device for producing the long-acting stain-resistant exterior wall emulsion paint is used, auxiliary materials are guided into the feeding box 8 through the feeding pipe 12, the motor I5 is started, the rotating shaft II 6 drives the gear II 14 to rotate, the rotating shaft III 10 drives the rotating disc 11 to rotate by utilizing the meshed relation between the gear I9 and the gear II 14, when the through hole corresponds to the discharge hole of the discharge pipe 15, the feeding pipe 12 in the feeding box 8 falls into the stirring barrel 4, the rotating shaft II 6 drives the stirring roller 7 to mix the auxiliary materials in the stirring barrel 4, so that the auxiliary materials can be intermittently and quantitatively fed, the situation that the auxiliary materials are too much or too little fed is avoided, the production quality of the emulsion paint is favorably improved, the motor II 21 is started, the rotating shaft IV 22 drives the half gear 20 to rotate, and the meshed relation between the rack 19 and the half gear 20 is utilized, the fixed plate 2 drives the first sliding block 26 to move rightwards on the sliding rod 18, when the rack 19 is separated from the half gear 20, the rack 19 is reset by using the elastic force of the spring 24, the first motor 5 drives the stirring roller 7 to reciprocate leftwards and rightwards in the stirring barrel 4, meanwhile, the fourth rotating shaft 22 drives the first belt pulley 28 to rotate, and by using the transmission relation between the first belt pulley 28 and the second belt pulley 29, the second belt pulley 29 drives the stirring barrel 4 to move opposite to the stirring roller 7, so that auxiliary materials can be stirred more fully, the production quality of emulsion paint is improved, the telescopic rod 23 can limit the position of the rack 19, the rack 19 is ensured to be always meshed with the half gear 20, the stability of the device is improved, the stirring barrel 4 drives the second sliding block 27 to rotate in the annular groove 25, and the stability of the stirring barrel 4 in the rotating process is improved.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a long-term resistant dirty outer wall emulsion paint production is with auxiliary material mixing feeding device, includes U-shaped mount (1), its characterized in that: a fixed plate (2) is fixedly mounted on the inner top surface of the U-shaped fixed frame (1) through an adjusting assembly, two feeding assemblies are arranged on the lower surface of the fixed plate (2), a first rotating shaft (3) is rotatably mounted on the inner bottom surface of the U-shaped fixed frame (1), a stirring barrel (4) is fixedly connected to the first rotating shaft (3), a first motor (5) is fixedly mounted on the lower surface of the fixed plate (2), a second rotating shaft (6) is fixedly connected to the end portion of an output shaft of the first motor (5), the second rotating shaft (6) is located inside the stirring barrel (4), and a plurality of stirring rollers (7) are fixedly connected to the second rotating shaft (6);
the feeding assembly comprises a feeding box (8), a first gear (9), a third rotating shaft (10) and a rotary table (11), the top of the feeding box (8) is fixedly connected with the lower surface of a fixed plate (2), the side surface of the feeding box (8) is communicated with a feeding pipe (12), the bottom of the feeding box (8) is communicated with a material guide pipe (13), the top of the third rotating shaft (10) is rotatably connected with the bottom of the feeding box (8), the first gear (9) is fixedly connected onto the third rotating shaft (10), the second rotating shaft (6) is fixedly connected with a second gear (14), the first gear (9) is meshed with the second gear (14), the rotary table (11) is fixedly connected onto the third rotating shaft (10), a through hole matched with a feeding hole of the material guide pipe (13) is formed in the rotary table (11), and a discharging pipe (15) is communicated with the side surface of the stirring barrel (4), and a valve is fixedly arranged on the pipe section of the discharge pipe (15).
2. The auxiliary material mixing and feeding device for the production of the long-acting stain-resistant exterior wall latex paint according to claim 1, characterized in that: a fixing rod (16) is fixedly connected to the second rotating shaft (6), an L-shaped scraper (17) is fixedly connected to the fixing rod (16), and the L-shaped scraper (17) is in contact with the inner wall surface of the stirring barrel (4).
3. The auxiliary material mixing and feeding device for the production of the long-acting stain-resistant exterior wall latex paint according to claim 1, characterized in that: the adjusting assembly comprises a sliding rod (18), a rack (19), a half gear (20) and two first sliding blocks (26), a second motor (21) is fixedly installed on the inner top surface of the U-shaped fixing frame (1), a fourth rotating shaft (22) is rotatably installed inside the U-shaped fixing frame (1), the top of the fourth rotating shaft (22) penetrates through the inner top surface of the U-shaped fixing frame (1) and is fixedly connected with the end part of an output shaft of the second motor (21), the half gear (20) is fixedly installed on the fourth rotating shaft (22), a sliding groove is formed in the inner top surface of the U-shaped fixing frame (1), the sliding rod (18) is fixedly installed inside the sliding groove, the two first sliding blocks (26) slide on the sliding rod (18), the first sliding blocks (26) are fixedly connected with the fixing plate (2), one end of the rack (19) is fixedly connected with the fixing plate (2), and a spring (24) is fixedly connected to the inner wall surface of the U-shaped fixing frame (1), one end of the spring (24) is fixedly connected with the rack (19).
4. The long-acting stain-resistant outer wall latex paint production auxiliary material mixing and feeding device according to claim 3, characterized in that: the inner wall surface of the U-shaped fixing frame (1) is fixedly connected with a telescopic rod (23), one end of the telescopic rod (23) is fixedly connected with the rack (19), the other end of the telescopic rod (23) is fixedly connected with the inner wall surface of the U-shaped fixing frame (1), and the spring (24) is sleeved on the telescopic rod (23).
5. The long-acting stain-resistant outer wall latex paint production auxiliary material mixing and feeding device according to claim 3, characterized in that: fixedly connected with belt pulley (28) on pivot four (22), fixedly connected with belt pulley two (29) on agitator (4), belt pulley one (28) and belt pulley two (29) are connected through belt transmission.
6. The auxiliary material mixing and feeding device for the production of the long-acting stain-resistant exterior wall latex paint according to claim 1, characterized in that: an annular groove (25) is formed in the inner bottom surface of the U-shaped fixing frame (1), a plurality of second sliding blocks (27) are fixedly connected to the lower surface of the stirring barrel (4), and the second sliding blocks (27) are slidably mounted inside the annular groove (25).
