Abstract
本实用新型公开了一种中医护理用药物护理装置，包括护理装置本体和调温装置，所述调温装置底面设有USB接口，背面设有充电口，在所述调温装置正面安装有具有开关及调节功能的调温旋钮和LED温度显示屏，在所述调温装置内部安装有微型锂电池和控制芯片，控制芯片分别电连接LED温度显示屏和调温旋钮，调温旋钮电连接微型锂电池，微型锂电池电连接充电口，所述控制芯片还电连接USB接口；本实用新型便于拆装和更换前后艾草海盐袋及加热袋，并且加热袋与调温装置连接方便，便于操作，佩戴舒适，提高了护理功能。
The utility model discloses a medicine nursing device for traditional Chinese medicine nursing, which comprises a nursing device body and a temperature regulating device. The bottom surface of the temperature regulating device is provided with a USB interface and the back is provided with a charging port. The temperature adjustment knob and LED temperature display screen for switching and adjustment functions, a miniature lithium battery and a control chip are installed inside the temperature adjustment device, the control chip is electrically connected to the LED temperature display screen and the temperature adjustment knob respectively, and the temperature adjustment knob is electrically connected to the micro The lithium battery, the miniature lithium battery is electrically connected to the charging port, and the control chip is also electrically connected to the USB interface; the utility model is easy to disassemble and replace the front and rear wormwood sea salt bags and the heating bag, and the heating bag is convenient to connect with the temperature regulating device and easy to operate , It is comfortable to wear and improves the nursing function.
Description
Technical Field
The utility model relates to a nursing device specifically is a medicine nursing device for traditional chinese medical science nursing.
Background
The benefits of traditional Chinese medicine are many, and there are two simple words: the first point is the holistic concept, and the second point is treatment based on syndrome differentiation. Specifically, the holistic concept is to regard people as an organic whole, and many diseases are treated in a holistic way, so that many tortuous paths can be avoided, for example, arrhythmia does not occur well in the heart of a patient. If the arrhythmia is treated simply, the diseases of other organs such as blood pressure, kidney and the like can be ignored, and the arrhythmia is treated as an organic whole in a traditional Chinese medicine mode and can be treated comprehensively. The dialectical treatment is to treat a patient by one set of prescription without repetition, which is greatly different from the procedure of western medicine. Traditional Chinese medicine adopts a nursing waistband with traditional Chinese medicines when nursing the waist. However, the traditional Chinese medicine nursing waistband structure is fixed, so that the traditional Chinese medicine bag is not convenient to replace and place, and when the traditional Chinese medicine nursing waistband structure is used for heating nursing, the traditional Chinese medicine bag is not convenient to connect and place a heating device, and is inconvenient to use.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the traditional chinese medicine nursing waistband structure that exists among the prior art and fixing, be not convenient for change and place well cartridge bag, moreover when the heating nursing, be not convenient for connect and place heating device, use comparatively inconvenient shortcoming, and the traditional chinese medicine nursing device for nursing that proposes.
The utility model adopts the following technical scheme: a medicine nursing device for traditional Chinese medicine nursing comprises a nursing device body and a temperature adjusting device, wherein a USB interface is arranged on the bottom surface of the temperature adjusting device, a charging port is arranged on the back surface of the temperature adjusting device, a temperature adjusting knob and an LED temperature display screen which have a switch and an adjusting function are arranged on the front surface of the temperature adjusting device, a miniature lithium battery and a control chip are arranged in the temperature adjusting device, the control chip is respectively and electrically connected with the LED temperature display screen and the temperature adjusting knob, the temperature adjusting knob is electrically connected with the miniature lithium battery, the miniature lithium battery is electrically connected with the charging port, and the control chip is also electrically connected with the USB interface; the method is characterized in that: the nursing device body comprises a front shell and a rear shell, the front shell is arranged in a waist arc shape, the rear shell is installed on the back of the front shell, the front surface of the front shell is provided with a placing box with an opening top surface and a hinged cover, the front surface of the placing box is provided with an operation opening, the temperature regulating device is placed in the placing box, the front shell is provided with a shell edge along the circumference, a front wormwood sea salt bag and a heating bag are respectively installed in the front shell from front to back, and a rear wormwood sea salt bag is installed in the rear shell;
the fixing plates are of an integrated structure and are respectively a front shell fixing plate and a rear shell fixing plate, the surface of the rear shell fixing plate is provided with a vertically arranged stud, and the front shell fixing plate is provided with a screw hole for inserting the stud and is fixed through a flange nut.
Furthermore, a carrying handle is arranged on the top surface of the temperature adjusting device.
Furthermore, the bottom surface of the placing box is provided with a through port corresponding to the USB interface, and the front surface of the placing box is provided with a butt joint port corresponding to the charging port.
Furthermore, an insulating heating wire is arranged in the heating bag, and the input end and the output end of the insulating heating wire are electrically connected with a USB socket inserted on the USB interface through electric wires.
Furthermore, the shell is provided with a through hole penetrating through the USB socket along the bottom surface, and the rear shell is provided with a dressing opening.
Furthermore, a plurality of suede magic tapes are arranged at the upper end and the lower end of the front shell and the rear shell along the arc shape, and a plurality of stabbing magic tapes corresponding to the suede magic tapes are arranged at the front side of the front wormwood sea salt bag and the upper end and the lower end of the back side of the front wormwood sea salt bag and are mutually bonded.
Furthermore, zippers are arranged on the top surfaces of the front-positioned wormwood sea salt bag and the rear-positioned wormwood sea salt bag along the widths of the front-positioned wormwood sea salt bag and the rear-positioned wormwood sea salt bag.
Furthermore, a waistband is adhered to the rear shell fixing plate, and nylon pastes which are adhered to each other are arranged at the outer end of the waistband.
Furthermore, the upper end and the lower end of the rear shell are provided with clamping grooves used for being inserted into the shell edges along an arc shape.
The utility model discloses the beneficial effect who reaches is: fixed to traditional chinese medicine nursing waistband structure, be not convenient for change and place traditional chinese medicine package, when the heating nursing, be not convenient for connect and place heating device moreover, use comparatively inconvenient problem.
This application is installed through the spiro union between preceding shell and the backshell, and the convenience is respectively bonded the leading and rearmounted chinese mugwort sea salt bag of installation in the front shell back, because the shell is equipped with the shell in the front and passes through opening and electricity with the connecting wire when placing the heating bag and connect on attemperator, conveniently adjusts the temperature and operates, and the shell of placing that the shell openly was equipped with in the front conveniently places attemperator, can place in placing the rigidity or take out the use, convenient to use.
This nursing device is convenient for dismouting and change front and back chinese mugwort sea salt bag and heating bag to the heating bag is connected conveniently with attemperator, and the operation of being convenient for is worn comfortablely, has improved nursing function.
Drawings

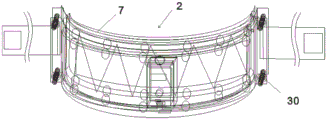

Fig. 1 is a schematic structural diagram of the present invention;

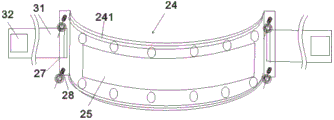

FIG. 2 is a schematic view of the front shell structure of the present invention;
FIG. 3 is a schematic view of the structure of the rear case of the present invention;
FIG. 4 is a schematic view of the structure of the preposed mugwort sea salt bag of the present invention;
fig. 5 is a schematic view of the heating bag of the present invention.
Fig. 6 is a schematic structural view of the temperature adjusting device of the present invention.
Fig. 7 is an electrical connection schematic of the present invention.
In the figure: temperature adjusting device 1, carry handle 11, USB interface 12, charge mouth 13, adjust temperature knob 14, LED temperature display screen 15, miniature lithium cell 16, control chip 17, nursing device body 2, preceding shell 21, shell edge 22, backshell 24, draw-in groove 241, apply mouthful 25, preceding shell fixed plate 26, backshell fixed plate 27, double-screw bolt 28, screw 29, place box 3, flange nut 30, waistband 31, nylon subsides 32, place box 4, flip 41, opening 42, interface 43, operation mouth 44, leading chinese mugwort sea salt bag 5, heating bag 6, insulating heating wire 61, USB socket 62, rearmounted chinese mugwort sea salt bag 7, zip fastener 71, matte magic subsides 72, thorn face magic subsides 73.
Detailed Description
Example one
Referring to fig. 1-7, the technical solution provided by the present invention is: the utility model provides a traditional chinese medical science nursing is with medicine nursing device, includes nursing device body and attemperator 1, 1 bottom surface of attemperator is equipped with USB interface 12 for the electricity is connected the heating bag 1 back of attemperator is equipped with charging mouth 13, conveniently charges for attemperator. The front surface of the temperature adjusting device 1 is provided with a temperature adjusting knob 14 with a switch and an adjusting function and an LED temperature display screen 15, and the temperature adjusted by the temperature adjusting knob can be displayed on the LED temperature, so that the temperature is conveniently controlled. The temperature adjusting device 1 is internally provided with a micro lithium battery 16 and a control chip 17, the control chip 17 is electrically connected with an LED temperature display screen 15 and a temperature adjusting knob 14 respectively, the temperature adjusting knob 14 is electrically connected with the micro lithium battery 16, the micro lithium battery 16 is electrically connected with a charging port 13, and the control chip 17 is also electrically connected with a USB interface 12. The types of the electric components are not limited, and for example, the control chip can adopt the type of EFM8SB10F8, and can be selected for use.
Fixed to the traditional chinese medicine nursing waistband structure among the prior art, be not convenient for change and place traditional chinese medicine package, moreover when the heating nursing, be not convenient for connect and place heating device, use comparatively inconvenient problem.
The innovation point of the application is that: nursing device body 2 is including the preceding shell 21 that accords with the waist arc setting and install the backshell 24 at the preceding shell 21 back, preceding shell 21 openly is equipped with the top surface opening and articulates and has the box 3 of placing of flip 31, attemperator 1 is placed and is being placed box 3, and it is convenient for to receive and put, preceding shell 21 is equipped with shell along 22 along its girth, and the thickness on shell edge can place the cartridge bag in inside and shell along closing on the backshell, and the backshell is opened there is recess and the draw-in groove that is used for inserting the shell edge. A front wormwood sea salt bag 5 and a heating bag 6 are respectively arranged in the front shell 21 from front to back, and a rear wormwood sea salt bag 7 is arranged in the rear shell 24; the preposed wormwood sea salt bag and the postpositive wormwood sea salt bag are arranged between the heating bags, so that the heating bags can uniformly heat to permeate the wormwood sea salt drug effect.
Fixing plates of an integrated structure are respectively arranged on two sides of the front shell 21 and the rear shell 24, namely a front shell fixing plate 26 and a rear shell fixing plate 27, a stud 28 arranged up and down is arranged on the surface of the rear shell fixing plate 26, and a screw hole 29 for inserting the stud is formed in the front shell fixing plate 26 and is fixed through a flange nut 30. The front shell and the rear shell can be combined into a whole, and the internally mounted traditional Chinese medicine bag is convenient to disassemble, assemble and replace.
In the first embodiment, as shown in fig. 6, a carrying handle 11 is disposed on the top surface of the temperature adjusting device 1. Is convenient to carry and take.
In the first embodiment, as shown in fig. 2, a through hole 42 corresponding to the USB port is formed in the bottom surface of the placing box 4 for facilitating electrical connection with the USB socket, and a mating port 43 corresponding to the charging port is formed in the front surface of the placing box 4. The external power supply is convenient to charge.
In the first embodiment, as shown in fig. 5, an insulated heating wire 61 is disposed inside the heating bag 6, and the input and output ends of the insulated heating wire 61 are electrically connected to a USB socket plugged on the USB port 12 through wires. The temperature of the frame hot bag can be adjusted through the temperature adjusting device.
In the first embodiment, as shown in fig. 2, the bottom surface of the shell 22 is provided with a through hole 23 penetrating through the USB socket, and the rear shell 24 is provided with a dressing 25. Is convenient for laying the waist.
In the first embodiment, as shown in fig. 4, a plurality of suede magic tapes are respectively disposed at the upper and lower ends of the front case and the rear case along the arc shape, and a plurality of stabbing magic tapes corresponding to the plurality of suede magic tapes are disposed at the upper and lower ends of the front side of the front moxa sea salt bag and the rear side of the rear moxa sea salt bag, and are adhered to each other. The rear-mounted and rear-mounted wormwood sea salt bags are convenient to replace respectively.
In the first embodiment, as shown in fig. 4, zippers 71 are installed on the top surfaces of the front and rear moxa roll seaweed bags 5 and 7 along the width thereof. The internal wormwood sea salt is convenient to replace.
In the first embodiment, as shown in fig. 3, a waist belt 31 is adhered to the rear housing fixing plate 27, and nylon tapes 32 adhered to each other are provided at the outer end of the waist belt. The waistband is adhered between the studs. Is convenient to be tied on the waist.
In the first embodiment, as shown in fig. 3, the upper end and the lower end of the rear shell are provided with a slot 241 along an arc shape for inserting the shell edge. The front shell can be conveniently spliced with the rear shell.
Further, the above-mentioned working principle lies in: the electric connection and the theory of operation of attemperator and heating tape explain, insert the USB interface that is equipped with at attemperator and realize the electricity and connect in USB socket, clockwise adjust for opening the power and turn up the temperature through the adjust temperature knob, otherwise for turning down the temperature and turning off the power, the number of degrees homoenergetic of regulation temperature is from LED temperature display screen upper temperature numerical value to guarantee heating temperature.
Example two
The structure of the present application is described with reference to the first embodiment and the drawings of the specification, and the mounting method of the present application is described below.
In the installation, a plurality of matte magic tapes are all arranged at the upper and lower ends in the front shell and the rear shell, because the front and the back of the front moxa sea salt bag and the rear moxa sea salt bag are provided with the thorn face magic tapes adhered on the matte magic tapes, when the front moxa sea salt bag is adhered in the front shell, because the front shell is provided with the shell edge, the heating bag is placed at the rear of the front moxa sea salt bag, the connecting wire connected with the insulating heating wire in the heating bag passes through the opening formed in the bottom surface of the shell edge and is provided with the USB socket, and after the front shell fixing plate and the rear shell fixing plate which are arranged on the front shell and the rear shell are fixed and fixed by the flange nut, the temperature regulating device is inserted on the USB socket. The electrical connection and operation of the temperature regulating device to the heating bag has been described in the first embodiment, thereby achieving heating of the heating bag.
EXAMPLE III
The structure of the present application and the mounting method of the present application are explained by way of example, and the use method of the present application is explained below.
In use, through with attemperator electrical connection on the heating bag and can place in placing the box or take out the operation, operate attemperator and heat the heating bag to make chinese mugwort sea salt bag open some applying between mouthful infiltration waist from the backshell, and connect at the waist through the waistband, conveniently wear.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
