CN214506965U

CN214506965U - Photovoltaic power generation board mounting bracket convenient to adjust

Info

Publication number: CN214506965U
Application number: CN202023272185.1U
Authority: CN
Inventors: 胡名龙; 朱金华
Original assignee: Shandong Institute for Product Quality Inspection
Current assignee: Shandong Institute for Product Quality Inspection
Priority date: 2020-12-30
Filing date: 2020-12-30
Publication date: 2021-10-26
Anticipated expiration: 2030-12-30

Abstract

The utility model discloses an easy-to-adjust photovoltaic power generation panel mounting frame, which comprises a whole installation frame, the whole installation frame includes a mounting panel, a support pipe and a base box, a motor is installed inside the base box, and one end of a first transmission gear meshes with a speed change gear , the other end of the transmission gear is meshed with the driving gear, the upper end of the support tube is sleeved with a cover, the lower end of the cover is fixedly welded with a first bearing, the second transmission gear is meshed with the tooth slot, the other end of the screw is provided with a sleeve, and the second connecting shaft A protruding limit ring is fixedly installed on the surface at the position of the annular groove, and the second connecting shaft is movably engaged with the annular groove through the protruding limit ring. The installation panel can be rotated around the support tube. When the direction of the sun deviates, by changing the direction of the installation panel, the photovoltaic panel can always be exposed to sunlight. For sunlight, the photoelectric conversion efficiency of photovoltaic panels is further improved.

Description

Photovoltaic power generation board mounting bracket convenient to adjust

Technical Field

The utility model relates to a photovoltaic installation technical field, more specifically say, in particular to photovoltaic power generation board mounting bracket convenient to adjust.

Background

The solar photovoltaic power generation system is a novel power generation system which directly converts solar radiation energy into electric energy by utilizing the photovoltaic effect of a solar cell semiconductor material, and is safe, reliable and pollution-free. When the solar rays vertically irradiate the efficient solar photovoltaic panel mounting frame surface, the utilization efficiency of the solar energy is the highest. In practice, the oblique angle of solar light irradiation changes every day from early morning to late afternoon along with the time, however, the traditional efficient solar photovoltaic panel mounting frame is fixed after being mounted and can only be towards one direction, when the sun shifts to be aligned with the efficient solar photovoltaic panel mounting frame, the better electro-optic conversion efficiency can be achieved, the lighting efficiency of the efficient solar photovoltaic panel mounting frame is lower, and therefore the generated energy is low.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a photovoltaic power generation board mounting bracket convenient to adjust the direction can improve the photoelectric conversion efficiency of photovoltaic board.

In order to achieve the above purpose, the utility model adopts the following technical scheme: a photovoltaic power generation panel mounting frame convenient to adjust comprises a mounting frame body, wherein the mounting frame body comprises a mounting panel, a supporting tube and a base box, the supporting tube is fixedly mounted on the upper surface of the base box, a motor is mounted inside the base box, a driving gear is mounted on an output shaft of the motor, a bearing seat is fixedly mounted on the bottom surface of the inner part of the base box corresponding to the lower position of the supporting tube, a transmission rod is inserted into an inner ring of the bearing seat, one end of the transmission rod is movably inserted into the supporting tube, a first transmission gear is fixedly sleeved in the surface of the transmission rod in the base box, a speed change gear is mounted adjacent to the first transmission gear in the base box, the first transmission gear is meshed with one end of the speed change gear, the other end of the speed change gear is meshed with the driving gear, a cover is sleeved on the upper end of the supporting tube, a first bearing is fixedly welded at the lower end of the cover, a tooth groove is formed in the inner ring of the cover, the utility model discloses a bearing, including the transfer line, the transfer line upper end fixed mounting has second drive gear, second drive gear and tooth's socket meshing, installation panel one side surface middle part fixed mounting has the protrusion piece, and protrusion piece middle part activity is articulated installs first connecting axle, and the first connecting axle other end welds with first bearing fixed surface, the installation panel is located the lower extreme activity of protrusion piece side surface and articulates and installs the screw rod, and the screw rod other end is provided with the sleeve pipe, and the sleeve pipe passes through the internal thread to be connected with the screw rod cooperation, and second bearing surface activity articulates has the second connecting axle, and the second connecting axle other end is inserted and is located the cover intraductally, the annular groove has been seted up to sleeve pipe one end inner wall, the fixed mounting that second connecting axle surface lies in annular groove position has protrusion spacing ring, and the second connecting axle is through protrusion spacing ring and annular groove activity block.

Preferably, the mounting panel opposite side surface has been seted up the mounting groove, is provided with the photovoltaic board in the mounting groove, the spacing groove has been seted up to the photovoltaic board lower extreme, mounting groove basal surface fixed mounting has the limiting plate, and the limiting plate is inserted and is located the spacing inslot, the knob bolt is installed to the mounting panel upper end, the photovoltaic board upper end is seted up threaded hole corresponding to knob bolt position, and the photovoltaic board passes through the screw hole and is connected with knob bolt cooperation.

Preferably, the surface of the support tube is fixedly provided with a first spacing ring and a second spacing ring at positions below the first bearing and the second bearing respectively.

Compared with the prior art, the utility model has the advantages of:

the installation panel can rotate round the stay tube, and when the sun direction squinted, through the direction that changes the installation panel, can make the photovoltaic board contact sunshine constantly, can adjust the gradient of installation panel through rotating the sleeve pipe, can make the photovoltaic board just to sunshine, further improved the photoelectric conversion efficiency of photovoltaic board.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

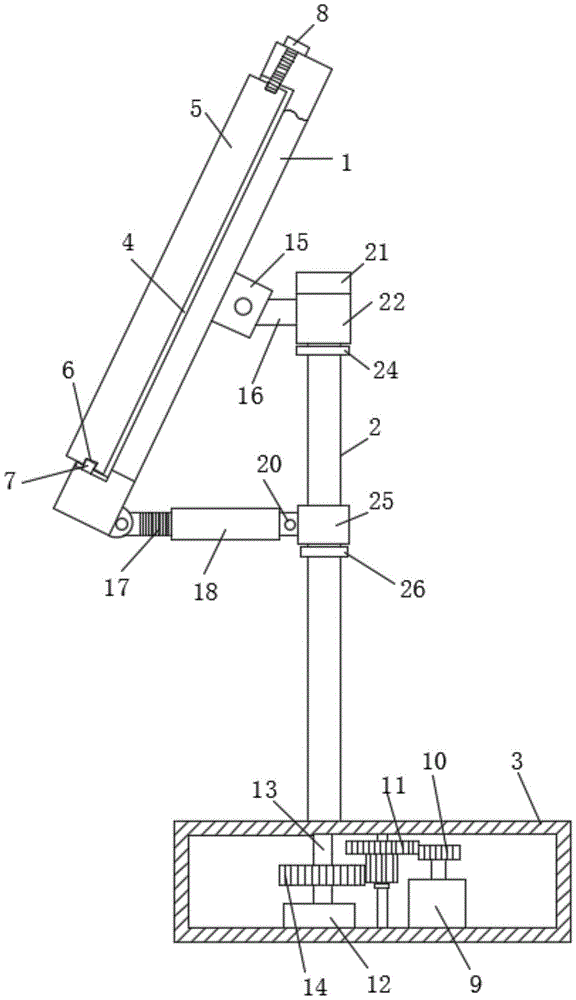

Fig. 1 is a structural view of a photovoltaic panel mounting bracket of the present invention that is easy to adjust;

fig. 2 is a cross-sectional view of the support tube of the present invention;

fig. 3 is a cross-sectional view of the sleeve of the present invention.

In the figure: the photovoltaic module comprises an installation panel 1, a support tube 2, a base box 3, a mounting groove 4, a photovoltaic panel 5, a limiting groove 6, a limiting plate 7, a knob bolt 8, a motor 9, a driving gear 10, a change gear 11, a bearing seat 12, a transmission rod 13, a first transmission gear 14, a protruding block 15, a first connecting shaft 16, a screw rod 17, a sleeve 18, an annular groove 19, a second connecting shaft 20, a cover 21, a first bearing 22, a second transmission gear 23, a first limiting ring 24, a second bearing 25, a second limiting ring 26 and a protruding limiting ring 27.

Detailed Description

The preferred embodiments of the present invention will be described in detail below with reference to the accompanying drawings, so that the advantages and features of the present invention can be more easily understood by those skilled in the art, and the scope of the present invention can be more clearly and clearly defined.

Referring to fig. 1, 2 and 3, the utility model provides a photovoltaic power generation panel mounting bracket convenient to adjust, which comprises a mounting bracket whole body, the mounting bracket whole body comprises a mounting panel 1, a supporting tube 2 and a base box 3, the supporting tube 2 is fixedly arranged on the upper surface of the base box 3, a motor 9 is arranged inside the base box 3, a driving gear 10 is arranged on the output shaft of the motor 9, a bearing seat 12 is fixedly arranged on the bottom surface inside the base box 3 corresponding to the lower position of the supporting tube 2, a transmission rod 13 is inserted in the inner ring of the bearing seat 12, one end of the transmission rod 13 is movably inserted in the supporting tube 2, a first transmission gear 14 is fixedly sleeved on the surface of the transmission rod 13 inside the base box 3, a speed change gear 11 is arranged adjacent to the first transmission gear 14 inside the base box 3, the first transmission gear 14 is engaged with one end of the speed change gear 11, the other end of the speed change gear 11 is engaged with the driving gear 10, the upper end of the supporting tube 2 is sleeved with a cover 21, the lower end of the cover 21 is fixedly welded with a first bearing 22, a tooth groove is formed in the inner ring of the cover 21, a second transmission gear 23 is fixedly installed at the upper end of the transmission rod 13, the second transmission gear 23 is meshed with the tooth groove, a convex block 15 is fixedly installed in the middle of one side surface of the installation panel 1, a first connecting shaft 16 is movably hinged in the middle of the convex block 15, the other end of the first connecting shaft 16 is fixedly welded with the surface of the first bearing 22, a screw rod 17 is movably hinged at the lower end of the surface of one side of the convex block 15 of the installation panel 1, a sleeve 18 is arranged at the other end of the screw rod 17, the sleeve 18 is matched and connected with the screw rod 17 through internal threads, a second connecting shaft 20 is movably hinged on the surface of the second bearing 25, the other end of the second connecting shaft 20 is inserted into the sleeve 18, an annular groove 19 is formed in the inner wall of one end of the sleeve 18, and a convex limit ring 27 is fixedly installed on the surface of the second connecting shaft 20 at the position of the annular groove 19, the second connecting shaft 20 is movably clamped with the annular groove 19 through a protruding limiting ring 27.

In this embodiment, mounting groove 4 has been seted up to 1 opposite side surface of installation panel, be provided with photovoltaic board 5 in the mounting groove 4, spacing groove 6 has been seted up to 5 lower extremes of photovoltaic board, 4 basal surface fixed mounting in mounting groove have limiting plate 7, limiting plate 7 is inserted and is located spacing inslot 6, knob bolt 8 is installed to 1 upper end of installation panel, photovoltaic board 5 upper end is seted up threaded hole corresponding to knob bolt 8 position, photovoltaic board 5 is connected with knob bolt 8 cooperation through the screw hole, can make things convenient for the quick dismantlement installation of photovoltaic board 5 through knob bolt 8.

In this embodiment, the first and

second spacing rings

24 and 26 are respectively and fixedly mounted on the surface of the support tube 2 at positions below the first and

second bearings

22 and 25, so as to effectively prevent the first and

second bearings

22 and 25 from sliding downwards.

The working principle is as follows: drive change gear 11 through motor 9 and rotate, can make transfer line 13 take place to rotate, when transfer line 13 rotated, through the tooth's socket meshing of second drive gear 23 with housing 21, housing 21 can send the rotation this moment to make mounting panel 1 can rotate round supporting tube 2, can adjust the gradient of mounting panel 1 through rotating sleeve 18.

Although the embodiments of the present invention have been described with reference to the accompanying drawings, various changes and modifications can be made by the owner within the scope of the appended claims, and the protection scope of the present invention should not be exceeded by the claims.

Claims

1. An easy-to-adjust photovoltaic power generation panel mounting frame, comprising an entire mounting frame, and the entire mounting frame includes a mounting panel (1), a support tube (2) and a base box (3), characterized in that: the support tube (2) It is fixedly installed on the upper surface of the base box (3), a motor (9) is installed inside the base box (3), a driving gear (10) is installed on the output shaft of the motor (9), and the base box (3) A bearing seat (12) is fixedly installed on the inner bottom surface corresponding to the position below the support pipe (2), a transmission rod (13) is inserted in the inner ring of the bearing seat (12), and one end of the transmission rod (13) is movably inserted into the support pipe (12). 2), the surface of the transmission rod (13) is fixedly sleeved with a first transmission gear (14) in the base box (3), and a first transmission gear (14) is installed inside the base box (3) adjacent to the position of the first transmission gear (14). A transmission gear (11), the first transmission gear (14) meshes with one end of the transmission gear (11), the other end of the transmission gear (11) meshes with the driving gear (10), and the upper end of the support pipe (2) is sleeved with a A cover (21), a first bearing (22) is fixedly welded at the lower end of the cover (21), a tooth slot is formed in the inner ring of the cover (21), and a second transmission gear is fixedly mounted on the upper end of the transmission rod (13). (23), the second transmission gear (23) is engaged with the tooth slot, a protruding block (15) is fixedly installed in the middle part of one side surface of the installation panel (1), and the middle part of the protruding block (15) is hingedly installed with a protruding block (15). The first connecting shaft (16), the other end of the first connecting shaft (16) is fixedly welded to the surface of the first bearing (22), and the mounting panel (1) is located at the lower end of the side surface of the protruding block (15) in a living hinged installation There is a screw (17), the other end of the screw (17) is provided with a sleeve (18), the sleeve (18) is connected with the screw (17) through an internal thread, and a second connecting shaft is hinged on the surface of the second bearing (25) (20), the other end of the second connecting shaft (20) is inserted into the sleeve (18), the inner wall of one end of the sleeve (18) is provided with an annular groove (19), and the second connecting shaft (20) A protruding limit ring (27) is fixedly installed on the surface at the position of the annular groove (19), and the second connecting shaft (20) is movably engaged with the annular groove (19) through the protruding limit ring (27).

2. The easy-to-adjust photovoltaic power generation panel mounting frame according to claim 1, wherein a mounting groove (4) is formed on the other side surface of the mounting panel (1), and a photovoltaic power generation panel is provided in the mounting groove (4). A plate (5), a limit slot (6) is provided at the lower end of the photovoltaic panel (5), a limit plate (7) is fixedly installed on the bottom surface of the installation slot (4), and the limit plate (7) is inserted in the limit In the groove (6), a knob bolt (8) is installed on the upper end of the installation panel (1), and a threaded hole is formed on the upper end of the photovoltaic panel (5) corresponding to the position of the knob bolt (8), and the photovoltaic panel (5) is threaded The holes are connected with the knob bolts (8).

3. The easy-to-adjust photovoltaic power generation panel mounting frame according to claim 1, characterized in that: the surface of the support tube (2) is respectively fixed and installed with a position below the first bearing (22) and the second bearing (25). A first limit ring (24) and a second limit ring (26).
