Abstract
The utility model relates to a hanging chute with adjustable height, which comprises a regulating hanging head and a hanging chute which are rotationally connected; the adjusting rod is arranged on the adjusting hanging head and is abutted against the hanging sliding groove, and the rotating angle of the adjusting hanging head and the rotating angle of the hanging sliding groove can be fixed; and the keel supporting strip is arranged on the side surface of the hanging sliding groove. The hanging chute with adjustable height of the utility model is installed in the factory prefabrication site, the installation efficiency is high and the site is pollution-free; the hoisting fixation is adopted to cancel the strong correlation that the wall surface is leveled by the ground, so that the requirement on the ground flatness is avoided, the ground slope finding is convenient, and the top frame can be adjusted to ensure that the top surface is straight after the slope finding; the flatness of the hanging wallboard mainly depends on the height of the hanging rod, and the hanging wallboard is completely separated from the strong correlation of the ground and does not require the flatness of the ground; and the wall surface and the suspended ceiling are used for bearing simultaneously, so that the safety coefficient is high.
Description
Technical Field
The utility model belongs to the decoration field, concretely relates to but height-adjusting's hanging dress spout.
Background
Wallboard installation generally falls into two modes: the traditional construction mode has serious field pollution, high noise and low installation efficiency in the traditional installation and assembly installation; taking conventional wallboard installation as an example, traditional installation form does not have too much requirement to ground, directly lay the subsides on the institute wall can, but need the daub to absorb the error of wall unevenness, just can produce environmental pollution in the work progress. If the common assembly type installation is adopted, although the environmental pollution and the noise can be greatly reduced, the method still has the following disadvantages: the assembled wallboard is installed as an example, because the wallboard installation mainly depends on the bearing effect of the ground to the wallboard, so whether to level ground just has very high requirement, so when using assembled part article, need make level again to the ground of unevenness and handle, make level to ground promptly in the civil engineering work process, nevertheless so the actual completion quality still can't guarantee. In addition, the installation process of the existing assembly type hoisting method still has certain complexity, for example, as the combined type ceiling hanging piece disclosed by the patent with the publication number of CN104929297A, the height adjusting component of the combined type ceiling hanging piece is integrated on the whole device, the whole installation structure is complex, and the installation is difficult, so that a split type hanging component with the adjustable height is needed, and the hoisting device can be conveniently assembled.
SUMMERY OF THE UTILITY MODEL
Based on the above-mentioned drawbacks and deficiencies in the prior art, it is an object of the present invention to at least solve one or more of the above-mentioned problems in the prior art, in other words, to provide a height-adjustable hanging chute that satisfies one or more of the above-mentioned needs.
In order to achieve the purpose of the utility model, the utility model adopts the following technical scheme:
the utility model provides a but height-adjusting's hanging dress spout which characterized in that includes:
the adjusting hanging head and the hanging chute are rotatably connected;
the adjusting rod is arranged on the adjusting hanging head and is abutted against the hanging sliding groove, and the rotating angle of the adjusting hanging head and the rotating angle of the hanging sliding groove can be fixed;
and the keel supporting strip is arranged on the side surface of the hanging sliding groove.
According to the utility model discloses an in the preferred embodiment, adjust and hang overhead the regulation hole of having seted up of dress, it is the screw rod to adjust the pole, through adjust the adjustable spiro union of hole in adjust the downthehole.
In a preferred embodiment according to the present invention, the adjusting holes are two, and the middle of the adjusting hanging head is arranged symmetrically.
In a preferred embodiment according to the invention, the adjusting lever is provided with a rotary handle.
According to the utility model discloses an in a preferred embodiment, it is equipped with convex pivot base to adjust the first middle part outside of hanging, the pivot base with hang dress spout outer wall and paste to all seted up corresponding pivot hole, run through by the pivot.
In a preferred embodiment of the present invention, the hanging sliding groove is provided with a semicircular sinking groove at a position where the hanging sliding groove is attached to the rotating shaft base, and the rotating shaft base sinks into the sinking groove and can freely rotate therein.
In a preferred embodiment of the present invention, the hanging device further comprises a keel supporting bar, wherein the keel supporting bar is a whole section, is installed outside the hanging chute, and covers the rotating shaft base and the sinking groove in the middle; the pivot runs through fossil fragments support bar, pivot base and heavy groove simultaneously, the auxiliary fixation fossil fragments support bar.
In a preferred embodiment of the present invention, the bottom of the hanging sliding groove is provided with a through T-shaped sliding way.
In a preferred embodiment according to the invention, the adjusting suspension head is provided with a boom socket.
In a preferred embodiment of the invention, the adjusting suspension head has transversely arranged mounting holes.
Compared with the prior art, the utility model, beneficial effect is:
the hanging chute with adjustable height of the utility model is installed in the factory prefabrication site, the installation efficiency is high and the site is pollution-free; the hoisting fixation is adopted to cancel the strong correlation that the wall surface is leveled by the ground, so that the requirement on the ground flatness is avoided, the ground slope finding is convenient, and the top frame can be adjusted to ensure that the top surface is straight after the slope finding; the flatness of the hanging wallboard mainly depends on the height of the hanging rod, and the hanging wallboard is completely separated from the strong correlation of the ground and does not require the flatness of the ground; and the wall surface and the suspended ceiling are used for bearing simultaneously, so that the safety coefficient is high.
Drawings
Fig. 1 is a schematic structural view of a hanging chute with adjustable height according to embodiment 1 of the present invention;
fig. 2 is a side view of a hanging chute with adjustable height according to embodiment 1 of the present invention;
fig. 3 is a structural view of an adjusting hanging head of a hanging chute with adjustable height according to embodiment 1 of the present invention;
fig. 4 is a structural diagram of a hanging chute with adjustable height according to embodiment 1 of the present invention;

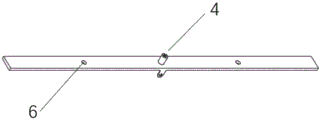

fig. 5 is a structural diagram of an adjusting rod of a hanging sliding chute with adjustable height according to embodiment 1 of the present invention.
Detailed Description
In order to more clearly illustrate the embodiments of the present invention, the following description will explain embodiments of the present invention with reference to the accompanying drawings. It is obvious that the drawings in the following description are only examples of the invention, and that for a person skilled in the art, other drawings and embodiments can be obtained from these drawings without inventive effort.
Example 1: as shown in fig. 1 and 2, the hanging chute with adjustable height according to the present invention has a main structure comprising an adjustable hanging head 1, a hanging chute 2 and a keel support bar 3. The structure of the adjusting hanging head is shown in fig. 3, which is a strip-shaped main body, the middle part of which is provided with a columnar hanging rod seat 4 with threads inside, a hanging rod 5 can be screwed into the hanging rod seat, and the adjusting hanging head is suspended under a ceiling so as to realize the hanging separated from the ground. Two through adjusting holes 6 are respectively arranged at the positions on the middle line of the adjusting hanging head and away from the 1/4 at the two ends, and screw holes are arranged in the adjusting holes. The two sides of the middle part of the adjusting hanging head are provided with rotating shaft bases which are folded and protrude downwards, the tail ends of the rotating shaft bases are semicircular, and rotating shaft holes are formed in the circle center positions.
Hanging dress spout 2 the structure figure 4 shows, for there is the open-ended bar of T shape bottom, has semicircular heavy groove 7 in hanging dress spout middle section side and pivot base assorted position, and heavy groove diameter is greater than pivot base end diameter, and the degree of depth is greater than pivot base thickness, and the heavy groove centre of a circle department opens the shaft hole that has a perfect understanding, and when will adjusting the head of hanging dress and hanging dress spout and match, the pivot can run through pivot base and hang the shaft hole on the dress spout and will adjust the head of hanging dress and hang the dress spout and rotate and be connected. The adjusting rod 8 is screwed in through the adjusting hole of the adjusting hanging head, the structure of the adjusting rod is shown in figure 5, the adjusting rod is a screw rod with an inner hexagonal groove at the top end, the bottom end of the screw rod is tightly propped against the hanging sliding groove, the screw rod can be screwed to enable the screw rod to sink through the inner hexagonal groove at the top end, and the screw rod is propped against the hanging sliding groove to enable the screw rod to change an included angle with the adjusting hanging head. The bottom of the hanging sliding groove is also provided with a T-shaped slideway which penetrates through the hanging sliding groove along the long axis of the hanging sliding groove, and the cross section of the T-shaped slideway is in a T shape, wherein two ends of the top of the T-shaped slideway are provided with downwardly extending openings.
The keel support strip 3 is in an L-shaped long strip structure as shown in fig. 1 and 2, two waist holes and a rotating shaft hole are formed in one side of the keel support strip, and the shape of each waist hole is slightly prolonged in the vertical direction. The connection mode is as shown in fig. 1 and 2, the keel support strip is fixed on the side face of the hanging chute through the waist hole, when the keel support strip is fixed, the middle position of the keel support strip can cover the rotating shaft base and the sinking groove, the rotating shaft simultaneously penetrates through the keel support strip, the hanging chute and the rotating shaft hole in the middle of the pile hanging head to rotatably connect the keel support strip, the hanging chute and the pile hanging head, and the fixing angle of the keel support strip can be adjusted through the waist hole.
When the device is installed on an actual wall surface, a wall surface clamping structure with a T-shaped slide rail can be connected into a T-shaped slide way of a hanging sliding groove in a sliding mode, a suspender with threads is inserted into a suspender seat, the whole device is hung under a ceiling, the angle of the hanging sliding groove relative to an adjusting hanging head is changed by changing the screwing depth of each adjusting rod, a keel supporting strip is also horizontally supported on a house keel by changing the angle of the keel supporting strip relative to the hanging sliding groove by changing the height of a screw on a waist hole, and the whole device is separated from the requirement on the ground surface flatness through the arrangement, so that the hanging can be kept flat all the time.
Example 2: in another embodiment according to the present invention of a height-adjustable hanging chute, the hanging head is adjusted without a boom seat, but with three protrusions at the top, which are provided with mounting holes towards the wall and are transversely penetrated by screws. The adjusting hanging head is transversely fixed on the wall surface through the mounting hole instead of being connected with the top surface of the wall surface by the hanging rod.
Other structures can refer to embodiment 1.
Example 3: in another embodiment of a hanging sliding chute according to the present invention, the top end of the adjusting rod is not recessed with a hexagon socket, but is provided with a protruding handle having a horizontal elongated shape, and the adjusting rod can be twisted by a human hand without using an installation tool.
Other structures can refer to embodiment 1.
It should be noted that the above embodiments can be freely combined as necessary. The foregoing has been a detailed description of the preferred embodiments and principles of the present invention, and it will be apparent to those skilled in the art that variations may be made in the specific embodiments based on the concepts of the present invention, and such variations are considered as within the scope of the present invention.
Claims (10)
1. The utility model provides a but height-adjusting's hanging dress spout which characterized in that includes:
the adjusting hanging head and the hanging chute are rotatably connected;
the adjusting rod is arranged on the adjusting hanging head and is abutted against the hanging sliding groove, and the rotating angle of the adjusting hanging head and the rotating angle of the hanging sliding groove can be fixed;
and the keel supporting strip is arranged on the side surface of the hanging sliding groove.
2. The hanging chute with the adjustable height of claim 1, wherein the adjusting hanging head is provided with an adjusting hole, the adjusting rod is a screw rod, and the screw rod is adjustably screwed in the adjusting hole through the adjusting hole.
3. The hanging chute of claim 2 wherein there are two of said adjustment holes symmetrically disposed about the middle of the adjustable hanging head.
4. The hanging runner of claim 2 wherein the adjustment bar has a rotatable knob mounted thereon.
5. The hanging chute with the adjustable height of claim 1, wherein a protruded rotating shaft base is arranged at the outer side of the middle part of the adjusting hanging head, and the rotating shaft base is attached to the outer wall of the hanging chute and is provided with corresponding rotating shaft holes through which the rotating shaft penetrates.
6. The hanging chute with adjustable height of claim 5 wherein the hanging chute has a semicircular sinking groove at a position adjacent to the base of the rotating shaft, and the base of the rotating shaft sinks into the sinking groove and can rotate freely therein.
7. The hanging sliding chute with adjustable height of claim 6, further comprising a keel support bar, wherein the keel support bar is a single segment, is installed outside the hanging sliding chute, and covers the rotating shaft base and the sinking groove in the middle; the pivot runs through fossil fragments support bar, pivot base and heavy groove simultaneously, the auxiliary fixation fossil fragments support bar.
8. The hanging chute of claim 1 wherein the bottom of the hanging chute has a through T-shaped chute.
9. The hanging chute of claim 1 wherein the adjustable hanging head has a hanger bar mount mounted thereon.
10. An adjustable height hanging runner according to claim 1 wherein said adjustable hanging head has transversely disposed mounting holes.
