Abstract
本实用新型公开了一种手术室废弃物临时存放装置，包括主体，所述主体的内壁设有存储室，所述存储室的数量设置为三个，所述主体的顶端设有滑动槽，所述滑动槽的内壁滑动连接有连接杆，所述连接杆的一侧固定连接有挡板，所述主体的一端设有滑槽，所述滑槽的内壁滑动连接有踏板。本实用新型通过设置踏板、连接线与连接杆，在使用时，医护人员在进行废弃物放置时，通过用脚踏踏板，踏板通过连接线带动连接杆在滑动槽内壁进行滑动，连接杆带动挡板进行运动，打开存储室，医护人员即可将相应的废弃物放置在相应的存储室内壁进行临时储存，之后松开踏板，挡板在第二弹簧的作用下对存储室进行隔离，有效防止内部气味溢出造成污染。
The utility model discloses a temporary storage device for operating room waste, which comprises a main body, an inner wall of the main body is provided with storage chambers, the number of the storage chambers is set to three, and the top of the main body is provided with a sliding groove, so The inner wall of the sliding groove is slidably connected with a connecting rod, one side of the connecting rod is fixedly connected with a baffle plate, one end of the main body is provided with a sliding groove, and the inner wall of the sliding groove is slidably connected with a pedal. The utility model is provided with a pedal, a connecting wire and a connecting rod. When in use, the medical staff uses a foot pedal when placing wastes. The pedal drives the connecting rod to slide on the inner wall of the sliding groove through the connecting wire, and the connecting rod drives the stopper. The board moves and the storage room is opened, and the medical staff can place the corresponding waste on the corresponding storage room wall for temporary storage, and then release the pedal, and the baffle isolates the storage room under the action of the second spring, effectively preventing the Contamination due to internal odor spillage.
Description
Technical Field
The utility model relates to an equipment technical field is deposited to the discarded object, concretely relates to interim strorage device of operating room discarded object.
Background
The operating room is a place for providing operations and rescue for patients, is an important technical department of hospitals, and is connected with an operating department and is close to a blood bank, a monitoring room, an anesthesia resuscitation room and the like. Grasping the link management of four ways of surgical incision infection, namely: air in the operating room; items required for surgery; the fingers of doctors and nurses and the skin of patients prevent infection and ensure the success rate of the operation. The operating room has the advantages that the design is reasonable, the equipment is complete, the nurse has sensitive and quick working response and high-efficiency working efficiency, the operating room needs to have a set of strict and reasonable rules and regulations and sterile operation specifications, along with the rapid development of surgical technology, the working of the operating room is modernized day by day, a lot of wastes are generated in the operating room, such as a patient body removed from the body of the patient, gauze for stopping bleeding of the patient and the like, but the existing waste storage device in the operating room is generally stored in a mixed mode.
But its in-service use, the interim strorage device of discarded object of traditional operating room usefulness, when using, can't carry out effectual isolation to the discarded object, easily leads to the discarded object to pollute, can't carry out effectual disinfection to the discarded object simultaneously, and the practicality is poor.
Therefore, it is necessary to provide a temporary storage device for waste in operating room to solve the above problems.
Disclosure of Invention
The utility model aims at providing an interim strorage device of operating room discarded object, during the baffle motion, the baffle drives the ejector pad and removes to the spacing inslot wall, and thereby the ejector pad is pressed and is pressed the shower nozzle this moment, thereby presses the shower nozzle and disinfect the discarded object with the inside antiseptic solution of antiseptic solution apotheca through the sprinkler head blowout, effectively prevents that the discarded object from causing the pollution to solve the above-mentioned weak point in the technique.
In order to achieve the above object, the present invention provides the following technical solutions: an operating room waste temporary storage device comprises a main body, wherein the inner wall of the main body is provided with three storage chambers, the number of the storage chambers is three, the top end of the main body is provided with a sliding groove, the inner wall of the sliding groove is connected with a connecting rod in a sliding manner, one side of the connecting rod is fixedly connected with a baffle plate, one end of the main body is provided with a sliding groove, the inner wall of the sliding groove is connected with a pedal in a sliding manner, the bottom end of the pedal is fixedly connected with a connecting wire, the bottom end of the connecting wire is positioned on the inner wall of the main body and fixedly connected with three transmission wheels, the three transmission wheels are respectively distributed on the outer side of the connecting wire, the connecting rod is fixedly connected with the connecting wire, the outer wall of the connecting wire is positioned on one end of the connecting rod and fixedly connected with a second spring, and the second spring is fixedly connected with a machine body, the top end fixedly connected with sterilamp of locker room.
Preferably, the bottom end of the main body is fixedly connected with four rollers, and the number of the rollers is four.
Preferably, one end of the main body is fixedly connected with a push handle, and the push handle is fixedly connected with the main body through a bolt.
Preferably, the top of main part is equipped with the feed port, the bottom fixedly connected with antiseptic solution apotheca of feed port.
Preferably, one end of the disinfectant storage chamber is fixedly connected with a pressing nozzle, the output end of the pressing nozzle is fixedly connected with a sprinkler head, and the bottom end of the baffle is fixedly connected with a push block.
Preferably, the baffle bottom is located the top of main part and is equipped with the spacing groove, the inner wall in spacing groove and the outer wall phase-match of ejector pad.
In the technical scheme, the utility model provides a technological effect and advantage:
1. by arranging the pedal, the connecting wire and the connecting rod, when the medical waste storage device is used, medical workers drive the connecting rod to slide on the inner wall of the sliding groove through the connecting wire by using the pedal when placing waste, the connecting rod drives the baffle to move, the storage chamber is opened, the medical workers can place corresponding waste on the inner wall of the corresponding storage chamber to temporarily store the waste, then the pedal is loosened, the baffle isolates the storage chamber under the action of the second spring, and the pollution caused by the overflow of internal smell is effectively prevented;
2. when the baffle moves, the baffle drives the push block to move to the inner wall of the limiting groove, at the moment, the push block presses the pressing nozzle, and the nozzle is pressed, so that the disinfectant in the disinfectant storage chamber is sprayed out through the spraying head to disinfect the waste, and the pollution caused by the waste is effectively prevented.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

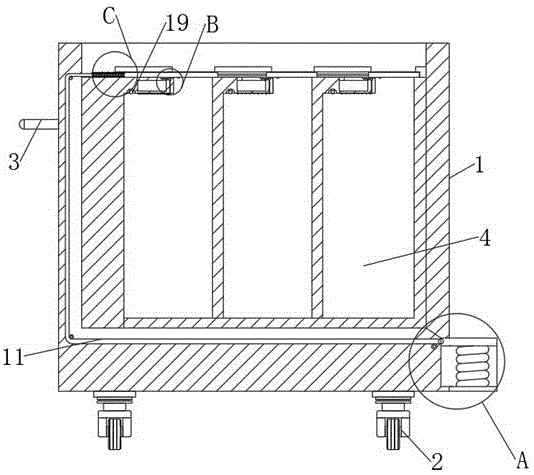

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a top view of the present invention.
Fig. 3 is an enlarged view of a portion a of fig. 1 according to the present invention.
Fig. 4 is an enlarged view of the position B of fig. 1 according to the present invention.
Fig. 5 is an enlarged view of the point C of fig. 1 according to the present invention.
Description of reference numerals:
1. a main body; 2. a roller; 3. a push handle; 4. a storage chamber; 5. a connecting rod; 6. a baffle plate; 7. a chute; 8. a first spring; 9. a pedal; 10. a connecting wire; 11. a transmission wheel; 12. a feed port; 13. a disinfectant storage chamber; 14. pressing the spray head; 15. a sliding groove; 16. a limiting groove; 17. a push block; 18. a sprinkler head; 19. a sterilizing lamp; 20. a second spring.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a shown as figure 1-5 temporary strorage device of operating room discarded object, including main part 1, the inner wall of main part 1 is equipped with locker room 4, locker room 4's quantity sets up to three, the top of main part 1 is equipped with sliding tray 15, sliding tray 15's inner wall sliding connection has connecting rod 5, one side fixedly connected with baffle 6 of connecting rod 5.
As shown in fig. 1 and 3, a chute 7 is arranged on the lower right side of the main body 1, a pedal 9 is slidably connected to the inner wall of the chute 7, a first spring 8 is fixedly connected to the bottom end of the pedal 9, a connecting wire 10 is fixedly connected to one end of the pedal 9, the bottom end of the connecting wire 10 is fixedly connected to the inner wall of the main body 1, three guide wheels 11 are arranged, and the three guide wheels 11 are respectively distributed on the outer side of the connecting wire 10;
as shown in fig. 5, the connecting rod 5 is fixedly connected with the connecting wire 10, one end of the outer wall of the connecting wire 10, which is located at the connecting rod 5, is fixedly connected with the second spring 20, the second spring 20 is fixedly connected with the main body 1, the top end of the storage chamber 4 is fixedly connected with a disinfection lamp 19, and through the action of the pedal 9, the connecting wire 10 and the connecting rod 5, when using, medical personnel is when carrying out the discarded object and placing, trample footboard 9 through using the foot, footboard 9 drives connecting rod 5 through connecting wire 10 and slides at sliding tray 15 inner wall, connecting rod 5 drives baffle 6 and moves, open locker room 4, medical personnel can place corresponding discarded object and carry out temporary storage at 4 inner walls of corresponding locker room, loosen footboard 9 afterwards, baffle 6 keeps apart locker room 4 under the effect of second spring 20, prevent effectively that inside smell from spilling over and causing the pollution.
Further, in the above technical scheme, the bottom end of the main body 1 is fixedly connected with the rollers 2, the number of the rollers 2 is four, and the four rollers 2 are distributed and fixed on the outer side of the bottom end of the machine body 1, so that the main body 1 is convenient to move.
Further, in the above technical solution, one end of the main body 1 is fixedly connected with a push handle 3, the push handle 3 is fixedly connected with the main body 1 through a bolt, and the main body 1 is pushed to move by pushing the push handle 3.
As shown in fig. 1-5: the top of main part 1 is equipped with feed port 12, the bottom fixedly connected with antiseptic solution apotheca 13 of feed port 12, medical personnel store and use through will antiseptic solution through the 13 inner walls of feed port 12 inflow antiseptic solution apotheca 13.
Further, in the above technical solution, one end of the disinfectant storing chamber 13 is fixedly connected with a pressing nozzle 14, an output end of the pressing nozzle 14 is fixedly connected with a spraying head 18, a pushing block 17 is fixedly connected to a bottom end of the baffle 6, the baffle 6 moves to drive the pushing block 17 to press the pressing nozzle 14, and the pressing nozzle 14 sprays the disinfectant in the disinfectant storing chamber 13 through the spraying head 18 to disinfect the waste.
Furthermore, in the above technical scheme, the bottom end of the baffle 6 is located at the top end of the main body 1 and is provided with a limiting groove 16, and the inner wall of the limiting groove 16 is matched with the outer wall of the push block 17, so that the push block 17 can conveniently slide back and forth on the inner wall of the limiting groove 16.
Referring to the attached drawings 1-5 of the specification, through the pedal 9, the connecting wire 10 and the connecting rod 5, when the medical nursing staff uses the pedal 9 when placing wastes, the pedal 9 drives the connecting rod 5 to slide on the inner wall of the sliding groove 15 through the connecting wire 10, the connecting rod 5 drives the baffle 6 to move, the storage chamber 4 is opened, the medical nursing staff can place corresponding wastes on the inner wall of the corresponding storage chamber 4 for temporary storage, then the pedal 9 is released, the baffle 6 isolates the storage chamber 4 under the action of the second spring 20, and the internal smell is effectively prevented from overflowing to cause pollution;
referring to the attached drawings 1-5 in the specification, when the baffle 6 moves, the baffle 6 drives the push block 17 to move to the inner wall of the limiting groove 16, at the moment, the push block 17 presses the pressing nozzle 14, and the nozzle 14 is pressed, so that the disinfectant in the disinfectant storage chamber 13 is sprayed out through the spraying head 18 to disinfect the waste, and the pollution caused by the waste is effectively prevented.
All the embodiments in the present specification are described in a related manner, and the same and similar parts among the embodiments may be referred to each other, and each embodiment focuses on the differences from the other embodiments.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the scope of the present invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention shall fall within the protection scope of the present invention.
