Abstract

The utility model discloses a low-voltage switch cabinet convenient to overhaul, which belongs to the technical field of switch cabinets and particularly comprises a cabinet body, wherein four side surfaces of the cabinet body are of an open structure, the front hinge of the cabinet body is connected with a cabinet door, the left side surface, the right side surface and the rear side surface of the cabinet body are respectively provided with a sealing plate, the sealing plate is movably arranged in the cabinet body, a water blocking cover is also arranged above the cabinet body, the relative inner sides of the sealing plates at the left side and the right side are respectively provided with a rack, the top and the bottom in the cabinet body are respectively provided with a slide rail, the cabinet body is also internally provided with a movable plate, and the top and the bottom of the movable plate are movably sleeved on the slide rails; the utility model discloses a closing plate, under the combined action of rack and motor, when maintaining the cubical switchboard, can raise the closing plate, make the staff maintain the cubical switchboard, stimulate the movable plate through the handle moreover, change the position of the inside electrical components of cubical switchboard, improved the convenience of maintenance, labour saving and time saving has improved the efficiency of maintenance.

Description

Low-voltage switch cabinet convenient to overhaul
Technical Field
The utility model belongs to the technical field of the cubical switchboard, concretely relates to convenient low-voltage switchgear who overhauls.
Background
With the advent of the twenty-first century, the living standard of people is continuously improved, and various household electrical appliances are more and more, so the development of the power engineering is better and better, and the development of the power engineering naturally can not leave the support of a power device, wherein a switch cabinet is one of indispensable power devices; the switch cabinet often can break down in the course of the work, need carry out regular maintenance to the switch cabinet to the operation that guarantees the switch cabinet can be stable.
The existing switch cabinet has a complex structure, increases the difficulty of worker maintenance when a fault occurs, and wastes time and labor.
SUMMERY OF THE UTILITY MODEL
To solve the problems set forth in the background art described above. The utility model provides a convenient low-voltage switchgear who overhauls has the characteristics of convenient maintenance.
In order to achieve the above object, the utility model provides a following technical scheme: a low-voltage switch cabinet convenient to overhaul comprises a cabinet body, wherein four side faces of the cabinet body are of an open structure, a cabinet door is hinged to the front face of the cabinet body, sealing plates are arranged on the left side face, the right side face and the rear side face of the cabinet body respectively, the sealing plates are movably mounted inside the cabinet body, a limiting plate is fixedly mounted at the lower end of each sealing plate, the top end of each sealing plate extends out of the cabinet body and is positioned above the cabinet body, a water blocking cover is further arranged above the cabinet body, the bottom of each water blocking cover is fixedly connected with the top of each sealing plate, racks are further arranged on the opposite inner sides of the sealing plates on the left side and the right side respectively, a slot for extending out each rack is formed in the top of the cabinet body, a motor is fixedly mounted above the cabinet body and is in transmission connection with the racks, slide rails are respectively arranged at the top and the bottom inside the cabinet body, a movable plate is further arranged inside the cabinet body, and the top and the bottom of the movable plate are movably sleeved on the slide rails, the cabinet body is characterized in that a fixing mechanism used for fixing the moving plate is further arranged inside the cabinet body, and the moving plate is fixedly connected with an installation plate used for installing electrical components.
Preferably, a connecting plate is further arranged between the top of the cabinet body and the water retaining cover, and the top of the connecting plate is fixedly connected with the bottom of the water retaining cover.
Preferably, the top of the cabinet body is provided with a dead slot for installing a heat dissipation fan, the sealing plate is provided with a plurality of air inlets, and the connecting plate is provided with a plurality of air outlets.
Preferably, the heat dissipation fan, the air inlet and the air outlet are respectively provided with a dustproof filter screen.
Preferably, the left side and the right side of the moving plate are fixedly provided with handles.
Preferably, the fixing mechanism comprises a fixing plate, the fixing plate is located above the sliding rail, one end of the fixing plate is fixedly connected with the moving plate, a lead screw is arranged above the fixing plate, the low end of the lead screw is connected inside the fixing plate in a threaded mode, and a knob is fixedly mounted at the top of the lead screw.
Preferably, four mutually symmetrical supporting seats are fixedly installed at the bottom of the cabinet body.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses a closing plate, under the combined action of rack and motor, when maintaining the cubical switchboard, can raise the closing plate, make the staff maintain the cubical switchboard, stimulate the movable plate through the handle moreover, change the position of the inside electrical components of cubical switchboard, improved the convenience of maintenance, labour saving and time saving has improved the efficiency of maintenance.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

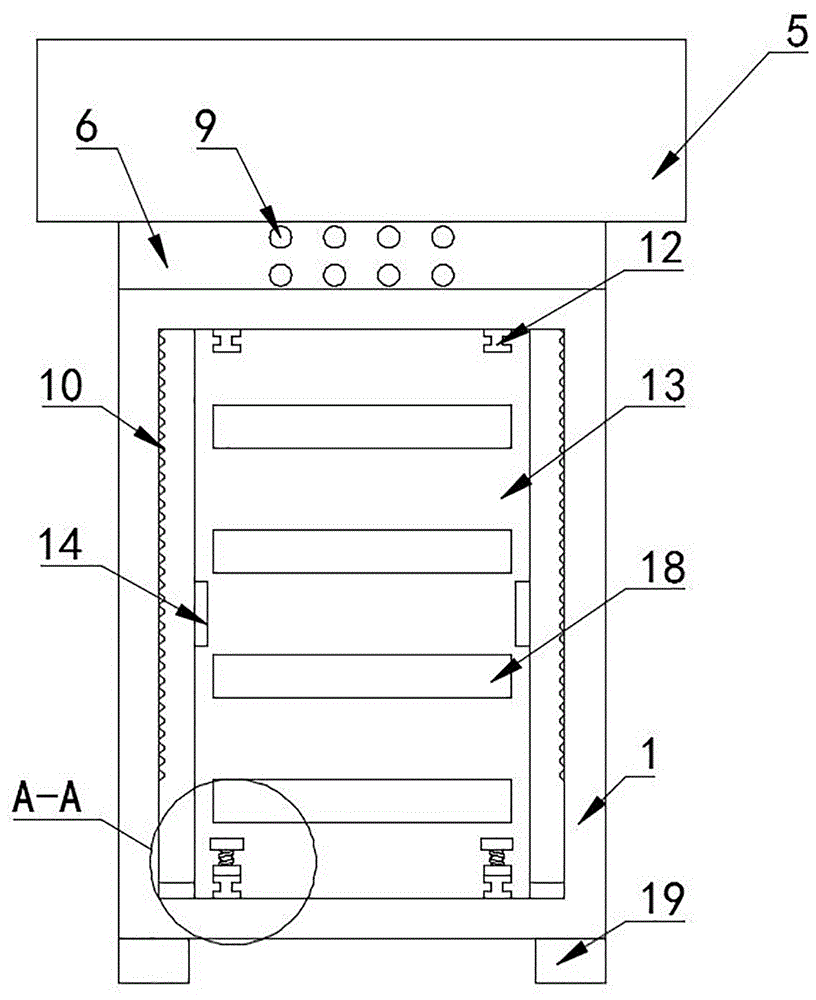

FIG. 1 is a schematic structural view of the front view of the present invention;
FIG. 2 is a schematic view of a partially enlarged view of the A-A of the present invention;
FIG. 3 is a structural schematic diagram of a right side view cross-sectional view of the present invention;
FIG. 4 is a schematic structural view of a maintenance state diagram of the present invention;
in the figure: 1. a cabinet body; 2. a cabinet door; 3. a sealing plate; 4. a limiting plate; 5. a water blocking cover; 6. a connecting plate; 7. a heat dissipation fan; 8. an air inlet; 9. an air outlet; 10. a rack; 11. a motor; 12. a slide rail; 13. moving the plate; 14. a handle; 15. a fixing plate; 16. a lead screw; 17. a knob; 18. mounting a plate; 19. and (4) supporting the base.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Examples
Referring to fig. 1-4, the present embodiment provides the following technical solutions: a low-voltage switch cabinet convenient to overhaul comprises a cabinet body 1, four side faces of the cabinet body 1 are of an open structure, a cabinet door 2 is hinged to the front face of the cabinet body 1, sealing plates 3 are arranged on the left side face, the right side face and the rear side face of the cabinet body 1 respectively, the sealing plates 3 are movably mounted inside the cabinet body 1, a limiting plate 4 is fixedly mounted at the lower end of each sealing plate 3, the top end of each sealing plate 3 extends out of the cabinet body 1 and is located above the cabinet body 1, a water blocking cover 5 is further arranged above the cabinet body 1, the bottom of each water blocking cover 5 is fixedly connected with the top of each sealing plate 3, racks 10 are further arranged on the opposite inner sides of the sealing plates 3 on the left side and the right side respectively, a dead slot for extending out of each rack 10 is formed in the top of the cabinet body 1, a motor 11 is fixedly mounted above the cabinet body 1, a gear is fixedly connected with the output end of each motor 11, the gear is meshed with the rack 10, and is connected with the motor 11 through the sealing plates 3, when the switch cabinet is maintained, the sealing plate 3 can be lifted to enable an operator to maintain the switch cabinet, the movable plate 13 is pulled by the handle 14 to change the position of an electrical component inside the switch cabinet, the convenience of maintenance is improved, time and labor are saved, the efficiency of maintenance is improved, the connecting plate 6 is also arranged between the top of the cabinet body 1 and the water retaining cover 5, the top of the connecting plate 6 is fixedly connected with the bottom of the water retaining cover 5, a large amount of dust is prevented from entering the switch cabinet, the motor 11 is prevented from being in direct contact with air for a long time, the top of the cabinet body 1 is provided with a slot for installing the heat dissipation fan 7, the sealing plate 3 is provided with a plurality of air inlets 8, the connecting plate 6 is provided with a plurality of air outlets 9, the air outlets and the heat dissipation fan 7 are used for dissipating heat inside the switch cabinet through the air inlets 8, the temperature inside the switch cabinet is prevented from being too high, and certain potential safety hazards exist, the heat dissipation fan 7, the air inlet 8 and the outer side of the air outlet are respectively provided with a dustproof filter screen, the dustproof filter screens are used for preventing dust in the outside air from entering the switch cabinet and influencing the normal operation of electrical components in the switch cabinet, the top and the bottom in the cabinet body 1 are respectively provided with a slide rail 12, the cabinet body 1 is also internally provided with a movable plate 13, the left side and the right side of the movable plate 13 are fixedly provided with handles 14, the handles 14 are used for facilitating workers to pull the movable plate 13 and move the movable plate 13 so as to facilitate the workers to maintain the electrical components, the top and the bottom of the movable plate 13 are movably sleeved on the slide rail 12, the cabinet body 1 is also internally provided with a fixing mechanism for fixing the movable plate 13, the fixing mechanism comprises a fixing plate 15, the fixing plate 15 is positioned above the slide rail 12, one end of the fixing plate 15 is fixedly connected with the movable plate 13, and a lead screw 16 is arranged above the fixing plate 15, lead screw 16's low end threaded connection is inside fixed plate 15, lead screw 16's top fixed mounting has knob 17, through fixed plate 15, lead screw 16 and knob 17, fix movable plate 13, prevent the cubical switchboard during operation, movable plate 13 takes place to remove, thereby influence electrical components's normal work, fixedly connected with is used for installing electrical components's mounting panel 18 on the movable plate 13, cabinet body 1 bottom fixed mounting has four mutual symmetries's supporting seat 19, through supporting seat 19, avoid the cubical switchboard bottom long time and ground contact, because moisture corrodes cabinet body 1, the life of cubical switchboard has been reduced.
The utility model discloses a theory of operation: when the cubical switchboard needs the maintenance, through control switch, starter motor 11, make the left surface, the closing plate 3 of right flank and trailing flank upwards moves suitable position simultaneously, at this moment the left surface, right flank and trailing flank are uncovered state, and simultaneously, open cabinet door 2, rotatory knob 17, make the vertical rebound of lead screw 16, then the pulling handle, make movable plate 13 move suitable position, thereby make things convenient for the staff to maintain electrical components, greatly increased maintenance efficiency, after the maintenance is accomplished, starter motor 11, make the vertical downstream of closing plate 3, seal the cubical switchboard, move movable plate 13 to the original point simultaneously, rotatory knob 17, make the vertical downstream of lead screw 16, fix movable plate 13.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims (7)

1. The utility model provides a convenient low-voltage switchgear who overhauls which characterized in that: comprises a cabinet body (1), four side surfaces of the cabinet body (1) are of an open structure, a cabinet door (2) is hinged to the front surface of the cabinet body (1), sealing plates (3) are respectively arranged on the left side surface, the right side surface and the rear side surface of the cabinet body (1), the sealing plates (3) are movably arranged inside the cabinet body (1), limiting plates (4) are fixedly arranged at the lower ends of the sealing plates (3), the top ends of the sealing plates (3) extend out of the cabinet body (1) and are positioned above the cabinet body (1), a water blocking cover (5) is further arranged above the cabinet body (1), the bottom of the water blocking cover (5) is fixedly connected with the top of the sealing plates (3), racks (10) are further respectively arranged on the opposite inner sides of the sealing plates (3) on the left side and the right side, an empty groove for the racks (10) to extend out is formed in the top of the cabinet body (1), and a motor (11) is fixedly arranged above the cabinet body (1), motor (11) are connected with rack (10) transmission, top and bottom in the cabinet body (1) are provided with slide rail (12) respectively, the cabinet body (1) is inside still to be provided with movable plate (13), and the top and the bottom movable sleeve of movable plate (13) are established on slide rail (12), the cabinet body (1) is inside still to be provided with the fixed establishment who is used for fixed movable plate (13), fixedly connected with is used for installing electrical components' mounting panel (18) on movable plate (13).
2. The low-voltage switch cabinet convenient to overhaul as claimed in claim 1, wherein: still be provided with connecting plate (6) between cabinet body (1) top and manger plate lid (5), and the bottom fixed connection of the top of connecting plate (6) and manger plate lid (5).
3. The low-voltage switch cabinet convenient to overhaul as claimed in claim 2, wherein: the cabinet body (1) top is seted up and is used for installing the dead slot of heat dissipation fan (7), seted up a plurality of air intake (8) on closing plate (3), seted up a plurality of air outlet (9) on connecting plate (6).
4. The low-voltage switch cabinet convenient to overhaul as claimed in claim 3, wherein: and dustproof filter screens are respectively arranged on the outer sides of the heat dissipation fan (7), the air inlet (8) and the air outlet.
5. The low-voltage switch cabinet convenient to overhaul as claimed in claim 1, wherein: handles (14) are fixedly arranged on the left side and the right side of the moving plate (13).
6. The low-voltage switch cabinet convenient to overhaul as claimed in claim 1, wherein: the fixing mechanism comprises a fixing plate (15), the fixing plate (15) is located above the sliding rail (12), one end of the fixing plate (15) is fixedly connected with the moving plate (13), a lead screw (16) is arranged above the fixing plate (15), the low end of the lead screw (16) is connected to the inside of the fixing plate (15) in a threaded mode, and a knob (17) is fixedly mounted at the top of the lead screw (16).
7. The low-voltage switch cabinet convenient to overhaul as claimed in claim 1, wherein: four mutually symmetrical supporting seats (19) are fixedly installed at the bottom of the cabinet body (1).
