Abstract
本实用新型属于电力专业调度自动化技术领域，尤其为一种利于散热的电力专业调度自动化机柜底板，包括机柜底板，所述机柜底板的上表面固定连接有机柜，所述机柜底板的下表面固定连接有支撑座，所述机柜底板的下表面固定连接有散热装置，散热装置包括第一固定块，所述第一固定块与第一固定框固定连接，所述第一固定框的内部固定连接有散热板。通过设置散热扇，散热扇一端固定连接有液压伸缩杆，液压伸缩杆可调节散热扇的高度，当机柜热量较多可升高两个散热板之间的距离，避免热量聚集较多对机柜有所损坏，空间较大散热效果更好，通过散热扇与散热板排出，散热板内部设置有散热片，并留有规律的散热孔用于流通，这样散热效果更好。
The utility model belongs to the technical field of electric power professional dispatching automation, in particular to an electric power professional dispatching automation cabinet base plate which is beneficial to heat dissipation, comprising a cabinet base plate, the upper surface of the cabinet base plate is fixedly connected to a cabinet, and the lower surface of the cabinet base plate is fixedly connected to the cabinet There is a support base, and a heat dissipation device is fixedly connected to the lower surface of the cabinet bottom plate. Radiating plate. By setting the cooling fan, one end of the cooling fan is fixedly connected with a hydraulic telescopic rod, and the hydraulic telescopic rod can adjust the height of the cooling fan. If it is damaged, the space is larger and the heat dissipation effect is better. It is discharged through the heat dissipation fan and the heat dissipation plate. The heat dissipation plate is provided with heat dissipation fins, and regular heat dissipation holes are reserved for circulation, so that the heat dissipation effect is better.
Description
Technical Field
The utility model belongs to the technical field of the automation of electric power specialty dispatch specifically is a do benefit to radiating automatic rack bottom plate of electric power specialty dispatch.
Background
At present, with the rapid development of the scheduling automation technology, the scheduling automation system has become an indispensable important system in power production and scheduling. When the more electric or electronic equipment of rack internally mounted, after long-time use, electric or electronic equipment can give off a large amount of heats, if the heat can not in time distribute away, collect together for a long time inside the rack, can lead to the inside electric or electronic equipment of rack to damage, so need dispel the heat to the rack is inside, the inside bottom at the rack is installed to the common fan of current rack, the fan is located inside the rack, the radiating effect is poor to the heating panel installation is inconvenient, difficult dismantlement is changed.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a do benefit to radiating electric power specialty dispatch automation rack bottom plate possesses that the radiating effect is good, the advantage of easy change, has solved the heat dissipation not good, the difficult problem of changing.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a do benefit to radiating automatic rack bottom plate of electric power specialty scheduling, includes the rack bottom plate, the last fixed surface of rack bottom plate is connected with the rack, the lower fixed surface of rack bottom plate is connected with the supporting seat, the lower fixed surface of rack bottom plate is connected with heat abstractor, and heat abstractor includes first fixed block, first fixed block and first fixed frame fixed connection, the inside fixedly connected with heating panel of first fixed frame, the inside fixedly connected with baffle of first fixed block, the lower fixed surface of first fixed block is connected with hydraulic telescoping rod, the fixed frame of hydraulic telescoping rod's one end fixedly connected with second, the inside fixedly connected with heat dissipation fan of the fixed frame of second, the one end fixedly connected with second fixed block of the fixed frame of second, the fixed frame fixed connection of second fixed block and third.
Preferably, the heat dissipation plate is fixedly connected with a heat dissipation fin inside, and the heat dissipation hole is formed in the heat dissipation plate.
By adopting the scheme, the radiating fins are installed in the radiating plate and are installed in a staggered and inserted mode, the radiating holes are reserved, hot air can pass through the radiating fins conveniently, and the radiating effect is better.
Preferably, the heat dissipation plate is provided with two.
By adopting the scheme, the number of the heat dissipation plates is two, the heat dissipation plate is close to one of the bottom plate of the cabinet, and the bottom of the heat dissipation fan is one, so that the heat dissipation position is faster, and the cabinet elements are protected.
Preferably, the number of the heat dissipation fans is two.
Through adopting above-mentioned scheme, be provided with two heat dissipation fans in the middle of the heating panel, the heat dissipation fan makes the heat run off the discharge from both sides, and the discharge is faster, and the radiating effect is better.
Preferably, the upper surface of the first fixed block is provided with a first sliding chute.
By adopting the scheme, the first sliding groove is formed in the upper surface of the first fixing block and used for fixing the baffle plate, so that the baffle plate fixes the first fixing frame.
Preferably, one end of the first fixing frame is provided with a sliding block.
Through adopting above-mentioned scheme, be provided with the slider in the one end of first fixed frame, the slider is used for with second spout joint, makes heating panel convenient to assemble and dismantle convenient operation.
Preferably, a second sliding groove is formed in the first fixing block.
By adopting the scheme, the second sliding groove is formed in the first fixing block and used for fixing the sliding block, so that the heat dissipation plate is convenient to install.
(III) advantageous effects
Compared with the prior art, the utility model provides a do benefit to radiating automatic rack bottom plate of electric power specialty scheduling possesses following beneficial effect:
this do benefit to radiating automatic rack bottom plate of electric power specialty dispatch, fan through setting up the heat dissipation, the fan one end fixedly connected with hydraulic telescoping rod dispels the heat, the height of the adjustable heat dissipation fan of hydraulic telescoping rod, can raise the distance between two heating panels when the rack heat is more, avoid the heat gathering more to damage to the rack to some extent, the great radiating effect in space is better, discharge through heat dissipation fan and heating panel, the inside fin that is provided with of heating panel, for cross structure, and leave regular louvre and be used for the circulation, the radiating effect is better like this.
Drawings

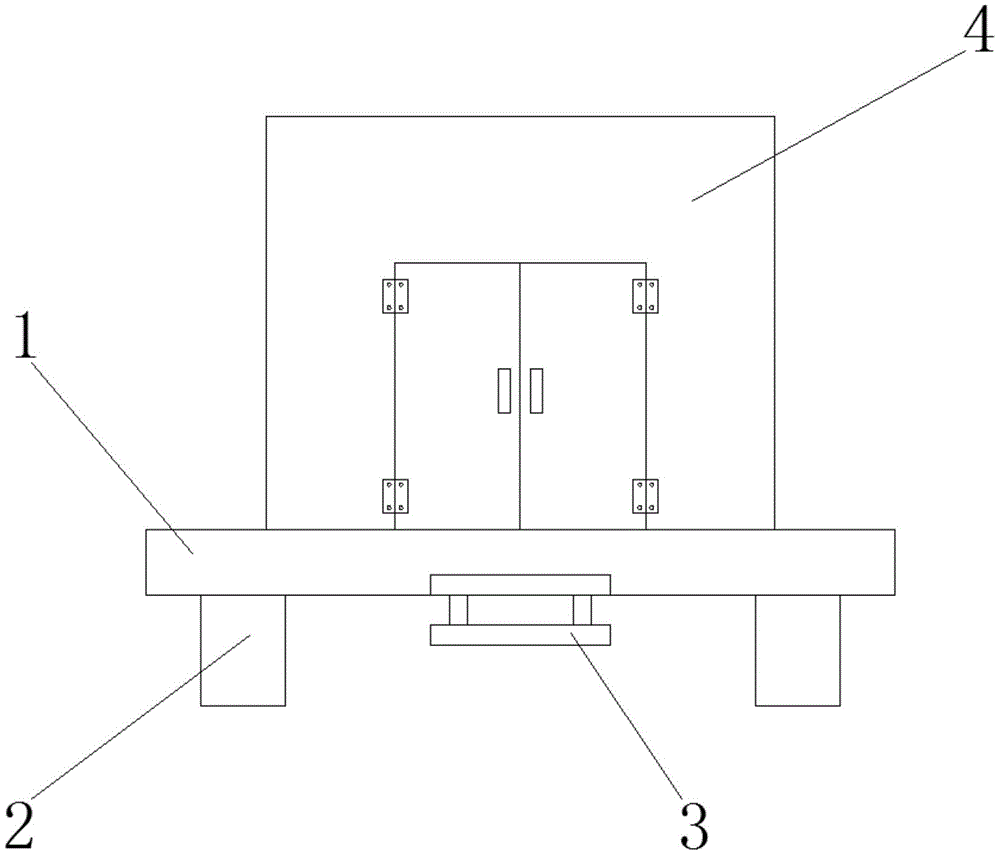

Fig. 1 is a schematic view of the structure of the present invention;
fig. 2 is a schematic front view of the heat dissipation device of the present invention;
fig. 3 is a schematic structural view of a heat dissipation fan in the present invention;
fig. 4 is a schematic structural view of the fixing device of the present invention;
fig. 5 is a schematic top view of the first fixing block of the present invention;
fig. 6 is a schematic structural view of a first fixing block and a first fixing frame in the present invention;
fig. 7 is a schematic structural view of a first fixing frame in the present invention;
fig. 8 is a schematic structural view of a first fixing block in the present invention;
fig. 9 is a schematic top view of the heat sink of the present invention;
fig. 10 is a schematic side view of the heat dissipating plate according to the present invention.
In the figure: 1. a cabinet bottom plate; 2. a supporting seat; 3. a heat sink; 4. a cabinet; 5. a first fixed block; 6. a baffle plate; 7. a first fixed frame; 8. a hydraulic telescopic rod; 9. a second fixed frame; 10. a third fixed frame; 11. a second fixed block; 12. a heat dissipation fan; 13. a first chute; 14. a slider; 15. a second chute; 16. a heat dissipation plate; 17. a heat sink; 18. and (4) heat dissipation holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example one
An electric power professional dispatching automatic cabinet bottom plate beneficial to heat dissipation comprises a cabinet bottom plate 1, wherein a cabinet 4 is fixedly connected to the upper surface of the cabinet bottom plate 1, a supporting seat 2 is fixedly connected to the lower surface of the cabinet bottom plate 1, a heat dissipation device 3 is fixedly connected to the lower surface of the cabinet bottom plate 1, the heat dissipation device 3 comprises a first fixed block 5, the first fixed block 5 is fixedly connected with a first fixed frame 7, a heat dissipation plate 16 is fixedly connected to the inside of the first fixed frame 7, a baffle 6 is fixedly connected to the inside of the first fixed block 5, a hydraulic telescopic rod 8 is fixedly connected to the lower surface of the first fixed block 5, a second fixed frame 9 is fixedly connected to one end of the hydraulic telescopic rod 8, a heat dissipation fan 12 is fixedly connected to the inside of the second fixed frame 9, and a second fixed block 11 is fixedly connected to one end of the second fixed frame 9, the second fixed block 11 is fixedly connected with the third fixed frame 10.
The heat dissipation plate 16 is fixedly connected with heat dissipation fins 17, heat dissipation holes 18 are formed in the heat dissipation plate 16, the number of the heat dissipation plates 16 is two, and the number of the heat dissipation fans 12 is two.
Referring to fig. 1-3, when the cabinet 4 is in operation, the heat dissipation device 3 at the bottom of the cabinet bottom plate 1 generating a large amount of heat is started to operate for heat dissipation, the cabinet bottom plate 1 is internally connected with the first fixing blocks 5, the first fixing blocks 7 are fixedly connected with the inside of the two first fixing blocks 5, the heat dissipation plate 16 is fixedly connected with the inside of the first fixing block 7, the heat dissipation plate 16 is provided with heat dissipation fins 17, the heat dissipation fins 17 are internally provided with heat dissipation holes 18, the inside of the cabinet 4 is dissipated through the heat dissipation fins 17 and the heat dissipation holes 18, the dissipated heat flows into the inside of the heat dissipation fan 12, the height between the first fixing block 7 and the third fixing block 10 can be adjusted through the hydraulic telescopic rod 8 by the heat dissipation fan 12, and the heat flowing into the inside of the heat dissipation fan 12 is discharged through the heat dissipation plate 16 inside the third fixing block 10, so that the heat generated by the cabinet 4 is discharged more quickly.
Example two
On the basis of the first embodiment, a device which can facilitate the replacement of the heat dissipation plate is added.
Referring to fig. 1-3, before heat dissipation is performed by using the heat dissipation plate 16, the sliding block 14 arranged at one end of the first fixing frame 7 is connected with the second sliding groove 15 formed in the first fixing block 5 in a clamping manner, the sliding block 14 is connected with the second sliding groove 15 in a clamping manner, the baffle 6 is placed in the position for fixing and limiting the sliding block 14 through the first sliding groove 13 after fixed connection, the heat dissipation plate 16 is convenient to install and is fixed on the cabinet bottom plate 1 for heat dissipation after installation, and when the heat dissipation plate 16 needs to be replaced, repeated operation is performed, so that the heat dissipation plate 16 is convenient to replace, and operation is tedious.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
