Abstract
本实用新型涉及票据识别兑换装置技术领域，且公开了一种航运金融信息票据识别兑换装置，包括底座，所述底座顶端开设有滑槽，所述滑槽内部滑动连接有滑块，所述滑块前表面螺纹连接有紧固螺栓，所述滑块顶端固定连接有连接杆，所述连接杆顶端固定连接有放置板，所述放置板顶端开设有放置槽，所述底座后表面中心处固定连接有套杆，所述套杆顶端滑动连接有支撑杆，所述套杆外表面螺纹连接有调节螺栓，该装置可以根据需要调节兑换识别器与放置板之间的距离，这样就可以方便对兑换识别器进行调节，从而使得识别效果更好，该装置通过把手一方便进行搬运，且该装置也便于运输，同时该装置整体操作简单且实用性较强。
The utility model relates to the technical field of bill identification and exchange devices, and discloses a shipping financial information bill identification and exchange device. The front surface of the block is screwed with fastening bolts, the top of the slider is fixedly connected with a connecting rod, the top of the connecting rod is fixedly connected with a placing plate, the top of the placing plate is provided with a placing slot, and the center of the rear surface of the base is fixed at the center A sleeve rod is connected, a support rod is slidably connected to the top of the sleeve rod, and an adjustment bolt is threadedly connected to the outer surface of the sleeve rod. The exchange identification device is adjusted so as to make the identification effect better, the device can be easily carried through the handle, and the device is also convenient for transportation, and at the same time, the overall operation of the device is simple and practical.
Description
Technical Field
The utility model relates to a bill discernment exchange technical field specifically is a shipping financial information bill discernment exchange device.
Background
The concept of a bill can be divided into broad and narrow meanings. The bill in a broad sense includes various securities and vouchers, such as stocks, enterprise bonds, invoices, bills of lading and the like; the bill in the narrow sense, including draft, bankbook and check, means the securities issued by drawer, appointed oneself or entrusted payer to pay a certain amount unconditionally to the receiver or the ticket holder at the time of ticket viewing or on the appointed date, the shipping financial information bill identification and exchange device can identify the information on the bill. Most of current shipping financial information bill discernment exchange device is inconvenient to adjust the exchange recognizer to can not satisfy more user demands and cause the influence to the discernment effect, the inconvenient transport of most of shipping financial information bill discernment exchange device and transportation simultaneously, thereby make the device practicality lower.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides a shipping financial information bill discernment exchange device has solved the inconvenient regulation to the exchange recognizer of most shipping financial information bill discernment exchange device that has now to can not satisfy more user demands and lead to the fact the influence to the identification effect, the inconvenient transport of majority's shipping financial information bill discernment exchange device and transportation simultaneously, thereby make the lower problem of the device practicality.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a shipping financial information bill discernment exchange device, the on-line screen storage device comprises a base, the spout has been seted up on the base top, the inside sliding connection of spout has the slider, slider front surface threaded connection has fastening bolt, slider top fixedly connected with connecting rod, connecting rod top fixedly connected with places the board, place the board top and seted up the standing groove, base rear surface center department fixedly connected with loop bar, loop bar top sliding connection has the bracing piece, loop bar surface threaded connection has adjusting bolt, bracing piece top fixedly connected with connecting plate, connecting plate bottom fixed mounting has the exchange recognizer, the equal fixedly connected with handle one in the base left and right sides.
Preferably, a transparent pressing plate is inserted in the placing groove, and the left side and the right side of the transparent pressing plate are fixedly connected with a second handle.
Preferably, the storage boxes are fixedly mounted on the left side and the right side of the top end of the base.
Preferably, the front end of the fastening bolt penetrates through the front surface of the base.
Preferably, the slide block, the connecting rod and the fastening bolt are all provided with two.
(III) advantageous effects
The utility model provides a shipping financial information bill discernment exchange device possesses following beneficial effect:
the placing plate is moved by the movement of the sliding block in the sliding groove, so that placed bills can be identified by the placing plate through the exchange identifier fixedly arranged at the bottom of the connecting plate, when more bills need to be identified and exchanged, the bills can be placed in the storage box for storage, the bill loss is avoided, meanwhile, the distance between the exchange identifier and the placing plate can be adjusted according to needs, only the adjusting bolt is screwed to enable the supporting rod to slide and lift in the loop bar, the exchange identifier can be conveniently adjusted, the identification effect is better, when the device needs to be carried, a handle can be used for conveniently carrying, then the sliding of the sliding block during carrying can be avoided by screwing the fastening bolt, and the connecting plate is adjusted downwards through the adjusting bolt so that the exchange identifier can carry out certain clamping on the transparent pressing plate inserted in the placing groove, therefore, the device can be conveniently carried and transported, and meanwhile, the device is simple in overall operation and high in practicability.
Drawings

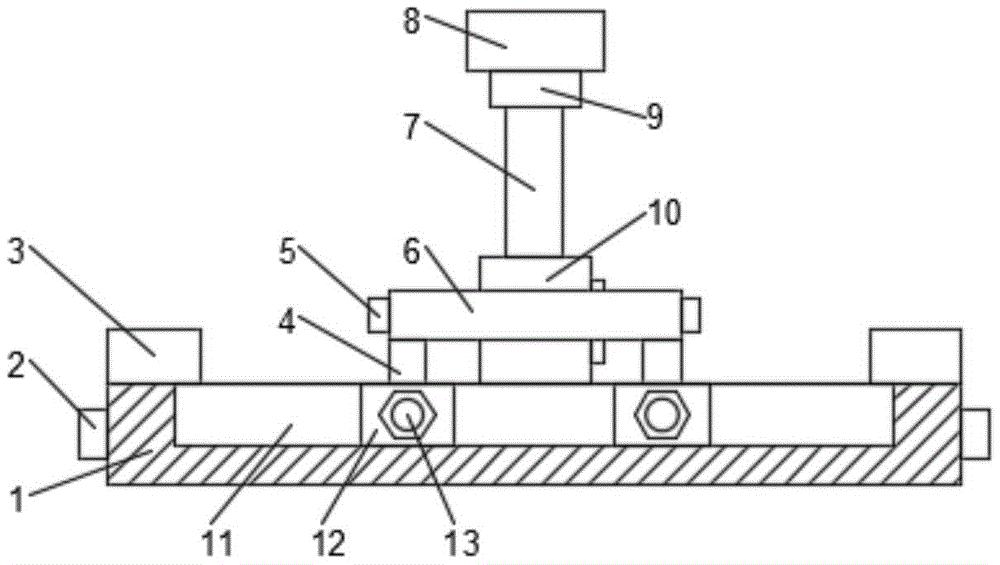

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic side view of the present invention.
In the figure: 1. a base; 2. a first handle; 3. a storage box; 4. a connecting rod; 5. a second handle; 6. placing the plate; 7. a support bar; 8. a connecting plate; 9. a redemption identifier; 10. a loop bar; 11. a chute; 12. a slider; 13. fastening a bolt; 14. a placement groove; 15. a transparent platen; 16. and adjusting the bolt.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-2, the utility model provides a technical solution: a shipping financial information bill identification and exchange device comprises a base 1, wherein a sliding groove 11 is formed in the top end of the base 1, a sliding block 12 is connected in the sliding groove 11 in a sliding manner, a fastening bolt 13 is connected to the front surface of the sliding block 12 in a threaded manner, a connecting rod 4 is fixedly connected to the top end of the sliding block 12, a placing plate 6 is fixedly connected to the top end of the connecting rod 4, a placing groove 14 is formed in the top end of the placing plate 6, a loop bar 10 is fixedly connected to the center of the rear surface of the base 1, a supporting rod 7 is connected to the top end of the loop bar 10 in a sliding manner, an adjusting bolt 16 is connected to the outer surface of the loop bar 10 in a threaded manner, a connecting plate 8 is fixedly connected to the top end of the supporting rod 7, an exchange identifier 9 is fixedly installed at the bottom of the connecting plate 8, handles 2 are fixedly connected to the left side and the right side of the base 1, the device is placed on a flat table board through the base 1 of the device, then the fastening bolt 13 is loosened, and shipping financial information bills needing to be identified and exchanged are placed in the placing groove 14 formed in the top end of the placing plate 6, before the identification and exchange, a plurality of bills can be placed in the placing groove 14 according to needs, so that the identification and exchange speed can be accelerated, the connecting rods 4 are fixedly connected to the left side and the right side of the bottom of the placing plate 6, the sliders 12 are fixedly connected to the bottoms of the connecting rods 4, so that the placing plate 6 can move through the movement of the sliders 12 in the sliding grooves 11, so that the placed bills can be identified through the exchange identifier 9 fixedly arranged at the bottom of the connecting plate 8 by moving the placing plate 6, when the number of the exchanged bills needs to be identified, the bills can be placed in the storage box 3 for storage, so that the bills are prevented from being lost, meanwhile, the connecting plate 8 is fixedly connected to the top end of the supporting rod 7, and the supporting rod 7 is in sliding connection with the loop bar 10, so that the distance between the exchange identifier 9 and the placing plate 6 can be adjusted according to needs, only need to twist adjusting bolt 16 make bracing piece 7 in the inside slip lift of loop bar 10 can, just so can conveniently adjust exchange recognizer 9, thereby make the recognition effect better, just can use handle 2 to conveniently carry when needs are carried the device, then just can avoid slider 12 to take place to slide when the transport through screwing up fastening bolt 13, and 16 down regulation connecting plate 8 through adjusting bolt makes exchange recognizer 9 carry out certain centre gripping to the transparent pressing plate 15 of pegging graft in standing groove 14 inside, thereby just can make things convenient for the device's transport and transported, the device whole easy operation and practicality are stronger simultaneously.
Further, the inside transparent pressing plate 15 that pegs graft of standing groove 14, the equal fixedly connected with handle two 5 in the transparent pressing plate 15 left and right sides, peg graft inside standing groove 14 through handle two 5 with transparent pressing plate 15, just so can utilize transparent pressing plate 15 to flatten the bill to increase the success rate of exchanging recognizer 9 discernment bill.
Further, the equal fixed mounting in the 1 top left and right sides of base has storage box 3, just can place the bill and store in storage box 3 when the bill that needs discernment change is more to avoid the bill to lose.
Further, the front ends of the fastening bolts 13 penetrate the front surface of the base 1, so that the fastening bolts 13 can be screwed with the sliders 12.
Further, the two sliders 12, the two connecting rods 4 and the two fastening bolts 13 are provided, so that the placing plate 6 can be moved smoothly.
To sum up, the utility model discloses a work flow: when in use, the device is firstly placed on a flat table top through the base 1 of the device, then the fastening bolts 13 are loosened, the shipping financial information bills needing to be identified and exchanged are placed in the placing groove 14 formed in the top end of the placing plate 6, then the transparent pressing plate 15 is inserted into the placing groove 14 through the handle II 5, so that the bills can be flattened through the transparent pressing plate 15, the success rate of identifying the bills by the exchange identifier 9 is increased, and a plurality of bills can be placed in the placing groove 14 according to requirements before identification and exchange are carried out, so that the identification and exchange speed can be accelerated, and the bills are pressed by the transparent pressing plate 15, so that the information on the bills can be prevented from being blocked, the identification and exchange process is influenced, the connecting rods 4 are fixedly connected to the left side and the right side of the bottom of the placing plate 6, and the sliders 12 are fixedly connected to the bottoms of the connecting rods 4, therefore, the placing plate 6 can move through the movement of the sliding block 12 in the sliding groove 11, so that placed bills can be identified through the moving of the placing plate 6 so that the bills can be stored in the storage box 3 through the identification of the exchange identifier 9 fixedly installed at the bottom of the connecting plate 8 when the number of the exchanged bills is large, thereby avoiding the loss of the bills, meanwhile, the connecting plate 8 is fixedly connected to the top end of the supporting rod 7, and the supporting rod 7 is in sliding connection with the loop bar 10, so that the distance between the exchange identifier 9 and the placing plate 6 can be adjusted as required, only the adjusting bolt 16 needs to be screwed so that the supporting rod 7 can slide and lift in the loop bar 10, thereby conveniently adjusting the exchange identifier 9, further achieving better identification effect, and facilitating the carrying by using the handle 2 when the device is carried, then just can avoid slider 12 to take place to slide when the transport through screwing up fastening bolt 13, and through adjusting bolt 16 down the connecting plate 8 make exchange recognizer 9 carry out certain centre gripping to the transparent clamp plate 15 of plug-in connection in standing groove 14 inside to just can make things convenient for the device's transport and transported, the whole easy operation of the device and practicality are stronger simultaneously.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a shipping financial information bill discernment exchange device, includes base (1), its characterized in that: the top end of the base (1) is provided with a sliding chute (11), the sliding chute (11) is connected with a sliding block (12) in a sliding way, the front surface of the sliding block (12) is in threaded connection with a fastening bolt (13), the top end of the sliding block (12) is fixedly connected with a connecting rod (4), the top end of the connecting rod (4) is fixedly connected with a placing plate (6), the top end of the placing plate (6) is provided with a placing groove (14), a loop bar (10) is fixedly connected at the center of the rear surface of the base (1), the top end of the loop bar (10) is connected with a supporting rod (7) in a sliding way, the outer surface of the loop bar (10) is in threaded connection with an adjusting bolt (16), the top end of the supporting bar (7) is fixedly connected with a connecting plate (8), the bottom of the connecting plate (8) is fixedly provided with an exchange recognizer (9), and the left side and the right side of the base (1) are fixedly connected with a first handle (2).
2. The shipping financial information instrument identification redemption device of claim 1, wherein: transparent pressing plates (15) are inserted into the placing grooves (14), and handles II (5) are fixedly connected to the left side and the right side of each transparent pressing plate (15).
3. The shipping financial information instrument identification redemption device of claim 1, wherein: the storage box (3) is fixedly mounted on the left side and the right side of the top end of the base (1).
4. The shipping financial information instrument identification redemption device of claim 1, wherein: the front end of the fastening bolt (13) penetrates through the front surface of the base (1).
5. The shipping financial information instrument identification redemption device of claim 1, wherein: the sliding block (12), the connecting rod (4) and the fastening bolt (13) are provided with two.
