CN214474277U - a spectacle frame

Info

Publication number: CN214474277U
Application number: CN202120186545.1U
Authority: CN
Inventors: 盘红军; 刘克桓
Original assignee: Wenzhou Shangzhen Optical Co ltd
Current assignee: Wenzhou Shangzhen Optical Co ltd
Priority date: 2021-01-22
Filing date: 2021-01-22
Publication date: 2021-10-22
Anticipated expiration: 2031-01-22

Abstract

The present application relates to a spectacle frame, which includes a spectacle frame and a temple hinged on one side of the spectacle frame, the outer side of the temple is covered with a rubber sheath, and the side of the temple away from the spectacle frame is connected with a The rubber sheath and the temple are separated from the anti-detachment block, the anti-detachment block and the temple are detachably connected by the positioning member, and the outer side of the anti-detachment block is detachably connected with a rubber protective cover. The present application has the effect of high stability when worn.

Description

Spectacle frame

Technical Field

The present application relates to the field of eyewear, and more particularly, to an eyewear frame.

Background

The glasses are combined by lenses and frames, and are used for improving eyesight, protecting eyes or as decorative articles, and can be divided into myopia glasses, hyperopia glasses, presbyopic glasses, astigmatic glasses and the like.

In the related art, chinese patent publication No. CN201936084U discloses glasses, which include a glasses frame, glasses lenses and glasses legs, wherein the glasses legs main body has a prism structure, and light is dispersed when it irradiates the glasses legs, thereby forming a beautiful viewing effect. The tail end of the glasses leg is in a smooth transition shape with a natural curve shape, and liquid is injected into the glasses leg and can further refract light.

With respect to the related art among the above, the inventors consider that the following drawbacks exist: the glasses legs in the glasses adopt a prism structure, the surface texture is smooth, the friction force between the contact parts of the glasses legs and the face is small when the glasses are worn, and the stability of the glasses legs is poor; particularly, after the user sweats during exercise, the sweat can adhere to the glasses legs, so that the glasses legs slip and even fall off, and improvement is needed.

SUMMERY OF THE UTILITY MODEL

In order to improve stability when worn, the present application provides a spectacle frame.

The application provides a spectacle-frame adopts following technical scheme:

the utility model provides a spectacle frame, includes the lens frame and articulates the mirror leg in lens frame one side, the outside cover of mirror leg is equipped with rubber sheath, one side that the lens frame was kept away from to the mirror leg is connected with the anticreep piece that is used for restricting rubber sheath and mirror leg separation, the anticreep piece can be dismantled with the mirror leg through the setting element and be connected, the lag that is connected with the rubber material can be dismantled in the outside of anticreep piece.

Through adopting above-mentioned technical scheme, when wearing glasses, user's face and ear root can with the rubber sheath rather than the contact of mirror leg, and the rubber sheath adopts rubber materials to make, and its coefficient of friction is high, big with user contact site's frictional force, and the mirror leg is difficult for skidding among the glasses wearing process, and the stability of glasses is high with the comfort level when wearing. The anti-disengaging block is connected in the side that the mirror leg kept away from the lens frame, can effectively block the rubber sheath and break away from the mirror leg, has improved the stability of rubber sheath. And the anticreep piece can be dismantled with the mirror leg, has the effect that convenience of customers changed the rubber sheath after wearing and tearing to the life of extension glasses, reduction replacement cost. The lag is connected in the outside of anticreep piece, not only plays the effect that the protection lag is not scraped colored wearing and tearing, can also further block rubber sheath and mirror leg separation, has improved the anticreep effect of anticreep piece to rubber sheath.

Optionally, the locating piece comprises a positioning screw fixed on one side of the glasses leg far away from the lens frame, and a positioning screw hole in threaded fit with the positioning screw is formed in the end face, close to the glasses leg, of the anti-falling block.

Through adopting above-mentioned technical scheme, anticreep piece passes through positioning screw and location screw threaded connection with the mirror leg, and stability when both connect is high and easy dismounting. In addition, the user can also change the length of positioning screw in location screw according to self demand to change the whole length of mirror leg, with the user of adaptation different types of face, the practicality is strong.

Optionally, the cross-section of the anti-falling block is gradually increased from one end close to the glasses legs to one end far away from the glasses legs, the end face of the protective sleeve close to the glasses legs is provided with a connecting groove with the same shape as the anti-falling block, and the anti-falling block is embedded in the connecting groove.

Through adopting above-mentioned technical scheme, because the one end cross-section that the mirror leg was kept away from to the anticreep piece is great, the restriction that the rubber sheath received the anticreep piece main aspects is difficult for separating with the mirror leg, and the anticreep is effectual. The lag tightly overlaps in the outside of anticreep piece through self deformation, and easy and simple to handle, the stability of anticreep piece is high when both connect.

Optionally, the side wall of the anti-disengaging block is integrally formed with anti-disengaging teeth, and anti-disengaging grooves for the anti-disengaging teeth to be embedded respectively are formed in the groove walls of the connecting grooves.

Through adopting above-mentioned technical scheme, the frictional force of anticreep piece and spread groove lateral wall has been increased to the anticreep tooth for lag and the difficult relative movement of anticreep piece have improved the stability of lag.

Optionally, the anticreep tooth is two sets of and sets up respectively on two relative lateral walls of anticreep piece, every group the anticreep tooth all distributes along the length direction of anticreep piece has a plurality ofly.

Through adopting above-mentioned technical scheme, both sides all receive the location of anticreep tooth when lag and anticreep tooth are connected, have further improved the joint strength of lag with the anticreep tooth for the lag is difficult for following the anticreep tooth and deviate from when glasses are worn.

Optionally, a fixing groove for embedding the rubber sheath is formed in the side wall of the glasses leg, and the extending length of the fixing groove is not less than the length of the rubber sheath.

Through adopting above-mentioned technical scheme, rubber sheath cover is established and is located the fixed slot when the mirror leg is outside, and the fixed slot can block rubber sheath and remove along the length direction of mirror leg, has improved rubber sheath's stability.

Optionally, the thickness of the rubber sheath is greater than the depth of the fixing groove.

Through adopting above-mentioned technical scheme, the tip can protrusion in the mirror leg when rubber sheath connects in the fixed slot to with user's face and the contact of ear root when wearing, increased mirror leg and user's frictional force, stability when having improved glasses and wearing.

Optionally, a limit ring made of rubber is fixed on the side wall of each glasses leg, and the limit ring is abutted to one side, close to the lens frame, of the rubber sheath.

Through adopting above-mentioned technical scheme, the spacing ring can block that rubber sheath removes to the one side that is close to the lens frame, avoids rubber sheath to move to and contact with the lens and disturb people's eye sight, has further improved rubber sheath's stability.

In summary, the present application includes at least one of the following beneficial technical effects:

1. when the glasses are worn, the rubber sheath can replace glasses legs to contact with a user, the friction force is large when the rubber sheath and the user contact, the glasses legs are not easy to slip, and the stability of the glasses during wearing is high; the anti-falling block is connected to the glasses legs and used for preventing the rubber sheath from being separated from the glasses legs;

2. the anti-falling block and the glasses legs are in threaded connection with the positioning screw holes through the positioning screws, and the anti-falling block and the glasses legs are connected stably and are convenient to disassemble and assemble; the protective sleeve not only plays a role in protecting the anti-falling block, but also can further prevent the rubber protective sleeve from being separated from the glasses legs, and the anti-falling teeth are matched with the anti-falling grooves to play a role in improving the connecting strength of the protective sleeve and the anti-falling block;

3. the fixed slot can supply rubber sheath to stretch into to block the length direction motion of rubber sheath along the mirror leg, the spacing ring plays and blocks the effect of rubber sheath to being close to lens frame one side motion, has improved rubber sheath's stability.

Drawings

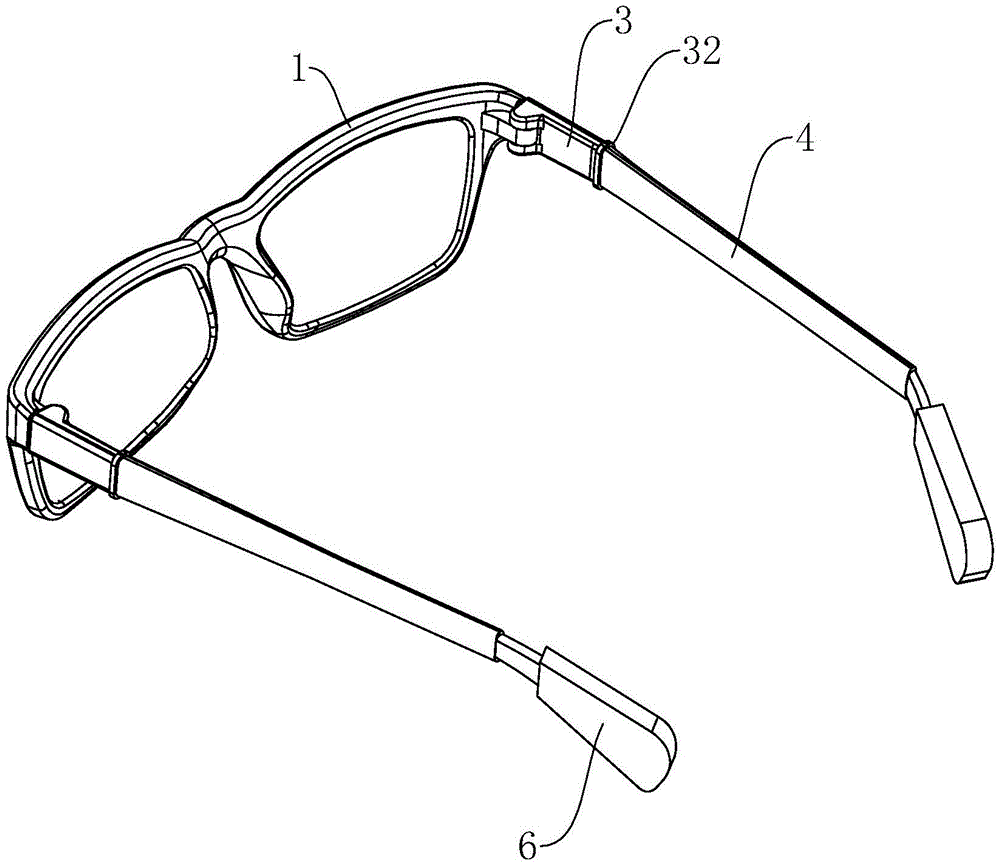

Fig. 1 is a schematic structural diagram of an embodiment of the present application.

Fig. 2 is a schematic partial explosion diagram of an embodiment of the present application.

Fig. 3 is a schematic structural diagram of a protective sleeve in an embodiment of the present application.

Description of reference numerals: 1. a lens frame; 3. a temple; 31. fixing grooves; 32. a limiting ring; 33. positioning a screw rod; 4. a rubber sheath; 5. an anti-drop block; 51. positioning the screw hole; 52. preventing the teeth from falling off; 6. a protective sleeve; 61. connecting grooves; 62. and (4) an anti-drop groove.

Detailed Description

The present application is described in further detail below with reference to figures 1-3.

The embodiment of the application discloses spectacle-frame. Referring to fig. 1, the eyeglass frame includes a lens frame 1 and two temples 3, the lens frame 1 is used for installing lenses, and the two temples 3 are respectively hinged at the same side of the lens frame 1.

Referring to fig. 1 and 2, a fixing groove 31 is formed on a sidewall of the temple 3 in a circumferential direction thereof, and the fixing groove 31 extends in a longitudinal direction of the temple 3. The outer side of each glasses leg 3 is sleeved with a rubber sheath 4, the length of each rubber sheath 4 is slightly smaller than that of the corresponding fixing groove 31, and the thickness of each rubber sheath 4 is slightly larger than the depth of the corresponding fixing groove 31; when the rubber sheath 4 is sleeved outside the glasses legs 3, the rubber sheath 4 is positioned in the fixing groove 31. When the glasses are worn, the rubber sheath 4 can replace the glasses legs 3 to contact with a user, the rubber sheath 4 is made of rubber materials, the surface friction coefficient of the rubber sheath is large, the friction force of the contact part of the rubber sheath and the user is large, the glasses are not easy to slip when being worn, and the stability is high.

Referring to fig. 1 and 2, a stopper ring 32 is fixed to an outer surface of the temple 3, the stopper ring 32 is located on one side of the fixing groove 31 close to the lens frame 1, and a side surface of the stopper ring 32 close to the fixing groove 31 is flush with a groove wall of the fixing groove 31 close to the lens frame 1. When the rubber sheath 4 is sleeved on the fixing groove 31, the limiting ring 32 abuts against one side of the rubber sheath 4 facing the lens frame 1, so that the rubber sheath 4 is not easy to move to one side close to the lens frame 1, and the stability of the rubber sheath 4 is improved.

Referring to fig. 1 and 2, one side of the glasses leg 3 far away from the glasses frame 1 is detachably connected with an anti-falling block 5 through a positioning piece, the section of the anti-falling block 5 is gradually increased from one end close to the glasses leg 3 to one end far away from the glasses leg 3, the section of the small end of the anti-falling block 5 is the same as that of one end of the glasses leg 3 far away from the glasses frame 1, and the anti-falling block 5 can block the rubber sheath 4 from being separated from one side of the glasses leg 3 far away from the glasses frame 1 when being connected with the glasses leg 3.

Referring to fig. 1 and 2, the end surface of the anti-slip block 5 close to the temple 3 is provided with a positioning screw 51, the positioning member includes a positioning screw 33 fixed on one side of the temple 3 far away from the lens frame 1, and the positioning screw 33 is in threaded fit with the positioning screw 51. When the anti-disengaging block 5 is installed, a user only needs to rotate the anti-disengaging block 5 without other tools, the operation is simple and convenient, and the installation efficiency is high. In addition, the user can change the length of the positioning screw 33 screwed into the positioning screw hole 51 according to the requirement, thereby changing the length of the temple 3 to expand the face shape range applicable to the glasses.

Referring to fig. 1 and 2, a protective sleeve 6 is sleeved on the outer side of the anti-falling block 5, and the protective sleeve 6 is made of rubber materials and plays a role in protecting the surface of the anti-falling block 5 from being scratched. The terminal surface that lag 6 is close to mirror leg 3 is equipped with the spread groove 61, and the shape of spread groove 61 is the same with anticreep piece 5's shape, and when lag 6 was connected with anticreep piece 5, anticreep piece 5 inlayed and established in spread groove 61 and press from both sides tightly through the deformation of lag 6.

Referring to fig. 2 and 3, a set of anti-disengaging teeth 52 are respectively and integrally formed on two opposite side walls of the anti-disengaging block 5, each set of anti-disengaging teeth 52 is distributed along the length direction of the anti-disengaging block 5, and anti-disengaging grooves 62 with the same number as the anti-disengaging teeth 52 in each set are respectively formed on two opposite side wall of the connecting groove 61. When the protecting jacket 6 is connected with the anti-falling teeth 52, each anti-falling tooth 52 is embedded in the anti-falling groove 62 close to the anti-falling tooth 52, so that the protecting jacket 6 is prevented from being separated from the anti-falling teeth 52, and the stability of the protecting jacket 6 is improved.

The implementation principle of a spectacle frame of the embodiment of the application is as follows: when wearing glasses, the rubber sheath 4 is in contact with the user instead of the glasses legs 3, the friction force when the two are in contact is large, the glasses legs 3 are not easy to slip, and the stability when wearing the glasses is high. When the anti-falling block 5 is connected with the glasses legs 3, the rubber sheath 4 can be effectively prevented from being separated from the glasses legs 3, the limiting ring 32 is abutted to one side, close to the lens frame 1, of the rubber sheath 4, and the stability of the rubber sheath 4 is improved; the lag 6 is connected in the outside of anticreep piece 5, plays the effect of protection anticreep piece 5. After the rubber sheath 4 is aged, the user can remove the anti-drop block 5 by separating the positioning screw 33 from the positioning screw hole 51, thereby replacing the rubber sheath 4 alone.

The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.

Claims

1. The utility model provides a spectacle-frame, includes lens frame (1) and articulates temple (3) in lens frame (1) one side, its characterized in that: the outside cover of mirror leg (3) is equipped with rubber sheath (4), one side that lens frame (1) was kept away from in mirror leg (3) is connected with anticreep piece (5) that are used for restricting rubber sheath (4) and mirror leg (3) separation, anticreep piece (5) can be dismantled through the setting element with mirror leg (3) and be connected, lag (6) that are connected with the rubber material can be dismantled in the outside of anticreep piece (5).

2. A spectacle frame as claimed in claim 1, wherein: the setting element is including fixing positioning screw (33) keeping away from lens frame (1) one side in mirror leg (3), anticreep piece (5) are close to mirror leg (3) terminal surface seted up with positioning screw (33) screw thread fit's location screw (51).

3. A spectacle frame as claimed in claim 1, wherein: the cross-section of anticreep piece (5) is by the one end that is close to mirror leg (3) to the one end crescent of keeping away from mirror leg (3), the terminal surface that lag (6) are close to mirror leg (3) is equipped with spread groove (61) the same with anticreep piece (5) shape, anticreep piece (5) inlay and establish in spread groove (61).

4. A spectacle frame as claimed in claim 3, wherein: the anti-falling tooth (52) is integrally formed on the side wall of the anti-falling block (5), and the anti-falling groove (62) for embedding the anti-falling tooth (52) is formed in the groove wall of the connecting groove (61).

5. A spectacle frame as claimed in claim 4, wherein: the anti-disengaging teeth (52) are two groups and are respectively arranged on two opposite side walls of the anti-disengaging block (5), and each group of anti-disengaging teeth (52) are distributed along the length direction of the anti-disengaging block (5) in a plurality.

6. A spectacle frame as claimed in claim 1, wherein: the side wall of each glasses leg (3) is provided with a fixing groove (31) for embedding the rubber sheath (4), and the extending length of each fixing groove (31) is not less than the length of the rubber sheath (4).

7. A spectacle frame as claimed in claim 6, wherein: the thickness of the rubber sheath (4) is larger than the depth of the fixing groove (31).

8. A spectacle frame as claimed in claim 6, wherein: the side wall of each glasses leg (3) is fixedly provided with a limiting ring (32) made of rubber, and the limiting ring (32) is abutted to one side, close to the lens frame (1), of the rubber sheath (4).
