CN214452519U

CN214452519U - Hospital disinfection supply center packing platform convenient for placing computer

Info

Publication number: CN214452519U
Application number: CN202120642475.6U
Authority: CN
Inventors: 瞿妙; 陈显玲; 黎冬
Original assignee: Ruian Peoples Hospital
Current assignee: Ruian Peoples Hospital
Priority date: 2021-03-30
Filing date: 2021-03-30
Publication date: 2021-10-22
Anticipated expiration: 2031-03-30

Abstract

The utility model relates to the technical field of packaging tables, in particular to a packaging table for a hospital disinfection supply center that is convenient for placing computers, comprising a packaging table body, a top of the packaging table body is provided with a connected storage rack and a computer mounting rack, and the computer mounting rack is mounted on the top of the packaging table body. A number of computers are installed, the bottom of the computer placement rack is installed with keyboard storage devices with the same number and corresponding positions, a number of drawers with uniform and equal distances are arranged on one side of the packaging table body, and each drawer is provided with a box door, and The door is provided with a handle for easy opening or closing. The utility model can place multiple computers at the same time through the provided computer placement rack, which saves space and thus saves the cost of purchasing a computer desk separately. Packing tools or instruments that need to be replaced, etc., reduce the occupied area, and the keyboard can be fixed through the provided keyboard storage device to improve the stability of the structure.

Description

Hospital disinfection supply center packing platform convenient for placing computer

Technical Field

The utility model relates to a packing platform technical field specifically is a hospital's disinfection supply center packing platform convenient to lay computer.

Background

The existing hospital supply center has no space for placing a computer on a packaging table, because the existing hospital adopts a computer science application disinfection supply center traceable system, the informatization management of instruments is well done, a plurality of computers are required to be configured in the supply center, and a plurality of computer tables are generally required to be configured additionally, so that the space congestion of the supply center is caused, and the cost is increased.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a hospital's disinfection supply center packing platform convenient to lay the computer to solve the problem of proposing among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

the utility model provides a hospital's disinfection supply center packing platform convenient to lay computer, includes the packing platform body, supporter and computer dispenser that are connected are installed to the top of packing platform body, install a plurality of computers on the computer dispenser, the bottom of computer dispenser install with the same, the corresponding keyboard storage device in position of computer quantity, one side of packing platform body is provided with the drawer of a plurality of even equidistance, and is provided with the pull handle of being convenient for to open or close on the drawer.

Preferably, the four top corners of the bottom of the packaging table body are respectively provided with a thread adjusting seat, and the thread adjusting seats are in threaded connection with the bottom of the packaging table body.

Preferably, the bottom of each thread adjusting seat is provided with a universal wheel.

Preferably, the keyboard containing device comprises a keyboard fixing seat for placing a keyboard.

Preferably, the keyboard fixing seat is arranged obliquely, and the inclination angle is 15-20 degrees.

Preferably, two sides of the keyboard fixing seat are provided with a first connecting rod and a second connecting rod which are arranged in parallel.

Preferably, a plurality of parallel sliding grooves are formed in the bottom of the computer placing frame, and sliding blocks matched with the sliding grooves in size and in sliding fit are installed at the tops of the first connecting rod and the second connecting rod.

Compared with the prior art, the beneficial effects of the utility model are that:

1. this hospital disinfection supply center packing platform convenient to lay computer, through the computer dispenser that sets up, can place many computers simultaneously, save space to save the cost of purchasing the desk alone, through the supporter that sets up, be convenient for pack, and a plurality of drawers that set up, can conveniently accomodate various packing tools or the apparatus that needs to be changed etc., reduce area occupied, through the keyboard storage device that sets up, can fix the keyboard, improve the stability of structure.

2. In this hospital's disinfection supply center packing platform convenient to lay computer, the screw thread regulation seat through setting up can prevent direct and ground contact with the high promotion of packing platform body, influences life, and every screw thread regulation seat can carry out height control to make the packing platform body keep the level, the shock pad can adopt the rubber material to make, improves the shock attenuation effect.

3. In this hospital's disinfection supply center packing platform convenient to lay computer, can fix the keyboard through the keyboard fixing base that sets up, improve the stability of structure, the slope of keyboard fixing base sets up, and it is more convenient to operate, through head rod and the second connecting rod that sets up, can improve the stability of keyboard fixing base, and sliding block and spout sliding fit are convenient for take out or accomodate the keyboard fixing base.

Drawings

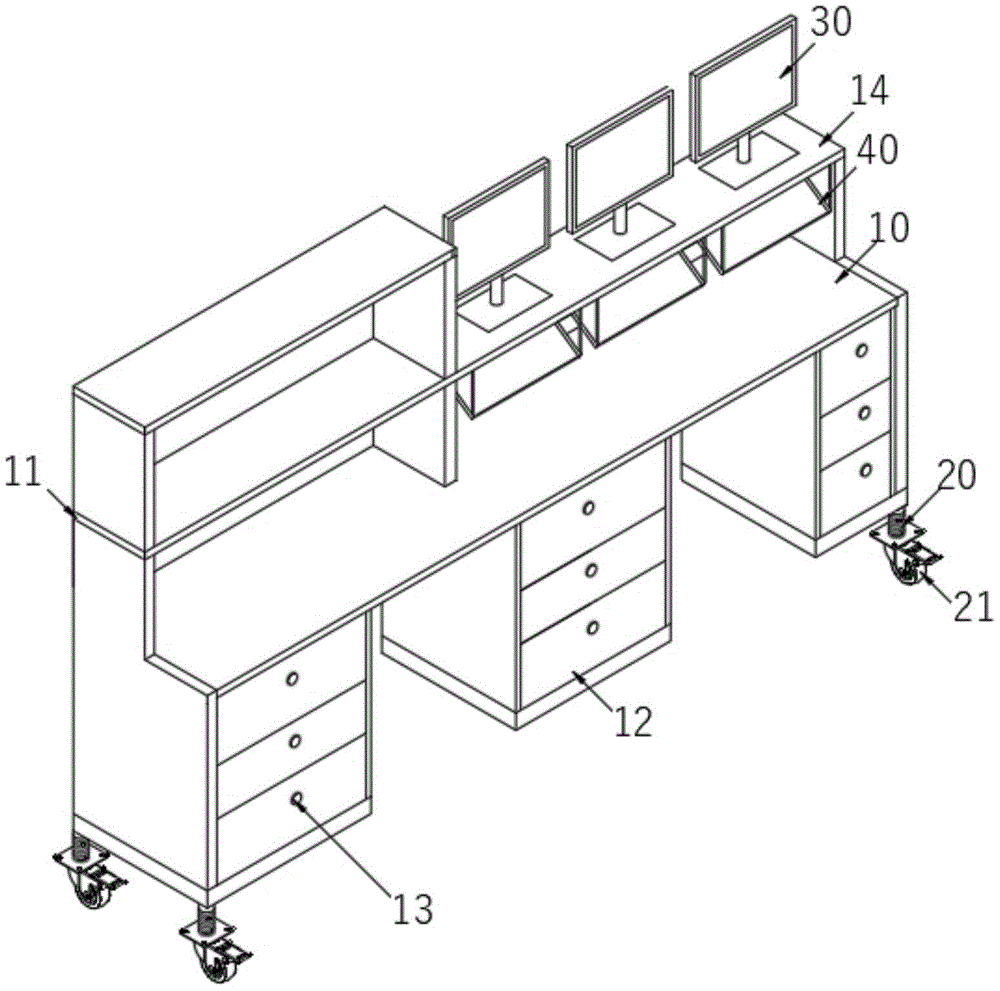

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of the keyboard of the present invention after being placed;

FIG. 3 is a schematic structural view of the keyboard of the present invention after being placed;

fig. 4 is a schematic structural view of the keyboard of the present invention after being pulled out.

The meaning of the various reference symbols in the drawings:

10. a packing table body; 11. a rack; 12. a drawer; 13. pulling a handle; 14. a computer placing rack; 15. a chute;

20. a screw thread adjusting seat; 21. a universal wheel;

30. a computer;

40. a keyboard storage device; 41. a keyboard; 42. a keyboard fixing seat; 43. a first connecting rod; 44. a second connecting rod; 45. and a slider.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Example 1

A hospital disinfection supply center packing table convenient for placing computers is disclosed, as shown in figures 1-4, and comprises a packing table body 10, a storage rack 11 and a computer placing rack 14 which are connected are installed at the top of the packing table body 10, a plurality of computers 30 are installed on the computer placing rack 14, keyboard containing devices 40 which are the same as the computers 30 in quantity and correspond to the computers in position are installed at the bottom of the computer placing rack 14, a plurality of uniform and equidistant drawers 12 are arranged on one side of the packing table body 10, and a pull handle 13 which is convenient to open or close is arranged on the drawer 12.

Further, screw thread regulation seat 20 is all installed to four apex angle departments in the bottom of packing platform body 10, and screw thread regulation seat 20 and the bottom threaded connection of packing platform body 10, every universal wheel 21 is installed to the bottom of screw thread regulation seat 20, can prevent direct and ground contact with packing platform body 10's high promotion through the screw thread regulation seat 20 that sets up, influence life, and every screw thread regulation seat 20 can carry out height adjustment, thereby make packing platform body 10 keep the level, through the universal wheel 21 that sets up, when screw thread regulation seat 20 highly transfers low, the pulley lands, conveniently shifts or clean bottom surface.

Specifically, keyboard storage device 40 is including the keyboard fixing base 42 that is used for placing keyboard 41, and keyboard fixing base 42 is the slope setting, and inclination is 15-20, can fix keyboard 41 through the keyboard fixing base 42 that sets up, improves the stability of structure, and keyboard fixing base 42 inclines to set up, and it is more convenient to operate.

In addition, keyboard fixing base 42's both sides all are provided with two parallel arrangement's head rod 43 and second connecting rod 44, a plurality of parallel spout 15 have been seted up to the bottom of computer dispenser shelf 14, head rod 43 and second connecting rod 44's top all is installed with 15 size looks adaptations of spout and sliding fit's sliding block 45, head rod 43 and second connecting rod 44 through setting up, keyboard fixing base 42's stability can be improved, and sliding

block

45 and 15 sliding fit of spout, be convenient for take keyboard fixing base 42 out or accomodate.

When the hospital disinfection supply center packaging table convenient for placing the computer in the embodiment is used, an operator installs the computer on the computer placing rack 14 and installs the keyboard 41 in the keyboard containing device 40, when the table is used, as shown in fig. 4, the keyboard containing device 40 is pulled out for use, and after the use is finished, the containing device 40 is pushed in for containing, as shown in fig. 3.

The utility model discloses an among the hospital's disinfection supply center packing platform convenient to lay computer, computer dispenser 14 through setting up, can place many computers 20 simultaneously, save space, thereby save the cost of purchasing the desk alone, supporter 11 through setting up, be convenient for pack, and a plurality of drawers 12 of setting, the apparatus that conveniently accomodates various packing tools or need change etc, reduce the area occupied, keyboard storage device 40 through setting up, can fix keyboard 41, improve the stability of structure.

The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a hospital's disinfection supply center packing platform convenient to lay computer which characterized in that: including packing platform body (10), supporter (11) and computer dispenser (14) that are connected are installed at the top of packing platform body (10), install a plurality of computers (30) on computer dispenser (14), the bottom of computer dispenser (14) install with the same, the corresponding keyboard storage device (40) in position of computer (30) quantity, one side of packing platform body (10) is provided with drawer (12) of a plurality of even equidistance, and is provided with pull handle (13) of being convenient for to open or close on drawer (12).

2. The hospital sterile supply center packaging table for conveniently housing a computer according to claim 1, wherein: four apex angle departments in the bottom of packing platform body (10) all install screw thread regulation seat (20), screw thread regulation seat (20) and the bottom threaded connection of packing platform body (10).

3. The hospital sterile supply center packaging table for conveniently housing a computer according to claim 2, wherein: the bottom of each thread adjusting seat (20) is provided with a universal wheel (21).

4. The hospital sterile supply center packaging table for conveniently housing a computer according to claim 1, wherein: the keyboard containing device (40) comprises a keyboard fixing seat (42) for placing a keyboard (41).

5. The hospital sterile supply center packaging table for conveniently housing a computer according to claim 4, wherein: the keyboard fixing seat (42) is arranged obliquely, and the inclination angle is 15-20 degrees.

6. The hospital sterile supply center packaging table for conveniently housing a computer according to claim 4, wherein: two sides of the keyboard fixing seat (42) are respectively provided with a first connecting rod (43) and a second connecting rod (44) which are arranged in parallel.

7. The hospital sterile supply center packaging table for conveniently housing a computer according to claim 6, wherein: a plurality of parallel sliding grooves (15) are formed in the bottom of the computer placing frame (14), and sliding blocks (45) which are matched with the sliding grooves (15) in size and in sliding fit are mounted at the tops of the first connecting rod (43) and the second connecting rod (44).
