CN214448003U

CN214448003U - Color matching product injection mold

Info

Publication number: CN214448003U
Application number: CN202022863692.6U
Authority: CN
Inventors: 陈弘
Original assignee: Wuhan Boyue Mold Technology Co ltd
Current assignee: Wuhan Boyue Mold Technology Co ltd
Priority date: 2020-12-03
Filing date: 2020-12-03
Publication date: 2021-10-22
Anticipated expiration: 2030-12-03

Abstract

The utility model relates to the technical field of injection molds, and discloses an injection mold for color-blocking products, which comprises a frame. The left and right ends of the frame are respectively connected with a first movable mold and a second movable mold. Both sides are fixedly connected with fixed blocks, and a fixed mold is arranged between the two fixed blocks. Through the arrangement of the first movable mold, the second movable mold, the fixed mold, the servo motor, the connecting shaft and the fixed block, the utility model starts the electric hydraulic cylinder to push the first movable mold to contact the fixed mold, so that the first color of the product is adjusted. Carry out injection molding, and then start the servo motor to drive the fixed mold to rotate 180 degrees so as to correspond the injection molded product of the first color to the second movable mold, and then start the electric hydraulic cylinder to push the second movable mold to contact the fixed mold, so as to improve the quality of the product. The second color is injection molded, so that the process of taking the product for color matching injection molding is omitted, and the efficiency of the color matching product is further improved, which is more practical and suitable for widespread promotion and use.

Description

Color matching product injection mold

Technical Field

The utility model relates to an injection mold technical field specifically is color matching goods injection mold.

Background

The color matching injection molding has very common application in the technical field of plastic molding, when an existing color matching product is subjected to injection molding, one color is firstly subjected to injection molding, then the product is taken down from a first mold and placed on a second mold to be subjected to second color injection molding, and a large amount of time needs to be wasted in the taking process, so that the injection molding efficiency of the color matching product is reduced, and therefore, the color matching product injection mold is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a color matching goods injection mold has solved the problem that proposes in the background art.

In order to achieve the above object, the utility model provides a following technical scheme: color matching goods injection mold, which comprises a frame, both ends do swing joint respectively have first movable mould and second movable mould about the frame, the equal fixedly connected with fixed block in both sides about the middle part of frame, two be equipped with the cover half between the fixed block, the equal fixedly connected with connecting axle in upper and lower both ends of cover half, just the cover half passes through connecting axle swing joint between two the same fixed blocks, the lower extreme fixed mounting of fixed block has the rack, fixed mounting has servo motor in the rack, servo motor's motor shaft and connecting axle fixed connection, the equal fixedly connected with electric hydraulic cylinder in both ends about the frame, two electric hydraulic cylinder's output respectively with first movable mould and second movable mould fixed connection.

As an optimal implementation mode of the utility model, the spout has all been seted up to both sides about the front end of frame, the equal fixedly connected with slider in both ends about the inner chamber of first movable mould and second movable mould, just slider and spout swing joint.

As an embodiment of the utility model, the equal fixedly connected with gag lever post in right-hand member four corners department of first movable mould and the left end four corners department of second movable mould, spacing hole has all been seted up in both ends four corners department about the cover half, spacing hole is corresponding with the gag lever post.

As a preferred embodiment of the utility model, the upper end fixedly connected with "T" shape mount of fixed block, the equal fixed mounting in the lower extreme left and right sides of "T" shape mount has the fan.

As a preferred embodiment of the utility model, the front end fixed mounting of fixed block has the speed governing switch, the speed governing switch is established ties through external power source and fan electrical property.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses color matching goods injection mold, through first movable mould, the second movable mould, the cover half, servo motor, the setting of connecting axle and fixed block, start electric hydraulic cylinder and promote first movable mould and cover half contact, thereby mould plastics to the first colour of goods, thereby it corresponds the injection moulding goods of first colour with the second movable mould to start servo motor to drive the rotatory one hundred eighty degrees of cover half, then start electric hydraulic cylinder and promote second movable mould and cover half contact, thereby mould plastics to the second colour of goods, thereby save the goods of taking and carry out the process of color matching injection moulding, further improvement color matching goods's efficiency.

2. The utility model discloses color matching goods injection mold through the setting of spout and slider to can lead to the removal to first movable mould and second movable mould, thereby increase the stability that first movable mould and second movable mould removed.

3. The utility model discloses color matching goods injection mold through the setting of spacing hole and gag lever post to can let first movable mould and second movable mould and the accurate contact of cover half.

Drawings

Other features, objects and advantages of the invention will become more apparent upon reading of the detailed description of non-limiting embodiments with reference to the following drawings:

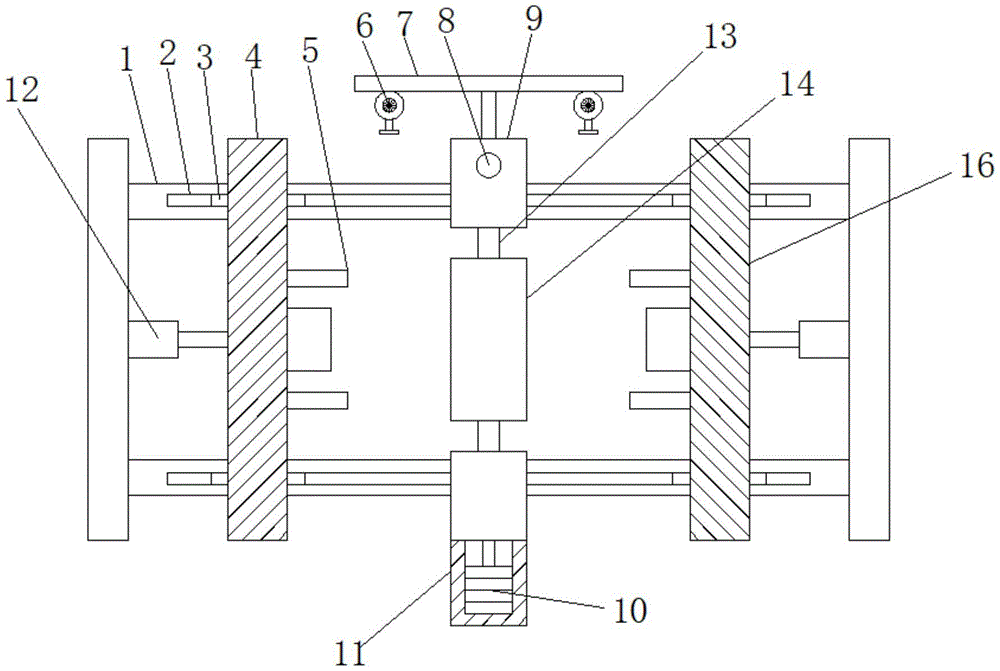

FIG. 1 is a front view of the color matching product injection mold of the present invention;

fig. 2 is the utility model discloses color matching goods injection mold's cover half front view.

In the figure: 1. a frame; 2. a chute; 3. a slider; 4. a first movable mold; 5. a limiting rod; 6. a fan; 7. a T-shaped fixing frame; 8. a speed regulating switch; 9. a fixed block; 10. a servo motor; 11. placing a rack; 12. an electric hydraulic cylinder; 13. a connecting shaft; 14. fixing a mold; 15. a limiting hole; 16. and a second movable mold.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

In the description of the present invention, it should be noted that, unless explicitly stated or limited otherwise, the terms "mounted," "connected" and "disposed" are to be interpreted broadly, and may be, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed; the utility model discloses in provide only supply the reference with the model of electrical apparatus. For those skilled in the art, different types of electrical appliances with the same function can be replaced according to actual use conditions, and for those skilled in the art, the specific meaning of the above terms in the present invention can be understood in specific situations.

Referring to fig. 1-2, the present invention provides a technical solution: color matching product injection mold, including frame 1, frame 1's the left and right sides both ends swing joint respectively has first movable mould 4 and second movable mould 16, the equal fixedly connected with fixed block 9 in both sides about the middle part of frame 1, two be equipped with cover half 14 between the fixed block 9, the equal fixedly connected with connecting axle 13 in both ends about cover half 14, just cover half 14 passes through connecting axle 13 swing joint between two the same fixed blocks 9, the lower extreme fixed mounting of fixed block 9 has rack 11, fixed mounting has servo motor 10 in the rack 11, servo motor 10's motor shaft and connecting axle 13 fixed connection, the equal fixedly connected with electric hydraulic cylinder 12 in both ends about frame 1, two the output of electric hydraulic cylinder 12 respectively with first movable mould 4 and second movable mould 16 fixed connection, through first movable mould 4, second movable mould 16, Fixed mould 14, servo motor 10, the setting of connecting axle 13 and fixed block 9, start electric hydraulic cylinder 12 and promote first movable mould 4 and the contact of fixed mould 14, thereby mould plastics to the first colour of goods, thereby start servo motor 10 and drive the rotatory one hundred eighty degrees of fixed mould 14 and correspond the injection moulding goods and the second movable mould 16 of first colour, then start electric hydraulic cylinder 12 and promote second movable mould 16 and the contact of fixed mould 14, thereby mould plastics to the second colour of goods, thereby save the process that the goods of taking carry out the color matching and mould plastics, further improvement color matching goods's efficiency.

In this embodiment (as shown in fig. 1), the sliding grooves 2 are formed in the upper and lower sides of the front end of the machine frame 1, the sliding blocks 3 are fixedly connected to the upper and lower ends of the inner cavities of the first movable die 4 and the second movable die 16, and the sliding blocks 3 are movably connected with the sliding grooves 2, so that the first movable die 4 and the second movable die 16 can be guided to move through the arrangement of the sliding grooves 2 and the sliding blocks 3, and the moving stability of the first movable die 4 and the second movable die 16 is improved.

In this embodiment (please refer to fig. 1 and 2), the four corners of the right end of the first movable mold 4 and the four corners of the left end of the second movable mold 16 are both fixedly connected with a limiting rod 5, the four corners of the left end and the right end of the fixed mold 14 are both provided with limiting holes 15, the limiting holes 15 correspond to the limiting rods 5, and the first movable mold 4 and the second movable mold 16 can be accurately contacted with the fixed mold 14 through the arrangement of the limiting holes 15 and the limiting rods 5.

In this embodiment (please refer to fig. 1), the upper end of the fixing block 9 is fixedly connected with a T-shaped fixing frame 7, the left side and the right side of the lower end of the T-shaped fixing frame 7 are both fixedly provided with fans 6, and the fans 6 are arranged, so that the fans 6 are started to cool the mold, and the injection molding cooling efficiency is improved.

In this embodiment (see fig. 1), a speed regulation switch 8 is fixedly installed at the front end of the fixing block 9, the speed regulation switch 8 is electrically connected in series with the fan 6 through an external power supply, and the speed of the fan 6 can be controlled by setting the speed regulation switch 8, so that the speed of adjusting and cooling can be further increased.

It should be noted that the utility model relates to a color matching product injection mold, including frame 1, spout 2, slider 3, first movable mould 4, gag lever post 5, fan 6, "T" shape mount 7, speed governing switch 8, fixed block 9, servo motor 10, rack 11, electric hydraulic cylinder 12, connecting axle 13, cover half 14, spacing hole 15, second movable mould 16, the part is general standard component or the part that technical staff in this field knows, its structure and principle all can be known through the technical manual or through the conventional experimental method, in operation, through the setting of first movable mould 4, second movable mould 16, cover half 14, servo motor 10, connecting axle 13 and fixed block 9, start electric hydraulic cylinder 12 and promote first

movable mould

4 and 14 contact, thereby mould plastics to the first colour of goods, then start servo motor 10 and drive cover half 14 and rotate one hundred eighty degrees thereby correspond the injection molding product of first colour with second movable mould 16, and then the electric hydraulic cylinder 12 is started to push the second movable die 16 to contact with the fixed die 14, so that the second color of the product is injected, the process of taking the product for color matching and injection molding is omitted, and the efficiency of color matching products is further improved.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above, it will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, but that the invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. An injection mold for color-matching products, comprising a frame (1), characterized in that: the left and right ends of the frame (1) are respectively movably connected with a first movable mold (4) and a second movable mold (16), A fixing block (9) is fixedly connected to the upper and lower sides of the middle part of the frame (1), a fixed die (14) is arranged between the two fixing blocks (9), and the upper and lower parts of the fixed die (14) are fixed. Both ends are fixedly connected with a connecting shaft (13), and the fixed die (14) is movably connected between two identical fixed blocks (9) through the connecting shaft (13), and the lower end of the fixed block (9) A placing frame (11) is fixedly installed, a servo motor (10) is fixedly installed in the placing frame (11), a motor shaft of the servo motor (10) is fixedly connected with the connecting shaft (13), and the frame ( The left and right ends of 1) are fixedly connected with electric hydraulic cylinders (12), and the output ends of the two electric hydraulic cylinders (12) are respectively fixedly connected with the first movable die (4) and the second movable die (16).

2. The injection mold for color-blocking products according to claim 1, characterized in that: the front end of the frame (1) is provided with a chute (2) on both sides, and the first movable mold (4) and The upper and lower ends of the inner cavity of the second movable die (16) are fixedly connected with sliders (3), and the sliders (3) are movably connected with the chute (2).

3. The injection mold for color-matching products according to claim 1, wherein the four corners of the right end of the first movable mold (4) and the four corners of the left end of the second movable mold (16) are fixedly connected with limit rods (5), limiting holes (15) are provided at the four corners of the left and right ends of the fixed die (14), and the limiting holes (15) correspond to the limiting rods (5).

4. The injection mold for color matching products according to claim 1, wherein the upper end of the fixing block (9) is fixedly connected with a "T"-shaped fixing frame (7), and the "T"-shaped fixing frame ( Fans (6) are fixedly installed on the left and right sides of the lower end of 7).

5. The injection mold for color-blocking products according to claim 4, characterized in that: a speed control switch (8) is fixedly installed at the front end of the fixing block (9), and the speed control switch (8) is connected to an external power source through an external power supply. The fans (6) are electrically connected in series.
