Abstract

The utility model discloses a linear rivet feeder, comprising an operating table, a washer feeding mechanism, a punching mechanism and a rivet feeding mechanism. The bottom of the washer feeding mechanism is fixedly connected with the left side of the upper part of the operating table, and the punching mechanism It is fixedly connected to the rear side of the upper part of the operating table, and the rivet feeding mechanism is fixedly connected to the right side of the upper part of the operating table. The washer feeding mechanism includes a gasket barrel, a chassis and a sliding seat, and the gasket barrel is fixed to the upper part of the chassis The utility model relates to the technical field of feeding. The linear rivet feeder uses a spiral vibrating disc to send the rivets to the straight vibrating belt, the third electric push rod pushes the feeding joint to send the rivets to the receiving seat, and the motor drives the rotating brush to rotate, so that the washer makes the discharge port fall. To the U-shaped notch, and then the hydraulic cylinder pushes the pressing seat to punch the rivet, which can realize automatic production, convenient operation, reduce labor, good product quality and high production efficiency.

Description

A linear rivet feeder

technical field

The utility model relates to the technical field of feeding, in particular to a linear rivet feeder.

Background technique

Rivets are commonly used parts in the production and assembly process. In automated production, rivets need to be fed according to the set posture when conveying. The existing rivet automatic feeding mechanism generally uses the center of gravity of the rivet to deviate from the geometric center to automatically queue up. Rivets with incorrect posture are returned to the bucket.

The rivet feeder is used for riveting rivets and gaskets. The traditional riveting machine generally needs to manually discharge the material when riveting. The gasket is manually placed in the predetermined position of the equipment, which is easy to cause many mistakes in the process of unloading, resulting in product At the same time, due to too many manual operations, the production efficiency is very low, the labor cost is high, and the risk factor is high.

Utility model content

In view of the deficiencies of the prior art, the utility model provides a linear rivet feeder, which solves the problem that the traditional riveting machine generally needs to manually discharge the material when riveting, and manually place the gasket in the predetermined position of the equipment. It is easy to cause many mistakes in the process of discharging, resulting in low product yield, excessive manual operation, low production efficiency, high labor cost and high risk factor.

In order to achieve the above purpose, the utility model is realized through the following technical solutions: a linear rivet feeder, including an operating table, a washer feeding mechanism, a punching mechanism and a rivet feeding mechanism, the bottom of the washer feeding mechanism and the upper part of the operating table. The left side of the machine is fixedly connected, the punching mechanism is fixedly connected to the rear side of the upper part of the operating table, the rivet feeding mechanism is fixedly connected to the right side of the upper part of the operating table, and the washer feeding mechanism includes a washer barrel, a chassis and a sliding seat, The washer barrel is fixedly connected with the upper part of the chassis, the upper part of the washer barrel is fixedly connected with a motor, the output end of the motor penetrates the upper part of the washer barrel, and the output end of the motor is fixedly connected with a rotating rod, the rotating rod The bottom of the bottom frame is fixedly connected with a rotating brush, and the upper part of the bottom frame is provided with a discharge port.

Preferably, a discharge plate is slidably connected to the upper part of the inner side of the chassis through a first sliding group, a first electric push rod is fixedly connected to the middle part of the inner side of the chassis, and the bottom of the discharge plate is connected to the first electric push rod through a connecting plate. An electric push rod is fixedly connected.

Preferably, the discharge plate is located at the bottom of the discharge port, and the right end of the discharge plate is provided with a U-shaped notch.

Preferably, the bottom of the chassis is slidably connected to the front side of the sliding seat through a second sliding group, the bottom of the sliding seat is fixedly connected with a second electric push rod, and the output end of the second electric push rod is connected to the bottom of the sliding seat. The bottom of the rack is fixedly connected.

Preferably, the punching mechanism includes a vertical frame, a hydraulic cylinder and a receiving seat, the hydraulic cylinder is fixedly connected to the upper part of the vertical frame, the receiving seat is fixedly connected to the bottom of the vertical frame, and the output end of the hydraulic cylinder is fixedly connected There is a pressure seat.

Preferably, the rivet feeding mechanism includes a spiral vibration plate, a straight vibration belt and a discharge table, the left end of the spiral vibration plate is fixedly connected with the right end of the straight vibration belt, and the left end of the straight vibration belt is set at the outlet. right side of the table.

Preferably, a third electric push rod is fixedly connected to the upper part of the discharge table, and a feeding joint is fixedly connected to the output end of the third electric push rod, and the feeding joint corresponds to the left position of the straight vibrating belt.

beneficial effect

The utility model provides a linear rivet feeder. Compared with the prior art, it has the following beneficial effects:

(1) The linear rivet feeder is fixedly connected with the left side of the upper part of the operating table at the bottom of the washer feeding mechanism; the punching mechanism is fixedly connected with the rear side of the upper part of the operating table; Side fixed connection, the gasket feeding mechanism includes a gasket barrel, a bottom frame and a sliding seat, the gasket barrel is fixedly connected with the upper part of the bottom frame, the upper part of the gasket barrel is fixedly connected with a motor, the output end of the motor runs through the upper part of the gasket barrel, and the output of the motor The end is fixedly connected with a rotating rod, the bottom of the rotating rod is fixedly connected with a rotating brush, the upper part of the base frame is provided with a discharge port, the upper part of the inner side of the base frame is slidably connected with a discharge plate through the first sliding group, and the middle part of the inner side of the base frame is fixed A first electric push rod is connected, and the bottom of the discharge plate is fixedly connected with the first electric push rod through a connecting plate, and the rivet is sent to the straight vibration belt by the spiral vibration plate, and the third electric push rod pushes the feeding joint to send the rivet. To the receiving seat, the motor drives the rotating brush to rotate, so that the washer makes the discharge port fall to the U-shaped notch, and then the hydraulic cylinder pushes the pressing seat to punch the rivet, which can realize automatic production, convenient operation, reduce labor, and good product quality. high productivity.

(2), the linear rivet feeder, the discharge plate is located at the bottom of the discharge port, the right end of the discharge plate is provided with a U-shaped notch, and the bottom of the chassis passes through the second sliding group and the front of the sliding seat. Side sliding connection, the bottom of the sliding seat is fixedly connected with a second electric push rod, the output end of the second electric push rod is fixedly connected with the bottom of the chassis, the first electric push rod is used to push the discharge plate to the receiving seat, and the first electric push rod is used to push the discharge plate to the receiving seat. The second electric push rod drives the chassis to move down, so that the washer of the U-shaped notch is sleeved on the rivet, and conveyed by mechanical equipment, which reduces labor costs and ensures high safety of equipment operation.

Description of drawings

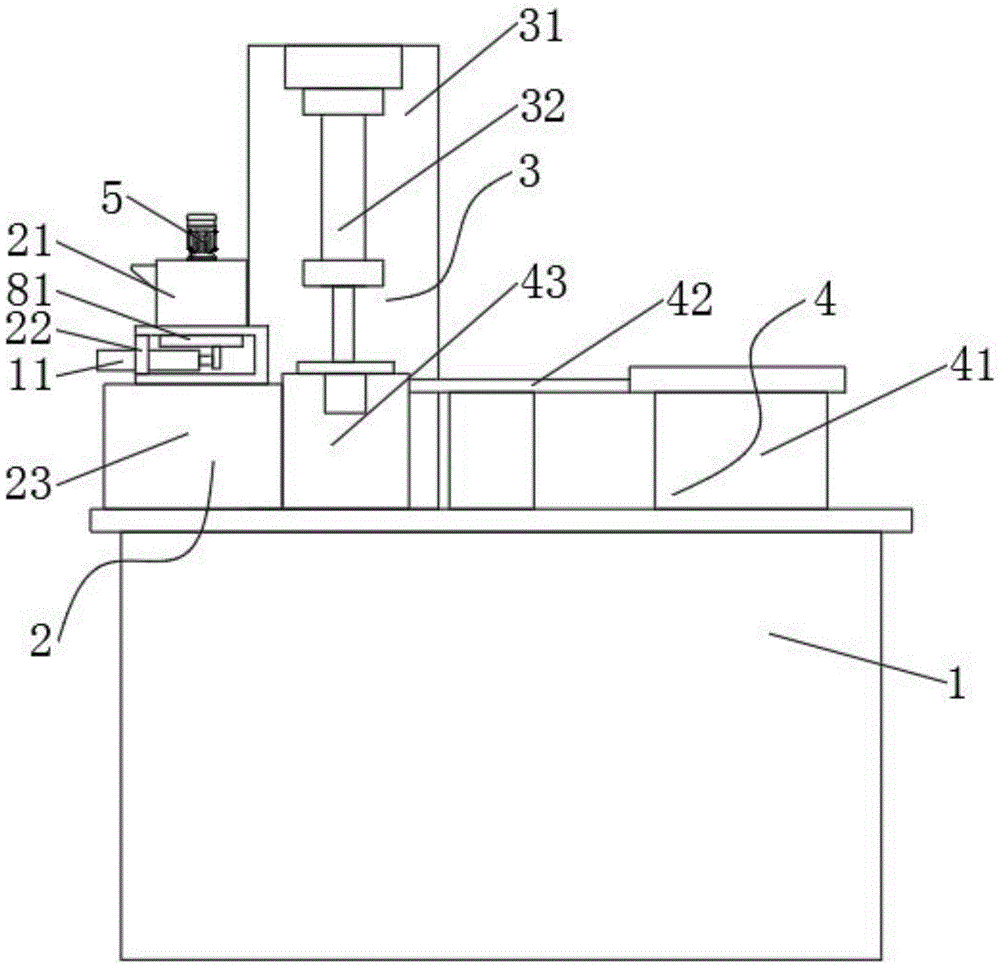

Fig. 1 is the front view of the utility model structure;

Fig. 2 is the top view of the utility model structure;

3 is a cross-sectional view of the structure of the washer feeding mechanism of the present invention;

FIG. 4 is a front view of the structure of the punching mechanism of the present invention.

In the figure: 1. console; 2. washer feeding mechanism; 21, washer barrel; 22, chassis; 23, sliding seat; 3, punching mechanism; 31, stand; 32, hydraulic cylinder; 33, receiving seat; 34 4, rivet feeding mechanism; 41, spiral vibration plate; 42, straight vibrating belt; 43, discharge table; 5, motor; 61, rotating rod; 62, rotating brush; 7, discharge port; 81 , the first sliding group; 82, the second sliding group; 9, the discharge plate; 91, the U-shaped notch; 10, the connecting plate; 11, the first electric push rod; 12, the second electric push rod; 13, the first Three electric push rods; 131, feeding connector.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-4, the present utility model provides a technical solution: a linear rivet feeder, comprising an operating table 1, a washer feeding mechanism 2, a punching mechanism 3 and a rivet feeding mechanism 4, and the punching mechanism 3 includes a stand 31. The hydraulic cylinder 32 and the receiving seat 33, the hydraulic cylinder 32 is fixedly connected with the upper part of the vertical frame 31, the receiving seat 33 is fixedly connected with the bottom of the vertical frame 31, the output end of the hydraulic cylinder 32 is fixedly connected with the pressing seat 34, and the rivet feeding mechanism 4. It includes a spiral vibrating plate 41, a straight vibrating belt 42 and a discharging table 43. The left end of the spiral vibrating plate 41 is fixedly connected with the right end of the straight vibrating belt 42, and the left end of the straight vibrating belt 42 is arranged on the right side of the discharging table 43. The upper part of the discharge table 43 is fixedly connected with the third electric push rod 13, and the output end of the third electric push rod 13 is fixedly connected with a feeding joint 131, which corresponds to the left position of the straight vibrating belt 42, and the gasket The bottom of the feeding mechanism 2 is fixedly connected to the left side of the upper part of the operating table 1, the punching mechanism 3 is fixedly connected to the rear side of the upper part of the operating table 1, the rivet feeding mechanism 4 is fixedly connected to the right side of the upper part of the operating table 1, and the gasket feeding mechanism 2 includes: The washer barrel 21, the bottom frame 22 and the sliding seat 23, the bottom of the bottom frame 22 is slidably connected to the front side of the sliding seat 23 through the second sliding group 82, the bottom of the sliding seat 23 is fixedly connected with the second electric push rod 12, the second The output end of the electric push rod 12 is fixedly connected with the bottom of the base frame 22, the first electric push rod 11 is used to push the discharge plate 9 to the receiving seat 33, and the second electric push rod 12 drives the base frame 22 to move down, so that the U The gasket of the notch 91 is sleeved on the rivet, and is transported by mechanical equipment, which reduces labor costs and ensures high safety of equipment operation. The gasket barrel 21 is fixedly connected to the upper part of the chassis 22, and the upper part of the gasket barrel 21 is fixedly connected with the motor 5 , the output end of the motor 5 runs through the upper part of the washer barrel 21, and the output end of the motor 5 is fixedly connected with a rotating rod 61, the bottom of the rotating rod 61 is fixedly connected with a rotating brush 62, and the upper part of the bottom frame 22 is provided with a discharge port 7, The upper part of the inner side of the bottom frame 22 is slidably connected with the discharge plate 9 through the first sliding group 81 , the middle part of the inner side of the bottom frame 22 is fixedly connected with the first electric push rod 11 , and the bottom of the discharge plate 9 is connected with the first electric push rod through the connecting plate 10 . The push rod 11 is fixedly connected, the discharge plate 9 is located at the bottom of the discharge port 7, the right end of the discharge plate 9 is provided with a U-shaped notch 91, and the rivet is sent to the straight vibrating belt 42 by the spiral vibration plate 41, and the third The electric push rod 13 pushes the feeding joint 131 to send the rivet to the receiving seat 33, the motor 5 drives the rotating brush 62 to rotate, so that the washer makes the discharge port 7 fall to the U-shaped notch 91, and then the hydraulic cylinder 32 pushes the pressing seat 34 to rivet. Stamping can realize automatic production, convenient operation, reduced labor, good product quality and high production efficiency.

Meanwhile, the contents not described in detail in this specification belong to the prior art known to those skilled in the art.

When working, put the rivet in the spiral vibration plate 41, place the washer in the washer barrel 21, and the spiral vibration plate 41 will send the rivet to the straight vibration belt 42, and send it to the discharge table 43, the third electric push rod 13 Push the feeding joint 131 to send the rivet to the receiving seat 33, the motor 5 drives the rotating brush 62 to rotate, so that the washer makes the discharge port 7 drop to the U-shaped notch 91, and then the first electric push rod 11 pushes the discharge plate 9 to the receiving plate 9. At the seat 33, the second electric push rod 12 drives the bottom frame 22 to move down, so that the washer of the U-shaped notch 91 is sleeved on the rivet, and then the hydraulic cylinder 32 pushes the pressing seat 34 to punch the rivet.

It should be noted that, in this document, relational terms such as first and second are used only to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass non-exclusive inclusion such that a process, method, article or device comprising a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a orthoscopic rivet feeder, includes operation panel (1), packing ring feeding mechanism (2), punching press mechanism (3) and rivet feeding mechanism (4), its characterized in that: the utility model discloses a gasket feeding mechanism, including the bottom of packing ring feeding mechanism (2) and the left side fixed connection on operation panel (1) upper portion, punching press mechanism (3) and the rear side fixed connection on operation panel (1) upper portion, rivet feeding mechanism (4) and the right side fixed connection on operation panel (1) upper portion, packing ring feeding mechanism (2) are including packing ring bucket (21), chassis (22) and sliding seat (23), the upper portion fixed connection of packing ring bucket (21) and chassis (22), the upper portion fixedly connected with motor (5) of packing ring bucket (21), the output of motor (5) runs through the upper portion of packing ring bucket (21), and the output fixedly connected with bull stick (61) of motor (5), the bottom fixedly connected with of bull stick (61) changes brush (62), discharge gate (7) have been seted up on the upper portion of chassis (22).

2. The linear rivet feeder of claim 1, wherein: the upper portion of chassis (22) inboard has ejection of compact board (9) through first smooth group (81) sliding connection, the middle part fixedly connected with first electric push rod (11) of chassis (22) inboard, the bottom of ejection of compact board (9) is through connecting plate (10) and first electric push rod (11) fixed connection.

3. A linear rivet feeder as set forth in claim 2, wherein: go out flitch (9) and be located the bottom of discharge gate (7), U type notch (91) have been seted up to the right-hand member of going out flitch (9).

4. The linear rivet feeder of claim 1, wherein: the bottom of chassis (22) is through the sliding connection of second sliding group (82) and the front side of sliding seat (23), the bottom fixedly connected with second electric push rod (12) of sliding seat (23), the output of second electric push rod (12) and the bottom fixed connection of chassis (22).

5. The linear rivet feeder of claim 1, wherein: punching press mechanism (3) are including grudging post (31), pneumatic cylinder (32) and accept seat (33), the upper portion fixed connection of pneumatic cylinder (32) and grudging post (31), accept the bottom fixed connection of seat (33) and grudging post (31), the output end fixed connection of pneumatic cylinder (32) presses seat (34).

6. The linear rivet feeder of claim 1, wherein: rivet feeding mechanism (4) are including spiral vibration dish (41), straight formula vibration area (42) and play work or material rest (43), the left end of spiral vibration dish (41) and the right-hand member fixed connection in straight formula vibration area (42), the right side of going out work or material rest (43) is located to the left end in straight formula vibration area (42).

7. The linear rivet feeder of claim 6, wherein: go out upper portion fixedly connected with third electric putter (13) of material platform (43), the output fixedly connected with pay-off of third electric putter (13) connects (131), pay-off connects (131) and corresponds with the left side position of straight formula vibration area (42).
