CN214430812U

CN214430812U - A large-area irrigation device for forest planting

Info

Publication number: CN214430812U
Application number: CN202023037576.5U
Authority: CN
Inventors: 徐纪泉; 耿瑞泽
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-12-15
Filing date: 2020-12-15
Publication date: 2021-10-22
Anticipated expiration: 2030-12-15

Abstract

The utility model discloses a large-area irrigation device for forest planting, which belongs to the technical field of forest large-area irrigation. A large-area irrigation device for forest planting, comprising a bottom plate and a water tank, the water tank is connected to the top wall of the bottom plate, the top wall of the bottom plate is respectively connected with an L-shaped plate and a fixed plate, and the outer wall of the fixed plate is connected with a support frame to support The inner wall of the frame is connected with a motor, the output end of the motor is connected with a rotating shaft, the end of the rotating shaft away from the motor is connected with a connecting plate, the end of the connecting plate away from the rotating shaft is connected with a rotating rod, and the end of the rotating rod away from the connecting plate is connected with a sleeve, The inner wall of the casing is connected with a connecting pipe, the output end of the connecting pipe is connected with a nozzle, the connecting pipe is connected to the top of the bottom plate through the L-shaped plate, and the bottom wall of the connecting pipe is connected with a suction pipe, which is connected with the water tank through a suction pump. The utility model can realize large-area irrigation, and can also change the angle and height of irrigation, thereby effectively improving the irrigation effect.

Description

Large-area irrigation device for forest planting

Technical Field

The utility model relates to a forest large tracts of land is irrigated technical field, especially relates to a forest is planted and is used large tracts of land irrigation equipment.

Background

Irrigation is a technical measure to replenish ground with the water required by crops. In order to ensure the normal growth of crops and obtain high and stable yield, the crops must be supplied with sufficient moisture. Under natural conditions, the water requirement of crops cannot be met due to insufficient precipitation or uneven distribution. Therefore, irrigation must be done manually to compensate for the natural rainfall deficiency, i.e., watering the land with water. The irrigation principle is that the irrigation quantity, the irrigation times and the irrigation time are determined according to the water requirement characteristics, the growth stage, the climate and the soil conditions of the medicinal plants, and the medicinal plants are irrigated in a proper time and in a proper amount and reasonably. The types of the plants mainly comprise pre-sowing irrigation, seedling promotion irrigation, growth period irrigation, winter irrigation and the like, the forest is a biological community taking woody plants as main bodies, is a concentrated mutual dependence and restriction between trees and other plants, animals, microorganisms and soil, and mutually affects the environment, so that the overall ecological system is formed, and the vegetation of the forest needs to be irrigated in the planting and growing process to promote the healthy and strong growth of the vegetation of the forest.

Although current forest is planted and is used large tracts of land irrigation equipment can carry out irrigation of large tracts of land, its in-process that uses can consume a large amount of water resources, and it is comparatively difficult to irrigate required water transportation into the forest moreover, leads to the efficiency of forest planting and using large tracts of land irrigation equipment large tracts of land irrigation among the prior art comparatively low, and consequently a forest is planted and is used large tracts of land irrigation equipment especially important.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problem that the large area irrigation device for forest planting can consume a large amount of water resources in the use process in the prior art, and the provided large area irrigation device for forest planting.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a forest is planted and is used large tracts of land irrigation equipment, includes bottom plate and water tank, the water tank is connected on the roof of bottom plate, be connected with L template and fixed plate on the roof of bottom plate respectively, be connected with the support frame on the outer wall of fixed plate, be connected with the motor on the inner wall of support frame, the output of motor is connected with the pivot, the one end that the motor was kept away from in the pivot is connected with the connecting plate, the one end that the pivot was kept away from to the connecting plate is connected with the dwang, the one end that the connecting plate was kept away from to the dwang is connected with the sleeve pipe, the intraductal wall connection of sleeve pipe has a connecting tube, the output of connecting tube is connected with the shower nozzle, the connecting tube passes through the top of L template connection at the bottom plate, the diapire of connecting tube is connected with the drinking-water pipe, the drinking-water pipe is linked together with the water tank through the suction pump.

Preferably, the outer wall of the sleeve is provided with a sliding groove, and the sliding groove is matched with the rotating rod.

Preferably, a shaft sleeve is arranged on the top wall of the L-shaped plate, and the connecting pipeline is connected with the L-shaped plate in a sliding mode through the shaft sleeve.

Preferably, the connecting pipeline is a steel pipeline, and the water pumping pipe is of a snakeskin hose structure.

Preferably, the lateral wall of water tank is opened there is into water flange and is taken over, the roof of water tank is connected with the water catch bowl, the diapire of water catch bowl is provided with the filter screen.

Compared with the prior art, the utility model provides a forest is planted and is used large tracts of land irrigation equipment possesses following beneficial effect:

1. this forest is planted and is used large tracts of land irrigation equipment, through starter motor, and then drive the pivot and rotate, and then drive the connecting plate and rotate to the dwang that keeps away from pivot one end on the drive connecting plate rotates, through opening reverse groove on the sleeve pipe, and then drives the sleeve pipe and just reverse the rotation round the drinking-water pipe, and then drives the screwed pipe with bushing and just reverse the rotation, and then drives the shower nozzle and rotate about, thereby realizes the regulation to irrigating the angle.

2. This forest is planted and is used large tracts of land irrigation equipment, through the internal thread that is opened some and the external screw thread matched with on the screwed pipe in L type pole inside, when the screwed pipe rotates, and then drive the screwed pipe and go up and down, and then can highly adjust the shower nozzle to can realize the regulation to irrigate the area.

3. This forest is planted and is used large tracts of land irrigation equipment through the water catch bowl that sets up at the water tank top, can collect the rainwater or the snow that melts, has practiced thrift the water energy, and is energy-concerving and environment-protective more.

The part that does not relate to among the device all is the same with prior art or can adopt prior art to realize, the utility model discloses simple structure, convenient to use can realize irrigation by a large scale, also can change the angle and the height of irrigating simultaneously, has improved irrigation effectively.

Drawings

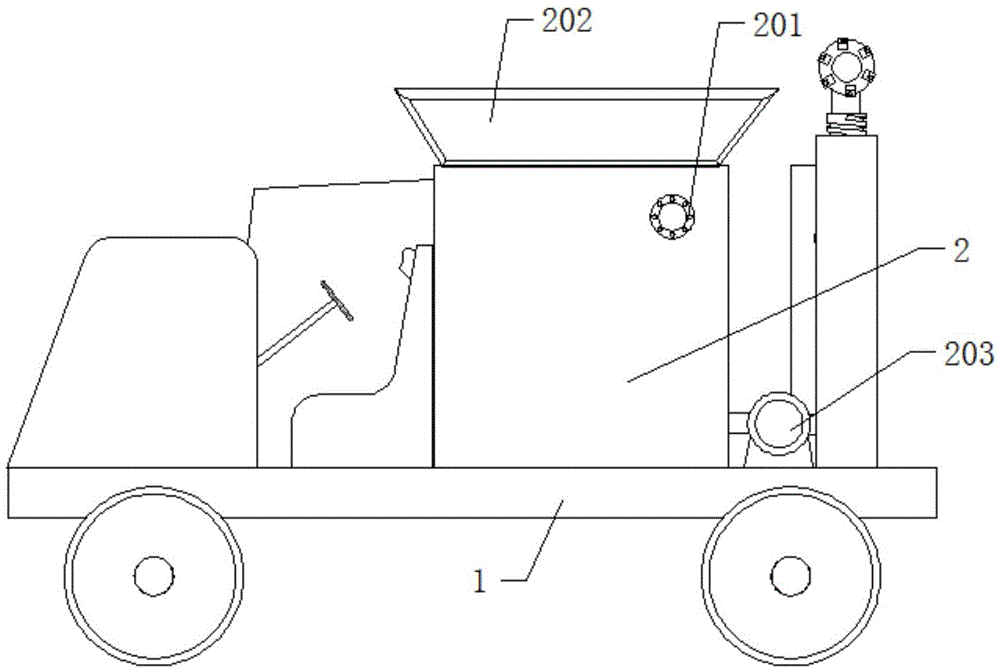

FIG. 1 is a schematic structural view I of a large-area irrigation device for forest planting according to the present invention;

FIG. 2 is a schematic structural view II of a large-area irrigation device for forest planting according to the present invention;

FIG. 3 is a schematic structural view II of a large-area irrigation device for forest planting according to the present invention;

fig. 4 is the enlarged view of part a in fig. 2 of a large-area irrigation device for forest planting according to the present invention.

In the figure: 1. a base plate; 101. a fixing plate; 102. a support frame; 2. a water tank; 201. a flange adapter; 202. a water collection tank; 203. a water pump; 204. a water pumping pipe; 3. a motor; 301. A rotating shaft; 302. a connecting plate; 303. rotating the rod; 304. a sleeve; 4. an L-shaped plate; 401. Connecting a pipeline; 402. and (4) a spray head.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Example (b):

referring to fig. 1-4, a large tracts of land irrigation equipment is used in forest planting, including bottom plate 1 and water tank 2, water tank 2 is connected on the roof of bottom plate 1, be connected with L template 4 and fixed plate 101 on the roof of bottom plate 1 respectively, be connected with support frame 102 on the outer wall of fixed plate 101, be connected with motor 3 on the inner wall of support frame 102, motor 3's output is connected with pivot 301, the one end that motor 3 was kept away from in pivot 301 of pivot 301 is connected with connecting plate 302, the one end that pivot 301 was kept away from to connecting plate 302 of connecting plate 302 is connected with dwang 303, the one end that connecting plate 302 was kept away from to dwang 303 is connected with sleeve pipe 304, sleeve pipe 304 inboard wall connection has connecting tube 401, connecting tube 401's output is connected with shower nozzle 402, connecting tube 401 passes through L template 4 and connects the top at bottom plate 1, connecting tube 401's diapire is connected with drinking-water pipe 204, drinking-water pipe 204 is linked together through suction pump 203 and water tank 2.

The outer wall of the sleeve 304 is provided with a sliding groove which is matched with the rotating rod 303.

The top wall of the L-shaped plate 4 is provided with a shaft sleeve, and the connecting pipeline 401 is connected with the L-shaped plate 4 in a sliding mode through the shaft sleeve.

The connection pipeline 401 is a steel pipeline, and the water pumping pipe 204 is a flexible hose structure.

The lateral wall of the water tank 2 is provided with a water inlet flange connecting pipe 201, the top wall of the water tank 2 is connected with a water collecting tank 202, and the bottom wall of the water collecting tank 202 is provided with a filter screen.

When the irrigation angle adjusting device is used, the motor 3 is started to drive the rotating shaft 301 to rotate and further drive the connecting plate 302 to rotate, so that the rotating rod 303 at one end, far away from the rotating shaft 301, of the connecting plate 302 is driven to rotate, the sleeve 304 is driven to rotate around the water pumping pipe 204 in a forward and reverse mode through the reverse groove formed in the sleeve 304, the threaded pipe 401 connected with the sleeve 304 is driven to rotate in a forward and reverse mode, the spray head 403 is driven to rotate left and right, and therefore the irrigation angle is adjusted; through the internal thread which is arranged inside the L-shaped rod 4 and is matched with the external thread on the threaded pipe 401, when the threaded pipe 401 rotates, the threaded pipe 401 is driven to lift, so that the height of the spray head 403 can be adjusted, the sleeve 401 and the threaded pipe 401 can be prevented from being separated through the sliding block 402 which is connected to the outer wall of the end, close to the sleeve 304, of the threaded pipe 401, the lifting of the thread 401 is not affected, when the threaded pipe 401 rotates, the threaded pipe 401 is driven to lift, so that the height of the spray head 403 can be adjusted, and therefore the irrigation area can be adjusted; through the water catch bowl 202 that sets up at water tank 2 top, can collect the rainwater or the snow that melts, practiced thrift the water energy, it is more energy-concerving and environment-protective.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a large tracts of land irrigation equipment for forest planting, includes bottom plate (1) and water tank (2), water tank (2) are connected on the roof of bottom plate (1), its characterized in that, be connected with L template (4) and fixed plate (101) on the roof of bottom plate (1) respectively, be connected with support frame (102) on the outer wall of fixed plate (101), be connected with motor (3) on the inner wall of support frame (102), the output of motor (3) is connected with pivot (301), the one end that motor (3) were kept away from in pivot (301) is connected with connecting plate (302), the one end that pivot (301) were kept away from in connecting plate (302) is connected with dwang (303), the one end that connecting plate (302) were kept away from in dwang (303) is connected with sleeve pipe (304), sleeve pipe (304) inner wall connection has connecting tube (401), the output of connecting tube (401) is connected with shower nozzle (402), connecting tube (401) are connected at the top of bottom plate (1) through L template (4), the diapire of connecting tube (401) is connected with drinking-water pipe (204), drinking-water pipe (204) are linked together with water tank (2) through suction pump (203).

2. A large area irrigation device for forest planting according to claim 1, characterized in that the outer wall of the sleeve (304) is chiseled with a sliding groove, which cooperates with the rotating rod (303).

3. A large area irrigation device for forest planting according to claim 1, wherein the top wall of the L-shaped plate (4) is provided with a shaft sleeve, and the connecting pipeline (401) is connected with the L-shaped plate (4) in a sliding mode through the shaft sleeve.

4. A large area irrigation device for forest planting according to any of the claims 1-3, characterized in that the connection pipe (401) is a steel pipe and the water suction pipe (204) is a flexible pipe.

5. A large area irrigation device for forest planting according to claim 1 wherein the side wall of the water tank (2) is provided with a water inlet flange joint pipe (201), the top wall of the water tank (2) is connected with a water collection tank (202), and the bottom wall of the water collection tank (202) is provided with a filter screen.
