Abstract
本实用新型公开了一种太阳能隐形监控投光灯，包括灯体和太阳能板，所述的灯体包括灯壳和设置在灯壳内的反光罩，所述的反光罩的底部安装有LED光源板，所述的灯体的开口端安装有面板，所述的面板与反光罩相对应的位置设置有光照透明部，所述的灯体内安装有监控摄像头，所述的监控摄像头安装在与面板的光照透明部不对应的位置且面板上与监控摄像头对应的位置设置有监控透明部，所述的LED光源板上集成有太阳能转换模块和图像信号传输模块，所述的监控摄像头和太阳能板与LED光源板电性相连。本实用新型结构新颖，摄像头内置，从外部看不到，摄像头可以得到保护，不容易被破坏。
The utility model discloses a solar-powered invisible monitoring projection light, which comprises a lamp body and a solar panel. The lamp body comprises a lamp shell and a reflector arranged in the lamp shell, and an LED light source is installed at the bottom of the reflector. The open end of the lamp body is installed with a panel, the position corresponding to the panel and the reflector is provided with a transparent portion for illumination, and a monitoring camera is installed in the lamp body, and the monitoring camera is installed on the panel. A monitoring transparent part is provided at a position that does not correspond to the light transparent part and the position corresponding to the monitoring camera on the panel; the LED light source plate is integrated with a solar energy conversion module and an image signal transmission module; The LED light source boards are electrically connected. The utility model has a novel structure, a built-in camera, which cannot be seen from the outside, and the camera can be protected and not easily damaged.
Description
Technical Field
The utility model relates to a lamps and lanterns field specifically is a stealthy control projecting lamp of solar energy.
Background
Solar lamp is a lamps and lanterns now commonly used, and wherein the application field of projecting lamp is more extensive, also installs the camera on the projecting lamp now, but the camera all is installed in the outside of projecting lamp, and one is that this kind of miniature camera is easy to damage, and second is the camera is more obvious, is destroyed by lawless persons easily.
SUMMERY OF THE UTILITY MODEL
The utility model provides a stealthy control projecting lamp of solar energy, novel structure, the camera is built-in, can not see from the outside, and the camera can obtain the protection, is difficult to destroyed.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a stealthy control projecting lamp of solar energy, includes lamp body and solar panel, the lamp body include the lamp body and set up the reflector in the lamp body, the bottom of reflector install LED light source board, the open end of lamp body install the panel, the panel be provided with illumination transparency portion with the corresponding position of reflector, the lamp body in install the surveillance camera head, the surveillance camera head install and be provided with control transparency portion with the illumination transparency portion of panel on the position and the panel that correspond with the surveillance camera head that do not correspond, LED light source board on the integration have solar energy conversion module and image signal transmission module, surveillance camera head and solar panel link to each other with LED light source board electrical property.
Preferably, a rechargeable battery is further installed in the lamp housing, and the rechargeable battery is electrically connected with the LED light source board.
Preferably, the rear sides of the lamp body and the solar panel are respectively provided with a fixed bracket.
Compared with the prior art, the beneficial effects of the utility model are that:
novel structure, the camera is built-in, can not see the camera from the outside, can hide the camera well, and the camera can obtain the protection, is difficult to destroyed.
Drawings

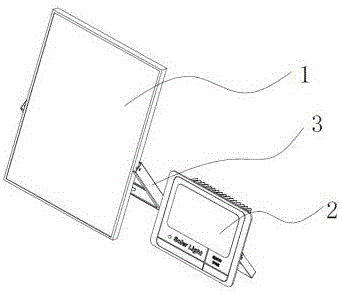

FIG. 1 is a three-dimensional structure of the present invention;
FIG. 2 is a three-dimensional exploded structure view of the present invention;
fig. 3 is the side view half-section structure chart of the utility model.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-3, the utility model provides an invisible monitoring projecting lamp of solar energy, including lamp body 2 and solar panel 1, lamp body 2 include lamp body 24 and the reflector 22 of setting in lamp body 24, the bottom of reflector 22 install LED light source board 23, the open end of lamp body 2 install panel 21, panel 21 and the corresponding position of reflector 22 be provided with illumination transparency, lamp body 2 in install surveillance camera head 25, surveillance camera head 25 install and be provided with surveillance camera head 25 corresponding position on the position and the panel 21 that do not correspond with panel 21's illumination transparency, LED light source board 23 on integrate into solar energy conversion module and image signal transmission module, surveillance camera head 25 and solar panel 1 link to each other with LED light source board 23 electrical property.
The monitoring camera 25 is not visible from the outside, but the monitoring function can be realized by the monitoring transparent part 27, and the solar panel 1 can be connected with the LED light source board 23 to supply electric energy to the LED light source board 23.
The lamp housing 24 is further provided with a rechargeable battery 26, the rechargeable battery 26 is electrically connected with the LED light source board 23, and the rechargeable battery 26 can be charged through the solar panel 1.
The rear sides of the lamp body 2 and the solar panel 1 are provided with the fixing supports 3, so that the lamp body 2 and the solar panel 1 can be conveniently installed.
While the invention has been described above with reference to an embodiment, various modifications may be made and equivalents may be substituted for elements thereof without departing from the scope of the invention. In particular, as long as there is no structural conflict, the various features of the disclosed embodiments of the present invention can be used in any combination with each other, and the description of such combinations is not exhaustive in the present specification only for the sake of brevity and resource conservation. Therefore, it is intended that the invention not be limited to the particular embodiments disclosed, but that the invention will include all embodiments falling within the scope of the appended claims.
Claims (3)
1. The utility model provides a stealthy control projecting lamp of solar energy, includes lamp body (2) and solar panel (1), lamp body (2) include lamp body (24) and reflector (22) of setting in lamp body (24), the bottom of reflector (22) install LED light source board (23), the open end of lamp body (2) install panel (21), panel (21) and the position that reflector (22) correspond be provided with illumination transparency, its characterized in that, lamp body (2) in install surveillance camera head (25), surveillance camera head (25) install in the position that does not correspond with the illumination transparency of panel (21) and panel (21) on with surveillance camera head (25) the position that corresponds be provided with surveillance transparency (27), LED light source board (23) on integrate into and have solar energy conversion module and image signal transmission module, the monitoring camera (25) and the solar panel (1) are electrically connected with the LED light source plate (23).
2. The invisible solar monitoring floodlight of claim 1, wherein: and a rechargeable battery (26) is also arranged in the lamp shell (24), and the rechargeable battery (26) is electrically connected with the LED light source board (23).
3. The invisible solar monitoring floodlight of claim 1, wherein: the rear sides of the lamp body (2) and the solar panel (1) are provided with fixing supports (3).
