Abstract

The utility model discloses a cloth wrapping machine with a length adjusting mechanism, which comprises a cloth wrapping machine body, a left attachment rod and a right attachment plate; The middle end is fixed with a middle end support seat, the right side of the base is fixed with a first motor, the output end of the first motor passes through the right side of the base, and an inner drive screw is fixed, and the left side of the wrapping machine body is fixed. An external thread pipe is movably passed between the side and middle end support bases. The cloth wrapping machine with the length adjustment mechanism can firstly hold the diamond cutting automatic wire fixedly, and can pull it to keep it tight, so as to ensure the stability of the diamond cutting automatic wire when wrapping the cloth, and can be adjusted according to the diamond cutting automatic wire. The length adjusts the distance between the two ends of the fixing mechanism, so that the fixing mechanism can clamp the diamond cutting automatic wire of different lengths, and can drive the diamond cutting automatic wire to turn around, which is convenient for wrapping cloth.

Description

Cloth wrapping machine with length adjusting mechanism

Technical Field

The utility model relates to an automatic solenoid cloth machine technical field of diamond-cutting specifically is a take length adjustment mechanism's solenoid cloth machine.

Background

The automatic diamond cutting line is a cutting line made of diamond raw materials, is commonly used for cutting marble, glass and the like, has excellent cutting performance, and can be used in other cutting fields; however, the position of the fixing structure in the existing cloth wrapping machine special for packaging the diamond cutting automatic line is fixed, and when the diamond cutting automatic line with different lengths is fixed, the distance between the two ends of the fixing structure is not easy to adjust.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is to overcome current defect, a take length adjustment mechanism's infantees machine is provided, can fix the centre gripping diamond cutting transfer machine at first, and can drag it and make it keep tight, guarantee the stability of diamond cutting transfer machine when the infantees, and can be according to the interval at the length adjustment fixed establishment's of diamond cutting transfer machine both ends, make the diamond cutting transfer machine that fixed establishment can the centre gripping different length, and can drive the diamond cutting transfer machine and have enough to meet the need, be convenient for carry out the infantees, can effectively solve the problem in the background art.

In order to achieve the above object, the utility model provides a following technical scheme: a cloth wrapping machine with a length adjusting mechanism comprises a cloth wrapping machine body, a left auxiliary rod and a right auxiliary plate;

wrapping machine body: a base is fixed on the front side, a middle-end supporting seat is fixed at the middle end of the lower side inside the base, a first motor is fixed on the right side of the base, an output end of the first motor penetrates through the right side of the base and is fixed with an inserted transmission screw rod, an external threaded pipe penetrates through the left side and the middle-end supporting seat of the cloth wrapping machine body in a left-right movable mode, a left end thread of the inserted transmission screw rod penetrates through the external threaded pipe, a limiting groove is formed in the side face of the upper half part of the external threaded pipe, the inserted transmission screw rod is driven by the first motor to rotate to control the left and right movement of the external threaded pipe, and then the left and right movement of a diamond cutting automatic line is controlled, so that cloth wrapping is convenient;

a left auxiliary rod: the lower end of the auxiliary rod is fixed on the side surface of the upper half of the left end of the outer threaded pipe, the upper end thread of the left auxiliary rod penetrates through a distance adjusting screw rod, the right end of the distance adjusting screw rod is rotatably connected with a position adjusting seat, a limiting block is fixed on the lower side of the position adjusting seat, the lower end of the limiting block is movably inserted in a limiting groove in a left-right mode, a material receiving barrel movably penetrates through the right side of the position adjusting seat, the left end of the material receiving barrel is rotatably connected with a rotary disc, a spring is fixed between the left side of the rotary disc and the inner left side of the position adjusting seat, the distance between the material receiving barrel and the material receiving seat is controlled by rotating the distance adjusting screw rod, further diamond cutting automatic lines with different lengths can be clamped, the rotary disc can be pulled leftwards by the elasticity of the spring, further the diamond cutting automatic lines can be kept tight when the cloth is wrapped, and the cloth wrapping quality is guaranteed;

a right auxiliary plate: the lower end of the connecting seat is fixed at the right end of the external threaded pipe, a second motor is fixed on the right side of the upper end of the right auxiliary plate, the output end of the second motor penetrates through the right auxiliary plate and is fixed with a rotating frame, a material receiving seat is fixed at the left end of the rotating frame and corresponds to the material receiving barrel in the left-right direction, pressing screws penetrate through the upper side of the material receiving seat and the side surface of the upper half part of the material receiving barrel in a threaded mode, the rotating frame is driven to rotate by the second motor, and then the material receiving seat can drive the automatic diamond cutting line to rotate so as to facilitate cloth wrapping;

wherein: the output end of the control device in the cloth wrapping machine body is electrically connected with the input ends of the first motor and the second motor.

Furthermore, the material receiving barrel further comprises a push-pull handle, the lower end of the push-pull handle is fixed on the side face of the upper half part of the rotary table, the left and right movement of the material receiving barrel is conveniently and indirectly controlled through the push-pull handle, and the material receiving barrel is prevented from being pulled rightwards too much.

Furthermore, the material receiving barrel is characterized by further comprising a graduated scale, wherein the graduated scale is fixed on the side face of the upper half part of the outer threaded pipe, the graduated scale and the right end of the material receiving barrel are arranged in a vertically corresponding mode, and the position of the material receiving barrel can be conveniently and visually observed through the graduated scale.

Furthermore, the diamond cutting machine further comprises two pressing pads, the two pressing pads are respectively and rotatably connected to the lower ends of the two pressing screws, the pressing screws are prevented from being abraded by the pressing pads, and the position of a bundle of diamond cutting automatic lines is prevented from being disordered when the pressing screws move downwards.

Furthermore, the support device also comprises a ball, wherein the ball rolls in the inner side surface of the middle-end support seat, the side surface of the ball is abutted against the side surface of the lower half part of the external thread pipe, and the friction between the external thread pipe and the middle-end support seat is reduced through the ball.

Compared with the prior art, the beneficial effects of the utility model are that: this take infantees machine of length adjustment mechanism has following benefit:

1. drive the interior removal that interpolation drive screw rotated to control the external screw pipe through first motor, and then control the removal of diamond cutting transfer machine, conveniently carry out the infantees, control the interval that connects the storage bucket and connect the material seat through rotating the roll adjustment screw rod, and then can the different length diamond cutting transfer machine of centre gripping, can stimulate the carousel left through the elasticity of spring, and then indirectly make diamond cutting transfer machine keep tightly when the infantees, guarantee the infantees quality, drive the revolving rack through the second motor and rotate, and then can make and connect the material seat to drive the diamond cutting transfer machine and rotate, be convenient for carry out the infantees.

2. Connect the left and right sides of storage bucket through convenient indirect control of push-and-pull handle to prevent to connect the storage bucket and be drawn by too right, connect the position of storage bucket through the convenient visual observation of scale, prevent to support to press the screw rod wearing and tearing diamond cutting transfer machine through supporting to press the pad, and prevent to support to press the screw rod to disturb the position of a bundle of diamond cutting transfer machine when moving down, reduce the friction of external screw thread pipe and middle-end supporting seat through the ball.

3. This take length adjustment mechanism's infantees machine can fix the centre gripping diamond cutting transfer machine at first to can drag it and make it keep tight, guarantee the stability of diamond cutting transfer machine when the infantees, and can make the diamond cutting transfer machine of fixed establishment ability centre gripping different length according to the interval at the length adjustment fixed establishment's of diamond cutting transfer machine both ends, and can drive the diamond cutting transfer machine and have enough to meet the need, be convenient for carry out the infantees.

Drawings

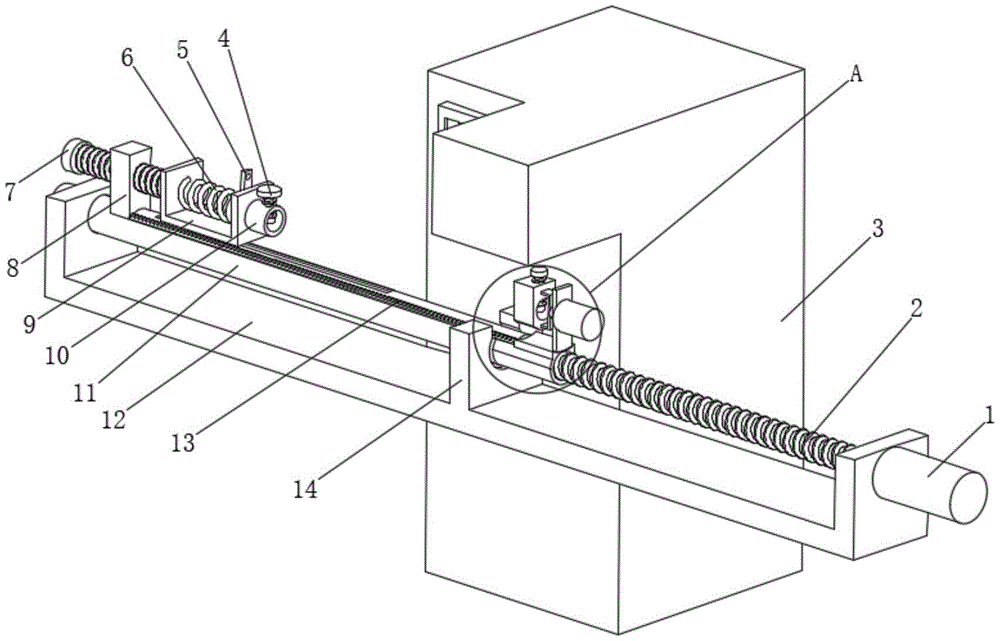

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of a partially enlarged structure of part A of the present invention;

fig. 3 is a schematic view of the front view structure of the present invention.

In the figure: the cloth wrapping machine comprises a first motor 1, a transmission screw rod inserted in a 2, a cloth wrapping machine body 3, a pressing screw rod 4, a push-pull handle 5, a spring 6, a distance adjusting screw rod 7, a left auxiliary rod 8, a position adjusting seat 9, a material receiving barrel 10, an external threaded pipe 11, a base 12, a graduated scale 13, a middle end supporting seat 14, a pressing pad 15, a rotating frame 16, a material receiving seat 17, a ball 18, a right auxiliary plate 19, a second motor 20, a rotating disc 21 and a limiting block 22.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a cloth wrapping machine with a length adjusting mechanism comprises a cloth wrapping machine body 3, a left auxiliary rod 8 and a right auxiliary plate 19;

cloth packaging machine body 3: a base 12 is fixed on the front side, a middle support 14 is fixed on the middle end of the lower side inside the base 12, a first motor 1 is fixed on the right side of the base 12, an output end of the first motor 1 penetrates through the right side of the base 12 and is fixed with an inserted transmission screw 2, an outer threaded pipe 11 is movably penetrated between the left side of a cloth wrapping machine body 3 and the middle support 14 in the left-right direction, a left end thread of the inserted transmission screw 2 is inserted in the outer threaded pipe 11, a limit groove is arranged on the upper half side of the outer threaded pipe 11, the left-right movement of the outer threaded pipe 11 is controlled by the rotation of the inserted transmission screw 2 driven by the first motor 1, and further the left-right movement of a diamond cutting automatic line is controlled to facilitate cloth wrapping, the cloth wrapping machine also comprises a graduated scale 13, the graduated scale 13 is fixed on the upper half side of the outer threaded pipe 11, the graduated scale 13 is vertically arranged corresponding to the right end of the material receiving barrel 10, the position of the material receiving barrel 10 can be conveniently and visually observed by the graduated scale 13, the ball bearing 18 rolls in the inner side face of the middle end supporting seat 14, the side face of the ball bearing 18 is abutted against the side face of the lower half part of the externally threaded pipe 11, and the friction between the externally threaded pipe 11 and the middle end supporting seat 14 is reduced through the ball bearing 18;

left auxiliary rod 8: the lower end of the auxiliary rod 8 is fixed on the upper side surface of the left end of the external thread pipe 11, the upper end thread of the left auxiliary rod 8 penetrates through the distance adjusting screw 7, the right end of the distance adjusting screw 7 is rotatably connected with a position adjusting seat 9, the lower side of the position adjusting seat 9 is fixedly provided with a limiting block 22, the lower end of the limiting block 22 is movably inserted in a limiting groove in a left-right mode, the right side of the position adjusting seat 9 movably penetrates through a material receiving barrel 10, the left end of the material receiving barrel 10 is rotatably connected with a rotary disc 21, a spring 6 is fixed between the left side of the rotary disc 21 and the inner left side of the position adjusting seat 9, the distance between the material receiving barrel 10 and the material receiving seat 17 is controlled by rotating the distance adjusting screw 7, further diamond cutting automatic lines with different lengths can be clamped, the rotary disc 21 can be pulled leftwards through the elasticity of the spring 6, further the diamond cutting automatic lines can be kept tight when wrapping cloth, the wrapping quality of the wrapping cloth is ensured, the push-pull handle 5 is further included, the lower end of the push-pull handle 5 is fixed on the upper side surface of the rotary disc 21, the left and right movement of the receiving barrel 10 is indirectly controlled conveniently by pushing and pulling the handle 5, and the receiving barrel 10 is prevented from being pulled rightwards too much;

right attachment plate 19: the lower end of the connecting device is fixed at the right end of the external threaded pipe 11, a second motor 20 is fixed on the right side of the upper end of a right auxiliary plate 19, the output end of the second motor 20 penetrates through the right auxiliary plate 19 and is fixed with a rotating frame 16, the left end of the rotating frame 16 is fixed with a material receiving seat 17, the material receiving seat 17 is arranged corresponding to the left and right sides of the material receiving barrel 10, the upper side of the material receiving seat 17 and the side surface of the upper half part of the material receiving barrel 10 are both threaded and penetrated with a pressing screw 4, the rotating frame 16 is driven to rotate by the second motor 20, the material receiving seat 17 can drive a diamond cutting automatic line to rotate, cloth wrapping is facilitated, the connecting device also comprises pressing pads 15, two pressing pads 15 are respectively and rotatably connected to the lower ends of the two pressing screws 4, the pressing screws 4 are prevented from wearing the diamond cutting automatic line by the pressing pads 15, and the position of a bundle of the diamond cutting automatic line is prevented from being disordered when the pressing screws 4 move downwards;

wherein: the output end of the control device in the cloth wrapping machine body 3 is electrically connected with the input ends of the first motor 1 and the second motor 20.

When in use: the automatic diamond cutting line is characterized in that a pitch adjusting screw 7 is rotated according to the length of the automatic diamond cutting line, the pitch adjusting screw 7 drives a position adjusting seat 9 to move left and right, a limiting block 22 moves left and right in a limiting groove, then a push-pull handle 5 is pulled rightwards, the push-pull handle 5 drives a material receiving barrel 10 to move rightwards, a spring 6 is in a stretched state, then two ends of the automatic diamond cutting line are respectively inserted into the material receiving barrel 10 and a material receiving seat 17, two abutting-pressing screws 4 are rotated, two abutting-pressing pads 15 move downwards, the two ends of the automatic diamond cutting line are clamped by matching the material receiving barrel 10 and the material receiving seat 17, the elastic force of the spring 6 pulls a turntable 21 leftwards, and the automatic diamond cutting line is indirectly in a tightened state all the time; when wrapping cloth, the cloth head is abutted to the right end of the diamond cutting automatic line, the control device in the cloth wrapping machine body 3 controls the first motor 1 to drive the inserted transmission screw 2 to rotate, the inserted transmission screw 2 drives the external threaded pipe 11 to move rightwards, so that the diamond cutting automatic line moves rightwards, meanwhile, the control device in the cloth wrapping machine body 3 controls the second motor 20 to drive the rotating frame 16 to rotate, the rotating frame 16 drives the material receiving seat 17 to rotate, the diamond cutting automatic line is driven to rotate, the material receiving barrel 10 rotates, and the diamond cutting automatic line rotates while moving rightwards, so that the cloth wrapping is carried out.

It is to be noted that the first motor 1 disclosed in the present embodiment may be a 60-series servomotor manufactured by Nippon Tec technologies, Inc., and the second motor 20 may be a YEVP type motor manufactured by Shandong Shenghua Motor, Inc. The control means in the body 3 of the cloth wrapping machine controls the operation of the first motor 1 and the second motor 20 by the method commonly used in the prior art.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (5)

1. A cloth wrapping machine with a length adjustment mechanism, characterized in that: comprising a cloth wrapping machine body (3), a left attachment rod (8) and a right attachment plate (19); The cloth wrapping machine body (3): a base (12) is fixed on the front side, a middle end support seat (14) is fixed at the middle end of the inner lower side of the base (12), and the right side of the base (12) is fixed There is a first motor (1), the output end of the first motor (1) passes through the right side of the base (12) and is fixed with an inner drive screw (2), and the left side of the cloth wrapping machine body (3) There is an externally threaded pipe (11) moving left and right between it and the middle end support seat (14), and the left end thread of the inner drive screw (2) is inserted into the externally threaded pipe (11), and the externally threaded pipe (11) ) is provided with a limit groove on the side of the upper half; The left attachment rod (8): the lower end is fixed on the side surface of the upper half of the left end of the externally threaded pipe (11). The right end of 7) is rotatably connected with a position adjustment seat (9), a limit block (22) is fixed on the lower side of the position adjustment seat (9), and the lower end of the limit block (22) is movably inserted into the limit groove left and right Inside, the right side of the position adjusting seat (9) is movably passed through a material receiving barrel (10), and the left end of the material receiving barrel (10) is rotatably connected with a turntable (21), and the left end of the turntable (21) is rotatably connected. A spring (6) is fixed between the side and the inner left side of the adjusting seat (9); Right attachment plate (19): the lower end is fixed on the right end of the external threaded pipe (11), the upper end of the right attachment plate (19) is fixed on the right side with a second motor (20), and the output end of the second motor (20) A revolving frame (16) is fixed through the right attachment plate (19), the left end of the revolving frame (16) is fixed with a material receiving seat (17), and the material receiving seat (17) is left and right with the material receiving barrel (10). Correspondingly, a pressing screw (4) is threaded through the upper side of the material receiving seat (17) and the side surface of the upper half of the material receiving barrel (10); Wherein: the output end of the control device in the wrapping machine body (3) is electrically connected to the input ends of the first motor (1) and the second motor (20). 2. A cloth wrapping machine with a length adjusting mechanism according to claim 1, characterized in that: further comprising a push-pull handle (5), the lower end of the push-pull handle (5) being fixed on the top of the turntable (21) Half side. 3. A cloth wrapping machine with a length adjustment mechanism according to claim 1, characterized in that: further comprising a scale (13), and the scale (13) is fixed on the upper half of the externally threaded pipe (11). The scale (13) is arranged correspondingly up and down with the right end of the material receiving barrel (10). 4. A cloth wrapping machine with a length adjustment mechanism according to claim 1, characterized in that it further comprises a pressing pad (15), and the pressing pad (15) has two and is rotatably connected to the The two press the lower end of the screw (4). 5. A cloth wrapping machine with a length adjusting mechanism according to claim 1, characterized in that: it further comprises balls (18), and the balls (18) roll on the inner side of the middle end support seat (14) Inside, the side surfaces of the balls (18) abut against the side surfaces of the lower half of the externally threaded pipe (11).
