The utility model discloses a numerical control multi-head angle face milling machine, which comprises a cabinet body, wherein two sides of the cabinet body are respectively fixedly connected with a rectangular support column through a rectangular support plate, the upper end of the rectangular support column is fixedly connected with a horizontally arranged second linear motor guide rail, two groups of second linear motor sliders are slidably mounted on the second linear motor guide rail, the lower part of a second linear motor is fixedly provided with a spiral lifting rod, the lower end of the spiral lifting rod is provided with an electric rotating platform, one side surface of the electric rotating platform is fixedly provided with a fixed plate, and one side of the fixed plate is fixedly provided with a milling mechanism, the working efficiency is improved.
Description
Technical Field
The utility model relates to a machine tool machining technical field specifically is a numerical control bull angle mills face machine.
Background
Milling machines refer to machines that use milling cutters to machine various surfaces on a workpiece. Typically the milling cutter rotational motion is the primary motion the workpiece (and) the movement of the milling cutter is the feed motion. It can be used for processing plane, groove, various curved surfaces and gears. The milling machine is a machine tool for milling a workpiece by using a milling cutter. The milling machine can mill planes, grooves, gear teeth, grains and spline shafts, can process complex molded surfaces, has higher efficiency than a planer, and is widely applied to mechanical manufacturing and repairing departments.
Most of the existing milling machines adopt a single milling head, when some workpieces are processed, part of the two surfaces of the workpieces need to be milled, one surface of the workpiece is milled firstly, and the other surface is milled after the milling is finished, so that the operation is troublesome, and the working efficiency is low; meanwhile, the milling angle is fixed, so that the problem that some workpieces with special shapes cannot be machined is caused.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a numerical control bull angle mills face machine to solve above-mentioned background art in single milling drill bit can't carry out the multi-angle to the machined part and mill, and the lower problem of efficiency.
In order to achieve the above object, the utility model provides a following technical scheme:
a numerical control multi-head angle face milling machine comprises a cabinet body, wherein a first linear motor guide rail is longitudinally and fixedly arranged at the center of the upper surface of the cabinet body, a first linear motor sliding block is slidably mounted at the upper part of the first linear motor guide rail, the upper surface of the first linear motor sliding block is fixedly mounted on the bottom surface of the milling platform, the two sides of the cabinet body are respectively fixedly connected with a rectangular support column through a rectangular support plate, the upper end of the rectangular support column is fixedly connected with a second linear motor guide rail which is horizontally arranged, two groups of second linear motor sliding blocks are slidably arranged on the second linear motor guide rail, a spiral lifting rod is fixedly arranged at the lower part of each second linear motor sliding block, an electric rotating platform is installed at the lower end of the spiral lifting rod, a fixed plate is fixedly installed on the surface of one side of the electric rotating platform, and a milling mechanism is fixedly installed on one side of the fixed plate.
Preferably, the milling mechanism comprises a milling motor and a milling bit mounted on the milling motor.
Preferably, four corners of the lower surface of the milling platform are respectively fixed with a supporting directional wheel, and the upper surface of the cabinet body is provided with a wheel groove matched with the supporting directional wheel.
Preferably, the cabinet body is provided with a cabinet door on the front side through a hinge, and the cabinet door is provided with a handle.
Preferably, a threaded hole is formed in the fixing plate, a milling motor fixing seat is welded on one side of the milling motor, and the milling motor is fixed on one side of the fixing plate through a bolt on the milling motor fixing seat.
Preferably, the electric rotating platform is a CR series (coaxial type) electric rotating platform.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses when using, through the second linear electric motor slider drive screw lifter about linear motion, screw lifter drives electric rotary platform up-and-down linear motion, electric rotary platform has realized to the angular adjustment who mills the mechanism, through the second linear electric motor slider, screw lifter, electric rotary platform has realized to the removal that mills the mechanism, height and angular adjustment, mill when to machined part multiaspect multi-angle, the time that consumes when having saved adjustment material position in the material course of working has improved work efficiency.
Drawings

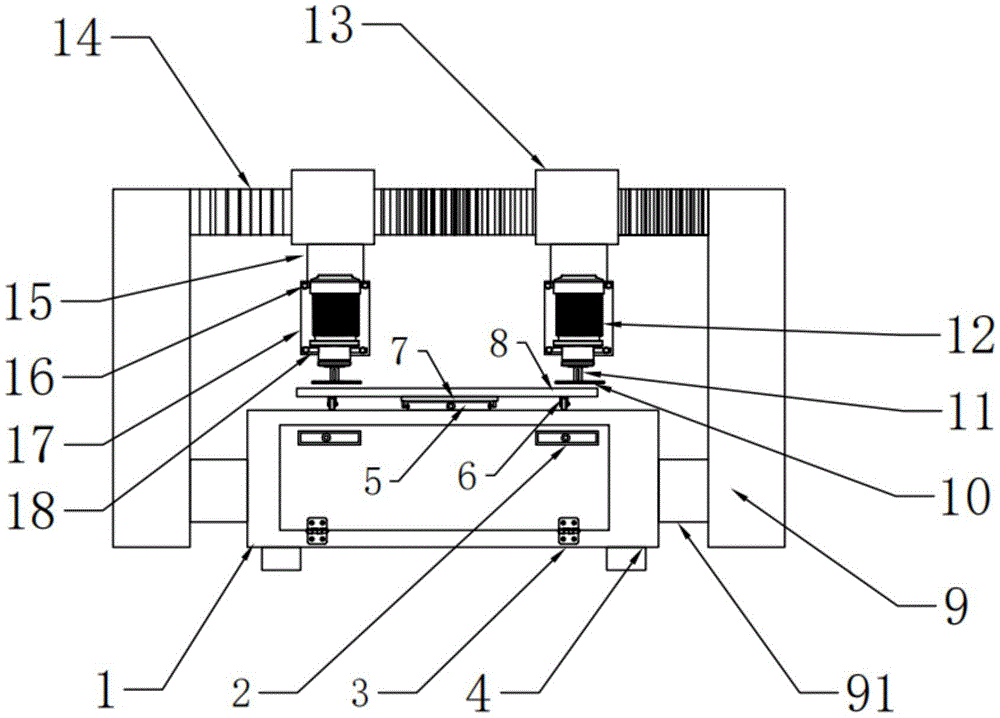

Fig. 1 is a schematic front structural view of the present invention;
fig. 2 is a schematic view of the back structure of the present invention;
fig. 3 is a schematic structural diagram of the electric rotating platform of the present invention.
In the figure: 1. a cabinet body; 2. a handle; 3. a hinge; 4. supporting legs; 5. a first linear motor guide rail; 6. supporting an orientation wheel; 7. a first linear motor slide; 8. milling a platform; 9. a rectangular support column; 91. a rectangular support plate; 10. milling a drill bit; 11. milling a rotating shaft of a motor; 12. milling a motor; 13. a second linear motor slider; 14. a second linear motor guide rail; 15. a spiral lifter; 16. a bolt; 161. a threaded hole; 17. a fixing plate; 171. an electrically powered rotating platform; 18. and (5) milling a motor fixing seat.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example 1
Referring to fig. 1-3, the present invention provides a technical solution:
a numerical control multi-head angle face milling machine comprises a cabinet body 1, wherein supporting legs 4 are welded at four corners of the surface of the lower portion of the cabinet body 1, a cabinet door is installed at the front of the cabinet body 1, a handle 2 is installed on the cabinet door, the lower portion of the cabinet door is fixedly connected with the cabinet body 1 through hinges 3, a first linear motor guide rail 5 is longitudinally and fixedly installed at the center of the surface of the upper portion of the cabinet body 1, a first linear motor slide block 7 is slidably installed at the upper portion of the first linear motor guide rail 5, the surface of the upper portion of the first linear motor slide block 7 is fixedly installed on the surface of the bottom of a milling platform 8, supporting and orienting wheels 6 are installed at four corners of the surface of the lower portion of the milling platform 8, rectangular supporting columns 9 are fixedly connected to two sides of the cabinet body 1 through rectangular supporting plates 91 respectively, and second linear motor guide rails 14 which are horizontally arranged are fixedly connected to the upper ends of the rectangular supporting columns 9, there are two sets of second linear electric motor sliders 13 on the second linear electric motor guide rail 14, the lower part fixed surface of second linear electric motor slider 13 installs spiral lifter 15, electric rotary platform 171 is installed to the lower extreme of spiral lifter 15, one side fixed surface of electric rotary platform 171 installs fixed plate 17, one side fixed mounting of fixed plate 17 has the mechanism of milling, the mechanism of milling is including milling motor 12 and installing the drill bit 10 that mills on milling motor rotation axis 11, be provided with screw hole 161 on the fixed plate 17, it has milling motor fixing base 18 to mill the welding of structure one side, it installs bolt 16 to have a perfect understanding on the milling motor fixing base 18, bolt 16 passes through screw hole 161 screw thread and installs on fixed plate 17.
When the milling machine is used, the first linear motor slider 7 drives the milling platform 8 to perform longitudinal linear motion, the second linear motor slider 13 drives the spiral lifting rod 15 to perform linear motion leftwards and rightwards on the second linear motor guide rail 14, the spiral lifting rod 15 drives the electric rotating platform 171 to perform linear motion upwards and downwards, the electric rotating platform 171 performs angle adjustment on the milling mechanism, if a steel plate needs to be milled, the height of the milling mechanism is adjusted through the spiral lifting rod 15, when the milling mechanism is adjusted to the height capable of milling the surface of the steel plate, the second linear motor slider 13 drives the milling mechanism to perform linear motion leftwards and rightwards to mill the surface of the steel plate, meanwhile, the milling platform 8 drives the rectangular steel plate to perform linear motion forwards and backwards, the milling mechanism mills different positions of the surface of the steel plate, when the side surface of the steel plate is milled, the second linear motor slider 13 drives the spiral lifting rod 15 to move to the side surface of the steel plate, meanwhile, the electric rotating platform 171 drives the milling mechanism to adjust the angle by 90 degrees, the spiral lifting rod 15 drives the electric rotating platform 171 and the milling mechanism to move downwards to the side face of the steel plate and mill by using the milling drill 10, the simultaneous milling of different angles of the machined part is realized, and the working efficiency is improved.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a numerical control bull angle mills face machine which characterized in that includes:
the cabinet body, the vertical fixed mounting in upper portion surface center of the cabinet body has first linear electric motor guide rail, first linear electric motor guide rail upper portion slidable mounting has first linear electric motor slider, first linear electric motor slider upper portion fixed surface installs on the bottom surface that mills the platform, the both sides of the cabinet body are respectively through rectangle backup pad fixedly connected with rectangle support column, the second linear electric motor guide rail that the upper end fixed connection of rectangle support column set up has the level, slidable mounting has two sets of second linear electric motor sliders on the second linear electric motor guide rail, the lower part fixed mounting of second linear electric motor slider has the spiral lifter, electric rotary platform is installed to the lower extreme of spiral lifter, one side fixed surface of electric rotary platform installs the fixed plate, one side fixed mounting of fixed plate has milling machanism.
2. The numerical control multi-head angle face milling machine according to claim 1, characterized in that: the milling mechanism comprises a milling motor and a milling drill bit arranged on the milling motor.
3. The numerical control multi-head angle face milling machine according to claim 1, characterized in that: support directional wheels are fixed at four corners of the surface of the lower portion of the milling platform, and wheel grooves matched with the support directional wheels are formed in the surface of the upper portion of the cabinet body.
4. The numerical control multi-head angle face milling machine according to claim 1, characterized in that: the front of the cabinet body is provided with a box door through a hinge, and the box door is provided with a handle.
5. The numerical control multi-head angle face milling machine according to claim 2, characterized in that: the milling machine is characterized in that a threaded hole is formed in the fixing plate, a milling motor fixing seat is welded on one side of the milling motor, and the milling motor is fixed on one side of the fixing plate through a bolt.
6. The numerical control multi-head angle face milling machine according to claim 1, characterized in that: the model of the electric rotating platform is a CR series electric rotating platform.
