CN214414323U

CN214414323U - A tool kit for project supervision

Info

Publication number: CN214414323U
Application number: CN202120428402.7U
Authority: CN
Inventors: 南永利
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-02-26
Filing date: 2021-02-26
Publication date: 2021-10-19
Anticipated expiration: 2031-02-26

Abstract

The utility model discloses a tool bag for engineering supervision. A first shell and a second shell are hard shells. The tops of the first shell and the second shell are provided with handles, and the second shell is fixedly provided with a strap for installing a strap. Mounting parts; the first shell is provided with a solar panel, and the second shell is provided with a corresponding battery; the first and second shells are provided with a fixing plate for fixing tools, and one side of the fixing plate is provided with a placement position, and the edge of the placement position There is a clamping block, a top plate is hinged inside the placement position, a pull rope is fixed at one end of the top plate, a connecting wire for charging is arranged inside the placement position, and a hole position corresponding to the connecting wire is arranged inside the placing position, and the connecting wire is located inside the hole position. Hard shell, to avoid the instrument from being squeezed, handle and strap, two kinds of carrying, easy to carry; connecting wire and battery, easy to charge the instrument, solar panel to charge the battery; block, easy to fix the instrument to prevent slipping, place the There is a top plate hinged inside, and there is a pull rope on the top plate, which is convenient to take and place the instrument by pulling the pull rope.

Description

Engineering is saddlebag for supervision

Technical Field

The utility model relates to a saddlebag technical field specifically indicates a saddlebag is used in engineering supervision.

Background

When the engineering supervision works, in order to record construction contents, data and the like, the supervision needs to carry about a small notebook, a tape measure, an infrared distance measuring instrument, a pen, a camera shooting instrument, a lighting instrument, a drawing and the like, so that the supervision is usually provided with a tool bag to store articles in the supervision so as to be convenient to carry.

The existing Chinese patent with the publication number of CN203943199U discloses a special work package for species supervision, which comprises: the bag comprises a main body, a plurality of bag bodies and a plurality of plug bushes, wherein an accommodating cavity is formed inside the main body and is provided with a zipper, the accommodating cavity is divided into the plurality of bag bodies by a plurality of vertically arranged partition plates, and the plurality of plug bushes are vertically arranged on one side surface of the outer surface of the main body; the bag straps are connected to two ends of the main body in the distribution direction of the plurality of bag bodies; and the bag cover is connected to the upper part of the main body and covers the upper side face and the side face provided with the plug bush.

The above prior art solutions have the following drawbacks: the saddlebag is the main part for flexible surface fabric, can cause the extrusion, has probably to cause the damage to instrument or article in the work package, and the instrument is fixed to the plug bush, and when the instrument baotou was down, the instrument was followed the roll-off easily, gets to put inconveniently, and this saddlebag only has a portable mode, and the instrument charges and need take out the instrument and charge the back and put into the saddlebag, and the operation is complicated.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is to overcome above technical problem, provide one kind and conveniently carry, have multiple carrying mode, can prevent that the instrument from receiving the extrusion, avoid the instrument to drop, conveniently get and put the instrument, make things convenient for the engineering that the instrument charges to manage and use the saddlebag.

In order to solve the technical problem, the utility model provides a technical scheme does: a tool kit for engineering supervision comprises a tool kit shell, wherein the tool kit shell is divided into a first shell and a second shell which are hard shells respectively, handles are arranged at the tops of the first shell and the second shell, a mounting piece for mounting a binding band is fixedly arranged on the outer wall of the second shell, and the binding band penetrates through the mounting piece; the solar panel is arranged on the outer side wall of the first shell, the storage battery is correspondingly arranged in the second shell, the storage battery is embedded in the second shell, and the second shell is provided with a fixing protrusion corresponding to the storage battery; the fixed plate that is used for fixing tool is equipped with in casing one and two insides of casing, one side that the fixed plate is close to each other is equipped with places the position, it is equipped with the fixture block to place the position edge, it has the roof to place the inside articulated of position, the fixed stay cord that is equipped with of one end that the pin joint was kept away from to the roof, the stay cord overlap joint is placing the position edge, it is equipped with the connecting wire that is used for charging to place the position inside, it is equipped with the hole site to place the position inside corresponding to the connecting wire, the connecting wire is located inside the hole site.

Compared with the prior art, the utility model the advantage lie in: the casing of this saddlebag is the stereoplasm casing with casing two, avoid the instrument to receive the extrusion, be equipped with handle and bandage, two kinds of carrying ways supply the user to choose for use, and convenient to carry is equipped with connecting wire and battery, makes things convenient for the instrument to charge, and solar panel charges for the battery, and is energy-concerving and environment-protective, and it is equipped with the fixture block to place the position edge, makes things convenient for fixed instrument to prevent the landing, places the inside articulated roof that has of position, is equipped with the stay cord on the roof, stimulates the stay cord, drives the roof and takes the instrument out and place the position, conveniently gets and puts the instrument.

As the improvement, the structure of bandage is the same with the structure of waistband, and the width of bandage is 5 ~ 8 centimetres, conveniently carries, and the bandage broad can not be tightened.

As an improvement, a first shock pad is arranged between the inner wall of the first shell and the fixed plate, and a second shock pad is arranged between the storage battery in the second shell and the fixed plate, so that the phenomenon that the tool bag falls to cause the damage of internal instruments due to vibration is avoided.

As the improvement, the tail end of the connecting wire is provided with a connector for connecting an electric tool, so that the instrument can be charged conveniently.

As the improvement, solar panel links to each other with the input electrical property of battery, the connecting wire links to each other with battery output electrical property, makes things convenient for the battery to dash to discharge.

The flashlight is placed on the fixing plate, and is convenient to use when walking at night.

The connecting wire is of a spiral structure and is the same as the structure of the telephone wire, so that the connecting wire can be conveniently stretched, and the circuit is tidy.

Drawings

Fig. 1 is a schematic structural view of the utility model of a tool bag for project supervision.

Fig. 2 is a schematic view of a fixing plate structure of the utility model of a tool bag for project supervision.

Fig. 3 is a schematic structural diagram of a second housing of the tool kit for engineering supervision according to the present invention.

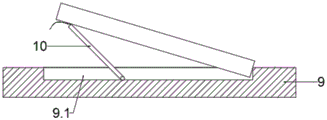

Fig. 4 is a schematic structural diagram of a placement position and a top plate of the tool bag for engineering supervision of the present invention.

Fig. 5 is a schematic structural diagram of a connection line of the tool bag for engineering supervision according to the present invention.

As shown in the figure: 1. the solar battery comprises a first shell, a second shell, a third shell, a fourth shell, a fifth shell, a sixth shell, a fifth shell, a sixth shell, a fifth shell, a fourth shell, a fifth shell, a fixing band, a sixth shell, a solar panel, a sixth shell, a fixing plate, 8.2, a shock absorption pad, a fixing plate, a shock absorption pad, a fixing plate, 8.2, a fixing plate, 9.2, a fixing plate, a fixing block, a fixing plate, a fixing block, a fixing plate, a fixing block, a fixing plate, a fixing block, a fixing plate, a fixing block.

Detailed Description

In order to make the technical problem, technical solution and advantageous effects to be solved by the present invention more clearly understood, the following description is given in conjunction with the accompanying drawings and embodiments to illustrate the present invention in further detail. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. Furthermore, the terms "first", "second", etc. are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first," "second," etc. may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the term "connected" is to be interpreted broadly, for example, as a fixed connection, a detachable connection, or an integral connection; the specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

With reference to the attached drawings, the tool kit for engineering supervision comprises a tool kit shell, wherein the tool kit shell is divided into a first shell 1 and a second shell 2, the first shell 1 and the second shell 2 are hard shells, a handle 3 is arranged at the tops of the first shell 1 and the second shell 2, a mounting piece 4 for mounting a binding band 5 is fixedly arranged on the outer wall of the second shell 2, and the binding band 5 penetrates through the mounting piece 4; the solar panel 6 is arranged on the outer side wall of the first shell 1, the storage battery 7 is correspondingly arranged inside the second shell 2, the storage battery 7 is embedded inside the second shell 2, and the second shell 2 is provided with a fixing protrusion 2.1 corresponding to the storage battery 7; the utility model discloses a portable electronic instrument, including casing 1, casing 2, roof 10, stay cord 9, connecting wire 11, position 12, connecting wire 11, position 9.1, place 9.1 edge, the position 9.2 is equipped with the fixture block 9.2, place 9.1 inside articulated roof 10 that has of position, the fixed stay cord that is equipped with of one end that the pin joint was kept away from to roof 10, the stay cord overlap joint is at place 9.1 edge, makes the stay cord end expose to place the position 9.1 outside when placing the instrument, place 9.1 inside connecting wire 11 that is used for charging that is equipped with of position 9.1, place 9.1 inside being equipped with the hole site 12 corresponding to connecting wire 11 of position, connecting wire 11 is located hole site 12 inside, places the instrument after pulling out and inserting on the instrument when charging connecting wire 11, and connecting wire 11 automatic withdrawal hole site 12 inside is placed to connecting wire 11

The structure of the binding band 5 is the same as that of the waistband, the width of the binding band 5 is 5-8 cm, and when no extra tool bags for taking a person are used in work, the bronze drum binding band 5 can be bound on the waistband.

A damping pad I8.1 is arranged between the inner wall of the first shell 1 and the fixing plate 9, and a damping pad II 8.2 is arranged between the storage battery 7 and the fixing plate 9 in the second shell 2.

The tail end of the connecting wire 11 is provided with a joint 11.1 for connecting an electric tool.

Solar panel 6 links to each other with the input electrical property of battery 7, connecting wire 11 links to each other with battery 7 output electrical property.

A flashlight 13 is placed on the fixing plate 9.

The connecting wire 11 is a spiral structure and has the same structure as a telephone wire.

The utility model discloses when concrete implementation, can carry by the carrying handle during carrying, can tie up the saddlebag on the waist at the during operation, conveniently carry, inside having used up the instrument to press into the instrument and placing the position, block the instrument through the fixture block and avoid the landing, pulling the stay cord when going the instrument makes the roof rotate around the articulated shaft, it is ejecting with the instrument, conveniently take, will connect the mouth that charges of injecting the instrument when the instrument needs to charge, the battery supplies power, solar panel charges to the battery, can take out the flashlight when walking night, throw light on, avoid stumbling, cushion one when the saddlebag drops, cushion two carry out the shock attenuation, reduce the damage that vibrations caused the instrument.

The present invention and the embodiments thereof have been described above, but the description is not limited thereto, and the embodiment shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should understand that they should not be limited to the embodiments described above, and that they can design the similar structure and embodiments without departing from the spirit of the invention.

Claims

1. A tool bag for engineering supervision, comprising a tool bag shell, characterized in that: the tool bag shell is divided into two parts, which are respectively shell one (1) and shell two (2), and shell one (1) and the second shell (2) are hard shells, the top of the first shell (1) and the second shell (2) are provided with a handle (3), and the outer wall of the second shell (2) is fixed on the outer wall There is a mounting piece (4) for mounting a strap (5), the strap (5) passes through the mounting piece (4); a solar panel (6) is provided on the outer side wall of the first shell (1), A storage battery (7) is correspondingly arranged inside the second casing (2), the storage battery (7) is embedded in the inside of the second casing (2), and a fixed battery (7) is provided on the second casing (2) corresponding to the storage battery (7). Protrusion (2.1); a fixing plate (9) for fixing tools is provided inside the housing one (1) and the housing two (2), and the side of the fixing plate (9) close to each other is provided with a placement position ( 9.1), a clamping block (9.2) is provided on the edge of the placement position (9.1), a top plate (10) is hinged inside the placement position (9.1), and a pull rope is fixed at one end of the top plate (10) away from the hinge point. , the drawstring is overlapped on the edge of the placement position (9.1), the placement position (9.1) is provided with a connecting wire (11) for charging, and the interior of the placement position (9.1) corresponds to the connecting wire (11). There is a hole (12), and the connecting wire (11) is located inside the hole (12).

2 . The tool kit for engineering supervision according to claim 1 , wherein the structure of the strap ( 5 ) is the same as that of the waist belt, and the width of the strap ( 5 ) is 5-8 cm. 3 .

3. A tool kit for engineering supervision according to claim 1, characterized in that: a shock-absorbing pad (8.1) is provided between the inner wall of the housing one (1) and the fixing plate (9), and the A shock pad two (8.2) is arranged between the battery (7) and the fixing plate (9) in the second casing (2).

4. A tool kit for engineering supervision according to claim 1, characterized in that: the end of the connecting wire (11) is provided with a connector (11.1) for connecting an electric tool.

5. A tool kit for engineering supervision according to claim 1, characterized in that: the solar panel (6) is electrically connected to the input end of the storage battery (7), and the connecting wire (11) is electrically connected to the storage battery (7). 7) The output terminals are electrically connected.

6 . The tool kit for engineering supervision according to claim 1 , wherein a flashlight ( 13 ) is placed on the fixing plate ( 9 ). 7 .

7 . The tool kit for engineering supervision according to claim 1 , wherein the connecting wire ( 11 ) has a spiral structure, which is the same as that of a telephone wire. 8 .
