CN214412349U

CN214412349U - Flip formula wireless portable power source

Info

Publication number: CN214412349U
Application number: CN202120335065.7U
Authority: CN
Inventors: 崔祥
Original assignee: Dongguan Kelai Intelligent Technology Co ltd
Current assignee: Dongguan Kelai Intelligent Technology Co ltd
Priority date: 2021-02-05
Filing date: 2021-02-05
Publication date: 2021-10-15
Anticipated expiration: 2031-02-05

Abstract

The utility model discloses a flip type wireless mobile power supply, comprising a flip type power supply main body, the flip type power supply main body comprising a base and a flip plate, one side of the flip plate is pivotally connected with one side of the base, and the base is connected with The flip plate can be opened or closed, and the top surface of the base is provided with two charging slots. The utility model can wirelessly charge electronic devices such as smart watches, bluetooth earphones and mobile phones at the same time, and is convenient to carry.

Description

Flip formula wireless portable power source

Technical Field

The utility model relates to a portable power source technical field specifically is a wireless portable power source of flip formula.

Background

At present mobile electronic equipment classification increases day by day, simultaneously because the promotion of product function and the increase of display screen, the product consumption is also increasing, and mobile electronic equipment appears the condition that the electric quantity is not enough very easily, therefore a lot of users all can hand-carry portable power source. However, the traditional mobile power supply needs to be charged by using a charging wire, different devices need to be provided with different charging wires due to different interfaces, and therefore a user cannot charge the devices at any time; therefore, more and more devices have a wireless charging function, and particularly, mobile power sources having the wireless charging function. But the supporting electronic product of current cell-phone is more and more, like bluetooth headset, intelligent wrist-watch etc. this type of electronic product volume is less, loses easily, and this kind of accessory of bluetooth headset still need take the earphone box to deposit in addition, has further reduced the portability, and user experience is relatively poor.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a flip formula wireless mobile power source possesses the advantage that conveniently carries, can charge for multiple electronic product, has solved the problem of proposing among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a flip formula wireless mobile power supply, includes flip formula power main part, flip formula power main part includes base and flip board, but this flip board one side is connected with one side pivot ground of base, and base and flip board can open action or closed action, the base top surface is provided with two charging grooves.

Preferably, the bottom of the flip cover plate is movably connected with a support plate, the top surface of the flip cover power supply main body is provided with a placing groove matched with the support plate, and a transverse limiting groove is arranged in the middle of the placing groove.

Preferably, the base is provided with a blocking strip, and the blocking strip is close to one side of the joint of the flip type power supply main body and the flip type plate.

Preferably, two charging grooves are respectively a smart watch charging groove and a Bluetooth headset charging groove.

Preferably, the flip-type power supply main body is at least further provided with a control circuit board, a storage battery and a current interface, wherein the control circuit board and the storage battery are arranged inside the flip-type power supply main body, and the current interface is arranged at the side end of the flip-type power supply main body.

Preferably, the current interface is a Type-C interface.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a set up base and flip board, two charging grooves of setting on the base are intelligent wrist-watch charging groove and bluetooth headset charging groove respectively, can charge to cell-phone, intelligent wrist-watch and bluetooth headset, and close through the flip lid, and the cooperation base can prevent that it from losing with intelligent wrist-watch and bluetooth headset cladding, conveniently carries.

2. The utility model discloses a set up backup pad and shelves strip, the backup pad rotates, and backup pad bottom embedding spacing inslot, backup pad, flip board and base form stable triangle-shaped this moment, and the cell-phone bottom is inconsistent with the shelves strip, and the cell-phone back pastes and leans on flip board, can charge for the cell-phone, can act as cell phone stand again.

Drawings

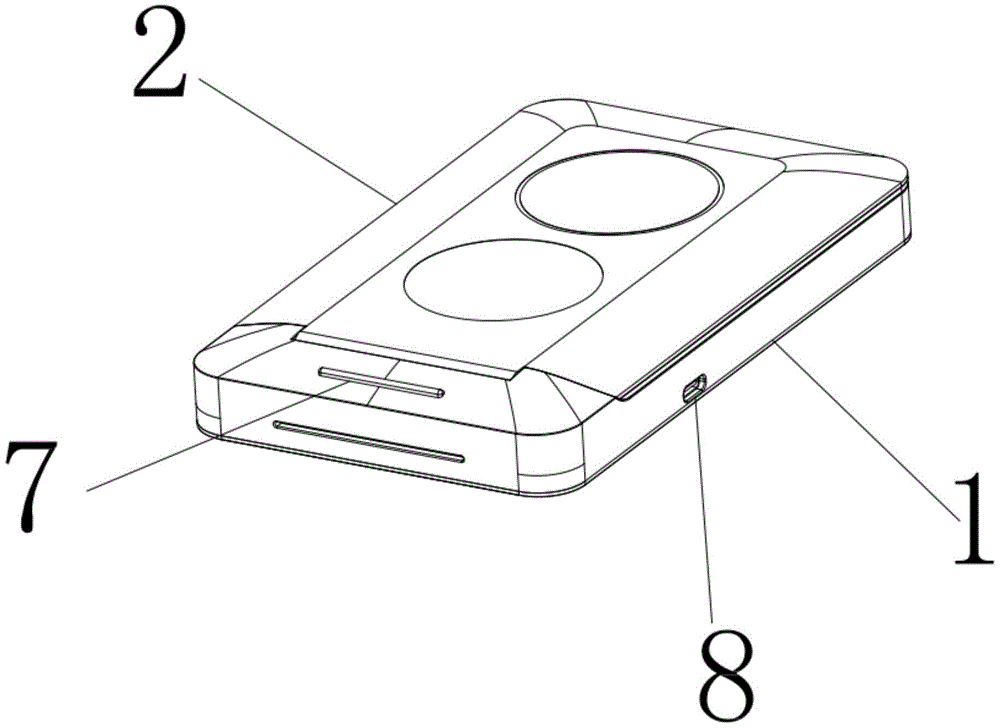

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic structural view of the present invention in the unfolded state.

The reference numerals and names in the figures are as follows:

1. a base; 2. turning over a cover plate; 3. a charging slot; 4. a support plate; 5. a placement groove; 6. a limiting groove; 7. a stop bar; 8. a current interface.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1 to fig. 2, the present invention provides an embodiment: the utility model provides a flip formula wireless mobile power supply, includes flip formula power main part, flip formula power main part includes base 1 and flip board 2, but this flip board 2 one side is connected with one side pivot ground of base 1, and base 1 and flip board 2 can open the action or closed action, base 1 top surface is provided with two charging grooves 3. The flip plate 2 can output radio waves for charging electronic equipment supporting wireless charging.

Furthermore, the bottom of the flip plate 2 is movably connected with a supporting plate 4, the top surface of the base 1 is provided with a placing groove 5 matched with the supporting plate 4, and the middle of the placing groove 5 is provided with a transverse limiting groove 6. When flip board 2 and base 1 were closed, backup pad 4 emboliaed the standing groove 5 in, can make flip board 2 and base 1 seamless laminating, and backup pad 4 embedding spacing groove 6 is in order to prevent that backup pad 4 from sliding, forms stable bearing structure.

Further, a blocking strip 7 is arranged on the base 1, and the blocking strip 7 is close to one side of the joint of the flip type power supply main body 1 and the flip type plate 2. The supporting plate 4 is embedded into the limiting groove 6 to form a supporting structure, the bottom of the mobile phone can be abutted against the stop bar 7, the back of the mobile phone is attached to the flip plate 2 and can serve as a mobile phone support

Further, two charging tank 3 is intelligent wrist-watch charging tank and bluetooth headset charging tank respectively. Can charge for intelligent wrist-watch and bluetooth headset, and close through

flip board

2 and 1 lids of base, can form sealed depositing, prevent to lose.

Furthermore, the flip-type power supply main body is at least provided with a control circuit board (not shown), a storage battery (not shown) and a current interface 8, wherein the control circuit board and the storage battery are arranged inside the base 1, the current interface 8 is arranged at the side end of the base 1, the storage battery is mainly used for storing electric quantity, and the control circuit board is used for controlling current to be output from the storage battery to the current interface 8, the charging slot 3 and the flip plate 2 or controlling current to be input into the storage battery from the current interface 8.

Further, current interface 8 is Type-C interface, because Type-C interface can be to the current bidirectional transfer, not only can outwards output current, can also charge for the battery to inside input current.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. A flip-type wireless mobile power supply, comprising a flip-type power supply main body, characterized in that: the flip-type power supply main body comprises a base (1) and a flip plate (2), and one side of the flip plate (2) is connected to the base (1). One side of the ) is pivotably connected, and the base (1) and the flip plate (2) can be opened or closed, and two charging slots (3) are provided on the top surface of the base (1).

2. A flip-type wireless mobile power supply according to claim 1, characterized in that: a support plate (4) is movably connected to the bottom of the flip-cover plate (2), and a top surface of the flip-type power supply main body (1) is arranged on the top surface. There is a placement slot (5) matched with the support plate (4), and a transverse limit slot (6) is arranged in the middle of the placement slot (5).

3. A flip-type wireless mobile power supply according to claim 1 or 2, characterized in that: the base (1) is provided with a rail (7), and the rail (7) is close to the base (1) and the One side where the flap plate (2) is connected.

4. A flip-type wireless mobile power supply according to claim 1, wherein the two charging slots (3) are respectively a charging slot for a smart watch and a charging slot for a Bluetooth headset.

5. A flip-type wireless mobile power supply according to claim 1, characterized in that: the flip-type power supply main body is at least further provided with a control circuit board, a battery and a current interface (8), wherein the control circuit board and the battery are provided with Inside the base (1), the current interface (8) is arranged on the side end of the base (1).

6. A flip-type wireless mobile power supply according to claim 5, characterized in that: the current interface (8) is a Type-C interface.
