CN214402778U

CN214402778U - A beam-column side mold hanger for building construction

Info

Publication number: CN214402778U
Application number: CN202023109409.7U
Authority: CN
Inventors: 邓秀英
Original assignee: Youge Beijing Technology Co ltd
Current assignee: Youge Beijing Technology Co ltd
Priority date: 2020-12-22
Filing date: 2020-12-22
Publication date: 2021-10-15
Anticipated expiration: 2030-12-22

Abstract

A beam-column side mold hanger for building construction comprises a boom main body, a lifting ring, an included angle, and a hanging rope. The lifting ring is arranged at the top of the boom main body; Set at the hoisting ring, and the other end of the hoisting rope is connected to the hoisting equipment, the lower end of the inner wall of the included angle is provided with a slot, and the upper end of the inner wall of the included angle to the top of the main body of the boom is provided with a chute. The setting of the groove, the fixed plate, the baffle, the rotating rod and the connecting rod can easily adjust the baffle at the spreader, which is convenient to improve the convenience of the spreader. The layout setting relationship between the contact plate and the spring can exert a resisting force on the beam-column side formwork, which is convenient to ensure the hoisting stability of the beam-column.

Description

Beam column side form hoist that construction used

Technical Field

The utility model relates to a construction technical field, more specifically say, relate to a beam column side form hoist that construction used.

Background

With the rapid development of social economy, the modernization of people in life and work is gradually realized, the rhythm of life and the rhythm of work are continuously accelerated, and meanwhile, the modernization and the automation of production of various industries are realized mostly. The same is true in the building industry, most of traditional buildings are made of reinforced concrete, however, the reinforced concrete buildings are known to have long construction period in the building process and have high requirements on the environment, and the construction time in the whole year is short for places with severe climate, so that the development of the whole region is seriously influenced, the production of assembly type buildings is promoted, and in order to respond to the requirements of governments on the environment, the proportion of PC components in the whole industry is higher and higher, and the types of PC components are more and more.

Based on the above description, and a search was made for an application with the number: CN 201922483107.7's utility model patent, it is about a beam column side form hoist, and it includes davit, rings and gag lever post, its characterized in that, the davit be C shape and the upside tip have the sleeve. The retrieval shows that the hoisting operation of the side surface of the beam column is completed mainly by arranging the hoisting arm, the limiting rod, the friction line and the hoisting ring.

Through retrieval and analysis and long-time research and experiments carried out by the applicant in the field, firstly, friction lines are arranged on the outer side of the limiting rod of the lifting appliance, and as seen from the figure of the specification of the application, when the limiting rod is pressed down, the friction lines are in friction contact with the inner wall of the sleeve, so that the limiting rod needs to use large force when being pressed down, and the lifting appliance is troublesome and inconvenient in actual operation, and therefore, based on the problems, the lifting appliance for the beam column side mold for building construction is needed.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model discloses aim at solving when needs hoist the operation to the beam column side, through its device, can carry out light adjustment work to the baffle of hoist department to be convenient for promote the use convenience of this hoist.

(II) technical scheme

The utility model provides a beam column side form hoist that construction used, including davit main part, rings, contained angle, lifting rope, rings set up in the top department of davit main part, and the left side department of davit main part is seted up to the contained angle, and the lifting rope sets up in rings department to the other end of lifting rope is connected with lifting device, and the draw-in groove has been seted up to the inner wall lower extreme department of contained angle, and the inner wall upper end department of contained angle link up to the top department of davit main part and has seted up the spout, is provided with spacing subassembly in the inside activity of spout, and then movable mounting has to support tight subassembly in the inboard department of contained angle.

Preferably: the clamping groove and the sliding groove are both of rectangular structures and are arranged correspondingly to each other.

Preferably: the fixed plate is installed at the top end of the inner wall of the sliding chute and is positioned at the middle end of the sliding chute.

Preferably: the top to the bottom end surface of the fixing plate is provided with a thread groove in a penetrating way, and the thread groove is connected with a rotating rod in a threaded way.

Preferably: the limiting assembly is a baffle plate, a connecting rod is rotatably arranged at the middle end of the top end face of the baffle plate, and the top end of the connecting rod is fixedly connected with the bottom end face of the rotating rod.

Preferably: the middle end of the top end face of the baffle is provided with a rectangular slot, the slot corresponds to the fixing plate, and the width of the slot is larger than that of the fixing plate.

Preferably: the diameter of the rotating rod is larger than that of the connecting rod.

Preferably: the abutting component is an abutting plate, a spring is arranged at the inner side of the abutting plate, and one end of the spring is fixedly connected with the end face of the inner wall of the included angle.

Preferably: the top end of the rotating rod is provided with a rotating disk, and the outer side of the rotating disk is provided with a holding rod.

Has the advantages that:

1. this kind of beam column side form hoist that construction used is provided with spout, fixed plate, baffle, bull stick and connecting rod, can carry out light adjustment work to the baffle of hoist department, is convenient for promote the use convenience of this hoist like this.

2. The beam column side die lifting appliance for building construction is provided with the clamping groove, the sliding groove, the abutting plate and the spring, and can apply abutting force to the beam column side die, so that the lifting stability of a beam column is guaranteed conveniently.

Description of the drawings:

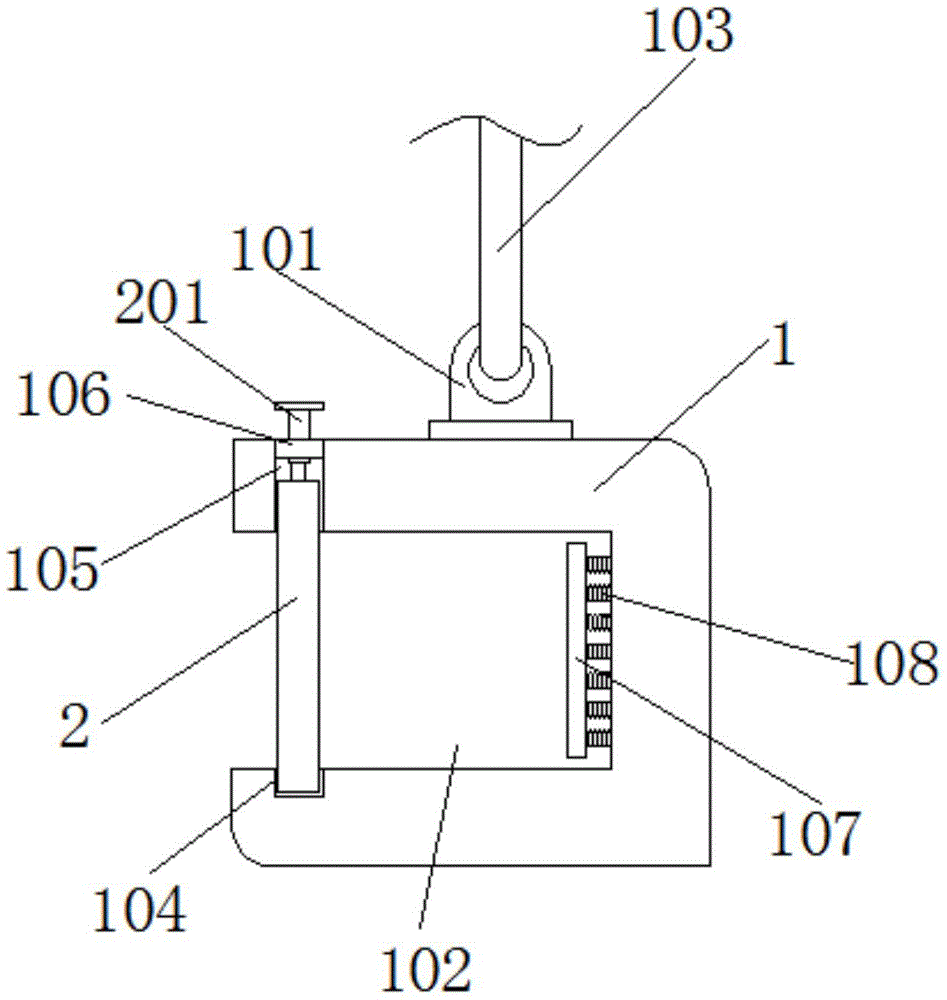

fig. 1 is the utility model discloses a beam column side form hoist right side face schematic sectional view that construction used.

Fig. 2 is the utility model discloses a beam column side form hoist part front cut-away schematic diagram that construction used.

Fig. 3 is the utility model discloses a beam column side form hoist local overlooking face cross-sectional view schematic diagram that construction used.

Fig. 4 is a schematic view of the connection between the rotating rod and the connecting rod of the present invention.

In FIGS. 1-4: 1-a boom body; 101-a lifting ring; 102-included angle; 103-lifting rope; 104-card slot; 105-a chute; 106-fixing plate; 107-resisting plate; 108-a spring; 2-a baffle plate; 201-rotating rod; 202-connecting rod.

Detailed Description

As shown in figures 1 to 4: the utility model provides a technical scheme, a beam column side form hoist for building construction, including davit main part 1, rings 101, contained angle 102, lifting rope 103, rings 101 sets up in the top department of davit main part 1, contained angle 102 sets up in the left side department of davit main part 1, lifting rope 103 sets up in rings 101, and the other end of lifting rope 103 is connected with hoisting equipment, the bottom terminal surface department of contained angle 102 sets up draw-in groove 104, the inner wall top of contained angle 102 to the top terminal surface department of davit main part 1 sets up spout 105, the inner wall top of spout 105 installs fixed plate 106, the inboard department of contained angle 102 is provided with spring 108, the one end of spring 108 installs resisting plate 107, spout 105 internally movable mounting has baffle 2, the top terminal surface of baffle 2 rotates installs connecting rod 202, fixed plate 106 department screw thread installs bull stick 201, and the bottom of bull stick 201 is fixed with the top of connecting rod 202 and is even, and the top end of the rotating rod 201 is provided with a rotating disk and a holding rod.

When the device is used, the rotating rod 201 rotates anticlockwise, the rotating rod 201 drives the baffle plate 2 and the connecting rod 202 to move upwards when rotating, because the diameter of the rotating rod 201 is larger than that of the connecting rod 202, and the length of the rotating rod 201 is smaller than that of the connecting rod 202, the rotating rod 201 can be screwed out from the threaded groove of the fixing plate 106 when rotating, the connecting rod 202 can slide in the threaded groove after screwing out, so that the baffle plate 2 can be quickly pulled to slide on the inner wall of the sliding groove 105, the beam column side die can be conveniently and quickly placed into the included angle 103 for hoisting after the baffle plate 2 slides, meanwhile, the clamping groove 104, the sliding groove 105, the abutting plate 107 and the spring 108 are utilized to arrange, so that the hoisting stability of the beam column is ensured, after the beam column is placed into the included angle 102, the abutting plate 107 can be under the operation of the spring 108, thrust is applied to the right end of the beam column, and the clamping groove 104 and the sliding groove 105 are in the corresponding state, so that the upper end and the lower end of the baffle 2 can be clamped at the sliding groove 105 and the clamping groove 104 respectively, the supporting strength of the baffle 2 can be guaranteed after the baffle is clamped, the beam column can be stably attached to the inner side of the abutting plate 107 under the pressure of the abutting plate 107, and the hoisting stability of the beam column can be guaranteed.

The working principle is as follows:

through the setting of spout 105, fixed plate 106, baffle 2, bull stick 201 and connecting rod 202, can carry out light adjustment work to the baffle 2 of hoist department, be convenient for like this promote the use convenience of this hoist, utilize its draw-in groove 104, spout 105, to set up the relation by the overall arrangement of board 107 and spring 108 simultaneously, can exert the power of supporting to the beam column side mould, be convenient for like this ensure the hoist and mount stability of its beam column.

Claims

1. The utility model provides a beam column side form hoist that construction used, includes davit main part (1), rings (101), contained angle (102), lifting rope (103), rings (101) set up in the top department of davit main part (1), and left side department in davit main part (1) is seted up in contained angle (102), and lifting rope (103) set up in rings (101) department to the other end of lifting rope (103) is connected with lifting device, its characterized in that: the lower end of the inner wall of the included angle (102) is provided with a clamping groove (104), the upper end of the inner wall of the included angle (102) is communicated with the top end of the suspension arm main body (1) to form a sliding groove (105), a limiting component is movably arranged inside the sliding groove (105), and a propping component is movably arranged on the inner side of the included angle (102).

2. The beam column side die lifting appliance for building construction according to claim 1, wherein: the clamping groove (104) and the sliding groove (105) are both rectangular structures and are arranged correspondingly to each other.

3. The beam column side die lifting appliance for building construction according to claim 1, wherein: a fixing plate (106) is installed at the top end of the inner wall of the sliding groove (105), and the fixing plate (106) is located at the middle end of the sliding groove (105).

4. The beam column side die lifting appliance for building construction according to claim 3, wherein: a thread groove is formed from the top to the bottom end face of the fixing plate (106) in a penetrating mode, and a rotating rod (201) is connected to the thread groove in a threaded mode.

5. The beam column side die lifting appliance for building construction according to claim 1, wherein: the limiting assembly is a baffle (2), a connecting rod (202) is rotatably mounted at the middle end of the top end face of the baffle (2), and the top end of the connecting rod (202) is fixedly connected with the bottom end face of a rotating rod (201).

6. The beam column side die lifting appliance for building construction according to claim 5, wherein: the middle end of the top end face of the baffle (2) is provided with a rectangular groove, the groove corresponds to the fixing plate (106), and the width of the groove is larger than that of the fixing plate (106).

7. The beam column side die lifting appliance for building construction according to any one of claims 4 or 5, wherein: the diameter of the rotating rod (201) is larger than that of the connecting rod (202).

8. The beam column side die lifting appliance for building construction according to claim 1, wherein: the abutting component is an abutting plate (107), a spring (108) is arranged on the inner side of the abutting plate (107), and one end of the spring (108) is fixedly connected with the end face of the inner wall of the included angle (102).

9. The beam column side die lifting appliance for building construction according to claim 4, wherein: the top end of the rotating rod (201) is provided with a rotating disk, and the outer side of the rotating disk is provided with a holding rod.
