Abstract
The utility model belongs to the technical field of traditional Chinese medicine smashing, in particular to a traditional Chinese medicine rapid smashing device for traditional Chinese medicine factories, which comprises a box body, wherein a first supporting plate and a smashing box are arranged inside the box body, a supporting table and a recovery box are arranged at the top of the first supporting plate, a first electric push rod is arranged at the top of the supporting table, the other end of the first electric push rod is fixedly connected with a connecting block, the other side of the connecting block is fixedly connected with a sliding plate, and a spiral conveyor is arranged inside the recovery box; the utility model discloses, through the setting of smashing the case, smashing post and crushing leaf, realize the smashing to the medicinal material, through the setting of filter, recovery box and screw conveyer etc. realize carrying out the regrinding through screw conveyer back crushing incasement with not complete kibbling medicinal material, through the setting of first electric putter, slide, first spout and connecting block, realize the slide of the bottom of the case portion is smashed in first electric putter control.
Description
Technical Field
The utility model belongs to the technical field of traditional chinese medicine is smashed, concretely relates to traditional chinese medicine factory is with traditional chinese medicine equipment of smashing fast.
Background
At present, the equipment for smashing the traditional Chinese medicine is mainly characterized in that the traditional Chinese medicine is directly placed in a smashing machine to be smashed, then the smashing machine is turned upside down to unload, the working efficiency is very low, the smashing equipment needs to be frequently moved, the smashing equipment is very troublesome, and after smashing, medicinal powder can be in different sizes, and after smashing, the medicinal powder can be manually collected, so that the medicinal powder cannot be completely collected.
SUMMERY OF THE UTILITY MODEL
To solve the problems set forth in the background art described above. The utility model provides a traditional chinese medicine factory is with traditional chinese medicine equipment of smashing fast has convenient to use's characteristics.
In order to achieve the above object, the utility model provides a following technical scheme: a traditional Chinese medicine rapid smashing device for a traditional Chinese medicine factory comprises a box body, wherein a first supporting plate and a smashing box are arranged inside the box body, a supporting table and a recycling box are arranged at the top of the first supporting plate, a first electric push rod is arranged at the top of the supporting table, a connecting block is fixedly connected to the other end of the first electric push rod, a sliding plate is fixedly connected to the other side of the connecting block, a spiral conveyor is arranged inside the recycling box, a first bearing and a second bearing are arranged on one side inside the smashing box, a third bearing and a fourth bearing are arranged on the other side of the smashing box, a first rotating shaft and a second rotating shaft are respectively and movably arranged in the first bearing and the second bearing in a penetrating mode, smashing blades are arranged on the outer surface of the second rotating shaft, and the other end of the second rotating shaft movably penetrates through the fourth bearing and is fixedly connected with a first gear and a second gear, the outer surface of the first rotating shaft is provided with a crushing column, the other end of the first rotating shaft movably penetrates through a third bearing and is fixedly connected with a third gear, the number of the second rotating shaft and the first rotating shaft is two, the outer surface of the first gear is provided with a first toothed chain, the first gear and the third gear are in transmission connection through the first toothed chain, the outer surface of the second gear is provided with a second toothed chain, the two second toothed chains are in transmission connection through a second toothed chain, the bottom of the crushing box is provided with a first chute, the sliding plate is in sliding connection with the first chute, the bottom of the crushing box is provided with a filter plate, the other end of the filter plate is lapped on the recovery box, the bottom of the box body is provided with a second supporting plate and a base, the top of the second supporting plate is provided with a second electric push rod, and the other end of the second electric push rod is fixedly connected with a push plate, the other side fixedly connected with explosive box of push pedal, the bottom of explosive box is provided with the slider, the second spout has been seted up on the base, slider and second spout sliding connection, the back of box is provided with the supporting box, the inside of supporting box is provided with the motor, the other end fixed connection of motor output shaft is in the second pivot.
Preferably, the back of the box body is provided with a controller, and the controller is electrically connected with the screw conveyor motor, the first electric push rod and the second electric push rod through conducting wires respectively.
Preferably, a feed inlet is formed in one side of the box body.
Preferably, one side of the spiral conveyor is provided with a feeding port, and the other end of the feeding port is communicated in the crushing box.
Preferably, a sealing cover is arranged at the top of the feed inlet.
Preferably, a handle is arranged on one side of the medicine storage box.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model realizes the crushing of the medicinal materials through the arrangement of the crushing box, the crushing column and the crushing leaves, realizes the secondary crushing of the medicinal materials which are not completely crushed through the arrangement of the filter plate, the recovery box, the screw conveyer and the like, realizes the control of the slide plate at the bottom of the crushing box by the first electric push rod through the arrangement of the first electric push rod, the slide plate, the first chute and the connecting block, realizes the pushing of the medicine storage box out of the box body by the second electric push rod through the arrangement of the second electric push rod, the push plate and the second supporting plate, realizes the sliding of the medicine storage box through the arrangement of the medicine storage box, the slide block, the second chute and the base under the pushing of the second electric push rod, the medicine storage box slides out of the box body, and realizes the rotation of the crushing column and the crushing leaves in the crushing box under the driving of the motor, the first toothed chain and the second toothed chain, smash the medicinal material, through the setting of feed inlet and sealed lid, realize the entering of medicinal material and the sealed of box.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

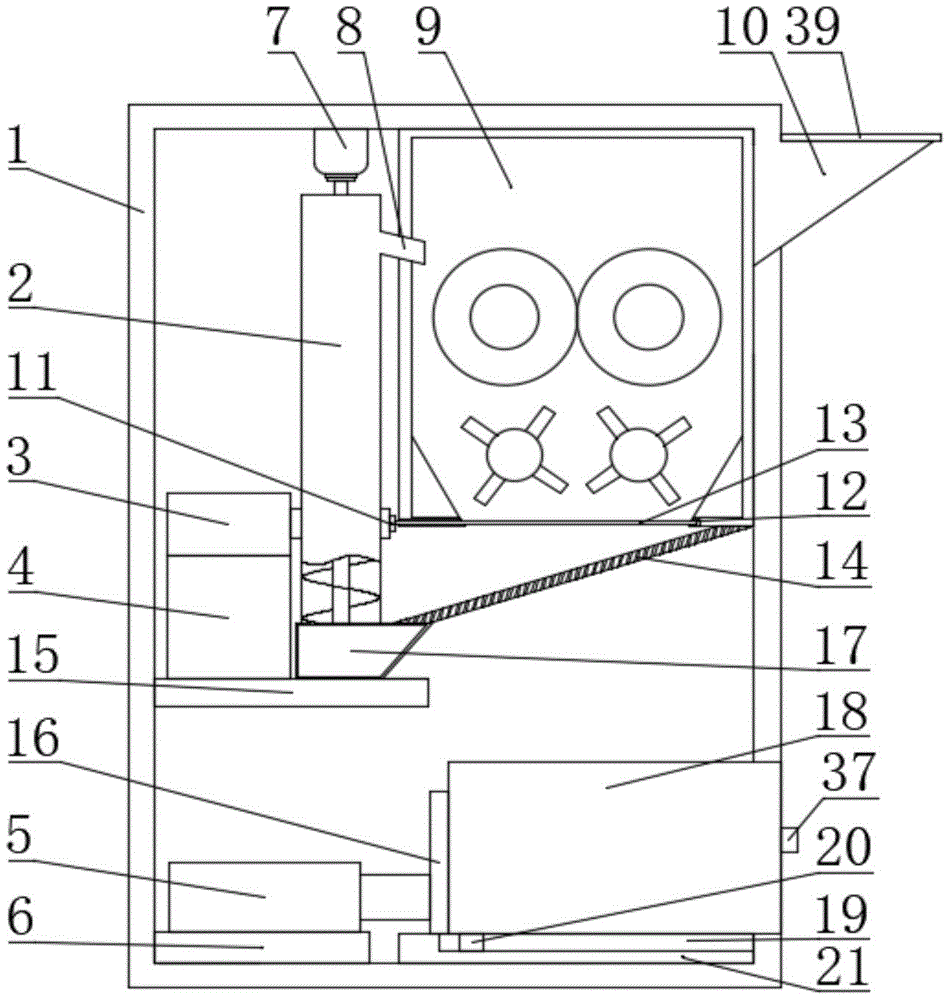

fig. 1 is a schematic structural view of a front view section of the present invention;
FIG. 2 is a schematic side view of the present invention;
FIG. 3 is an enlarged schematic structural view of the support box of the present invention;
FIG. 4 is a schematic structural view of a side view section of the middle supporting box of the present invention;
in the figure: 1. a box body; 2. a screw conveyor; 3. a first electric push rod; 4. a support table; 5. a second electric push rod; 6. a second support plate; 7. a sealing cover; 8. a feed port; 9. a crushing box; 10. a feed inlet; 11. connecting blocks; 12. a first chute; 13. a slide plate; 14. a filter plate; 15. a first support plate; 16. pushing the plate; 17. a recovery box; 18. a medicine storage box; 19. a second chute; 20. a slider; 21. a base; 22. a first bearing; 23. crushing the column; 24. a second bearing; 25. crushing the leaves; 26. a first rotating shaft; 27. a second rotating shaft; 28. a first gear; 29. a first toothed chain; 30. a second gear; 31. a second toothed chain; 32. a third gear; 33. a third bearing; 34. a fourth bearing; 35. a motor; 36. a support box; 37. a handle; 38. and a controller.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Examples
Referring to fig. 1-4, the present invention provides the following technical solutions: a traditional Chinese medicine fast smashing device for a traditional Chinese medicine factory comprises a box body 1, a first supporting plate 15 and a smashing box 9 are arranged inside the box body 1, a supporting table 4 and a recycling box 17 are arranged at the top of the first supporting plate 15, a first electric push rod 3 is arranged at the top of the supporting table 4, a connecting block 11 is fixedly connected at the other end of the first electric push rod 3, a sliding plate 13 is fixedly connected at the other end of the connecting block 11, the first electric push rod 3 controls the sliding plate 13 at the bottom of the smashing box 9 through the arrangement of the first electric push rod 3, the sliding plate 13, a first sliding chute 12 and the connecting block 11, a spiral conveyor 2 is arranged inside the recycling box 17, a first bearing 22 and a second bearing 24 are arranged on one side of the inside of the smashing box 9, a third bearing 33 and a fourth bearing 34 are arranged on the other side of the smashing box 9, a first rotating shaft 26 and a second rotating shaft 27 are movably arranged in the first bearing 22 and the second bearing 24 respectively, the surface of second pivot 27 is provided with crushing leaf 25, the other end activity of second pivot 27 passes fourth bearing 34 and fixedly connected with first gear 28 and second gear 30, the surface of first pivot 26 is provided with crushing post 23, through crushing case 9, crushing post 23 and crushing leaf 25's setting, realizes the smashing to the medicinal material, the other end activity of first pivot 26 passes third bearing 33 and fixedly connected with third gear 32, the quantity of second pivot 27 and first pivot 26 is two, first gear 28 outward appearance is provided with first toothed chain 29, first gear 28 and third gear 32 are connected through first toothed chain 29 transmission, the surface of second gear 30 is provided with second toothed chain 31, two second gear 30 is connected through second toothed chain 31 transmission, through supporting case 36, first gear 28, The second toothed chain 31 and the second rotating shaft 27 are arranged to rotate the crushing column 22 and the crushing blade 25 in the crushing box 9 under the driving of the motor 35, the first toothed chain 29 and the second toothed chain 31 to crush the medicinal materials, the bottom of the crushing box 9 is provided with the first chute 12, the sliding plate 13 is in sliding connection with the first chute 12, the bottom of the crushing box 9 is provided with the filter plate 14, the incompletely crushed medicinal materials are conveyed back to the crushing box 9 for secondary crushing through the screw conveyor 2 by the arrangement of the filter plate 14, the recovery box 17, the screw conveyor 2 and the like, the other end of the filter plate 14 is lapped on the recovery box 17, the bottom of the box body 1 is provided with the second support plate 6 and the base 21, the top of the second support plate 6 is provided with the second electric push rod 5, and the second electric push rod 5, the push plate 16 and the second support plate 6 are arranged, realize that second electric putter 5 releases medicine chest 18 out of box 1, the other end fixedly connected with push pedal 16 of second electric putter 5, the opposite side fixedly connected with medicine chest 18 of push pedal 16, the bottom of medicine chest 18 is provided with slider 20, second spout 19 has been seted up on base 21, slider 20 and second spout 19 sliding connection realize under second electric putter 5's promotion, medicine chest 18 roll-off box 1 through setting up of medicine chest 18, slider 20, second spout 19 and base 21, the back of box 1 is provided with supporting box 36, supporting box 36's inside is provided with motor 35, the other end fixed connection of motor 35 output shaft is on second pivot 27.
Specifically, the controller 38 is disposed on the back of the box 1, the controller 38 is electrically connected to the screw conveyor 2, the motor 35, the first electric push rod 3, and the second electric push rod 5 through wires, and the controller 38 may be a conventional known device such as a computer.
Specifically, a feed inlet 10 is opened at one side of the box body 1, so that the medicinal materials enter the crushing box 9.
Specifically, a feeding port 8 is formed in one side of the screw conveyor 2, the other end of the feeding port 8 is communicated with the crushing box 9, and the screw conveyor 2 conveys the medicinal materials which are not completely crushed in the recovery box 17 back to the crushing box 9 through the feeding port 8.
Specifically, the top of the feed inlet 10 is provided with a sealing cover 7 to prevent the powder from floating out of the feed inlet 10 during crushing.
Specifically, a handle 37 is arranged on one side of the medicine box 18, so that the medicine box 18 can be conveniently opened.
The utility model discloses a theory of operation and use flow: the utility model discloses, in use, external power source, through the work of controller 38 control motor 35, under the drive of motor 35, first gear 28 and second gear 30 on the first pivot 26 rotate and smash the leaf 25 rotation in the case 9, first gear 28 drives the rotation of third gear 32 through first toothed chain 29, make smash post 22 in the case 9 begin to rotate, second toothed chain 31 on the second gear 30 drives another second gear 30 and rotates, make another crushing leaf 25 and smash post 22 rotation in crushing case 9, open the sealed lid 7 at feed inlet 10 top, put the medicinal material into feed inlet 10 and smash, after smashing a period, through controller 38 control first electric putter 3 withdrawal, make slide 13 slide in first spout 12, the medicinal material after smashing drops to filter 14, filter 14 along with the slope under the effect of gravity, smash the completion fall into in the explosive box 18, it falls to retrieving in the box 17 not smash complete roll, control first electric putter 3 stretches out, then it carries to smashing the case 9 in to retrieve the medicinal material in the box 17 to rotate through controller 38 control screw conveyer 2, continue to carry out the regrinding, after the medicinal material is all smashed and is accomplished, stretch out through controller 38 control second electric putter 5, second electric putter 5 promotes push pedal 16 and makes the slider 20 of explosive box 18 bottom slide in the spout, final box 1 roll-off, take out powder, control second electric putter 5 pull back explosive box 18 can.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. The utility model provides an equipment is smashed fast to traditional chinese medicine factory with traditional chinese medicine, includes box (1), its characterized in that: the utility model discloses a crushing box, including box (1), be provided with first backup pad (15) and crushing case (9) in the inside, the top of first backup pad (15) is provided with brace table (4) and retrieves box (17), the top of brace table (4) is provided with first electric putter (3), the other end fixedly connected with connecting block (11) of first electric putter (3), the opposite side fixedly connected with slide (13) of connecting block (11), the inside of retrieving box (17) is provided with screw conveyer (2), inside one side of crushing case (9) is provided with first bearing (22) and second bearing (24), the opposite side of crushing case (9) is provided with third bearing (33) and fourth bearing (34), first pivot (26) and second pivot (27) are worn to be equipped with in first bearing (22) and the second bearing (24) respectively in the activity, the outer surface of the second rotating shaft (27) is provided with crushing leaves (25), the other end of the second rotating shaft (27) movably penetrates through a fourth bearing (34) and is fixedly connected with a first gear (28) and a second gear (30), the outer surface of the first rotating shaft (26) is provided with a crushing column (23), the other end of the first rotating shaft (26) movably penetrates through a third bearing (33) and is fixedly connected with a third gear (32), the number of the second rotating shaft (27) and the number of the first rotating shaft (26) are two, a first toothed chain (29) is arranged on the outer surface of the first gear (28), the first gear (28) and the third gear (32) are in transmission connection through the first toothed chain (29), a second toothed chain (31) is arranged on the outer surface of the second gear (30), and the second toothed chain (31) is in transmission connection through the second toothed chain (31), the bottom of the crushing box (9) is provided with a first sliding chute (12), the sliding plate (13) is in sliding connection with the first sliding chute (12), the bottom of the crushing box (9) is provided with a filter plate (14), the other end of the filter plate (14) is lapped on a recovery box (17), the bottom of the box body (1) is provided with a second supporting plate (6) and a base (21), the top of the second supporting plate (6) is provided with a second electric push rod (5), the other end of the second electric push rod (5) is fixedly connected with a push plate (16), the other side of the push plate (16) is fixedly connected with a medicine storage box (18), the bottom of the medicine storage box (18) is provided with a sliding block (20), the base (21) is provided with a second sliding chute (19), the sliding block (20) is in sliding connection with the second sliding chute (19), the back of the box body (1) is provided with a supporting box (36), the support box (36) is internally provided with a motor (35), and the other end of an output shaft of the motor (35) is fixedly connected to the second rotating shaft (27).
2. The traditional Chinese medicine rapid smashing device for traditional Chinese medicine factories according to claim 1, which is characterized in that: the back of box (1) is provided with controller (38), controller (38) pass through wire electric connection with screw conveyer (2), motor (35), first electric putter (3) and second electric putter (5) respectively.
3. The traditional Chinese medicine rapid smashing device for traditional Chinese medicine factories according to claim 1, which is characterized in that: a feed inlet (10) is formed in one side of the box body (1).
4. The traditional Chinese medicine rapid smashing device for traditional Chinese medicine factories according to claim 1, which is characterized in that: and a feeding port (8) is formed in one side of the spiral conveyor (2), and the other end of the feeding port (8) is communicated in the crushing box (9).
5. The traditional Chinese medicine rapid smashing device for traditional Chinese medicine factories according to claim 3, which is characterized in that: and a sealing cover (7) is arranged at the top of the feed inlet (10).
6. The traditional Chinese medicine rapid smashing device for traditional Chinese medicine factories according to claim 1, which is characterized in that: a handle (37) is arranged on one side of the medicine storage box (18).
