CN214389460U - Energy-concerving and environment-protective organic waste gas administers device

Info

Publication number: CN214389460U
Application number: CN202120129902.0U
Authority: CN
Inventors: 陈波; 邬亚丽; 杨娟
Original assignee: Chongqing Dehe Env Eng Co ltd
Current assignee: Chongqing Dehe Env Eng Co ltd
Priority date: 2021-01-18
Filing date: 2021-01-18
Publication date: 2021-10-15
Anticipated expiration: 2031-01-18

Abstract

The utility model discloses an energy-concerving and environment-protective organic waste gas administers device, the on-line screen storage device comprises a base, base top one side is equipped with the organism, it has the filter frame to peg graft on organism inner wall top, and the organism top is seted up flutedly, filter the inside screen cloth that is equipped with of frame, organism inner wall is equipped with the device that induced drafts, the inside fan that is equipped with of device that induced drafts. The utility model discloses a screen cloth filters tiny granule, again by the high pressure nozzle spraying, aggravate the particulate matter among the organic waste gas, pass through the guide duct through the primary treatment waste gas and get into the photodissociation case, organic waste gas after the purification passes through the filter screen in proper order, the active carbon adsorption board filters the back once more, photodissociation catalytic oxidation lamp produces high energy ultraviolet beam and shines waste gas, under the high energy ultraviolet beam shines, the degradation is changed into low molecular compound, take out to the frame outer wall of airing exhaust by the exhaust fan, with this treatment quality that can improve organic waste gas, strengthen the treatment effect to organic waste gas, low consumption high performance, energy saving and environmental protection.

Description

Energy-concerving and environment-protective organic waste gas administers device

Technical Field

The utility model relates to a waste gas treatment technical field, concretely relates to energy-concerving and environment-protective organic waste gas administers device.

Background

The organic waste gas treatment refers to the treatment work of adsorbing, filtering and purifying the organic waste gas generated in the industrial production process. The organic waste gas treatment is generally carried out by an air purification treatment method of organic substances containing carbon, hydrogen and oxygen, such as formaldehyde organic waste gas treatment, benzene series organic waste gas treatment such as benzene toluene xylene, acetone butanone organic waste gas treatment, ethyl acetate waste gas treatment, oil mist organic waste gas treatment, furfural organic waste gas treatment, styrene and acrylic acid organic waste gas treatment, resin organic waste gas treatment, additive organic waste gas treatment, paint mist organic waste gas treatment, and Tianna water organic waste gas treatment.

The device is administered to current organic waste gas adsorbs for the owner with the noxious material to in the organic waste gas, and this kind of equipment power consumption is little, and purification rate is fast, but treatment effect is general, and is difficult to maintain and change the inside filter element of equipment, can reduce filterable quality after using for a long time, and life is short.

Therefore, it is necessary to invent an energy-saving and environment-friendly organic waste gas treatment device to solve the above problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing an energy-concerving and environment-protective organic waste gas administers device, through dirt debris and tiny granule that contain in the screen cloth filtration organic waste gas, then get into inside the organism, again by the high pressure nozzle spraying, aggravate the particulate matter in the organic waste gas, reach first exhaust-gas treatment, pass through the guide duct through the disposable waste gas and get into the photodissociation case, organic waste gas after the purification passes through the filter screen in proper order, the active carbon adsorption plate filters the back once more, photodissociation catalytic oxidation lamp produces high energy ultraviolet ray beam and shines waste gas, under high energy ultraviolet ray beam shines, the degradation is changed into low molecular compound, with the above-mentioned weak point in the solution technique.

In order to achieve the above object, the present invention provides the following technical solutions: an energy-saving and environment-friendly organic waste gas treatment device comprises a base, wherein a machine body is arranged on one side of the top of the base, a filter frame is inserted at the top end of the inner wall of the machine body, a groove is formed in the top of the machine body, a screen is arranged inside the filter frame, an air suction device is arranged on the inner wall of the machine body, a fan is arranged inside the air suction device, a water distribution pipe is arranged on one side of the inner wall of the machine body, a high-pressure spray head is arranged on the inner wall of the water distribution pipe, a water guide pipe is arranged on one side of the inner wall of the water distribution pipe and penetrates through the machine body to extend to one side of the outer wall of the machine body, a water inlet pipe is arranged on one side of the inner wall of the water guide pipe, a water tank is arranged on one side of the outer wall of the water inlet pipe, the water inlet pipe is fixedly connected with the water tank, a sliding plate is arranged on one side of the top of the base, the bottom of the machine body is obliquely provided with a water outlet pipe, the water outlet pipe penetrates through the machine body and extends to one side of the outer wall of the machine body, a wind guide pipe is arranged on one side of the inner wall of the machine body, a photolysis box is fixedly connected to one side of the outer wall of the wind guide pipe, the photolysis box penetrates through the machine body and extends to one side of the outer wall of the machine body, a baffle is arranged on one side of the inner wall of the photolysis box, a filter plate is arranged on one side of the outer wall of the baffle, a filter screen is clamped and connected to one side of the inner wall of the filter plate, an active carbon adsorption plate is arranged on one side of the outer wall of the filter screen and is clamped and connected with the filter plate, a noise reduction net is arranged on one side of the outer wall of the active carbon adsorption plate, a maintenance opening is formed in one side of the top of the photolysis box, a cover plate is arranged on the top of the maintenance opening, one side of the cover plate is hinged with the photolysis box, the cross section of the cover plate is arc-shaped, the cover plate is matched with the photolysis box, a handle is arranged on the top of the photolysis box, a photolysis catalytic oxidation lamp is arranged on one side of the inner wall of the photolysis box, the quantity of photodissociation catalytic oxidation lamp sets up to a plurality ofly, photodissociation incasement wall one side joint has the frame of airing exhaust, the frame inner wall of airing exhaust is equipped with the exhaust fan, the frame of airing exhaust passes through bolt and photodissociation case fixed connection.

Preferably, the bottom of the filter frame is provided with an arc-shaped block, and the arc-shaped block is matched with the groove.

Preferably, the cross section of the water diversion pipe is circular, and the water diversion pipe is matched with the inside of the machine body.

Preferably, the number of the high-pressure spray heads is set to be a plurality, and the high-pressure spray heads are uniformly distributed on the inner wall of the water distribution pipe in an annular shape.

Preferably, the cross-sectional shape of the filter plate is arc-shaped, and the top of the filter plate is fixedly connected with a handle.

Preferably, the bottom of the base is provided with an anti-skid layer, and the anti-skid layer is made of rubber materials.

In the technical scheme, the utility model provides a technological effect and advantage:

1. dirt impurities and fine particles contained in the organic waste gas are filtered through a screen, then the organic waste gas enters the interior of a machine body, and then the organic waste gas is sprayed by a high-pressure spray head to aggravate the particles in the organic waste gas, so that the first waste gas treatment is achieved, the once-treated waste gas enters a photolysis tank through an air guide pipe, the purified organic waste gas is filtered again through a filter screen and an activated carbon adsorption plate in sequence, a photolysis catalytic oxidation lamp generates high-energy ultraviolet light beams to irradiate the waste gas, the high-energy ultraviolet light beams are degraded and converted into low-molecular compounds under the irradiation of the high-energy ultraviolet light beams, and the low-molecular compounds are pumped out by an exhaust fan and transmitted to the outer wall of an exhaust frame, so that the treatment quality of the organic waste gas can be improved, the treatment effect on the organic waste gas is improved, the low consumption high performance is realized, the energy is saved, and the environment is protected;

2. can clear up filtering frame from organism air inlet inboard proposition through upwards filtering the frame, filter screen, active carbon adsorption board, fall the net of making an uproar and filter joint, hold the handle and open the apron, then hold the handle and take the filter out from the maintenance mouth to this makes things convenient for the clearance and the change of filter screen and active carbon adsorption board, and the installation of being convenient for is dismantled, has improved work efficiency greatly.

Drawings

In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings needed to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments described in the present invention, and other drawings can be obtained by those skilled in the art according to these drawings.

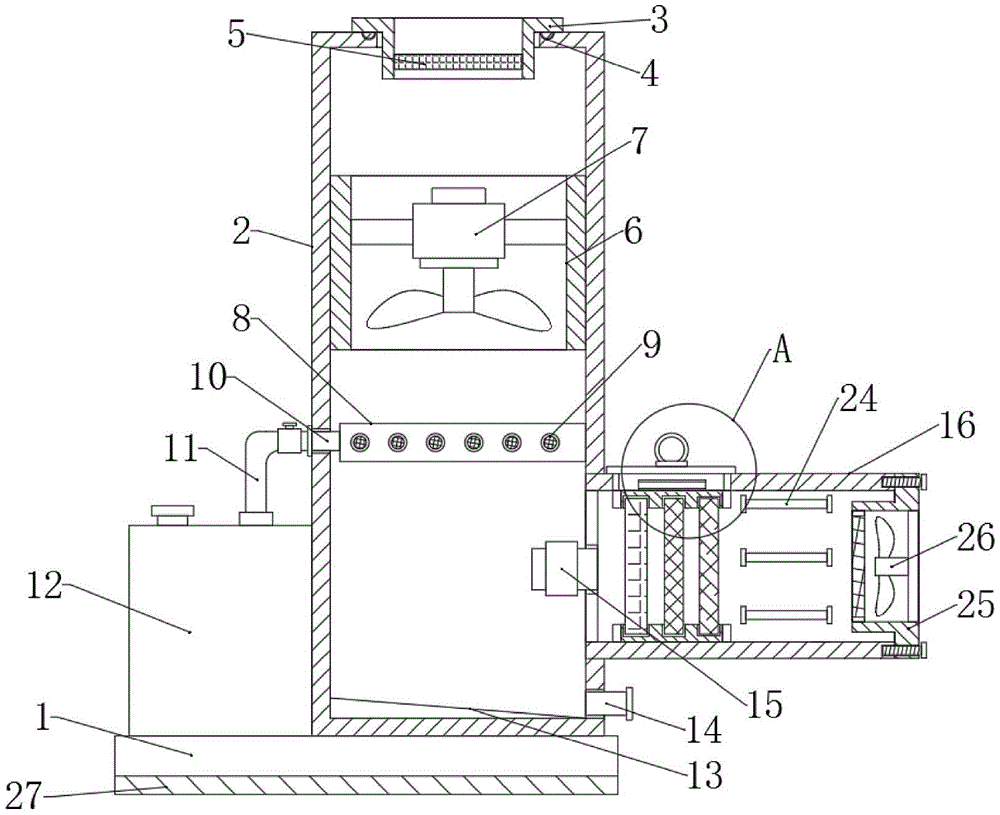

FIG. 1 is a sectional view of the overall structure of the present invention;

FIG. 2 is a schematic view of a partial structure of the machine body of the present invention;

FIG. 3 is a schematic view of the connection structure between the filter frame and the body of the present invention;

FIG. 4 is a schematic view of a local structure of the water distribution pipe of the present invention;

fig. 5 is an enlarged view of a structure in fig. 1 according to the present invention.

Description of reference numerals:

1. a base; 2. a body; 3. a filter frame; 4. a groove; 5. screening a screen; 6. an air suction device; 7. a fan; 8. a water diversion pipe; 9. a high pressure spray head; 10. a water conduit; 11. a water inlet pipe; 12. a water tank; 13. a slide plate; 14. a water outlet pipe; 15. an air guide pipe; 16. a photolysis tank; 17. a filter plate; 18. a filter screen; 19. an activated carbon adsorption plate; 20. a noise reduction net; 21. a handle; 22. a cover plate; 23. a handle; 24. a photolytic catalytic oxidation lamp; 25. an exhaust frame; 26. an exhaust fan; 27. and an anti-slip layer.

Detailed Description

In order to make the technical solution of the present invention better understood by those skilled in the art, the present invention will be further described in detail with reference to the accompanying drawings.

The utility model provides an energy-saving and environment-friendly organic waste gas treatment device as shown in figures 1-5, which comprises a base 1, a machine body 2 is arranged on one side of the top of the base 1, a filter frame 3 is inserted on the top of the inner wall of the machine body 2, a groove 4 is arranged on the top of the machine body 2, a screen 5 is arranged inside the filter frame 3, an air suction device 6 is arranged on the inner wall of the machine body 2, a fan 7 is arranged inside the air suction device 6, a water diversion pipe 8 is arranged on one side of the inner wall of the machine body 2, a high-pressure spray head 9 is arranged on the inner wall of the water diversion pipe 8, a water guide pipe 10 is arranged on one side of the inner wall of the water diversion pipe 8, the water guide pipe 10 penetrates through the machine body 2 and extends to one side of the outer wall of the machine body 2, a water inlet pipe 11 is arranged on one side of the inner wall of the water guide pipe 10, an electromagnetic valve is arranged on the inner wall of the water inlet pipe 11, a water tank 12 is arranged on the side far away from the water guide pipe 10, the water inlet pipe 11 is fixedly connected with the water tank 12, the water tank 12 is positioned on one side of the top of the base 1, the bottom of the machine body 2 is provided with a sliding plate 13, the sliding plate 13 is arranged in an inclined manner, one side of the inner wall of the machine body 2 is provided with a water outlet pipe 14, the water outlet pipe 14 penetrates through the machine body 2 and extends to one side of the outer wall of the machine body 2, one side of the inner wall of the machine body 2 is provided with a wind guide pipe 15, one side of the outer wall of the wind guide pipe 15 is fixedly connected with a photolysis box 16, the photolysis box 16 penetrates through the machine body 2 and extends to one side of the outer wall of the machine body 2, one side of the inner wall of the photolysis box 16 is provided with a baffle plate, one side of the outer wall of the baffle plate is provided with a filter plate 17, one side of the inner wall of the filter plate 17 is clamped with a filter screen 18, one side of the outer wall of the filter screen 18 is provided with an active carbon adsorption plate 19, the active carbon adsorption plate 19 is clamped with a noise reduction screen 20, and one side of the top of the photolysis box 16 is provided with a maintenance opening, the maintenance mouth top is equipped with apron 22, apron 22 one side is articulated mutually with photolysis case 16, apron 22 cross sectional shape sets up to the arc, apron 22 and the 16 phase-matchs of photolysis, apron 22 top is equipped with handle 23, photolysis 16 inner wall one side is equipped with photolysis catalytic oxidation lamp 24, the quantity of photolysis catalytic oxidation lamp 24 sets up to a plurality ofly, photolysis 16 inner wall one side joint has exhaust frame 25, exhaust frame 25 inner wall is equipped with exhaust fan 26, exhaust frame 25 passes through bolt and photolysis 16 fixed connection of case.

Further, in the above technical scheme, the bottom of the filter frame 3 is provided with an arc-shaped block, the arc-shaped block is matched with the groove 4, and the filter frame 3 is lifted out from the inner side of the air inlet of the machine body 2 for cleaning.

Further, in the above technical solution, the shape of the cross section of the water distribution pipe 8 is circular, and the water distribution pipe 8 is matched with the inside of the machine body 2.

Furthermore, in the above technical scheme, the number of high pressure nozzle 9 sets up to be a plurality of, and is a plurality of high pressure nozzle 9 is annular evenly distributed at distributive pipe 8 inner wall, and the inside water of water tank 12 gets into aqueduct 10 through inlet tube 11, transmits to spouting distributive pipe 8, is sprayed by high pressure nozzle 9 again, aggravates the particulate matter in the organic waste gas, reaches exhaust-gas treatment for the first time.

Further, in the above technical scheme, the cross-sectional shape of the filter plate 17 is set to be arc, the top of the filter plate 17 is fixedly connected with the handle 21, and then the handle 21 is held to draw out the filter plate 17 from the maintenance opening, so that the filter screen 18 and the activated carbon adsorption plate 19 can be conveniently cleaned and replaced, the installation and the disassembly are convenient, and the working efficiency is greatly improved.

Further, in the above technical solution, the bottom of the base 1 is provided with the anti-slip layer 27, and the anti-slip layer 27 is made of a rubber material, so as to prevent the machine body 2 from sliding in the operation process, and improve the stability of the machine body 2.

This practical theory of operation:

referring to the attached drawings 1-5 of the specification, the utility model discloses when using, it gets into inside organism 2 to rotate the drive outside air through fan 7, because the air inlet department of organism 2 is pegged graft and is had filter frame 3, and filter frame 3 inboard installs screen cloth 5, therefore the air is when getting into organism 2 inside, at first through filter frame 3 in screen cloth 5 filter the dirt debris and the tiny granule that contain in the organic waste gas, then get into organism 2 inside, the inside water of water tank 12 gets into aqueduct 10 through inlet tube 11, transmit to spraying water pipe 8, spray by high pressure nozzle 9 again, aggravate the particulate matter in the organic waste gas, reach first exhaust-gas treatment, the slide 13 that the granule after the atomizing falls to the purifying box bottom is discharged from outlet pipe 14 with waste water, through once-treating waste gas through guide duct 15 entering photolysis case 16, the organic waste gas after the purification passes through filter screen 18 in proper order, After the activated carbon adsorption plate 19 is filtered again, the photolysis catalytic oxidation lamp 24 generates high-energy ultraviolet light beams to irradiate the waste gas, the waste gas is degraded and converted into low-molecular compounds under the irradiation of the high-energy ultraviolet light beams, and the low-molecular compounds are pumped out by the exhaust fan 26 and are conveyed to the outer wall of the exhaust frame 25, so that the treatment quality of the organic waste gas can be improved, the treatment effect on the organic waste gas is improved, the consumption is low, the performance is high, and the energy is saved and the environment is protected;

referring to the attached drawings 1-5 of the specification, the utility model discloses a to cross filter frame 3 and peg graft in the inboard of organism 2 air inlet, upwards can be with crossing filter frame 3 and propose from organism 2 air inlet inboard and clear up, filter screen 18, active carbon adsorption plate 19, fall the net 20 of making an uproar and filter 17 joint, hold handle 23 and open apron 22, then hold handle 21 and take filter 17 out from the maintenance mouth to this makes things convenient for the clearance and the change of filter screen 18 and active carbon adsorption plate 19, and the installation of being convenient for is dismantled, has improved work efficiency greatly.

While certain exemplary embodiments of the present invention have been described above by way of illustration only, it will be apparent to those of ordinary skill in the art that the described embodiments may be modified in various different ways without departing from the spirit and scope of the present invention. Accordingly, the drawings and description are illustrative in nature and should not be construed as limiting the scope of the invention.

Claims

1. The utility model provides an energy-concerving and environment-protective organic waste gas administers device, includes base (1), its characterized in that: the water purifier is characterized in that a machine body (2) is arranged on one side of the top of a base (1), a filter frame (3) is inserted into the top end of the inner wall of the machine body (2), a groove (4) is formed in the top of the machine body (2), a screen (5) is arranged inside the filter frame (3), an air suction device (6) is arranged on the inner wall of the machine body (2), a fan (7) is arranged inside the air suction device (6), a water distribution pipe (8) is arranged on one side of the inner wall of the machine body (2), a high-pressure spray nozzle (9) is arranged on the inner wall of the water distribution pipe (8), a water guide pipe (10) is arranged on one side of the inner wall of the water distribution pipe (8), the water guide pipe (10) penetrates through the machine body (2) and extends to one side of the outer wall of the machine body (2), a water inlet pipe (11) is arranged on one side of the inner wall of the water guide pipe (11), an electromagnetic valve is arranged on one side of the outer wall of the water inlet pipe (11) far away from the water guide pipe (10), the water inlet pipe (11) is fixedly connected with the water tank (12), the water tank (12) is positioned on one side of the top of the base (1), a sliding plate (13) is arranged at the bottom of the machine body (2), the sliding plate (13) is arranged in an inclined manner, a water outlet pipe (14) is arranged on one side of the inner wall of the machine body (2), the water outlet pipe (14) penetrates through the machine body (2) and extends to one side of the outer wall of the machine body (2), an air guide pipe (15) is arranged on one side of the inner wall of the machine body (2), a photolysis box (16) is fixedly connected to one side of the outer wall of the air guide pipe (15), the photolysis box (16) penetrates through the machine body (2) and extends to one side of the outer wall of the machine body (2), a baffle is arranged on one side of the inner wall of the photolysis box (16), a filter plate (17) is arranged on one side of the outer wall of the baffle, a filter screen (17) is clamped with a filter screen (18), and an activated carbon adsorption plate (19) is arranged on one side of the outer wall of the filter screen (18), the active carbon adsorption plate (19) is clamped with the filter plate (17), one side of the outer wall of the active carbon adsorption plate (19) is provided with a noise reduction net (20), a maintenance opening is formed in one side of the top of the photolysis box (16), a cover plate (22) is arranged at the top of the maintenance opening, one side of the cover plate (22) is hinged with the photolysis box (16), the cross section of the cover plate (22) is arc-shaped, the cover plate (22) is matched with the photolysis box (16), the top of the cover plate (22) is provided with a handle (23), a photolysis catalytic oxidation lamp (24) is arranged on one side of the inner wall of the photolysis box (16), the number of the photolysis catalytic oxidation lamps (24) is set to be a plurality, one side of the inner wall of the photolysis box (16) is clamped with an exhaust frame (25), exhaust frame (25) inner wall is equipped with exhaust fan (26), exhaust frame (25) pass through bolt and photodissociation case (16) fixed connection.

2. The energy-saving and environment-friendly organic waste gas treatment device according to claim 1, characterized in that: the bottom of the filter frame (3) is provided with an arc-shaped block which is matched with the groove (4).

3. The energy-saving and environment-friendly organic waste gas treatment device according to claim 1, characterized in that: the cross section of the water diversion pipe (8) is circular, and the water diversion pipe (8) is matched with the inside of the machine body (2).

4. The energy-saving and environment-friendly organic waste gas treatment device according to claim 1, characterized in that: the number of the high-pressure spray heads (9) is set to be a plurality of, and the high-pressure spray heads (9) are uniformly distributed on the inner wall of the water distribution pipe (8) in an annular shape.

5. The energy-saving and environment-friendly organic waste gas treatment device according to claim 1, characterized in that: the cross-sectional shape of filter (17) sets up to the arc, filter (17) top fixedly connected with handle (21).

6. The energy-saving and environment-friendly organic waste gas treatment device according to claim 1, characterized in that: the anti-skid device is characterized in that an anti-skid layer (27) is arranged at the bottom of the base (1), and the anti-skid layer (27) is made of rubber materials.
