Abstract
本实用新型提供一种篮球练习辅助用具，所述辅助用具包括篮球架和篮球归还装置；所述篮球架包括：篮板，横梁，立柱，基座，拉杆，丝杆；所述篮球归还装置包括：桁架，收集网，收集筒，支撑杆，回球通道，设置篮球归还装置，将投篮命中或者未命中的篮球进行收集，并将收集后的篮球通过回球通道传输至训练者，避免了训练者来回捡球所损耗的时间和体力；篮球架可通过拉杆伸缩进行高度调整，调整方便。
The utility model provides an auxiliary tool for basketball practice. The auxiliary tool includes a basketball frame and a basketball return device; the basketball frame includes: a backboard, a beam, a column, a base, a pull rod and a screw rod; the basketball return device includes: Truss, collection net, collection cylinder, support rod, ball return channel, set up a basketball return device, collect the basketballs that hit or miss, and transmit the collected basketballs to the trainer through the ball return channel, avoiding the need for trainers The time and physical strength lost in picking up the ball back and forth; the height of the basketball rack can be adjusted by stretching the pull rod, which is convenient to adjust.
Description
Technical Field
The utility model belongs to the technical field of the basketball training equipment, concretely relates to basketball exercise appurtenance.
Background
Basketball is a sport item deeply loved by the masses, and for basketball level, a large amount of training shooting is needed in general training, and in real life, shooting training needs training personnel to pick up balls continuously, so that training efficiency of the training personnel is influenced, and training intensity is increased.
Common basketball stands are standard match basketball stands, and in the actual training, the basketball stands that children's training needs are less than the match basketball stands of standard, and the high position of backboard is not convenient for adjust mostly to current basketball stands, need many people to consume longer time together just can accomplish the regulation of backboard height when adjusting the backboard height, great reduction basketball stands's use convenience.
Therefore, there is a need to provide an improved solution to the above-mentioned deficiencies of the prior art.
SUMMERY OF THE UTILITY MODEL
The utility model aims at overcoming the problem that the basketball shooting training needs to pick up the basketball continuously and the height of the basketball stand is inconvenient in the prior art.
In order to achieve the above object, the present invention provides the following technical solutions:
a basketball practice aid, the aid comprising a basketball stand and a basketball return device;
the basketball stand comprises:
the backboard is provided with a basket at the front side for shooting practice;
one end of the cross beam is correspondingly hinged with the lower edge of the rear side of the backboard, and the other end of the cross beam is correspondingly hinged with the upright post;
one end of the upright post is hinged with the cross beam, and the other end of the upright post is fixedly connected to the base, so that the backboard has a certain height;
a base placed on a placement surface and having a weight to stabilize the backboard and the upright post;
one end of the pull rod is hinged to the middle of the cross beam, the other end of the pull rod is correspondingly hinged to the upper edge of the rear side of the backboard, and the middle of the pull rod is provided with a telescopic mechanism so that the angle of the backboard can be adjusted by the telescopic mechanism;
one end of the screw rod is hinged to one end, far away from the backboard, of the cross beam, and the other end of the screw rod is connected to the base through a connecting piece; the connecting piece is of an inverted V-shaped structure, the lower end of the connecting piece is correspondingly hinged to two sides of the base, and the upper end of the connecting piece is provided with an ear plate; the other end of the screw rod penetrates through the lug plate and is provided with a nut in a threaded manner, and the nut is screwed to adjust the height of the backboard;
the basketball return device comprises:
the truss is arranged below the backboard and used for fixing the collecting net;
the collecting net is in a funnel shape, the larger end of the collecting net is correspondingly connected to the truss, and the smaller end of the collecting net is correspondingly connected to the collecting cylinder, so that the basketball is collected and guided into the collecting cylinder;
the collecting cylinder is correspondingly connected to the smaller end of the collecting net, the lower edge of the collecting cylinder is provided with a basketball outlet channel corresponding to the basketball, and the basketball outlet channel is provided with a guide plate for guiding the basketball;
one end of the supporting rod is fixedly connected to the bottom of the collecting cylinder, and the other end of the supporting rod is placed on a placing surface through a base so as to support the collecting cylinder;
the basketball return passage is characterized in that one end of the basketball return passage is connected to the rod body, the other end of the basketball return passage extends along the forward inclination direction, and the basketball is guided to the basketball return passage through the guide plate and is transmitted to a designated position along the basketball return passage.
In the basketball practice aid as described above, the truss preferably has a mounting plate corresponding to the rear side of the backboard, and the mounting plate is connected to the lower edge of the backboard by bolts.
In the basketball practice aid as described above, the bottom of the base is preferably provided with universal wheels.
Preferably, the basketball practice aid comprises two parallel guide rods, and the gap between the two guide rods is adapted to the basketball so that the basketball can be transported along the gap between the two guide rods.
Preferably, the basketball practice aid has two guide rods extending downward from the end of the support rod, and a baffle corresponding to the basketball is disposed at the end of the guide rods away from the support rod.
Preferably, the telescopic mechanism is a sleeve, the club body comprises a first rod part and a second rod part, the first rod part and the second rod part are assembled at two ends of the sleeve through threads, the threads of the first rod part and the second rod part are opposite to each other, and the sleeve is screwed to realize the telescopic of the club body.
Compared with the closest prior art, the utility model provides a technical scheme has following beneficial effect:
the basketball returning device is arranged to collect the basketball shot or missed in the shooting process and transmit the collected basketball to the trainer through the basketball return channel, so that the time and physical strength consumed by the trainer in the process of picking up the basketball back and forth are avoided;
the basketball stand can be adjusted in height through the telescopic pull rod, and is convenient to adjust.
Drawings
The accompanying drawings, which form a part of the present application, are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the invention and not to limit the invention. Wherein:

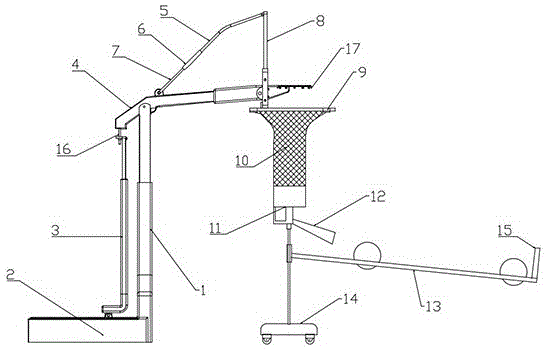

FIG. 1 is a schematic view of an auxiliary tool according to an embodiment of the present invention;
fig. 2 is a left side view of the basketball stand according to the embodiment of the present invention.
In the figure: the device comprises 1 upright post, 2 bases, 3 connecting pieces, 4 cross beams, 5 first rod parts, 6 sleeves, 7 second rod parts, 8 backboards, 9 trusses, 10 collecting nets, 11 collecting cylinders, 12 guide plates, 13 guide rods, 14 bases, 15 baffles, 16 screw rods and 17 baskets.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely below, and it should be understood that the described embodiments are only a part of the embodiments of the present invention, and not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art all belong to the protection scope of the present invention.
In the description of the present invention, the terms "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description of the present invention and do not require that the present invention must be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. The terms "connected" and "connected" used in the present invention should be understood in a broad sense, and may be, for example, either fixed or detachable; they may be directly connected or indirectly connected through intermediate members, and specific meanings of the above terms will be understood by those skilled in the art as appropriate.
The present invention will be described in detail below with reference to the accompanying drawings in conjunction with embodiments. It should be noted that, in the present invention, the embodiments and features of the embodiments may be combined with each other without conflict.
1-2, a basketball practice aid comprising a basketball stand and a basketball return device;
the basketball stand comprises:
a backboard 8, wherein the front side of the backboard 8 is provided with a basket 17 for shooting practice;
one end of the cross beam 4 is correspondingly hinged with the lower edge of the rear side of the backboard 8, and the other end of the cross beam 4 is correspondingly hinged with the upright post 1;
one end of the upright post 1 is hinged with the cross beam 4, and the other end of the upright post 1 is fixedly connected to the base 2, so that the backboard 8 has a certain height;
a base 2 placed on a placement surface and having a weight to stabilize the backboard 8 and the upright post 1;
one end of the pull rod is hinged to the middle of the cross beam 4, the other end of the pull rod is correspondingly hinged to the upper edge of the rear side of the backboard 8, and a telescopic mechanism is arranged in the middle of the pull rod, so that the angle of the backboard 8 can be adjusted by the telescopic mechanism;
one end of the screw rod 16 is hinged to one end of the cross beam 4 far away from the backboard 8, and the other end of the screw rod 16 is connected to the base 2 through a connecting piece 3; the connecting piece 3 is of an inverted V-shaped structure, the lower end of the connecting piece is correspondingly hinged to the two sides of the base 2, and the upper end of the connecting piece is provided with an ear plate; the other end of the screw rod 16 passes through the lug plate and is assembled with a nut in a threaded manner, and the nut is turned to adjust the height of the backboard 8;
the basketball return device comprises:
the truss 9 is arranged below the backboard 8 and used for fixing the collecting net 10;
the collecting net 10 is in a funnel shape, the larger end of the collecting net 10 is correspondingly connected to the truss 9, and the smaller end of the collecting net 10 is correspondingly connected to the collecting cylinder 11, so that the basketball is collected and guided into the collecting cylinder 11;
the collecting cylinder 11 is correspondingly connected to the smaller end of the collecting net 10, the lower edge of the collecting cylinder 11 is provided with a basketball outlet channel corresponding to the basketball, and the basketball outlet channel is provided with a guide plate 12 for guiding the basketball;
one end of the supporting rod is fixedly connected to the bottom of the collecting cylinder 11, and the other end of the supporting rod is placed on a placing surface through a base 14 to support the collecting cylinder 11;
and one end of the ball returning channel is connected to the rod body, the other end of the ball returning channel extends forwards, and the basketball is guided to the ball returning channel from the guide plate 12 and is transmitted to a specified position along the ball returning channel.
The basketball returning device is arranged to collect the basketball shot or missed in the shooting process and transmit the collected basketball to the trainer through the basketball return channel, so that the time and physical strength consumed by the trainer in the process of picking up the basketball back and forth are avoided;
the basketball stand can be conveniently adjusted in height through the telescopic action of the pull rod, specifically, the backboard 8 is correspondingly hinged to the cross beam 4, a rod body is arranged between the cross beam 4 and the upper edge of the backboard 8, the rod body is of a telescopic structure and can adjust the angle of the backboard 8, the cross beam 4 is connected to the connecting piece 3 through a screw rod 16, and the cross beam 4 can be driven to rotate around the hinged point of the upright post 1 through a rotating nut, so that the height adjustment of the backboard 8 is realized; the connecting piece 3 is inverted V-shaped, so that the stretching effect can be improved, the stress of the base 2 is balanced, and the stability of the backboard 8 is guaranteed.
In another embodiment of the present application, the truss 9 has a mounting plate corresponding to the rear side of the backboard 8, and the mounting plate is bolted to the lower edge of the backboard 8. The truss 9 can be conveniently connected and detached according to actual needs.
In another embodiment of the present application, the bottom of the base 14 is correspondingly provided with universal wheels. The horizontal angle rotation and movement can be performed as required.
In another embodiment of the present application, the truss 9 is a square frame.
In another embodiment of the present application, the ball return channel comprises two parallel guide rods 13, and the gap between the two guide rods 13 is matched with the basketball, so that the basketball can be transported along the gap between the two guide rods 13. Simple structure can lead and transmit the basketball.
In the basketball practice aid as described above, preferably, the two guide rods 13 extend downward at the ends thereof away from the support pole, and the ends of the two guide rods 13 away from the support pole are provided with the fenders 15 corresponding to the basketball. Shelter from the basketball through baffle 15, avoid the basketball to rush out and lead the ball passageway.
In another embodiment of the basketball practice aid as described above, preferably, the telescoping mechanism is a sleeve 6, the club body comprises a first shaft portion 5 and a second shaft portion 7, the first shaft portion 5 and the second shaft portion 7 are threadedly mounted on opposite ends of the sleeve 6, and the threads of the first shaft portion 5 and the second shaft portion 7 are opposite to each other, and the sleeve 6 is rotated to achieve telescoping of the club body. The first rod part 5 and the second rod part 7 are reverse threads, the rod body can be stretched by rotating the sleeve 6, the backboard 8 is adjusted in height by stretching the rod body, the structure is simple, and the stability is high.
In another embodiment, the bottom of the support rod is connected to the base 14 through a revolute pair, and the end of the ball returning channel is provided with a fixing band which can be arranged on the waist of the trainer and can be moved at the same distance from the backboard 8 as required by the trainer so as to realize multi-angle shooting practice. The revolute pair is a bearing. It should be understood that the above description is only exemplary, and the embodiments of the present application do not limit the present invention.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, but rather as the following claims are intended to cover all modifications, equivalents, and improvements falling within the spirit and principles of the present invention.
