CN214381013U - A folding magnetic mobile phone holder

Info

Publication number: CN214381013U
Application number: CN202120750679.1U
Authority: CN
Inventors: 马振华; 张萍萍
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-04-13
Filing date: 2021-04-13
Publication date: 2021-10-08
Anticipated expiration: 2031-04-13

Abstract

The utility model relates to the technical field of mobile phone brackets, and discloses a foldable magnetic mobile phone bracket, comprising: a base body, the base body is connected to the surface of a connected object through an adhesive layer; , the two ends of the folding rod are respectively installed with fixing components, one of which is connected to the base body; the upper shell body is internally installed with a magnetic suction component for adsorbing the back of the mobile phone. The utility model has the advantages of reasonable structure and novel design. The multi-angle fixed installation of the mobile phone bracket is realized by several fixing components provided, and the volume is small, and at the same time, it can meet various needs of rapid unfolding and folding. Mobile phone placement is simple and fast, with strong practicability and high reliability.

Description

Cell phone stand is inhaled to folding magnetism

Technical Field

The utility model relates to a cell phone stand technical field specifically is a cell phone stand is inhaled to folding magnetism.

Background

With the development of science and technology and economy, mobile phones, as communication tools carried by people, have been developed into a new generation of mobile communication devices that combine voice communication with multimedia communication, and include value-added services such as video, images, music, web browsing, teleconferencing, and other information services.

The paper data on the hands are displayed in real time by utilizing the camera shooting function of the mobile phone, so that the household meal becomes home-style meal which is displayed and reported on site. The mobile phone gradually replaces the traditional high-price projector which needs to be fixedly installed due to small size, flexibility and low price, and the situations of aching pain of the wrist and the two arms and the like can occur when the mobile phone is used for too long time, so that inconvenience is caused to the display of people. In addition, the mode of holding the mobile phone by hand easily causes poor projection position and angle problems, and brings inconvenience to audiences under the table. And various mobile phone supports in the market have the problems of overlarge size, difficult placement, incapability of being unfolded and folded quickly and the like, and bring troubles to people.

Therefore, improvements to current cell phone holders are needed.

Disclosure of Invention

An object of the utility model is to provide a cell phone stand is inhaled to folding magnetism to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a cell phone stand is inhaled to folding magnetism includes:

the base body is connected to the surface of an object to be connected through an adhesive layer;

the folding mechanism comprises a folding rod, two ends of the folding rod are respectively provided with a fixing component, and one fixing component is connected to the base main body;

the mobile phone comprises an upper shell main body, wherein a magnetic suction assembly used for adsorbing the back of the mobile phone is arranged in the upper shell main body.

As a further aspect of the present invention: the fixing assembly is at least 4 groups, the fixing assembly comprises a fastening part and a fixing part, and the fastening part and the fixing part are connected through fixing screws.

As a further aspect of the present invention: the base main part internally mounted rotating assembly, rotating assembly are including fixing the pressure spring and connecting the base connecting piece at the pressure spring other end in the base main part inside.

As a further aspect of the present invention: the subassembly is inhaled to magnetism includes two at least location plastic parts, wherein is located and installs a plurality of magnets on the inside location plastic part of epitheca main part, and the back of magnet adsorbs on setting up the inside iron sheet of epitheca main part, and the front installation of magnet is used for the panel silica gel of sealed epitheca main part.

As a further aspect of the present invention: the stickness layer is 3M gum layer, and 3M gum layer pastes on the rotating base in the base main part.

Compared with the prior art, the beneficial effects of the utility model are that:

a cell phone stand is inhaled to folding magnetism, rational in infrastructure, the modern design through a plurality of fixed subassemblies that are equipped with, has realized cell phone stand's multi-angle fixed mounting to it is small, satisfy simultaneously and expand fast and folding multiple needs, utilize magnetism to inhale the subassembly simultaneously and also make the cell-phone place simple swift, the practicality is strong, the reliability is high.

Drawings

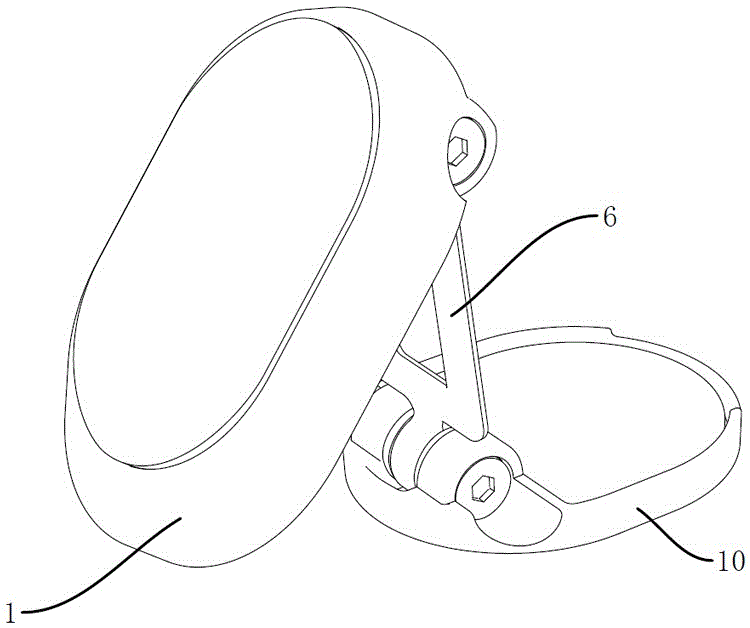

Fig. 1 is a schematic view of a three-dimensional assembly structure of a foldable magnetic mobile phone holder.

Fig. 2 is a schematic diagram of a side-view three-dimensional explosive structure of a foldable magnetic mobile phone support.

Fig. 3 is a schematic view of a front-view three-dimensional explosion structure of a foldable magnetic mobile phone support.

In the figure: 1. an upper case main body; 2. iron sheets; 3. positioning the plastic part; 4. a magnet; 5. panel silica gel; 6. a folding bar; 7. fixing screws; 8. fastening the fitting; 9. a fixing member; 10. a base body; 11. a base connector; 12. rotating the base; 13. a 3M gum layer; 14. and (5) pressing a spring.

Detailed Description

It should be noted that, in the present invention, the embodiments and features of the embodiments may be combined with each other without conflict.

In the description of the present invention, it is to be understood that the terms "central", "longitudinal", "lateral", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", etc., indicate orientations or positional relationships based on those shown in the drawings, and are used only for convenience in describing and simplifying the description, but not for indicating or implying that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus are not to be construed as limiting the invention, and further that the terms "first", "second", etc., are used only for descriptive purposes and are not to indicate or imply relative importance or imply the number of technical features being referred to, whereby the features defined as "first", "second", etc., may explicitly or implicitly include one or more such features, in the description of the present invention, "a plurality" means two or more unless otherwise specified.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; the two elements may be directly connected or indirectly connected through an intermediate medium, or the two elements may be connected through an intermediate medium, and the specific meaning of the above terms in the present invention can be understood by those skilled in the art through specific situations.

The present invention will be described in detail below with reference to the accompanying drawings in conjunction with embodiments.

Referring to fig. 1-3, in the embodiment of the utility model provides an in, a cell phone stand is inhaled to folding magnetism, include: a base body 10, wherein the base body 10 is connected to the surface of an object to be connected through an adhesive layer; the folding mechanism comprises a folding rod 6, two ends of the folding rod 6 are respectively provided with a fixing component, and one fixing component is connected to the base main body 10; the mobile phone comprises an upper shell body 1, wherein a magnetic suction assembly used for sucking the back of the mobile phone is arranged inside the upper shell body 1.

The fixed subassembly is 4 groups at least, and the fixed subassembly includes tight accessory 8 and mounting 9, connect through set screw 7 between tight accessory 8 and the mounting 9, in this embodiment, specific wherein two sets of fixed subassemblies are located the upper end both sides position of folding rod 6, link folding rod 6 and epitheca main part 1 together, and two sets of fixed subassemblies are located the lower extreme both sides position of folding rod 6 in addition, link folding rod 6 and base main part 10 together.

The base main body 10 is internally provided with a rotating assembly, and the rotating assembly comprises a pressure spring 14 fixed in the base main body 10 and a base connecting piece 11 connected to the other end of the pressure spring 14.

Magnetism is inhaled the subassembly and is included two at least location plastic parts 3, and one of them location plastic part 3 is located 1 insides of epitheca main part, and the other one is located 1 bottom positions of epitheca main part, location plastic part 3 is connected on epitheca main part 1 through screwed connection's mode, and specific wherein is located and installs a plurality of magnet 4 on 1 inside location plastic part 3 of epitheca main part, and the back of magnet 4 adsorbs on setting up 1 inside iron sheet 2 of epitheca main part, and the front installation of magnet 4 is used for sealed panel silica gel 5 of epitheca main part 1.

The adhesive layer is 3M gum layer 13, and 3M gum layer 13 pastes on the rotating base 12 on base main part 10, and in this embodiment, rotating base 12 also connects in base main part 10 bottom middle part position through the mode of screw.

The utility model discloses a theory of operation is: iron sheet 2 is pressed from both sides in the middle of 1 inside location plastic part 3 of epitheca main part and the epitheca main part 1, iron sheet 2 passes through the screw fixation, it places a plurality of magnet 4 to be located in the middle of 1 inside location plastic part 3 of epitheca main part, be used for the location, fixed subassembly makes folding rod 6 and epitheca main part 1 closely link together, the same reason fixed subassembly also so make through the screw fixation between base connecting piece 11 and the rotating base 12, a pressure spring 14 can be placed in the middle of the base main part 10, pressure spring 14 is rotatory for better realization, pressure spring 14 has certain elasticity, avoid leading to unable rotation because the tension of screw lock.

The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a cell phone stand is inhaled to folding magnetism which characterized in that includes:

2. The mobile phone support of claim 1, wherein the number of the fixing components is at least 4, the fixing components comprise fastening pieces and fixing pieces, and the fastening pieces are connected with the fixing pieces through fixing screws.

3. The mobile phone support of claim 1, wherein a rotation component is mounted inside the base body, and the rotation component comprises a compression spring fixed inside the base body and a base connector connected to the other end of the compression spring.

4. The mobile phone support of claim 1, wherein the magnetic assembly comprises at least two positioning plastic parts, wherein the positioning plastic parts inside the upper housing body are provided with a plurality of magnets, the back surfaces of the magnets are attached to iron sheets inside the upper housing body, and the front surfaces of the magnets are provided with silica gel for sealing the upper housing body.

5. The mobile phone support of claim 1, wherein the adhesive layer is a 3M adhesive backing layer, and the 3M adhesive backing layer is adhered to the rotating base on the base body.
