The utility model discloses a novel control cabinet structure, the intelligent cabinet temperature adjusting device comprises a cabinet body, and locate the base grillage of cabinet body bottom, the front end of the cabinet body is equipped with the cabinet door, the base grillage presets fixed mounting at subaerial mounting panel, be equipped with the air intake on the lower extreme bottom plate of the cabinet body, be equipped with the air outlet on the upper end roof of the cabinet body, all be equipped with the dust screen on air intake and the air outlet, the upper end of the cabinet body is equipped with the bearing swash plate, be equipped with the suction opening on the bearing swash plate, the exhaust fan, the upper end of bearing swash plate is equipped with rain-proof overhead guard, be equipped with the guiding gutter on the lower extreme inner wall of rain-proof overhead guard, be equipped with the dash board on the rain-proof overhead guard, the upper end of base grillage is provided with the shock attenuation backing plate. Realized taking away and rapid water conservancy diversion effluvium with the steam that rises that the automatically controlled components and parts work of the internal portion of cabinet produced with higher speed, very big improvement the thermal diffusivity of the internal portion of cabinet, realized that the staff maintains the effect that the maintenance was kept out rain, realized carrying out effective shock attenuation to the vibrations that the cabinet body work produced.
Description
Technical Field
The utility model belongs to the technical field of the switch board, specifically be a novel switch board structure.
Background
The outdoor control cabinet is a control cabinet which is placed in an outdoor power distribution room and used for installing circuits, a rainproof cover is generally arranged at the top of the outdoor control cabinet, and the side of the cabinet body is ventilated and cooled for cooling electric control components inside the control cabinet.
However, current outdoor control cabinet, it does not have air intake and air outlet of aligning from top to bottom mostly to do not have the bearing swash plate of suction opening and suction fan in the upper end of the cabinet body yet, do not have the rain-proof overhead guard structure of guiding gutter in the upper end of bearing swash plate yet, thereby greatly reduced outdoor control cabinet thermal diffusivity, in addition, also do not have the flashing, the staff maintains the rain nature of sheltering from when maintaining in the rainy day relatively poor.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a novel switch board structure to solve among the prior art relatively poor, the staff of outdoor control cabinet thermal diffusivity and maintain the relatively poor problem of rain nature that hides when maintaining in the rainy day.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a novel switch board structure, includes the cabinet body to and locate the base grillage of cabinet body bottom, the front end of the cabinet body is equipped with the cabinet door, and the base grillage presets fixed mounting at subaerial mounting panel, and above-mentioned structure is outdoor control cabinet's commonly used subassembly structure.
Preferably, be equipped with the air intake on the lower extreme bottom plate of the cabinet body, be equipped with the air outlet on the upper end roof of the cabinet body, overlooking the cross-section of air intake and air outlet is square column structure and aligns from top to bottom, guarantees the quick upflow heat dissipation of the internal air current of cabinet, all be equipped with the dust screen on air intake and the air outlet, the dust screen is made for stainless steel, avoids outside dust granule to enter into the cabinet internal.
Preferably, the upper end of the cabinet body is equipped with the bearing swash plate, the bearing swash plate is the setting of forty-five degrees of slope, be equipped with suction port, extraction fan on the bearing swash plate, the quantity of bearing swash plate is two and uses the vertical axis of the cabinet body to set up as central symmetry, all is provided with two sets of suction ports and extraction fan on every bearing swash plate to use the side direction axis of bearing swash plate to set up as central symmetry, the extraction fan is the waterproof axial fan of SFENGDA brand, the model is 6020, suction power is big, the extraction fan is connected to the internal power row of cabinet through the wire and inserts, the extraction fan is from taking the switch, guarantee cabinet body radiating effect.
Preferably, the upper end of bearing swash plate is equipped with rain-proof overhead guard, be equipped with the guiding gutter on the lower extreme inner wall of rain-proof overhead guard, the cross-section of guiding gutter is arc column structure, great improvement carry out rapid water conservancy diversion effluvium to the hot gas flow that pumps out.
Preferably, be equipped with the dash board on the rain-proof overhead guard, the quantity of dash board is two and the symmetry sets up the front and back end at rain-proof overhead guard, the dash board sets up for the eighty degree downwards of slope, has guaranteed the staff and has maintained the rain effect of hiding when maintaining the cabinet body.
Preferably, the upper end of the base grillage is provided with the shock attenuation backing plate, the both ends of the cabinet body are equipped with the mounting panel, the screw thread is provided with fixing bolt between mounting panel and the base grillage, the shock attenuation backing plate is cuboid form structure to set up between the bottom of the cabinet body and the upper end of base grillage, the shock attenuation backing plate is polyurethane rubber pad material, has the high elasticity, and is corrosion-resistant, and is longe-lived, has realized effectively absorbing to the vibrations of cabinet body work production.
Compared with the prior art, the beneficial effects of the utility model are that:
air intake and air outlet through the upper and lower alignment that sets up on the cabinet body, and the upper end at the cabinet body sets up the bearing swash plate that has suction opening and extraction fan, and the rain-proof overhead guard structure that has the guiding gutter is set up in the upper end of bearing swash plate, the steam that rises that the work of the automatically controlled components and parts that produce the internal portion of cabinet goes on taking out with higher speed and rapid water conservancy diversion effluence, when guaranteeing that the internal portion of cabinet is rain-proof, very big improvement the thermal diffusivity of the internal portion of cabinet, in addition, through be provided with rain shield structure around rain shield top cover, the effect of carrying out the top rain shield when opening the cabinet door to the staff and carrying out the internal component of cabinet and maintaining or maintaining the power connecting wire of the cabinet body back of the body end is maintained and maintained has been realized.
Through the mounting structure who has the shock attenuation backing plate that sets up in cabinet body bottom, when guaranteeing cabinet body bottom installation stability, realized carrying out effective shock attenuation to the vibrations of cabinet body work production.
Drawings
FIG. 1 is a sectional view of the whole structure of the present invention;

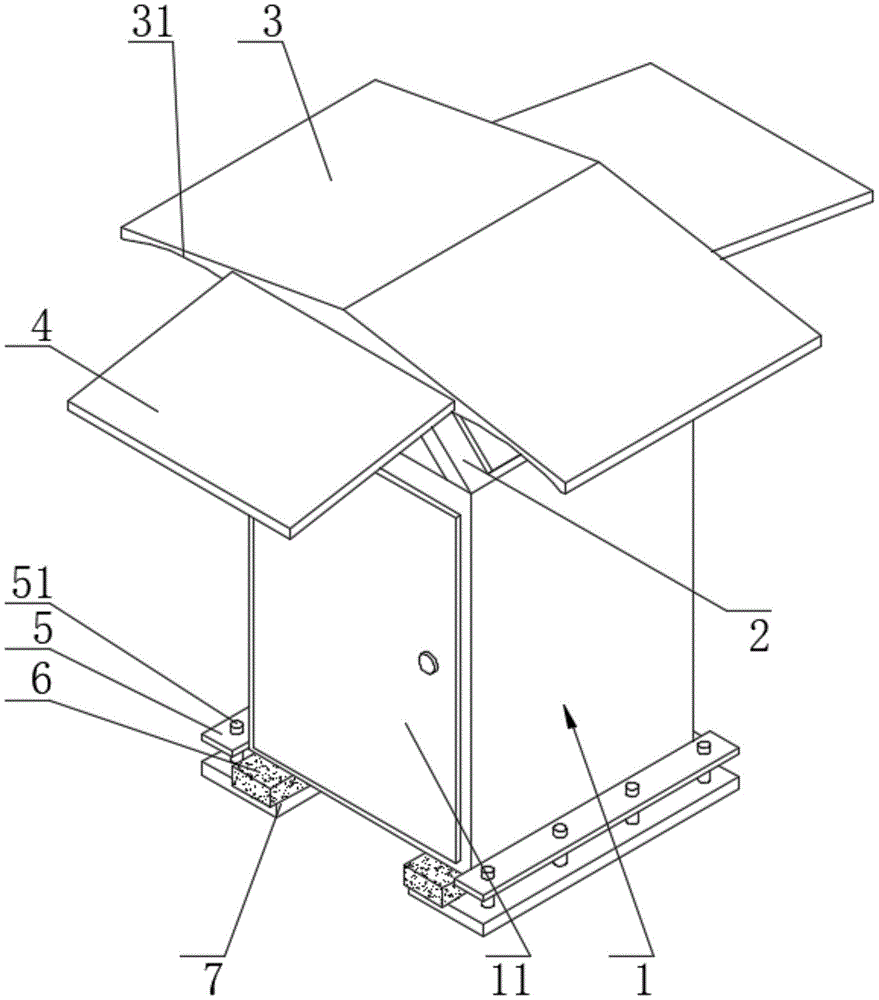

FIG. 2 is a three-dimensional perspective view of the overall structure of the present invention;
fig. 3 is a side view of the overall structure of the present invention;
fig. 4 is a three-dimensional perspective view of the structure of the hidden rain shielding plate of the present invention.
In the figure: the device comprises a cabinet body 1, a cabinet door 11, an air inlet 101, an air outlet 102, a dustproof net 103, a bearing inclined plate 2, a suction port 21, a suction fan 22, a rainproof top cover 3, a flow guide groove 31, a rain shielding plate 4, a mounting plate 5, a fixing bolt 51, a damping cushion plate 6 and a base plate frame 7.
Detailed Description
Referring to fig. 1, 2 and 3, a novel control cabinet structure comprises a cabinet body 1 and a base plate frame 7 arranged at the bottom end of the cabinet body 1, wherein a cabinet door 11 is rotatably arranged at the front end of the cabinet body 1 through a hinge, an air inlet 101 is arranged on the bottom plate at the lower end of the cabinet body 1, an air outlet 102 is arranged on the top plate at the upper end of the cabinet body 1, dust screens 103 are respectively arranged on the air inlet 101 and the air outlet 102 to prevent external dust particles from entering the cabinet body 1, a supporting inclined plate 2 is arranged at the upper end of the cabinet body 1, a rainproof top cover 3 is welded at the upper end of the supporting inclined plate 2, a rain shield 4 is arranged on the rainproof top cover 3, a suction port 21 and a suction fan 22 are arranged on the supporting inclined plate 2, a diversion groove 31 is arranged on the inner wall at the lower end of the rainproof top cover 3, a shock absorption backing plate 6 is arranged at the upper end of the base plate frame 7, mounting plates 5 are welded at the two ends of the cabinet body 1, and a fixing bolt 51 is arranged between the mounting plates 5 and the base plate frame 7 in a threaded manner, base grillage 7 presets fixed mounting at subaerial mounting panel, this novel used structure removes special description, all adopts 304 stainless steel materials to make, and intensity is high, and corrosion resistance easily welds processing, presets the screw hole on base grillage 7, presets the through-hole on mounting panel 5, and many align to grid's fixing bolt 51 pass preset the through-hole and with preset screw hole fixed mounting, has guaranteed the installation stability of the cabinet body 1 bottom.
Referring to fig. 1, the top cross-sections of the air inlet 101 and the air outlet 102 are square and aligned up and down, so as to ensure that the air flow in the cabinet 1 flows upward rapidly for heat dissipation.
Referring to fig. 1, 3 and 4, the number of the inclined bearing plates 2 is two and the two inclined bearing plates are symmetrically arranged around the vertical central axis of the cabinet 1, each inclined bearing plate 2 is provided with two sets of suction ports 21 and suction fans 22, and the two inclined bearing plates 2 are symmetrically arranged around the lateral central axis of the inclined bearing plate 2, and the inclined bearing plates 2 are arranged at an inclination of forty-five degrees.
Referring to fig. 1 and 4, the cross section of the guiding groove 31 is an arc-shaped structure, which greatly improves the guiding and discharging of the hot air flow.
Referring to fig. 1, 2 and 3, the rain shields 4 are two and symmetrically welded to the front and rear ends of the rain-proof top cover 3, and the rain shields 4 are inclined downward at eighty degrees, so that the rain shielding effect of the staff in maintaining and repairing the cabinet 1 is ensured.
Referring to fig. 1, 2, 3 and 4, the shock absorbing pad 6 is a rectangular structure and is disposed between the bottom end of the cabinet 1 and the upper end of the base plate frame 7, the shock absorbing pad 6 is made of polyurethane rubber pad, and has high elasticity, corrosion resistance and long service life, and can effectively absorb shock generated by the operation of the cabinet 1.
The working principle of the scheme is as follows: start exhaust fan 22, realized taking away with higher speed the steam that rises that the automatically controlled components and parts work of the internal portion of cabinet 1 produced, and air outlet 102 through the top, suction mouth 21 is sucked out, then the rapid water conservancy diversion effluvium through guiding gutter 31, when guaranteeing that the 1 top of the cabinet is rain-proof, very big improvement the thermal diffusivity of the internal portion of cabinet 1, in addition, through being provided with dash board 4 structures at rain-proof overhead guard 3 front and back ends, realized opening cabinet door 11 to the staff and carried out the effect that the top hides rain when the maintenance is maintained to the power connecting wire of the 1 back of the cabinet body maintenance of the internal portion of cabinet or maintain the maintenance to the cabinet body.
Through the mounting structure who has damping backing plate 6 that sets up in the 1 bottom of the cabinet body, when guaranteeing 1 bottom installation stability of the cabinet body, realized effectively absorbing the vibrations that the work of the cabinet body 1 produced.
Claims (7)
1. The utility model provides a novel switch board structure, includes the cabinet body (1) to and locate base grillage (7) of the cabinet body (1) bottom, its characterized in that: a cabinet door (11) is arranged at the front end of the cabinet body (1), an air inlet (101) is arranged on the bottom plate at the lower end of the cabinet body (1), an air outlet (102) is arranged on a top plate at the upper end of the cabinet body (1), dust screens (103) are respectively arranged on the air inlet (101) and the air outlet (102), the upper end of the cabinet body (1) is provided with a bearing inclined plate (2), the upper end of the bearing inclined plate (2) is provided with a rainproof top cover (3), a rain shield (4) is arranged on the rain-proof top cover (3), a suction opening (21) and a suction fan (22) are arranged on the bearing inclined plate (2), a flow guide groove (31) is arranged on the inner wall of the lower end of the rain-proof top cover (3), a shock absorption backing plate (6) is arranged at the upper end of the base plate frame (7), the both ends of the cabinet body (1) are equipped with mounting panel (5), the screw thread is provided with fixing bolt (51) between mounting panel (5) and base grillage (7).
2. The novel control cabinet structure of claim 1, wherein: the overlooking cross section of the air inlet (101) and the air outlet (102) is of a square structure and is aligned up and down.
3. The novel control cabinet structure of claim 1, wherein: the quantity of bearing swash plate (2) is two and uses the vertical axis of the cabinet body (1) to set up as central symmetry, all is provided with two sets of suction mouth (21) and suction fan (22) on every bearing swash plate (2) to use the lateral direction axis of bearing swash plate (2) to set up as central symmetry.
4. The novel control cabinet structure of claim 1, wherein: the section of the flow guide groove (31) is of an arc-shaped structure.
5. The novel control cabinet structure of claim 1, wherein: the quantity of the rain shielding plates (4) is two, the rain shielding plates are symmetrically arranged at the front end and the rear end of the rain-proof top cover (3), and the rain shielding plates (4) are arranged in an inclined manner at eighty degrees.
6. The novel control cabinet structure of claim 1, wherein: the shock absorption base plate (6) is of a cuboid structure and is arranged between the bottom end of the cabinet body (1) and the upper end of the base plate frame (7).
7. The novel control cabinet structure of claim 1, wherein: the bearing inclined plate (2) is arranged at an inclination of forty-five degrees.
