本实用新型公开了一种计算机软件演示装置，包括收纳箱、演示主屏、演示副板、收纳组件和清洁组件，所述收纳组件设于收纳箱内，所述演示主屏设于收纳组件上，所述演示副板通过铰链铰接于演示主屏上两侧，所述清洁组件设于演示主屏上，所述收纳组件包括收纳螺杆、连接带、收纳电机和驱动轮，所述收纳螺杆可旋转设于收纳箱内，所述驱动轮旋转设于收纳箱内，所述连接带连接于收纳螺杆和驱动轮上；本实用新型属于计算机软件领域，具体是一种通过收纳组件的可收纳设置，提高了整体装置的可调节性，并降低了占用空间，而演示副板的设置则提高了可使用性，及演示的可视范围及编辑性，并通过清洁组件的设置，防止装置受到污染的计算机软件演示装置。
The utility model discloses a computer software demonstration device, comprising a storage box, a demonstration main screen, a demonstration sub-board, a storage component and a cleaning component. The storage component is arranged in the storage box, and the demonstration main screen is arranged on the storage component. The demonstration sub-board is hinged on both sides of the main demonstration screen through hinges, the cleaning assembly is arranged on the main demonstration screen, the storage assembly includes a storage screw, a connecting belt, a storage motor and a drive wheel, and the storage screw is rotatable. In the box, the drive wheel is rotatably arranged in the storage box, and the connecting belt is connected to the storage screw and the drive wheel; the utility model belongs to the field of computer software, in particular to a storage device through storage components, which improves the overall Adjustability of the unit and reduced footprint, while the setup of the demo sub-board improves usability, visibility and editability of the demo, and prevents contamination of the unit by cleaning the component settings Computer software demo device.
Description
Technical Field
The utility model belongs to the technical field of computer software, specifically indicate a computer software presentation device.
Background
Today, the advanced development of scientific technology, computers have penetrated into every field, traditional teaching is mostly replaced by scientific multimedia video systems, and multimedia podium integrates the current new multimedia technology, so that monotonous and tedious teaching is embodied in sound, images, movies and animation, and teaching display is more vivid, lively and relaxed.
The multimedia platform of prior art all is built-in computer, but present presentation device adopts a reality screen more than, and then is not convenient for write and demonstrate, for improving the demonstration effect simultaneously, needs the great display screen of use size, and then is not convenient for accomodate, easily leads to the pollution and the damage of display screen.
SUMMERY OF THE UTILITY MODEL
To the above situation, for overcoming prior art's defect, the utility model provides a through accomodating the subassembly can accomodate the setting, improved the controllability of whole device to occupation space has been reduced, and the setting of demonstration subplate has then improved the usability, and the visual scope and the edibility of demonstration, and through the setting of clean subassembly, prevent that the device from receiving the computer software presentation device of pollution.
The utility model adopts the following technical scheme: the utility model relates to a computer software demonstration device, which comprises a containing box, a demonstration main screen, a demonstration auxiliary plate, a containing component and a cleaning component, the containing component is arranged in the containing box, the demonstration main screen is arranged on the containing component, the demonstration auxiliary plate is hinged on two sides of the demonstration main screen through a hinge, the cleaning component is arranged on the demonstration main screen, the receiving component comprises a receiving screw rod, a connecting belt, a receiving motor and a driving wheel, the containing screw rod is rotatably arranged in the containing box, the driving wheel is rotatably arranged in the containing box, the connecting belt is connected with the containing screw rod and the driving wheel, the containing motor is arranged in the containing box, the output end of the containing motor is arranged on the driving wheel, the demonstration main screen is slidably arranged in the containing box, the demonstration main screen is characterized in that a connecting strip is arranged on the rear side of the demonstration main screen, a thread groove is formed in the connecting strip, and the storage screw rod is in threaded connection with the thread groove.
Further, clean subassembly is including clean screw rod, slide bar, cleaning brush and clean motor, clean screw rod is rotatable to be located one side on the demonstration main screen, the opposite side on the demonstration main screen is located to the slide bar, the cleaning brush slidable is located on the slide bar, cleaning brush and clean screw rod threaded connection, the clean motor is located on the demonstration main screen, the clean motor output is located on the clean screw rod.
Furthermore, a torsion spring is arranged on a hinge of the demonstration auxiliary plate, a fixing groove is formed in the demonstration auxiliary plate, a fixing screw is arranged on the demonstration main screen, and the fixing screw is in threaded connection with the fixing groove.
Further, it is equipped with two sets of to accomodate the screw rod, the connecting strip with accomodate the screw rod phase-match.
Further, the cleaning screw is a reciprocating screw.
Adopt above-mentioned structure the utility model discloses the beneficial effect who gains as follows: this scheme computer software presentation device, through the setting of accomodating the subassembly, improved the controllability of whole device to occupation space has been reduced, and the setting of demonstration subplate has then improved the usability, and the visual scope and the edibility of demonstration, and through the setting of clean subassembly, prevent that the device from receiving the pollution.
Drawings

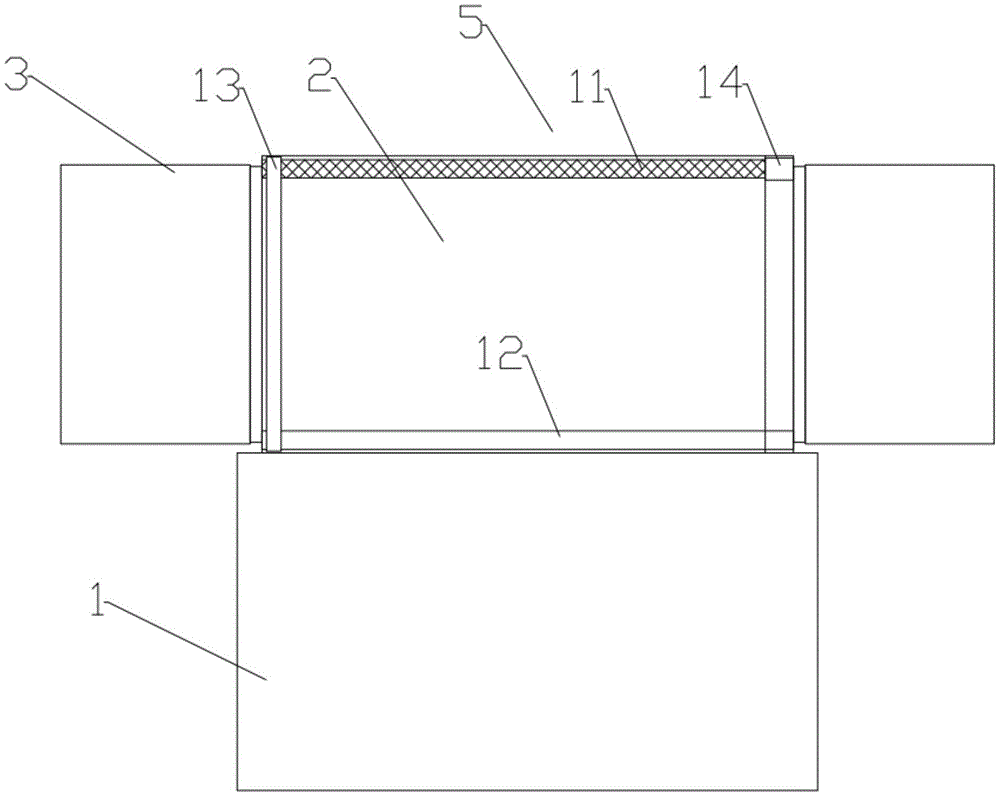

Fig. 1 is a front view of a computer software demonstration apparatus of the present invention;
FIG. 2 is a rear view of a computer software demonstration apparatus of the present invention;
fig. 3 is a top view of the computer software demonstration apparatus of the present invention.
The demonstration device comprises a storage box 1, a demonstration main screen 2, a demonstration auxiliary board 3, a storage assembly 4, a cleaning assembly 5, a storage screw rod 6, a storage screw rod 7, a connecting belt 8, a storage motor 9, a driving wheel 10, a connecting strip 11, a cleaning screw rod 12, a sliding rod 13, a cleaning brush 14, a cleaning motor 15, a fixing groove 16 and a fixing screw.
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in figures 1-3, the utility model relates to a computer software demonstration device, which comprises a containing box 1, a demonstration main screen 2, a demonstration auxiliary board 3, a containing component 4 and a cleaning component 5, wherein the containing component 4 is arranged in the containing box 1, the demonstration main screen 2 is arranged on the containing component 4, the demonstration auxiliary board 3 is hinged on the demonstration main screen 2 through a hinge, the cleaning component 5 is arranged on the demonstration main screen 2, the containing component 4 comprises a containing screw 6, a connecting belt 7, a containing motor 8 and a driving wheel 9, the containing screw 6 is rotatably arranged in the containing box 1, the driving wheel 9 is rotatably arranged in the containing box 1, the connecting belt 7 is connected on the containing screw 6 and the driving wheel 9, the containing motor 8 is arranged in the containing box 1, the output end of the containing motor 8 is arranged on the driving wheel 9, the demonstration main screen 2 is slidably arranged in the containing box 1, the demonstration main screen 2 rear side is equipped with connecting strip 10, be equipped with the thread groove in the connecting strip 10, accomodate screw rod 6 and thread groove threaded connection.
Wherein, clean subassembly 5 is including clean screw rod 11, slide bar 12, cleaning brush 13 and clean motor 14, clean screw rod 11 is rotatable to be located demonstration main screen 2 and goes up one side, slide bar 12 is located demonstration main screen 2 and is gone up the opposite side, cleaning brush 13 slidable is located on slide bar 12, cleaning brush 13 and clean screw rod 11 threaded connection, clean motor 14 is located demonstration main screen 2, clean motor 14 output is located on clean screw rod 11.
The demonstration auxiliary plate 3 is provided with a torsion spring on a hinge, the demonstration auxiliary plate 3 is provided with a fixing groove 15, the demonstration main screen 2 is provided with a fixing screw 16, and the fixing screw 16 is in threaded connection with the fixing groove 15.
Accomodate screw rod 6 and be equipped with two sets ofly, connecting strip 10 with accomodate screw rod 6 phase-match.
The cleaning screw 11 is a reciprocating screw.
During the specific use, containing box 1 is opened to the staff, start and accomodate motor 8, it is rotatory to drive wheel 9, and then it is rotatory to drive through connecting band 7 and accomodate screw rod 6, and then drive demonstration main screen 2 and lift out containing box 1, then unscrew fixed screw 16, demonstrate that subplate 3 expandes under the torsional force of torsional spring, then can write and demonstrate, start clean motor 14 and drive clean screw rod 11 rotatory, and then drive cleaning brush 13 reciprocating sliding, clean demonstration main screen 2.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
The present invention and the embodiments thereof have been described above, but the description is not limited thereto, and the embodiment shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should understand that they should not be limited to the embodiments described above, and that they can design the similar structure and embodiments without departing from the spirit of the invention.
Claims (5)
1. A computer software presentation device, characterized by: including containing box, demonstration main screen, demonstration subplate, storage assembly and clean subassembly, storage assembly locates in the containing box, demonstration main screen is located on the storage assembly, the demonstration subplate passes through the hinge and articulates both sides on the demonstration main screen, clean subassembly is located on the demonstration main screen, storage assembly is including accomodating screw rod, connecting band, accomodating motor and drive wheel, accomodate the screw rod and can rotate to locate in the containing box, the drive wheel is rotatory to be located in the containing box, the connecting band is connected on accomodating screw rod and drive wheel, accomodate the motor and locate in the containing box, accomodate the motor output and locate on the drive wheel, demonstration main screen slidable locates in the containing box, demonstration main screen rear side is equipped with the connecting strip, be equipped with the thread groove in the connecting strip, accomodate screw rod and thread groove threaded connection.
2. A computer software presentation device according to claim 1, wherein: clean subassembly is including clean screw rod, slide bar, cleaning brush and clean motor, clean screw rod is rotatable to be located one side on the demonstration main screen, the opposite side on the demonstration main screen is located to the slide bar, cleaning brush slidable locates on the slide bar, cleaning brush and clean screw rod threaded connection, clean motor is located on the demonstration main screen, clean motor output is located on the clean screw rod.
3. A computer software presentation device according to claim 2, wherein: the demonstration main screen is characterized in that a torsion spring is arranged on a hinge of the demonstration auxiliary plate, a fixing groove is formed in the demonstration auxiliary plate, a fixing screw is arranged on the demonstration main screen, and the fixing screw is in threaded connection with the fixing groove.
4. A computer software presentation device according to claim 3, wherein: it is equipped with two sets ofly to accomodate the screw rod, the connecting strip with accomodate the screw rod phase-match.
5. The computer software presentation device of claim 4, wherein: the cleaning screw is a reciprocating screw.
