CN214376040U - Indoor environment atomization and humidification equipment based on Internet of Things - Google Patents
Indoor environment atomization and humidification equipment based on Internet of Things Download PDFInfo
- Publication number
- CN214376040U CN214376040U CN202120573193.5U CN202120573193U CN214376040U CN 214376040 U CN214376040 U CN 214376040U CN 202120573193 U CN202120573193 U CN 202120573193U CN 214376040 U CN214376040 U CN 214376040U
- Authority
- CN
- China
- Prior art keywords
- module
- indoor environment
- microcontroller
- atomizer
- electrically connected
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 238000000889 atomisation Methods 0.000 title claims abstract description 32
- 238000012544 monitoring process Methods 0.000 claims abstract description 32
- 239000007788 liquid Substances 0.000 claims abstract description 24
- 238000004891 communication Methods 0.000 claims abstract description 22
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims abstract description 11
- 238000005507 spraying Methods 0.000 claims description 5
- 230000008859 change Effects 0.000 claims description 4
- 230000007613 environmental effect Effects 0.000 claims 1
- 239000007921 spray Substances 0.000 abstract 1
- 238000000034 method Methods 0.000 description 7
- 230000006855 networking Effects 0.000 description 6
- 230000006870 function Effects 0.000 description 5
- 230000008901 benefit Effects 0.000 description 3
- 238000010438 heat treatment Methods 0.000 description 3
- 230000006872 improvement Effects 0.000 description 3
- 230000004048 modification Effects 0.000 description 3
- 238000012986 modification Methods 0.000 description 3
- 230000010355 oscillation Effects 0.000 description 3
- 201000010099 disease Diseases 0.000 description 2
- 208000037265 diseases, disorders, signs and symptoms Diseases 0.000 description 2
- 201000004624 Dermatitis Diseases 0.000 description 1
- 241000192125 Firmicutes Species 0.000 description 1
- 241001465754 Metazoa Species 0.000 description 1
- 238000007605 air drying Methods 0.000 description 1
- 208000010668 atopic eczema Diseases 0.000 description 1
- 230000005540 biological transmission Effects 0.000 description 1
- 239000000919 ceramic Substances 0.000 description 1
- 239000003153 chemical reaction reagent Substances 0.000 description 1
- 238000013461 design Methods 0.000 description 1
- 238000010586 diagram Methods 0.000 description 1
- 238000009792 diffusion process Methods 0.000 description 1
- 239000000428 dust Substances 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 238000005286 illumination Methods 0.000 description 1
- 238000004519 manufacturing process Methods 0.000 description 1
- 239000003595 mist Substances 0.000 description 1
- 230000007918 pathogenicity Effects 0.000 description 1
- 230000008569 process Effects 0.000 description 1
- 210000002345 respiratory system Anatomy 0.000 description 1
- 208000023504 respiratory system disease Diseases 0.000 description 1
- 208000017520 skin disease Diseases 0.000 description 1
- 241000712461 unidentified influenza virus Species 0.000 description 1
Images
Landscapes
- Air Humidification (AREA)
- Air Conditioning Control Device (AREA)
Abstract
一种基于物联网的室内环境雾化加湿设备，雾化器模块与微控制器之间电连接，雾化器模块用于对室内环境进行喷雾加湿；远程通讯模块与微控制器之间电连接，远程通讯模块用于对雾化器的工作状态进行远程监控；温湿度传感模块与微控制器之间电连接，温湿度传感模块用于对雾化器加湿的室内环境进行温湿度监控；液位监测模块与微控制器之间电连接，液位监测模块用于对雾化器内的液位进行监控；蓝牙模块与微控制器之间电连接，蓝牙模块用于移动终端与雾化器进行蓝牙控制；预警模块与微控制器之间电连接，预警模块用于对雾化器进行缺水报警。本实用新型可以远程根据需要进行操控，便于实时掌握室内环境的状态，满足人们多样化的功能需求。
An indoor environment atomization and humidification device based on the Internet of Things. The atomizer module and the microcontroller are electrically connected, and the atomizer module is used to spray and humidify the indoor environment; the remote communication module and the microcontroller are electrically connected , the remote communication module is used to remotely monitor the working state of the atomizer; the temperature and humidity sensing module is electrically connected to the microcontroller, and the temperature and humidity sensing module is used to monitor the temperature and humidity of the humidified indoor environment of the atomizer ;The electrical connection between the liquid level monitoring module and the microcontroller, the liquid level monitoring module is used to monitor the liquid level in the atomizer; the electrical connection between the bluetooth module and the microcontroller, the bluetooth module is used for the mobile terminal and the fog The atomizer is controlled by Bluetooth; the early warning module is electrically connected with the microcontroller, and the early warning module is used to alarm the atomizer for water shortage. The utility model can be controlled remotely as required, so that the state of the indoor environment can be grasped in real time, and the diverse functional requirements of people can be met.
Description
Technical Field
The utility model relates to the technical field of household appliances, concretely relates to indoor environment atomizing humidification equipment based on thing networking.
Background
The human body has certain requirements on air humidity, eczema and other related skin diseases are easily caused due to overhigh humidity, a series of diseases are easily caused due to too dry indoor air, for example, the propagation rate of influenza viruses and gram-positive bacteria with strong pathogenicity is accelerated due to overlow environment humidity, and the diseases are popular due to the diffusion of dust; too low ambient humidity can reduce the resistance of the human respiratory system, induce and aggravate respiratory diseases. Especially in cold seasons, the heating facility is used for heating the room, and the higher the indoor temperature is, the drier the air is. The production and life of people are seriously influenced by indoor air drying in winter.
At present, people generally use an atomization humidifier to humidify the indoor environment, and the types of humidifiers are also various. But traditional indoor environment humidification can only be operated by hand directly, can't control as required in a long-range way, can not master the state of indoor environment in real time, also can not carry out the early warning when humidification equipment lacks water and remind, more can not control the relocation as required in a long-range way in order to carry out omnidirectional humidification. The whole function is single, and the diversified function requirements of people cannot be met.
SUMMERY OF THE UTILITY MODEL
Therefore, the utility model provides an indoor environment atomizing humidification equipment based on thing networking solves current indoor environment humidification and can't carry out the problem of controlling in a flexible way and function ratio singleness according to the demand.
In order to achieve the above object, the present invention provides the following technical solutions: the indoor environment atomization humidifying equipment based on the Internet of things comprises a microcontroller, an atomizer module, a remote communication module, a temperature and humidity sensing module, a liquid level monitoring module, a Bluetooth module and an early warning module; the atomizer module is electrically connected with the microcontroller and is used for spraying and humidifying the indoor environment; the remote communication module is electrically connected with the microcontroller and is used for remotely monitoring the working state of the atomizer; the temperature and humidity sensing module is electrically connected with the microcontroller and is used for monitoring the temperature and humidity of the indoor environment humidified by the atomizer; the liquid level monitoring module is electrically connected with the microcontroller and is used for monitoring the liquid level in the atomizer; the Bluetooth module is electrically connected with the microcontroller and is used for carrying out Bluetooth control on the mobile terminal and the atomizer; the early warning module is electrically connected with the microcontroller, and the early warning module is used for carrying out water shortage warning on the atomizer.
As the preferable scheme of the indoor environment atomizing and humidifying equipment based on the Internet of things, the remote communication module adopts one of a 4G module, a 5G module or a WiFi module.
As the preferable scheme of the indoor environment atomizing and humidifying equipment based on the Internet of things, the indoor environment atomizing and humidifying equipment further comprises an illuminating module, wherein the illuminating module is electrically connected with the microcontroller, and the illuminating module is used for illuminating the indoor environment.
As the preferable scheme of the indoor environment atomizing and humidifying equipment based on the Internet of things, the indoor environment atomizing and humidifying equipment further comprises a switch module, the switch module is electrically connected with the microcontroller, and the switch module is used for controlling the working state of the indoor environment atomizing equipment.
As the preferable scheme of the indoor environment atomization humidifying equipment based on the Internet of things, the indoor environment atomization humidifying equipment further comprises an audio playing module, wherein the audio playing module is electrically connected with the microcontroller, and the audio playing module is used for carrying out audio playing on the indoor environment atomization equipment.
As the preferable scheme of the indoor environment atomization humidifying equipment based on the Internet of things, the indoor environment atomization humidifying equipment further comprises a power module, the power module is electrically connected with the microcontroller, and the power module is used for supplying power to the indoor environment atomization equipment.
As the preferable scheme of the indoor environment atomization humidifying equipment based on the Internet of things, the indoor environment atomization humidifying equipment further comprises a driving module, the driving module is electrically connected with the microcontroller, and the driving module is used for changing the atomization position of the indoor environment atomization equipment.
As the preferable scheme of the indoor environment atomization humidifying equipment based on the Internet of things, the indoor environment atomization humidifying equipment further comprises a camera module, the camera module is electrically connected with the microcontroller, and the camera module is used for monitoring the environment of the indoor environment atomization equipment.
The utility model has the advantages of it is following: the system is provided with a microcontroller, an atomizer module, a remote communication module, a temperature and humidity sensing module, a liquid level monitoring module, a Bluetooth module and an early warning module; the atomizer module is electrically connected with the microcontroller and is used for spraying and humidifying the indoor environment; the remote communication module is electrically connected with the microcontroller and is used for remotely monitoring the working state of the atomizer; the temperature and humidity sensing module is electrically connected with the microcontroller and is used for monitoring the temperature and humidity of the indoor environment humidified by the atomizer; the liquid level monitoring module is electrically connected with the microcontroller and is used for monitoring the liquid level in the atomizer; the Bluetooth module is electrically connected with the microcontroller and is used for carrying out Bluetooth control on the mobile terminal and the atomizer; the early warning module is electrically connected with the microcontroller and is used for carrying out water shortage warning on the atomizer. The utility model discloses not only can manually directly operate, can also long-rangely control as required, be convenient for master the state of indoor environment in real time, can carry out the early warning when humidification equipment lacks water and remind, still can remotely control the change position as required in order to carry out the omnidirectional humidification, satisfy people diversified functional demand.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below. It should be apparent that the drawings in the following description are merely exemplary, and that other embodiments can be derived from the drawings provided by those of ordinary skill in the art without inventive effort.
The structure, ratio, size and the like shown in the present specification are only used for matching with the content disclosed in the specification, so as to be known and read by people familiar with the technology, and are not used for limiting the limit conditions which can be implemented by the present invention, so that the present invention has no technical essential significance, and any structure modification, ratio relationship change or size adjustment should still fall within the scope which can be covered by the technical content disclosed by the present invention without affecting the efficacy and the achievable purpose of the present invention.

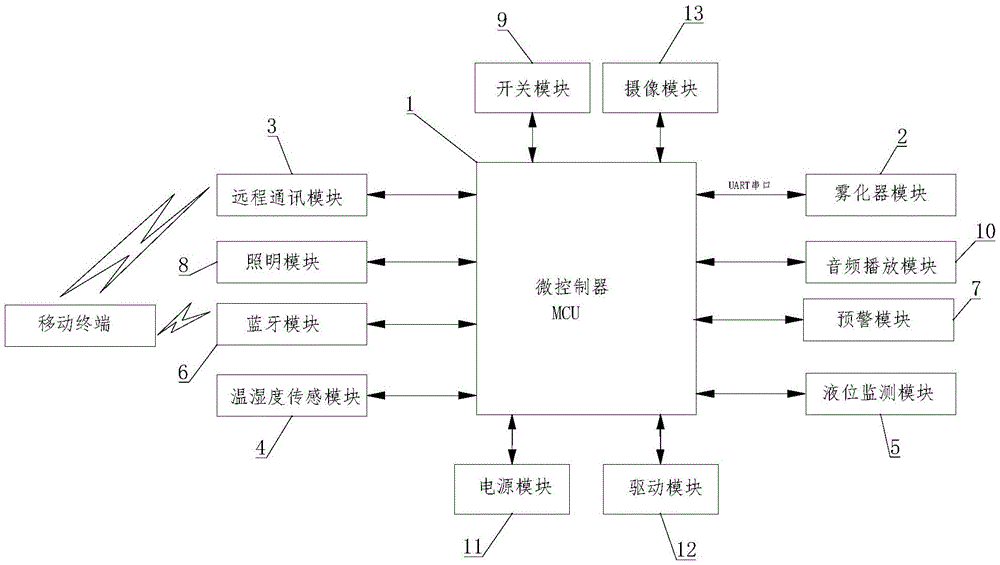

Fig. 1 is the utility model discloses indoor environment atomizing humidification equipment hardware architecture schematic diagram based on thing networking that provides in the embodiment 1.
In the figure, 1, a microcontroller; 2. an atomizer module; 3. a remote communication module; 4. a temperature and humidity sensing module; 5. a liquid level monitoring module; 6. a Bluetooth module; 7. an early warning module; 8. a lighting module; 9. a switch module; 10. an audio playing module; 11. a power supply module; 12. a drive module; 13. and a camera module.
Detailed Description
The present invention is described in terms of specific embodiments, and other advantages and benefits of the present invention will become apparent to those skilled in the art from the following disclosure. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
It needs to be further explained that what this technical scheme requested is to protect is to realize the indoor environment atomizing humidification equipment's based on thing networking hardware deployment, does not request to protect the algorithm or the method that relates to, and the hardware that this technical scheme related to all selects current model in addition, and this application does not relate to the improvement of hardware itself. In analogy, the algorithm or method related to the technical solution is equivalent to a workflow and a using method, and any structural technical solution necessarily has a corresponding implementation method in the implementation or implementation process, and on the premise that the applicant does not request protection of the method, the structural technical solution cannot be denied as an object for protection of the utility model due to the related method.
Referring to fig. 1, an indoor environment atomizing and humidifying device based on the internet of things is provided, which comprises a microcontroller 1, an atomizer module 2, a remote communication module 3, a temperature and humidity sensing module 4, a liquid level monitoring module 5, a bluetooth module 6 and an early warning module 7; the atomizer module 2 is electrically connected with the microcontroller 1, and the atomizer module 2 is used for spraying and humidifying the indoor environment; the remote communication module 3 is electrically connected with the microcontroller 1, and the remote communication module 3 is used for remotely monitoring the working state of the atomizer; the temperature and humidity sensing module 4 is electrically connected with the microcontroller 1, and the temperature and humidity sensing module 4 is used for monitoring the temperature and humidity of the indoor environment humidified by the atomizer; the liquid level monitoring module 5 is electrically connected with the microcontroller 1, and the liquid level monitoring module 5 is used for monitoring the liquid level in the atomizer; the Bluetooth module 6 is electrically connected with the microcontroller 1, and the Bluetooth module 6 is used for carrying out Bluetooth control on the mobile terminal and the atomizer; the early warning module 7 is electrically connected with the microcontroller 1, and the early warning module 7 is used for carrying out water shortage warning on the atomizer.
In this embodiment, the atomizer module 2 may be an ultrasonic atomizer, and utilizes electronic high-frequency oscillation, the oscillation frequency is 1.7MHz or 2.4MHz, which exceeds the human hearing range, the electronic oscillation is harmless to human body and animals, and the liquid water molecule structure is broken up by the high-frequency resonance of the ceramic atomizing sheet to generate naturally flowing water mist without heating or adding any chemical reagent.
In this embodiment, the remote communication module 3 may adopt one of a 4G module, a 5G module, or a WiFi module. The 4G module, the 5G module or the WiFi module are of the existing models, the WiFi module is selected, the existing models can be directly added into a wireless network in a family, the ESP8266 and the UART-WiFi transparent transmission module with ultra-low power consumption can be selected as the WiFi module, and the wireless 802.11b/G/n standard is supported; three working modes of STA/AP/STA + AP are supported; a built-in TCP/IP protocol stack supports multi-channel TCP Client connection; supporting rich Socket AT instructions; the UART/GPIO data communication interface is supported; the Smart Link intelligent networking function is supported; support for remote firmware upgrade (OTA); the 3.3V single power supply supplies power, and can connect the physical equipment of a user to a Wi-Fi wireless network to perform internet or local area network communication, thereby realizing the networking function.
In this embodiment, the lighting system further includes a lighting module 8, the lighting module 8 is electrically connected to the microcontroller 1, and the lighting module 8 is used for lighting an indoor environment. The design of illumination module 8 can be established through indoor environment atomizing humidification and throw light on, makes things convenient for and uses night. In addition, the indoor environment atomization device further comprises a switch module 9, the switch module 9 is electrically connected with the microcontroller 1, and the switch module 9 is used for controlling the working state of the indoor environment atomization device. The on or off state of the switch module 9 can be remotely controlled by the mobile terminal.
In an embodiment of the indoor environment atomizing and humidifying device based on the internet of things, the device further comprises an audio playing module 10, the audio playing module 10 is electrically connected with the microcontroller 1, and the audio playing module 10 is used for playing audio by the indoor environment atomizing device. The audio playing module 10 can play the early warning information and can also play the built-in music and the audio transmitted by the mobile terminal through the bluetooth module 6.
In this embodiment, the audio playing module 10 adopts a WT588D voice chip, which is an industrial-grade voice module, a 28-pin module package, and a single-chip scheme; a unique human voice processor is embedded, so that the voice performance is very natural and pleasant; the operation of setting a control mode, combining voices, calling voices, inserting silence and the like can be finished in software; the mute can be inserted randomly, and the mute time range is 10 ms-25 min; operating voltage VDD: DC2.8 ~ 5.5V, VCC: DC 2.8-3.6V; the sleep current is less than 10 uA; high stability, reaching the requirement of industrial temperature, good tone quality and repeated burning.
In an embodiment of the indoor environment atomizing and humidifying equipment based on the internet of things, the indoor environment atomizing and humidifying equipment further comprises a power module 11, the power module 11 is electrically connected with the microcontroller 1, and the power module 11 is used for supplying power to the indoor environment atomizing equipment. The power module 11 supplies power for the microcontroller 1, the atomizer module 2, the remote communication module 3, the temperature and humidity sensing module 4, the liquid level monitoring module 5, the Bluetooth module 6 and the early warning module 7.
In an embodiment of the indoor environment atomizing and humidifying device based on the internet of things, the device further comprises a driving module 12, the driving module 12 is electrically connected with the microcontroller 1, and the driving module 12 is used for changing the atomizing position of the indoor environment atomizing device. Drive module 12 disposes the drive wheel of setting in indoor environment atomizing humidification equipment bottom, and the drive wheel drives through the motor, can remote control indoor environment atomizing humidification equipment remove to the room of difference in carry out the humidification through mobile terminal.
In addition, the indoor environment atomizing device further comprises a camera module 13, wherein the camera module 13 is electrically connected with the microcontroller 1, and the camera module 13 is used for monitoring the environment of the indoor environment atomizing device. Camera module 13 is configured with the camera, can long-rangely look over indoor environment atomizing humidification equipment's surrounding environment through mobile terminal.
The utility model is provided with a microcontroller 1, an atomizer module 2, a remote communication module 3, a temperature and humidity sensing module 4, a liquid level monitoring module 5, a Bluetooth module 6 and an early warning module 7; the atomizer module 2 is electrically connected with the microcontroller 1, and the atomizer module 2 is used for spraying and humidifying the indoor environment; the remote communication module 3 is electrically connected with the microcontroller 1, and the remote communication module 3 is used for remotely monitoring the working state of the atomizer; the temperature and humidity sensing module 4 is electrically connected with the microcontroller 1, and the temperature and humidity sensing module 4 is used for monitoring the temperature and humidity of the indoor environment humidified by the atomizer; the liquid level monitoring module 5 is electrically connected with the microcontroller 1, and the liquid level monitoring module 5 is used for monitoring the liquid level in the atomizer; the Bluetooth module 6 is electrically connected with the microcontroller 1, and the Bluetooth module 6 is used for carrying out Bluetooth control on the mobile terminal and the atomizer; the early warning module 7 is electrically connected with the microcontroller 1, and the early warning module 7 is used for carrying out water shortage warning on the atomizer. In addition, an audio playing module 10, a driving module 12 and a camera module 13 can be configured, the audio playing module 10 can play the early warning information, and can also play the built-in music and the audio transmitted by the mobile terminal through the bluetooth module 6. Drive module 12 disposes the drive wheel of setting in indoor environment atomizing humidification equipment bottom, and the drive wheel drives through the motor, can remote control indoor environment atomizing humidification equipment remove to the room of difference in carry out the humidification through mobile terminal. Camera module 13 is configured with the camera, can long-rangely look over indoor environment atomizing humidification equipment's surrounding environment through mobile terminal. The utility model discloses not only can manually directly operate, can also long-rangely control as required, be convenient for master the state of indoor environment in real time, can carry out the early warning when humidification equipment lacks water and remind, still can remotely control the change position as required in order to carry out the omnidirectional humidification, satisfy people diversified functional demand.
Although the invention has been described in detail with respect to the general description and the specific embodiments, it will be apparent to those skilled in the art that modifications and improvements can be made based on the invention. Therefore, such modifications and improvements are intended to be within the scope of the invention as claimed.
