Abstract
本实用新型属于起吊装置技术领域，具体为一种基于生产线的整装起吊装置，包括框架，所述框架的内部上侧横向设置有横向伺服滑台，所述横向伺服滑台的下侧安装卷扬机，所述卷扬机的转轴上设置有收卷绳索，所述收卷绳索的底端设置有安装滑块，所述框架的内部横向设置有横撑板，所述安装滑块与横撑板滑动连接，所述横撑板的两端均设置有滑动卡框，所述框架内部的左右侧壁均纵向设置有滑轨。通过安装滑块、横撑板、滑槽的配合作用，使得下侧被夹持物品横向移动较为平稳；通过滑动卡框、滑轨的配合作用，使得下侧被夹持的物品纵向移动较为平稳；通过夹持臂、弹簧的配合作用，能够对不同尺寸物品快速夹持稳定。
The utility model belongs to the technical field of lifting devices, in particular to a complete lifting device based on a production line. , the rotating shaft of the hoist is provided with a winding rope, the bottom end of the winding rope is provided with an installation slider, the interior of the frame is laterally provided with a transverse support plate, and the installation slider is slidably connected with the transverse support plate , both ends of the transverse support plate are provided with sliding card frames, and the left and right side walls inside the frame are longitudinally provided with sliding rails. Through the cooperation of the installation slider, the horizontal support plate and the chute, the lateral movement of the object to be clamped on the lower side is relatively stable; through the cooperation of the sliding card frame and the sliding rail, the longitudinal movement of the object to be clamped on the lower side is relatively stable. ;Through the cooperation of the clamping arm and the spring, it can quickly and stably clamp objects of different sizes.
Description
Technical Field
The utility model relates to a hoisting accessory technical field specifically is a complete dress hoisting accessory based on production line.
Background
The crane is a lifting and carrying machine widely used in ports, workshops, electric power, construction sites and other places. The name crane is a uniform title for hoisting machinery. The main of cranes are also truck cranes, crawler cranes and tyre cranes. The crane is used for hoisting equipment, emergency rescue, hoisting, machinery and rescue.
The method is characterized in that a gantry crane is usually adopted to lift objects on a production line, when the existing gantry crane lifts the objects, the objects are easy to rock, and the rocked objects easily collide with other objects, so that the objects are damaged.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a whole dress hoisting accessory based on production line to when solving the current portal crane that provides among the above-mentioned background art and lifting by crane article, article rock easily, and the article of rocking strikes other objects easily, thereby causes the problem of article damage.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a whole dress hoisting accessory based on production line, includes the frame, the inside upside of frame transversely is provided with horizontal servo slip table, the downside installation hoist engine of horizontal servo slip table, be provided with the rolling rope in the pivot of hoist engine, the bottom of rolling rope is provided with the installation slider, the inside of frame transversely is provided with the cross bracing board, installation slider and cross bracing board sliding connection, the both ends of cross bracing board all are provided with the slip card frame, the inside lateral wall of controlling of frame all vertically is provided with the slide rail, the slip card frame is connected with the slide rail sliding connection of homonymy, all the lower part left and right sides of slider is connected with the centre gripping arm through the round pin hub rotation, both sides be connected with the spring between the centre gripping arm.
Preferably, the middle part of the cross supporting plate is provided with a sliding groove, and the mounting sliding block is slidably mounted in the sliding groove.
Preferably, the inside of the sliding clamping frame is rotatably provided with a roller through a pin shaft, and the roller is supported on the sliding rail.
Preferably, the number of the sliding clamping frames at the two ends of the cross supporting plate is two, and the two sliding clamping frames are symmetrically arranged around the transverse center line of the cross supporting plate.
Preferably, the bottom end of the clamping arm is provided with a hook.
Compared with the prior art, the beneficial effects of the utility model are that:
1) through the matching action of the mounting slide block, the cross supporting plate and the sliding groove, the clamped objects on the lower side can move transversely more stably;
2) through the matching action of the sliding clamping frame and the sliding rail, the article clamped at the lower side can move stably in the longitudinal direction;
3) through the cooperation of centre gripping arm, spring, can be stable to the quick centre gripping of not unidimensional article.
Drawings

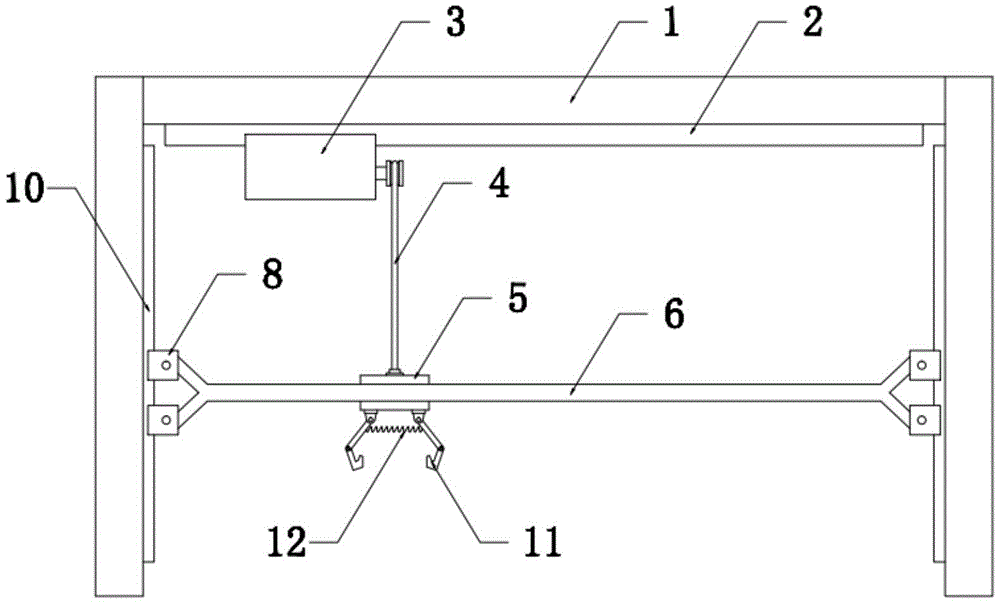

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic top view of the cross support plate of the present invention;
fig. 3 is a schematic view of the connection structure of the installation slider and the clamping arm of the present invention.
In the figure: the device comprises a frame 1, a transverse servo sliding table 2, a winch 3, a winding rope 4, an installation sliding block 5, a transverse supporting plate 6, a sliding groove 7, a sliding clamping frame 8, a roller 9, a sliding rail 10, a clamping arm 11 and a spring 12.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Example (b):
referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a whole dress hoisting accessory based on production line, includes frame 1, the inside upside of frame 1 transversely is provided with horizontal servo slip table 2, the downside installation hoist engine 3 of horizontal servo slip table 2, be provided with rolling rope 4 in hoist engine 3's the pivot, the bottom of rolling rope 4 is provided with installation slider 5, the inside of frame 1 transversely is provided with cross bracing board 6, installation slider 5 and 6 sliding connection of cross bracing board, the both ends of cross bracing board 6 all are provided with slip card frame 8, the lateral wall all vertically is provided with slide rail 10 about frame 1 is inside, slip card frame 8 and the slide rail 10 sliding connection of homonymy, the lower part left and right sides of slider 5 all is connected with centre gripping arm 11 through the round pin hub rotation, both sides be connected with spring 12 between the centre gripping arm 11.
Furthermore, the middle part of the cross supporting plate 6 is provided with a sliding groove 7, and the mounting sliding block 5 is slidably mounted in the sliding groove 7.
Further, the inside of the sliding clamping frame 8 is rotatably provided with a roller 9 through a pin shaft, and the roller 9 is supported on a sliding rail 10.
Further, the number of the sliding clamping frames 8 at the two ends of the cross support plate 6 is two, and the two sliding clamping frames 8 are symmetrically arranged relative to the transverse center line of the cross support plate 6.
Further, a hook is arranged at the bottom end of the clamping arm 11.
The working principle is as follows: when an article needs to be clamped, the mounting sliding block 5 is moved to the article, the two clamping arms 11 are pulled outwards, the spring 12 generates elastic force, the clamping arms 11 are hung on lifting lugs of the article or other positions capable of clamping and hanging, and under the elastic force action of the spring 12, the clamping arms 11 are not easy to loosen from the article.
The winding machine 3 can drive the installation sliding block 5, the cross supporting plate 6, the sliding clamping frame 8 and the article to move longitudinally through the winding rope 4, and the transverse servo sliding table 2 can drive the winding machine 3 to move transversely, so that the lifted article can move transversely and longitudinally.
Having shown and described the basic principles and principal features of the invention and advantages thereof, it will be apparent to those skilled in the art that the invention is not limited to the details of the foregoing exemplary embodiments, but is capable of other specific forms without departing from the spirit or essential characteristics thereof; the present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein, and any reference signs in the claims are not intended to be construed as limiting the claim concerned.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a whole dress hoisting accessory based on production line, includes frame (1), its characterized in that: a transverse servo sliding table (2) is transversely arranged on the upper side in the frame (1), a winch (3) is arranged on the lower side of the transverse servo sliding table (2), a winding rope (4) is arranged on a rotating shaft of the winch (3), the bottom end of the winding rope (4) is provided with a mounting slide block (5), a cross support plate (6) is transversely arranged inside the frame (1), the mounting slide block (5) is connected with the cross support plate (6) in a sliding way, both ends of the cross support plate (6) are provided with sliding clamping frames (8), the left side wall and the right side wall inside the frame (1) are both longitudinally provided with a slide rail (10), the sliding clamping frame (8) is connected with the sliding rail (10) on the same side in a sliding mode, the left side and the right side of the lower portion of the sliding block (5) are connected with clamping arms (11) in a rotating mode through pin shafts, and springs (12) are connected between the clamping arms (11) on the two sides.
2. The production line based self-contained lifting device of claim 1, wherein: the middle part of the cross supporting plate (6) is provided with a sliding groove (7), and the mounting sliding block (5) is slidably mounted in the sliding groove (7).
3. The production line based self-contained lifting device of claim 1, wherein: the inside of slip card frame (8) is installed gyro wheel (9) through the round pin axle rotation, gyro wheel (9) support is on slide rail (10).
4. The production line based self-contained lifting device of claim 1, wherein: the two sliding clamping frames (8) at the two ends of the cross supporting plate (6) are two, and the two sliding clamping frames (8) are symmetrically arranged about the transverse center line of the cross supporting plate (6).
5. The production line based self-contained lifting device of claim 1, wherein: the bottom end of the clamping arm (11) is provided with a hook.
