Abstract

The utility model discloses a charging pile based on artificial intelligence, comprising a charging pile main body, an upper end of the charging pile main body is provided with a rain-proof shading mechanism, the rain-proof shading mechanism comprises a photovoltaic baffle, and the photovoltaic baffle has a A buffer bracket is fixedly connected to the center of the lower end, a top column is fixedly connected to the lower end of the buffer bracket, a support plate is fixedly connected to the lower end of the top column, and a battery is fixedly connected to the lower end of the upper end of the support plate. The artificial intelligence-based charging pile of the utility model can block rainwater and sunlight, so that the main body of the charging pile will not be exposed to the sun and rain, thereby improving the service life of the main body of the charging pile. The light energy is converted into electrical energy, and the electrical energy can drive the LED light strip to illuminate the main body of the charging pile, and can seal the charging connector and the charging interface, effectively preventing the rainwater from entering the charging interface and causing a short circuit.

Description

Fill electric pile based on artificial intelligence

Technical Field

The utility model relates to a fill electric pile technical field, in particular to fill electric pile based on artificial intelligence.

Background

The charging pile has the function similar to an oiling machine in a gas station, can be fixed on the ground or on the wall, is installed in public buildings (public buildings, markets, public parking lots and the like) and residential district parking lots or charging stations, and can charge various types of electric vehicles according to different voltage grades.

Patent document 201820746089.X discloses an electric pile that fills based on artificial intelligence, including filling electric pile main part, recess, anticollision cover and infrared ray sensor, fill the bottom of electric pile main part and install the fixing base, and fill the front side upper end of electric pile main part and be provided with the siren, the recess is seted up at the lower extreme that fills the electric pile main part, electric telescopic handle is installed to the front side of electric telescopic rod control box, and electric telescopic handle runs through the recess, electric telescopic handle's end is provided with the mount, be provided with the connecting rod in the sleeve, the anticollision cover passes through fixing bolt and installs in the outside of connecting plate, and is provided with rubber bump on the anticollision cover, infrared ray sensor sets up in the below of recess, and infrared ray sensor's right side is provided with the controller. This fill electric pile based on artificial intelligence is electric connection between siren, infrared ray sensor and the controller, and when the side that infrared ray sensor sensed the car stopped outside the area, the alarm can constantly take place, reminds the car owner to stop the car.

But this electric pile mounted position that fills based on artificial intelligence is mostly outdoor environment, and long-term sunshine and rain can lead to filling electric pile's life to reduce to for the vehicle charging when raining, the rainwater can flow into the inside short circuit that leads to of mouthful that charges, probably causes the vehicle to damage, in order to solve above-mentioned problem, we have provided a electric pile that fills based on artificial intelligence.

SUMMERY OF THE UTILITY MODEL

The utility model discloses a main aim at provides a fill electric pile based on artificial intelligence, can effectively solve the problem in the background art.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

an artificial intelligence-based charging pile comprises a charging pile body, wherein a rainproof and sunshade mechanism is arranged at the upper end of the charging pile body and comprises a photovoltaic baffle plate, a buffering support is fixedly connected to the center of the lower end of the photovoltaic baffle plate, a top post is fixedly connected to the lower end of the buffering support, a supporting plate is fixedly connected to the lower end of the top post, a storage battery is fixedly connected to one side of the lower end of the top post at the upper end of the supporting plate, an L-shaped plate is fixedly connected to two sides of the lower end of the supporting plate, an LED lamp strip is fixedly connected to two sides of the lower end of the photovoltaic baffle plate, a cable is fixedly connected to the upper side of one end of the charging pile body, a charging head waterproof mechanism is fixedly connected to the lower end of the cable and comprises a handle, a leather sheath is fixedly connected to the edge of one end of the handle, a spring is arranged in the leather sheath, and a sealing ring is fixedly connected to one end of the leather sheath, the center of one end of the handle is fixedly connected with a charging connector.

Preferably, the upper end that the buffering held in the palm is laminated with the lower extreme center department of photovoltaic baffle mutually, the fore-set is provided with two sets ofly altogether, and is two sets of the fore-set both sides around the lower extreme that the buffering held in the palm are welded respectively to the fore-and-aft shore, battery fixed connection is in the centre of the two sets of batteries in the upper end of layer board.

Preferably, a bolt is arranged between the L-shaped plate and the lower end of the supporting plate, and the L-shaped plate is fixedly connected with the lower end of the supporting plate through the bolt.

Preferably, wires are arranged between the LED lamp strip and the photovoltaic baffle and the storage battery, and the LED lamp strip and the photovoltaic baffle are electrically connected with the storage battery through the wires.

Preferably, the one end of filling the electric pile main part is provided with the slot, the surface size of the joint and the leather sheath that charge and the inside size looks adaptation of slot, the one end of the joint that charges runs through handle and cable electric connection.

Preferably, the leather sheath is of a hollow structure with two open ends, one end of the spring is fixedly connected with the front end edge of the handle, and the other end of the spring is fixedly connected with one end of the sealing ring.

Compared with the prior art, the utility model discloses following beneficial effect has: the artificial intelligence-based charging pile has the advantages that the supporting plate can be fixed at the upper end of the charging pile main body through the L-shaped plate, the buffering support and the photovoltaic baffle at the upper end of the buffering support can be erected above the charging pile main body through the two groups of top posts at the upper end of the supporting plate, so that rainwater and sunlight can be shielded, the charging pile main body cannot be exposed to the sun and rain, the service life of the charging pile main body is prolonged, light energy can be converted into electric energy through the photovoltaic baffle, the electric energy enters the storage battery through a wire for storage, the electric energy can be conveyed to the LED lamp strip at night, the LED lamp strip can emit light to illuminate the charging pile main body, the handle is held and pulled out, the charging connector is aligned to the charging interface of a vehicle, the charging connector is clamped into the charging interface by pressing downwards, meanwhile, the sealing ring can be tightly attached to the outer side of the charging interface of the vehicle, and pressure is provided for the spring through the handle, make the spring with the tight oppression of sealing washer in the outside of the interface that charges, can be isolated with outside rainwater through the leather sheath to can make the joint that charges and the interface that charges sealed isolated, the effectual rainwater of having avoided gets into the inside condition that leads to the short circuit of the interface that charges, comparatively practical.

Drawings

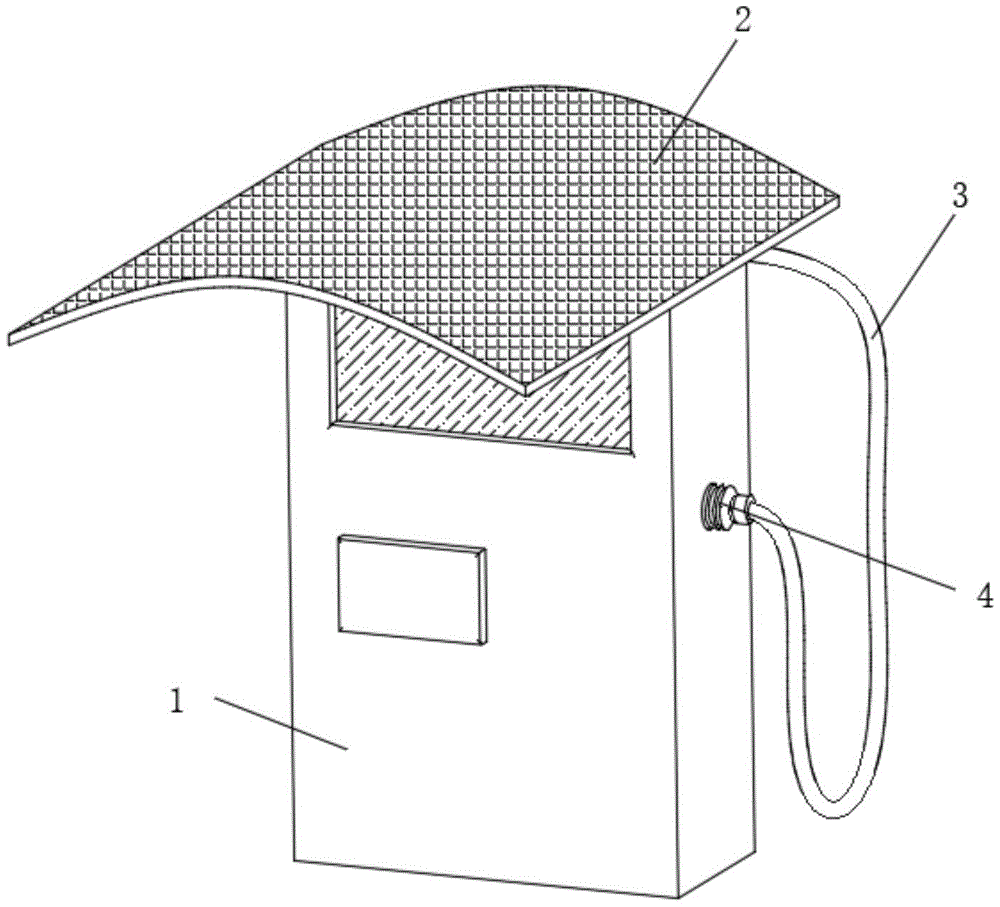

Fig. 1 is a schematic view of the overall structure of an artificial intelligence based charging pile of the present invention;

fig. 2 is an overall sectional schematic view of the artificial intelligence based charging pile of the present invention;

FIG. 3 is an enlarged view of the charging pile A based on artificial intelligence of the present invention;

fig. 4 is the utility model relates to a fill first waterproofing mechanism that charges of electric pile's sketch map that dissects based on artificial intelligence.

In the figure: 1. a charging pile main body; 2. a rain-proof and sun-shading mechanism; 21. a photovoltaic baffle; 22. a buffer support; 23. a top pillar; 24. a storage battery; 25. a support plate; 26. an L-shaped plate; 27. an LED light strip; 3. a cable; 4. a charging head waterproofing mechanism; 41. a handle; 42. a leather sheath; 43. a spring; 44. a seal ring; 45. and a charging connector.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

As shown in fig. 1-4, an artificial intelligence-based charging pile comprises a charging pile body 1, a rainproof and sunshade mechanism 2 is arranged at the upper end of the charging pile body 1, the rainproof and sunshade mechanism 2 comprises a photovoltaic baffle plate 21, a buffer support 22 is fixedly connected at the center of the lower end of the photovoltaic baffle plate 21, a top post 23 is fixedly connected at the lower end of the buffer support 22, a support plate 25 is fixedly connected at the lower end of the top post 23, a storage battery 24 is fixedly connected at one side of the lower end of the top post 23 at the upper end of the support plate 25, L-shaped plates 26 are fixedly connected at both sides of the lower end of the support plate 25, LED strips 27 are fixedly connected at both sides of the lower end of the photovoltaic baffle plate 21, a cable 3 is fixedly connected at the upper side of one end of the charging pile body 1, a charging head waterproof mechanism 4 is fixedly connected at the lower end of the cable 3, the charging head waterproof mechanism 4 comprises a handle 41, a leather sheath 42 is fixedly connected at the edge of one end of the handle 41, a spring 43 is arranged inside the leather sheath 42, one end of the leather sheath 42 is fixedly connected with a sealing ring 44, and the center of one end of the handle 41 is fixedly connected with a charging connector 45.

In this embodiment, the upper end of the buffer support 22 is attached to the center of the lower end of the photovoltaic baffle 21, the two groups of top pillars 23 are arranged, the two groups of top pillars 23 are welded to the front and rear sides of the lower end of the buffer support 22 respectively, and the storage battery 24 is fixedly connected to the middle of the two groups of storage batteries 24 on the upper end of the supporting plate 25.

And a bolt is arranged between the L-shaped plate 26 and the lower end of the supporting plate 25, and the L-shaped plate 26 is fixedly connected with the lower end of the supporting plate 25 through the bolt.

Wires are arranged between the LED strip 27 and the photovoltaic baffle 21 and the storage battery 24, and the LED strip 27 and the photovoltaic baffle 21 are electrically connected with the storage battery 24 through the wires.

It is specific, can fix the layer board 25 in the upper end of filling electric pile main part 1 through L template 26, can hold in the palm 22 and the photovoltaic baffle 21 that the buffering held in the palm 22 upper end through two sets of top posts 23 of layer board 25 upper end with the buffering and erect the top of filling electric pile main part 1, thereby can shelter from rainwater and sunshine, make and fill electric pile main part 1 and can not drench by the sun-shine rain, the life who fills electric pile main part 1 has been improved, and can become the electric energy with light energy conversion through photovoltaic baffle 21, the electric energy passes through the wire and gets into battery 24 and stores, can carry the electric energy to LED lamp area 27 evening, make LED lamp area 27 can give out light to fill electric pile main part 1 and illuminate.

In this embodiment, the one end of filling electric pile main part 1 is provided with the slot, and the surface size of the joint 45 and the leather sheath 42 that charge and the inside dimension looks adaptation of slot, the one end of the joint 45 that charges run through handle 41 and cable 3 electric connection.

The leather sheath 42 is a hollow structure with two open ends, one end of the spring 43 is fixedly connected with the front end edge of the handle 41, and the other end of the spring 43 is fixedly connected with one end of the sealing ring 44.

It is specific, grip handle 41 and outwards take out, the interface that charges of the vehicle is aimed at to the joint 45 that charges, press down and make the joint 45 card that charges go into in the interface that charges, sealing washer 44 can hug closely in the outside of the interface that charges of vehicle simultaneously, provide pressure for spring 43 through handle 41, make spring 43 with the tight oppression of sealing washer 44 in the outside of the interface that charges, can be isolated with outside rainwater through leather sheath 42, thereby can make the joint 45 that charges and the interface that charges sealed isolated, the effectual rainwater of having avoided gets into the inside condition that leads to the short circuit of the interface that charges, and is practical.

It should be noted that, the utility model relates to an artificial intelligence based charging pile, a user can fix a support plate 25 on the upper end of a charging pile main body 1 by screwing bolts on an L-shaped plate 26, a buffer support 22 and a photovoltaic baffle 21 (model: HQED250070) on the upper end of the buffer support 22 can be arranged above the charging pile main body 1 through two groups of top posts 23 on the upper end of the support plate 25, so as to shield rainwater and sunlight, and light energy can be converted into electric energy through the photovoltaic baffle 21, the electric energy enters a storage battery 24 (model: 12-7) through a lead for storage, the electric energy can be transmitted to an LED strip 27 (model: CX-5050-72U) at night, so that the LED strip 27 can emit light to clamp the charging pile main body 1, a handle 41 is held and taken out, the charging pile 45 is aligned with a charging interface of a vehicle, the charging interface is pressed downwards to be clamped into the charging interface 45, meanwhile, the sealing ring 44 can be tightly attached to the outer side of a vehicle charging interface, pressure is provided for the spring 43 through the handle 41, the spring 43 tightly presses the sealing ring 44 to the outer side of the charging interface, external rainwater can be isolated through the leather sheath 42, and therefore the charging connector 45 and the charging interface can be sealed and isolated.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. A charging pile based on artificial intelligence, comprising a charging pile main body (1), characterized in that: the upper end of the charging pile main body (1) is provided with a rainproof sunshade mechanism (2), and the rainproof sunshade mechanism ( 2) comprising a photovoltaic baffle (21), a buffer bracket (22) is fixedly connected to the center of the lower end of the photovoltaic baffle (21), and a top column (23) is fixedly connected to the lower end of the buffer bracket (22), so A support plate (25) is fixedly connected to the lower end of the top column (23), a battery (24) is fixedly connected to the lower end side of the top column (23) of the top end of the support plate (25), and the support plate (25) L-shaped plates (26) are fixedly connected on both sides of the lower end of the photovoltaic baffle (21), LED light strips (27) are fixedly connected on both sides of the lower end of the photovoltaic baffle (21), and one end of the charging pile main body (1) is fixedly connected on the upper side. There is a cable (3), the lower end of the cable (3) is fixedly connected with a charging head waterproof mechanism (4), the charging head waterproof mechanism (4) includes a handle (41), and one end edge of the handle (41) is fixed A holster (42) is connected, a spring (43) is arranged inside the holster (42), a sealing ring (44) is fixedly connected to one end of the holster (42), and one end of the handle (41) A charging connector (45) is fixedly connected at the center.

2. A charging pile based on artificial intelligence according to claim 1, characterized in that: the upper end of the buffer bracket (22) is in contact with the center of the lower end of the photovoltaic baffle (21), and the top post (23) A total of two groups are arranged, the two groups of top posts (23) are welded to the front and rear sides of the lower end of the buffer bracket (22) respectively, and the battery (24) is fixedly connected to the upper end of the bracket (25). The middle of the battery (24).

3. A charging pile based on artificial intelligence according to claim 1, characterized in that: bolts are provided between the L-shaped plate (26) and the lower end of the support plate (25), and the L-shaped plate (26) 26) It is fixedly connected with the lower end of the support plate (25) through bolts.

4. The artificial intelligence-based charging pile according to claim 1, wherein a wire is provided between the LED light strip (27), the photovoltaic baffle (21) and the battery (24), and the The LED light strip (27) and the photovoltaic baffle (21) are electrically connected to the battery (24) through wires.

5. A charging pile based on artificial intelligence according to claim 1, characterized in that: one end of the main body (1) of the charging pile is provided with a slot, the charging connector (45) and the holster (42) The size of the outer surface of the charging connector (45) is adapted to the inner size of the slot, and one end of the charging connector (45) is electrically connected to the cable (3) through the handle (41).

6 . The artificial intelligence-based charging pile according to claim 1 , wherein the holster ( 42 ) is a hollow structure with open ends, and one end of the spring ( 43 ) is connected to the handle ( 41 ). 7 . The front end edge of the spring (43) is fixedly connected, and the other end of the spring (43) is fixedly connected with one end of the sealing ring (44).
