CN214351833U

CN214351833U - Display screen repair fixing device convenient to fix a position fixedly

Info

Publication number: CN214351833U
Application number: CN202022093237.2U
Authority: CN
Inventors: 陈叶金
Original assignee: Nanjing Optics Robot Technology Co ltd
Current assignee: Xinyecheng Intelligent Equipment Wuxi Co ltd
Priority date: 2020-09-22
Filing date: 2020-09-22
Publication date: 2021-10-08
Anticipated expiration: 2030-09-22

Abstract

The utility model discloses a display screen repairing and fixing device which is convenient for positioning and fixing. A guide rod is movably installed through the bearing seat. For the display screen repair fixing device that is easy to locate and fix, the staff first places the device on the workbench, and then places the display screen between the two clamping plates, because the left clamping plate is connected to the left mounting plate and the right A spring is movably installed between the side clamping plate and the right mounting plate. The spring uses the reaction force to clamp the display screen placed between the clamping plates. Since the rubber pad is in a right-angle shape, it is convenient for the staff to use the device. During the process, the display screen can be better protected from damage, and because the clamping plates are symmetrically distributed on the upper end face of the base, it is convenient to better clamp the display screen, the operation is simple, the use is convenient, and the practicality of the device is greatly improved. sex.

Description

Display screen repair fixing device convenient to fix a position fixedly

Technical Field

The utility model relates to a fixing device technical field is restoreed to the display screen, specifically is a fixing device is restoreed to display screen convenient to location is fixed.

Background

The display is also commonly called a monitor, is an I/O device belonging to a computer, i.e., an input/output device, is a display tool that displays a certain electronic document on a screen through a specific transmission device and reflects the electronic document to human eyes, and can be divided into various types, i.e., CRT, LCD, and the like.

But most LED display screen sizes that have now are all bigger than normal, and the LED display screen fixer on the existing market easily causes the damage of display screen after large-size LED display screen fixed mounting uses, and the not convenient to use, and the current fixing device is restoreed to display screen operation complicacy, and the not convenient to use.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a display screen repair fixing device convenient to location is fixed to it is all bigger than normal to propose the LED display screen size of most current in solving above-mentioned background art, the LED display screen fixer on the existing market easily causes the damage of display screen after large-size LED display screen fixed mounting uses, and the use is not convenient for, and the current display screen repair fixing device operation is complicated, the problem of not convenient to use.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a display screen repair fixing device convenient to location is fixed, the on-line screen storage device comprises a base, the lower terminal surface fixed mounting of base has the pillar, two recesses have been seted up to the up end of base, there is the guide bar inside of recess through bearing frame movable mounting, the outside movable mounting of guide bar has two sliders, the up end fixed mounting of slider has the pinch-off blades, the left side fixed mounting of pinch-off blades has horizontal fixed block, the left end face of terminal surface and pinch-off blades is pasted and is installed the rubber pad under the horizontal fixed block, all install vertical fixed block between pinch-off blades and the mounting panel, movable mounting has the steel spring between the vertical fixed block.

Preferably, the rubber pad is the right angle form, vertical fixed block symmetric distribution is in the left and right sides of steel spring, the up end at the base is distributed to the clamp plate symmetry.

Preferably, the transverse fixing blocks are symmetrically distributed on the upper end face of the base.

Preferably, the sliding blocks are symmetrically distributed on the outer side of the guide rod, and lubricating oil is arranged on the inner side of each sliding block and the outer side of each guide rod.

Preferably, the pillars are symmetrically distributed on the lower end surface of the base respectively.

Preferably, the grooves are symmetrically distributed on the front side and the rear side of the upper end surface of the base.

Compared with the prior art, the beneficial effects of the utility model are that: the display screen repairing and fixing device convenient to position and fix is characterized in that in the process of using the device by workers, the workers firstly place the device on a workbench, then the workers need to push a clamping plate on the left side of the upper end face of a base leftwards and push a clamping plate on the right side of the upper end face of the base rightwards, at the moment, a display screen is placed between the two clamping plates, springs are movably arranged between the left clamping plate and a left mounting plate as well as between the right clamping plate and a right mounting plate, the springs use reaction force to clamp the display screen placed between the clamping plates, and rubber pads are arranged in a right-angle shape, so that the display screen can be better protected from being damaged in the process of using the device by the workers, and the clamping plates are symmetrically distributed on the upper end face of the base, so that the display screen can be better clamped, the operation is simple and the use is convenient, the practicability of the device is greatly improved.

Drawings

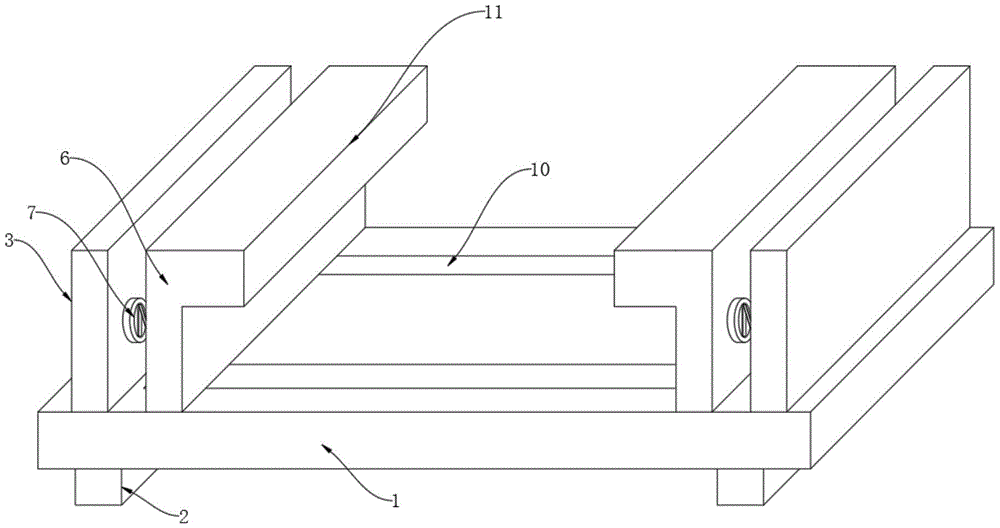

Fig. 1 is a schematic perspective view of the present invention;

FIG. 2 is a schematic sectional view of the present invention;

fig. 3 is a schematic view of a three-dimensional structure of the present invention.

In the figure: 1. a base; 2. a pillar; 3. mounting a plate; 4. a guide bar; 5. a slider; 6. a clamping plate; 7. a vertical fixed block; 8. a steel spring; 9. a rubber pad; 10. a groove; 11. and a transverse fixing block.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a display screen repair fixing device convenient to location is fixed, the on-line screen storage device comprises a base 1, base 1's lower terminal surface fixed mounting has pillar 2, two recess 10 have been seted up to base 1's up end, there is guide bar 4 inside of recess 10 through bearing frame movable mounting, there are two sliders 5 outside movable mounting of guide bar 4, slider 5's up end fixed mounting has clamp plate 6, clamp plate 6's left side fixed mounting has horizontal fixed block 11, terminal surface and clamp plate 6's left end face are pasted and are installed rubber pad 9 under the horizontal fixed block 11, all install vertical fixed block 7 between clamp plate 6 and the mounting panel 3, movable mounting has steel spring 8 between the vertical fixed block 7.

Further, rubber pad 9 is the right angle form, and 7 symmetric distributions of vertical fixed block are in the left and right sides of

steel spring

8, and 6 symmetric distributions of pinch-off blades are at base 1's up end, are the right angle form through setting up rubber pad 9, are convenient for at staff operative installations's in-process, and protection display screen that can be better does not receive the damage, and through setting up 6 symmetric distributions of pinch-off blades at base 1's up end, be convenient for better press from both sides tightly the display screen.

Furthermore, the transverse fixing blocks 11 are symmetrically distributed on the upper end face of the base 1, so that the fixing is facilitated.

Further, slider 5 symmetric distribution all is provided with lubricating oil in the outside of guide bar 4 in the inboard of slider 5 and the outside of guide bar 4, all is provided with lubricating oil through the inboard that sets up slider 5 and the outside of guide bar 4, and at staff's in-process using device, two clamp plates 6 of control that can be steady press from both sides tightly the display screen.

Further, pillar 2 symmetric distribution is at the lower terminal surface of base 1 respectively, through setting up pillar 2 symmetric distribution at the lower terminal surface of base 1 respectively, is convenient for at staff's in-process of using the device, can directly place the device on the workstation.

Furthermore, the grooves 10 are symmetrically distributed on the front side and the rear side of the upper end face of the base 1, so that the movement is facilitated.

The working principle is as follows: firstly, in the process of using the device by an operator, the operator firstly places the device on a workbench, then the operator needs to push the clamping plate 6 on the left side of the upper end surface of the base 1 to the left side and push the clamping plate 6 on the right side of the upper end surface of the base 1 to the right side, at the moment, a display screen is placed between the two clamping plates 6, springs are movably arranged between the left clamping plate 6 and the left mounting plate 3 as well as between the right clamping plate 6 and the right mounting plate 3, the springs use reaction force to clamp the display screen placed between the clamping plates 6, and the rubber pads 9 are arranged in a right-angle shape, so that the display screen can be better protected from being damaged in the process of using the device by the operator, and the clamping plates 6 are symmetrically distributed on the upper end surface of the base 1, so that the display screen can be better clamped, the operation is simple and the use is convenient, the practicability of the device is greatly improved.

It should be finally noted that the above only serves to illustrate the technical solution of the present invention, and not to limit the scope of the present invention, and that simple modifications or equivalent replacements performed by those skilled in the art to the technical solution of the present invention do not depart from the spirit and scope of the technical solution of the present invention.

Claims

1. The utility model provides a fixing device is restoreed to display screen convenient to location is fixed, includes base (1), its characterized in that: lower terminal surface fixed mounting of base (1) has pillar (2), two recess (10) have been seted up to the up end of base (1), there are guide bar (4) inside of recess (10) through bearing frame movable mounting, the outside movable mounting of guide bar (4) has two slider (5), the up end fixed mounting of slider (5) has clamp plate (6), the left side fixed mounting of clamp plate (6) has horizontal fixed block (11), terminal surface and the left end face of clamp plate (6) are pasted and are installed rubber pad (9) under horizontal fixed block (11), all install vertical fixed block (7) between clamp plate (6) and mounting panel (3), movable mounting has steel spring (8) between vertical fixed block (7).

2. The display screen repair fixture facilitating positional fixation of claim 1, wherein: rubber pad (9) are the right angle form, vertical fixed block (7) symmetric distribution is in the left and right sides of steel spring (8), clamping plate (6) symmetric distribution is in the up end of base (1).

3. The display screen repair fixture facilitating positional fixation of claim 1, wherein: the transverse fixing blocks (11) are symmetrically distributed on the upper end face of the base (1).

4. The display screen repair fixture facilitating positional fixation of claim 1, wherein: the sliding blocks (5) are symmetrically distributed on the outer side of the guide rod (4), and lubricating oil is arranged on the inner side of the sliding blocks (5) and the outer side of the guide rod (4).

5. The display screen repair fixture facilitating positional fixation of claim 1, wherein: the pillars (2) are respectively and symmetrically distributed on the lower end surface of the base (1).

6. The display screen repair fixture facilitating positional fixation of claim 1, wherein: the grooves (10) are symmetrically distributed on the front side and the rear side of the upper end face of the base (1).
