CN214348539U

CN214348539U - Metal dust collection device for machining

Info

Publication number: CN214348539U
Application number: CN202120147816.2U
Authority: CN
Inventors: 罗峻况
Original assignee: Individual
Current assignee: Hebei Xingfeng Machinery Equipment Co ltd
Priority date: 2021-01-19
Filing date: 2021-01-19
Publication date: 2021-10-08
Anticipated expiration: 2031-01-19

Abstract

The utility model relates to the technical field of mechanical processing, and specifically discloses a metal dust collecting device for mechanical processing, which comprises a dust suction pipe, the top of the dust suction pipe is fixedly connected with a dust suction cover, and an electromagnet is installed in the center of the bottom of the inner wall of the dust suction pipe. , the bottom of the outer wall of the electromagnet is slidably connected with a dust collection box, the center of the bottom of the vacuum pipe is fixedly connected with a base, the center of the right side of the base is installed with an electric telescopic rod, and the center of the right side of the vacuum pipe close to the bottom is fixedly connected with a A fan is installed in the center on the right side of the transmission pipe; the utility model makes the dust be classified and processed, which is conducive to the subsequent recycling and utilization of metal dust by the staff, improves the work efficiency, and enables the electric telescopic rod to drive the dust collecting box Move up and scrape all the metal dust on the outer wall of the electromagnet into the dust collecting box, without the need for the staff to scrape it manually, which is convenient for the staff to regularly clean the dust in the waste box.

Description

Metal dust collection device for machining

Technical Field

The utility model relates to a machining technical field specifically is a metal dust collection device for machining.

Background

The machining is a process of changing the outer dimensions or properties of a workpiece by a mechanical device, and is classified into cutting and pressing according to differences in machining modes, and a large amount of metal dust is generated in the process of machining a raw material of a metal material.

At present staff can use collection device to carry out recycle to the dust that processing produced, but it does not carry out categorised collection to metal dust and ordinary dust, and the very follow-up recycle that is unfavorable for consequently need design a metal dust collection device for machining to solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

The utility model provides a not enough to prior art, the utility model provides a metal dust collection device for machining possesses advantages such as categorised collection, improvement work efficiency, has solved ordinary dust collection device and has not the problem of classification function.

The utility model discloses a metal dust collection device for machining, including the dust absorption pipe, the top fixedly connected with suction hood of dust absorption pipe, the electro-magnet is installed to the central authorities of dust absorption inside pipe wall bottom, the bottom sliding connection of electro-magnet outer wall has the dust collection box, the central fixedly connected with base of dust absorption socle portion, electric telescopic handle is installed to the central authorities on base right side, the central authorities on dust absorption pipe right side and the rigidity intercommunication that is close to the bottom have the conveying pipe, the central authorities on conveying pipe right side install the fan.

The utility model discloses a metal dust collection device for machining, wherein the central fixedly connected with scraping ring of dust collection box inner wall bottom, the inner wall of scraping ring is laminated mutually with the outer wall of electro-magnet, and this structure sets up for can be with the metal dust on the electro-magnet outer wall whole scrape when dust collection box rebound and fall in the dust collection box, improved work efficiency.

The utility model discloses a metal dust collection device for machining, wherein the central authorities of dust collection box bottom and the position that is close to the right side begin to have first recess, the top fixedly connected with dead lever of electric telescopic handle output shaft, the top activity of dead lever is pegged graft in first recess, and this structure sets up for electric telescopic handle's output shaft can drive the dust collection box and reciprocate when removing.

The utility model discloses a metal dust collection device for machining, wherein the second recess has been seted up to the central authorities of dust collection box right side bottom, the left side fixedly connected with spring of second recess inner wall, the right side fixedly connected with connecting block of spring, the left central fixedly connected with movable rod of connecting block, the draw-in groove has been seted up to the central authorities on dead lever right side and the position that is close to the top, the right side and the activity of first recess are run through in the left side of movable rod and the activity is pegged graft in the draw-in groove, and this structure sets up for be connected between dust collection box and the dead lever more stable, so that electric telescopic handle can be better promote the dust collection box.

The utility model discloses a metal dust collection device for machining, wherein the inside bottom threaded connection of conveyer pipe has waste material box, the bottom fixedly connected with lug on waste material box right side, this structure setting for ordinary dust can be collected wherein, makes things convenient for the staff regularly to clear up it.

The utility model discloses a metal dust collection device for machining, wherein the top on dust absorption pipe right side articulates there is the recovery door, the central authorities on recovery door right side install the handle, and this structure sets up for the staff can open the recovery door, takes out the dust collection box and carries out recovery processing to its inside metal dust.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses an electro-magnet that sets up, the fan of cooperation installation for the device is when collecting the dust, and the dust of metal can be adsorbed on the electro-magnet of circular telegram, and ordinary dust has been inhaled in the conveyer, makes the dust be carried out classification, is favorable to the follow-up recycle to the metal dust of staff, has improved work efficiency, and the waste material box and the lug that the cooperation set up make ordinary dust can be collected wherein, makes things convenient for the staff to regularly clear up it.

2. The utility model discloses an electric telescopic handle who sets up cooperates gliding dust collection box for electric telescopic handle can drive the dust collection box rebound and with the metal dust on the electro-magnet outer wall all scrape and fall in the dust collection box, need not the staff and manually scrape and get, has improved efficiency, cooperates articulated recovery door, makes the staff can open the recovery door, takes out the dust collection box and carries out recovery processing to its inside metal dust.

Drawings

The accompanying drawings, which are included to provide a further understanding of the application and are incorporated in and constitute a part of this application, illustrate embodiment(s) of the application and together with the description serve to explain the application and not to limit the application. In the drawings:

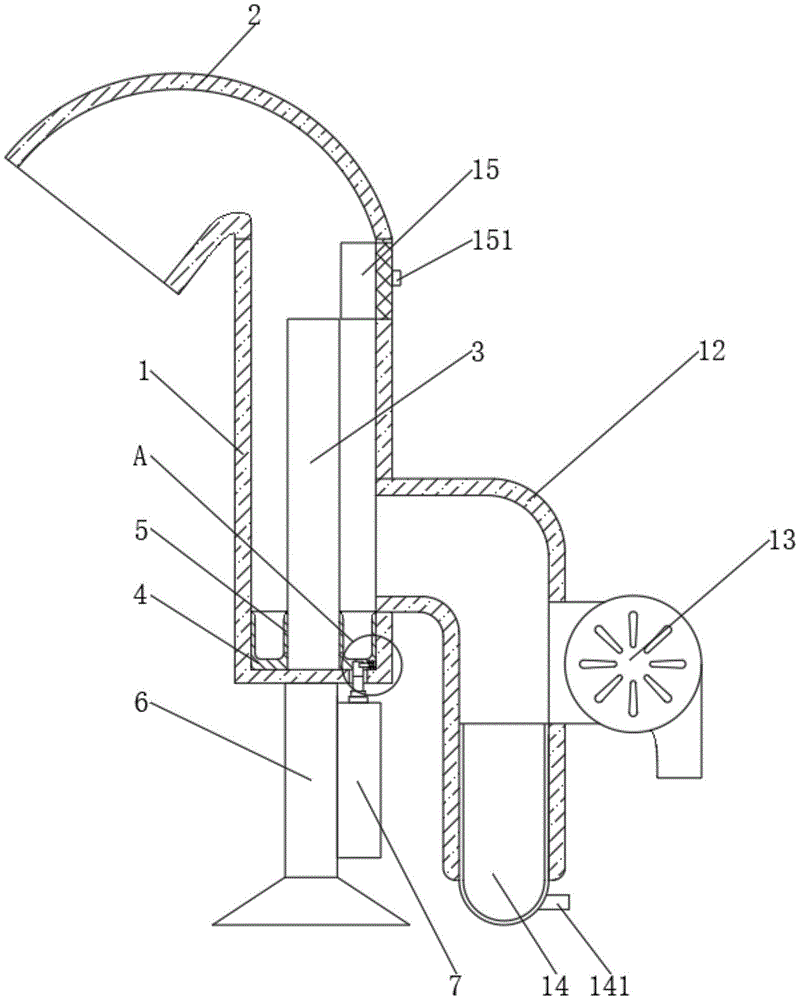

FIG. 1 is a schematic view of the overall front cross-sectional structure of the present invention;

FIG. 2 is an enlarged view of the structure at A in FIG. 1;

fig. 3 is a schematic view of the top view of the dust collecting box of the present invention.

In the figure: 1. a dust collection pipe; 2. a dust hood; 3. an electromagnet; 4. a dust collecting box; 41. a first groove; 42. a second groove; 5. scraping rings; 6. a base; 7. an electric telescopic rod; 8. fixing the rod; 81. a card slot; 9. a spring; 10. connecting blocks; 11. a movable rod; 12. a transfer tube; 13. a fan; 14. a waste material box; 141. a bump; 15. a recovery door; 151. a handle.

Detailed Description

In the following description, numerous implementation details are set forth in order to provide a more thorough understanding of the present invention. It should be understood, however, that these implementation details should not be used to limit the invention. That is, in some embodiments of the invention, details of these implementations are not necessary. In addition, some conventional structures and components are shown in simplified schematic form in the drawings.

In addition, the descriptions related to "first", "second", etc. in the present invention are only for description purposes, not specifically referring to the order or sequence, and are not intended to limit the present invention, but only to distinguish the components or operations described in the same technical terms, and are not to be construed as indicating or implying any relative importance or implicit indication of the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In addition, the technical solutions in the embodiments may be combined with each other, but it must be based on the realization of those skilled in the art, and when the technical solutions are contradictory or cannot be realized, the combination of the technical solutions should not be considered to exist, and is not within the protection scope of the present invention.

Please refer to fig. 1-3, the utility model discloses a metal dust collection device for machining, including dust absorption pipe 1, dust absorption pipe 1's top fixedly connected with suction hood 2, the central authorities of dust absorption pipe 1 inner wall bottom install electro-magnet 3, the bottom sliding connection of 3 outer walls of electro-magnet has dust collection box 4, the central authorities' fixedly connected with base 6 of dust absorption pipe 1 bottom, electric telescopic handle 7 is installed to the central authorities on base 6 right side, the central authorities on dust absorption pipe 1 right side and the fixed position intercommunication that is close to the bottom have conveying pipe 12, conveying pipe 12 right side central authorities install fan 13.

The central fixedly connected with scraping ring 5 of dust collection box 4 inner wall bottom, the inner wall of scraping ring 5 and the outer wall of electro-magnet 3 laminate mutually, and this structure setting for can be with the metal dust on the 3 outer walls of electro-magnet when dust collection box 4 rebound all scrape and fall in dust collection box 4, improved work efficiency.

The first groove 41 is formed in the center of the bottom of the dust collection box 4 and in the position close to the right side, the fixing rod 8 is fixedly connected to the top of the output shaft of the electric telescopic rod 7, the top of the fixing rod 8 is movably inserted into the first groove 41, and the structure is arranged so that the output shaft of the electric telescopic rod 7 can drive the dust collection box 4 to move up and down when moving.

Second recess 42 has been seted up to the central authorities of dust collection box 4 right side bottom, the left side fixedly connected with spring 9 of second recess 42 inner wall, spring 9's right side fixedly connected with connecting block 10, the left central fixedly connected with movable rod 11 of connecting block 10, draw-in groove 81 has been seted up to the central authorities on dead lever 8 right side and the position that is close to the top, the right side and the activity of first recess 41 are run through in the left side of movable rod 11 and are pegged graft in draw-in groove 81, the structure sets up, make the connection between dust collection box 4 and the dead lever 8 more stable, so that electric telescopic handle 7 can be better promote dust collection box 4.

The inside bottom threaded connection of conveying pipe 12 has waste material box 14, and the bottom fixedly connected with lug 141 on waste material box 14 right side, this structural arrangement for ordinary dust can be collected wherein, makes things convenient for the staff to regularly clear up it.

The top on the right side of the dust collection pipe 1 is hinged with a recovery door 15, the handle 151 is installed in the center of the right side of the recovery door 15, and the dust collection box 4 is taken out to recycle the metal dust inside the recovery door 15 due to the arrangement of the structure.

When using the utility model discloses the time: the working personnel firstly align the dust hood 2 to the machining direction, then open the fan 13 and energize the electromagnet 3, the fan 13 sucks the dust generated by machining into the dust absorption pipe 1 through the dust hood 2, wherein the metal dust is absorbed on the electromagnet 3, while the common dust is sucked into the conveying pipe 12, the device classifies the dust, after the machining is finished, the working personnel close the fan 13, then open the electric telescopic rod 7, so that the dust collection box 4 moves upwards and scrapes the metal dust on the outer wall of the electromagnet 3 into the dust collection box 4, then the working personnel open the recovery door 15, the connecting block 10 moves rightwards under the action of the spring 9, so that the movable rod 11 is separated from the fixed rod 8, the working personnel can take out the dust collection box 4 to recover the metal dust in the dust collection box 4, after the recovery is finished, the dust collection box 4 is put back and the recovery door 15 is closed, at this time, the recycling door 15 pushes the connecting block 10 rightwards, so that the movable rod 11 is inserted into the clamping groove 81 on the fixed rod 8, and then the worker opens the electric telescopic rod 7 to lower the dust collecting box 4.

The above description is only an embodiment of the present invention, and is not intended to limit the present invention. Various modifications and changes may occur to those skilled in the art. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention should be included in the scope of the claims of the present invention.

Claims

1. A metal dust collection device for machining, comprising a dust suction pipe (1), characterized in that: a dust suction hood (2) is fixedly connected to the top of the dust suction pipe (1), and the dust suction pipe ( 1) An electromagnet (3) is installed at the center of the bottom of the inner wall, a dust collecting box (4) is slidably connected to the bottom of the outer wall of the electromagnet (3), and a base (4) is fixedly connected to the center of the bottom of the dust suction pipe (1). 6), an electric telescopic rod (7) is installed in the center of the right side of the base (6), and a transfer pipe (12) is fixedly connected to the center of the right side of the dust suction pipe (1) and close to the bottom. A fan (13) is installed in the center of the right side of the transfer pipe (12).

2. A metal dust collecting device for machining according to claim 1, characterized in that: a scraper ring (5) is fixedly connected to the center of the bottom of the inner wall of the dust collecting box (4), and the scraper ring (5) ) and the outer wall of the electromagnet (3).

3. A metal dust collecting device for machining according to claim 1, characterized in that: a first groove (41) begins at the center of the bottom of the dust collecting box (4) and at a position close to the right side, A fixing rod (8) is fixedly connected to the top of the output shaft of the electric telescopic rod (7), and the top of the fixing rod (8) is movably inserted into the first groove (41).

4. A metal dust collecting device for machining according to claim 3, characterized in that: a second groove (42) is opened in the center of the bottom right side of the dust collecting box (4), and the second groove (42) A spring (9) is fixedly connected to the left side of the inner wall of the groove (42), a connection block (10) is fixedly connected to the right side of the spring (9), and a movable center is fixedly connected to the left side of the connection block (10). The rod (11), the center of the right side of the fixed rod (8) and the position close to the top is provided with a slot (81), the left side of the movable rod (11) penetrates the right side of the first groove (41) and movably inserted into the card slot (81).

5 . The metal dust collection device for machining according to claim 1 , wherein a waste box ( 14 ) is threadedly connected to the bottom of the conveying pipe ( 12 ), and the waste box ( 14 ) is threaded to the right of the waste box ( 14 ). The bottom of the side is fixedly connected with a bump (141).

6. A metal dust collection device for machining according to claim 1, characterized in that: a recovery door (15) is hinged on the top of the right side of the dust suction pipe (1), and the recovery door (15) A handle (151) is attached to the center of the right side.
