CN214346445U

CN214346445U - High-efficient reation kettle convenient to maintain

Info

Publication number: CN214346445U
Application number: CN202023314390.XU
Authority: CN
Inventors: 佀青峰; 邵洪宝; 贾菲菲
Original assignee: Henan Helxi Biotechnology Co ltd
Current assignee: Henan Helxi Biotechnology Co ltd
Priority date: 2020-12-31
Filing date: 2020-12-31
Publication date: 2021-10-08
Anticipated expiration: 2030-12-31

Abstract

The utility model provides a high-efficiency reaction kettle which is easy to maintain, comprising a kettle body, a feeding port is arranged at the top of the kettle body, a discharging outlet is arranged at the bottom of the kettle body, a rotating rod is arranged inside the kettle body, and the rotating rod is stirred by a stirring rod. The motor drives it to rotate, and the rotating rod is provided with a stirring rod; the rotating rod is a hollow tube sealed at the bottom, the top of the rotating rod is connected with a water pipe through a rotary joint, and a booster pump is provided on the water pipe; one end of the stirring rod is communicated with the rotating rod The support rod is a hollow structure, the other end of the support rod is a bell mouth, a sealing ball is arranged in the bell mouth, a fixed rod is also arranged in the support rod, and a spring that exerts a tensile force on the sealing ball is arranged on the fixed rod; The bottom of the body is provided with an outlet, the side wall is provided with a plurality of return ports, and the multiple outlets are connected to the annular pipe. The annular pipe is provided with a return pipe, and the return pipe is provided with a material pump. The utility model can efficiently clean the inside of the kettle body, and at the same time can ensure that the materials are efficiently mixed and reacted inside the kettle body.

Description

High-efficient reation kettle convenient to maintain

Technical Field

The utility model relates to a chemical storage equipment technical field, concretely relates to high-efficient reation kettle convenient to maintain.

Background

With the continuous development and progress of society, the chemical manufacturing aspect can be rapidly developed, a part of chemical products need to use a chemical reaction kettle in the processing process, the existing chemical reaction kettle needs to be cleaned after being used, but when the existing chemical reaction kettle is cleaned, a user needs to manually clean the chemical reaction kettle, so that the workload of the user is increased, and the inconvenience is brought to the cleaning of the reaction kettle; in addition, the existing reaction kettle has the defects of low mixing efficiency and influence on reaction efficiency when materials are mixed.

SUMMERY OF THE UTILITY MODEL

The utility model aims at the not enough of prior art, provide a high-efficient reation kettle convenient to maintain, concrete scheme is as follows:

a high-efficiency reaction kettle convenient to maintain comprises a kettle body, wherein a feed inlet is formed in the top of the kettle body, a discharge outlet and a plurality of supporting legs are formed in the bottom of the kettle body, an electromagnetic valve is arranged at the discharge outlet, a rotating rod is rotatably arranged in the kettle body, the rotating rod is driven to rotate by a stirring motor arranged at the top of the kettle body through a gear structure, and a plurality of stirring rods are arranged on the rotating rod; the rotating rod is a hollow tube with a sealed bottom, the top of the rotating rod is connected with a water pipe through a rotary joint, and a booster pump is arranged on the water pipe; the stirring rod comprises a supporting rod, one end of the supporting rod is communicated with the rotating rod, the supporting rod is of a hollow structure, the other end of the supporting rod is a bell mouth, a sealing ball is arranged in the bell mouth, a fixed rod is further arranged in the supporting rod, and a spring for applying tension to the sealing ball is arranged on the fixed rod; the bottom of the cauldron body is equipped with a plurality of exports, and the lateral wall of the cauldron body is equipped with a plurality of backward flow mouths that are in not co-altitude, and is a plurality of the export all is connected to the ring type pipe, be equipped with the back flow on the ring type pipe, be equipped with the material pump on the back flow, the backward flow mouth is connected with the back flow.

Based on the above, the supporting leg includes stand and sleeve, the stand passes through elastic component elastic seat and establishes in the sleeve, telescopic bottom is equipped with the rubber pad.

Based on the above, agitator motor, booster pump, solenoid valve, material pump all electric connection to set up the controller of cauldron body lateral wall.

The utility model discloses relative prior art has substantive characteristics and progress, specifically speaking, the utility model has the following advantages:

1. the utility model discloses in, set up a plurality of exports through the bottom at the cauldron body, the lateral wall of the cauldron body is equipped with a plurality of backward flow mouths that are in not co-altitude, and a plurality of exports all are connected to the ring type pipe, are equipped with the back flow on the ring type pipe, are equipped with the material pump on the back flow, and the backward flow mouth is connected with the back flow, and this structural design can be convenient for with the internal portion of cauldron material flash mixed evenly, improves the reaction efficiency of material in reation kettle.

2. The utility model discloses in, utilize the booster pump to discharge from branch after introducing the bull stick with high-pressure rivers and wash the internal portion of cauldron, compare in traditional cleaning means, convenient and fast is less to the internal portion damage of cauldron moreover.

3. The utility model discloses in, the puddler include one end with the branch of bull stick intercommunication, branch are hollow structure, and the other end of branch is the horn mouth, is equipped with the ball sealer in the horn mouth, still is equipped with the dead lever in the branch, is equipped with on the dead lever right the pulling force spring is applyed to the ball sealer, and this structural design can carry out high-efficient stirring to the material of the internal portion of cauldron, can also prevent simultaneously that the material from getting into in the puddler, and structural design is simple, ingenious.

Drawings

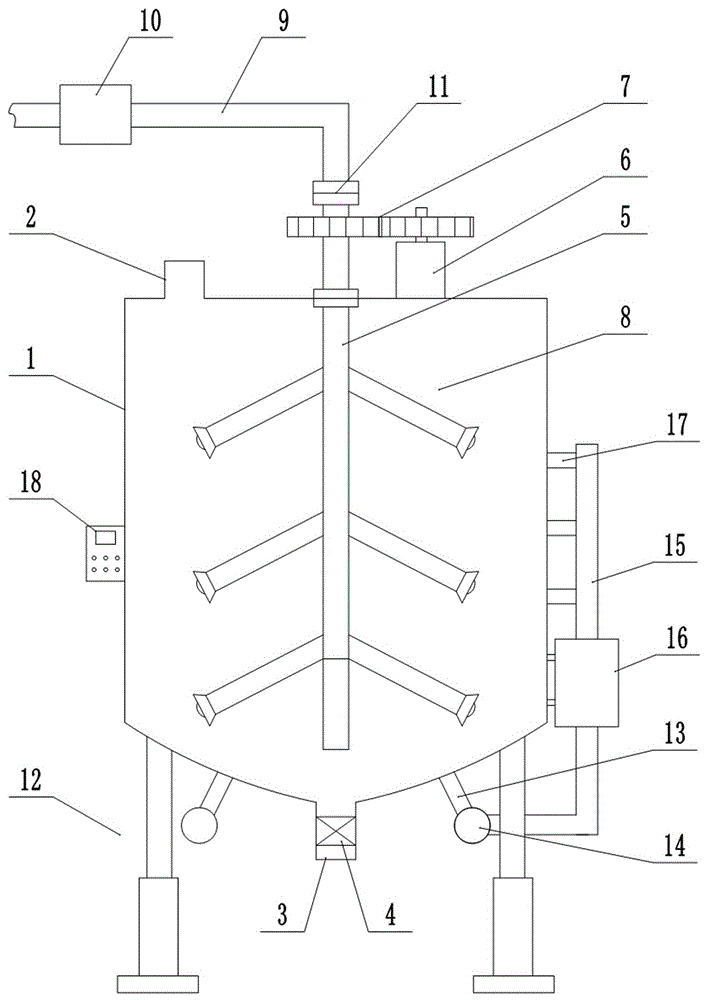

Fig. 1 is a schematic view of the overall structure of the present invention.

Fig. 2 is a schematic structural view of a stirring rod in the present invention.

Fig. 3 is a schematic structural diagram of the support leg of the present invention.

In the figure: 1. a kettle body; 2. a feed inlet; 3. a discharge port; 4. an electromagnetic valve; 5. a rotating rod; 6. a stirring motor; 7. a gear structure; 8. a stirring rod; 8-1, a strut; 8-2. a bell mouth; 8-3, fixing the rod; 8-4, sealing ball; 8-5. a spring; 9. a water pipe; 10. a booster pump; 11. a rotary joint; 12. supporting legs; 12-1, upright column; 12-2. a sleeve; 12-3, an elastic member; 12-4, a rubber pad; 13. an outlet; 14. an annular tube; 15. a return pipe; 16. a material pump; 17. a return port; 18. and a controller.

Detailed Description

The technical solution of the present invention will be described in further detail through the following embodiments.

Examples

As shown in fig. 1-3, the utility model provides a high-efficiency reaction kettle convenient for maintenance, which comprises a kettle body 1, wherein a feed inlet 2 is arranged at the top of the kettle body 1, a discharge port 3 and a plurality of supporting legs 12 are arranged at the bottom of the kettle body 1, a solenoid valve 4 is arranged at the discharge port 3, a rotating rod 5 is rotatably arranged in the kettle body 1, the rotating rod 5 is driven to rotate by a stirring motor 6 arranged at the top of the kettle body 1 through a gear structure 7, and a plurality of stirring rods 8 are arranged on the rotating rod 5; the rotating rod 5 is a hollow pipe with a sealed bottom, the top of the rotating rod 5 is connected with a water pipe 9 through a rotary joint 11, and a booster pump 10 is arranged on the water pipe 9.

This structural design utilizes high-pressure rivers to wash the cauldron body 1 is inside, compares in traditional cleaning methods, has both improved the cleaning efficiency, also can avoid simultaneously causing the damage to the cauldron body 1 is inside.

The stirring rod 8 comprises a supporting rod 8-1, one end of the supporting rod 8 is communicated with the rotating rod 5, the supporting rod 8-1 is of a hollow structure, the other end of the supporting rod 8-1 is a bell mouth 8-2, a sealing ball 8-4 is arranged in the bell mouth 8-2, a fixing rod 8-3 is further arranged in the supporting rod 8-1, and a spring 8-5 for applying tension to the sealing ball 8-4 is arranged on the fixing rod 8-3.

This structural design can prevent when the stirring to the inside material of the cauldron body 1, inside the material entering puddler 8.

The bottom of the cauldron body 1 is equipped with a plurality of exports 13, and the lateral wall of the cauldron body 1 is equipped with a plurality of return openings 17 that are in not co-altitude, and is a plurality of export 13 all is connected to ring conduit 14, be equipped with back flow 15 on the ring conduit 14, be equipped with material pump 16 on the back flow 15, return opening 17 is connected with back flow 15.

This structural design can make the material of the 1 bottom of the cauldron body disperse to the inside different height position of the cauldron body 1 fast, improves the mixed reaction efficiency of material.

Considering that the kettle body 1 can generate larger vibration in the working process, in order to protect the integral structure of the kettle body 1 and reduce the noise pollution to the surrounding environment, the supporting legs 12 are additionally provided with a buffer function and comprise upright columns 12-1 and sleeves 12-2, the upright columns 12-1 are elastically arranged in the sleeves 12-2 through elastic pieces 12-3, and rubber pads 12-4 are arranged at the bottoms of the sleeves 12-2.

In order to control the whole reaction kettle conveniently, the stirring motor 6, the booster pump 10, the electromagnetic valve 4 and the material pump 16 are all electrically connected to a controller 18 arranged on the side wall of the kettle body 1.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention and not to limit it; although the present invention has been described in detail with reference to preferred embodiments, it should be understood by those skilled in the art that: the invention can be modified or equivalent substituted for some technical features; without departing from the spirit of the present invention, it should be understood that the scope of the claims is intended to cover all such modifications and variations.

Claims

1. The utility model provides a high-efficient reation kettle convenient to maintain which characterized in that: the device comprises a kettle body (1), wherein a feed inlet (2) is formed in the top of the kettle body (1), a discharge outlet (3) and a plurality of supporting legs (12) are formed in the bottom of the kettle body (1), an electromagnetic valve (4) is arranged at the discharge outlet (3), a rotating rod (5) is rotatably arranged in the kettle body (1), the rotating rod (5) is driven to rotate by a stirring motor (6) arranged at the top of the kettle body (1) through a gear structure (7), and a plurality of stirring rods (8) are arranged on the rotating rod (5); the rotating rod (5) is a hollow pipe with a sealed bottom, the top of the rotating rod (5) is connected with a water pipe (9) through a rotary joint (11), and a booster pump (10) is arranged on the water pipe (9); the stirring rod (8) comprises a supporting rod (8-1) with one end communicated with the rotating rod (5), the supporting rod (8-1) is of a hollow structure, the other end of the supporting rod (8-1) is a bell mouth (8-2), a sealing ball (8-4) is arranged in the bell mouth (8-2), a fixing rod (8-3) is further arranged in the supporting rod (8-1), and a spring (8-5) for applying tension to the sealing ball (8-4) is arranged on the fixing rod (8-3); the bottom of the cauldron body (1) is equipped with a plurality of exports (13), and the lateral wall of the cauldron body (1) is equipped with a plurality of return ports (17) that are in not co-altitude, and is a plurality of export (13) all are connected to ring type pipe (14), be equipped with back flow (15) on ring type pipe (14), be equipped with material pump (16) on back flow (15), return port (17) are connected with back flow (15).

2. The easy-to-maintain high efficiency reactor of claim 1, wherein: the supporting legs (12) comprise upright columns (12-1) and sleeves (12-2), the upright columns (12-1) are elastically seated in the sleeves (12-2) through elastic pieces (12-3), and rubber pads (12-4) are arranged at the bottoms of the sleeves (12-2).

3. The easy-to-maintain high efficiency reactor of claim 1, wherein: the stirring motor (6), the booster pump (10), the electromagnetic valve (4) and the material pump (16) are all electrically connected to a controller (18) arranged on the side wall of the kettle body (1).
