CN214346067U - Coating production mixing mechanism

Info

Publication number: CN214346067U
Application number: CN202120240563.3U
Authority: CN
Inventors: 吴建益
Original assignee: Shaoxing Zhengxing Composite Material Co ltd
Current assignee: Shaoxing Zhengxing Composite Material Co ltd
Priority date: 2021-01-28
Filing date: 2021-01-28
Publication date: 2021-10-08
Anticipated expiration: 2031-01-28

Abstract

The utility model discloses a paint production mixing mechanism, comprising a box body, a casing is fixedly connected to the top of the box body, a motor is fixedly connected to the outside of the casing, a fixed sleeve is fixedly connected to the inside of the casing, A rotating sleeve is connected in rotation inside, a lifting shaft is slidably connected inside the rotating sleeve, and a stirring shaft is fixedly connected to the bottom of the lifting shaft. A number one bevel gear is fixedly connected to the outside of the sleeve; compared with the prior art, the utility model has the beneficial effects of being able to automatically stir and mix the paint, saving time and effort in operation, high stirring efficiency, and being able to move the stirring rod up and down. , so as to improve the mixing effect of paint, can strengthen the stability of the No. 1 rack when moving, can improve the stability of the No. 2 rack when moving, can buffer the external force generated when the stirring rod moves up and down, practical powerful.

Description

Coating production mixing mechanism

Technical Field

The utility model relates to a mixing mechanism technical field specifically is a coating production mixing mechanism.

Background

The coating is a paint which is traditionally named as paint in China, the coating is a continuous film which is coated on the surface of a protected or decorated object and can be firmly attached to the coated object, the coating is usually a viscous liquid which is prepared by taking resin, oil or emulsion as a main material, adding or not adding pigment, filler and corresponding auxiliary agents and using organic solvent or water, the commonly-named paint is only one of the paint, and the coating is a paint which can form a film on the surface of the object under certain conditions to play a role in protection, decoration or other special functions.

In the production and processing process of coating, often need use a coating production mixing mechanism to carry out the mixing operation to coating, however present coating production mixing mechanism still adopts artifical manual mode to stir and mixes, not only the operation is wasted time and energy, stir inefficiency simultaneously, position is single when stirring coating simultaneously, can't reciprocate the puddler, it is poor to result in coating to mix the effect, can't satisfy modern production needs, when having increased the cost of labor, greatly reduced work efficiency, the practicality is poor.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a coating production mixing mechanism to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

the utility model provides a coating production mixing mechanism, includes the box, the top fixedly connected with casing of box, the outside fixedly connected with motor of casing, the inside fixedly connected with fixed sleeve of casing, fixed sleeve's inside is rotated and is connected with rotatory sleeve, rotatory sleeve's inside sliding connection has the lift axle, the bottom fixedly connected with (mixing) shaft of lift axle, the equal fixedly connected with puddler in the inside that corresponds both sides limit and be located the box of (mixing) shaft, rotatory sleeve's outside fixedly connected with bevel gear No. one, bevel gear's external toothing is connected with bevel gear No. two, bevel gear No. two and the output fixed connection of motor.

Preferably, the inside fixedly connected with fixed plate of casing, the internal rotation of fixed plate is connected with the dwang, the one end fixedly connected with rotor plate of dwang, No. three bevel gears of other end fixedly connected with of dwang, No. three bevel gears are connected with a bevel gear meshing, the below of fixed plate and the internal rotation that is located the casing are connected with the running gear, one side meshing of running gear is connected with the rack No. one, the opposite side meshing of running gear is connected with the rack No. two, the limiting plate is connected in the internal rotation of rack No. two, limiting plate and (mixing) shaft fixed connection, the top fixedly connected with driving plate of rack No. one, the inside sliding connection of driving plate has the transfer line, transfer line and rotor plate fixed connection.

Preferably, a guide sliding groove is formed in the shell, a guide sliding rod is fixedly connected to the inner portion of the guide sliding groove, a guide sliding block is slidably connected to the outer portion of the guide sliding rod, and the guide sliding block is fixedly connected with a rack.

Preferably, two fixed blocks of the inside symmetry fixedly connected with of casing, two fixedly connected with direction slide bar No. two between the fixed block, No. two outside sliding connection of direction slide bar have No. two direction sliders, No. two direction sliders and No. two rack fixed connection.

Preferably, the outside fixedly connected with control panel of casing, motor and control panel electric connection.

Preferably, the bottom four corners of box all is equipped with the backup pad, the top fixedly connected with dead lever of backup pad, the inside sliding connection of dead lever has the buffer board, the buffer board passes through buffer lever and box fixed connection, the outside of buffer lever just is located the cover and has the spring between box and the dead lever.

Preferably, a feeding opening is formed in the top of the box body, a sealing cover is connected to the outer portion of the feeding opening in a threaded mode, and a discharging connector is fixedly connected to the outer portion of the box body.

The utility model discloses the beneficial effect who reaches is: through the arranged box body, the shell, the motor, the fixed sleeve, the rotating sleeve, the lifting shaft, the stirring rod, the first bevel gear and the second bevel gear, the automatic stirring and mixing of the coating can be realized, the operation is time-saving and labor-saving, the stirring efficiency is high, through the arranged fixed plate, the rotating rod, the rotating plate, the third bevel gear, the rotating gear, the first rack, the second rack, the limiting plate, the driving plate and the driving rod, the up-and-down movement of the stirring rod can be realized, so that the coating mixing effect is improved, through the arranged guide sliding chute, the first guide sliding rod and the first guide sliding block, the stability of the first rack during moving can be enhanced, through the arranged fixed block, the second guide sliding rod and the second guide sliding block, the stability of the second rack during moving can be improved, through the arranged buffer plate, the buffer rod and the spring, can realize cushioning the external force that produces when reciprocating the puddler, the practicality is strong.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

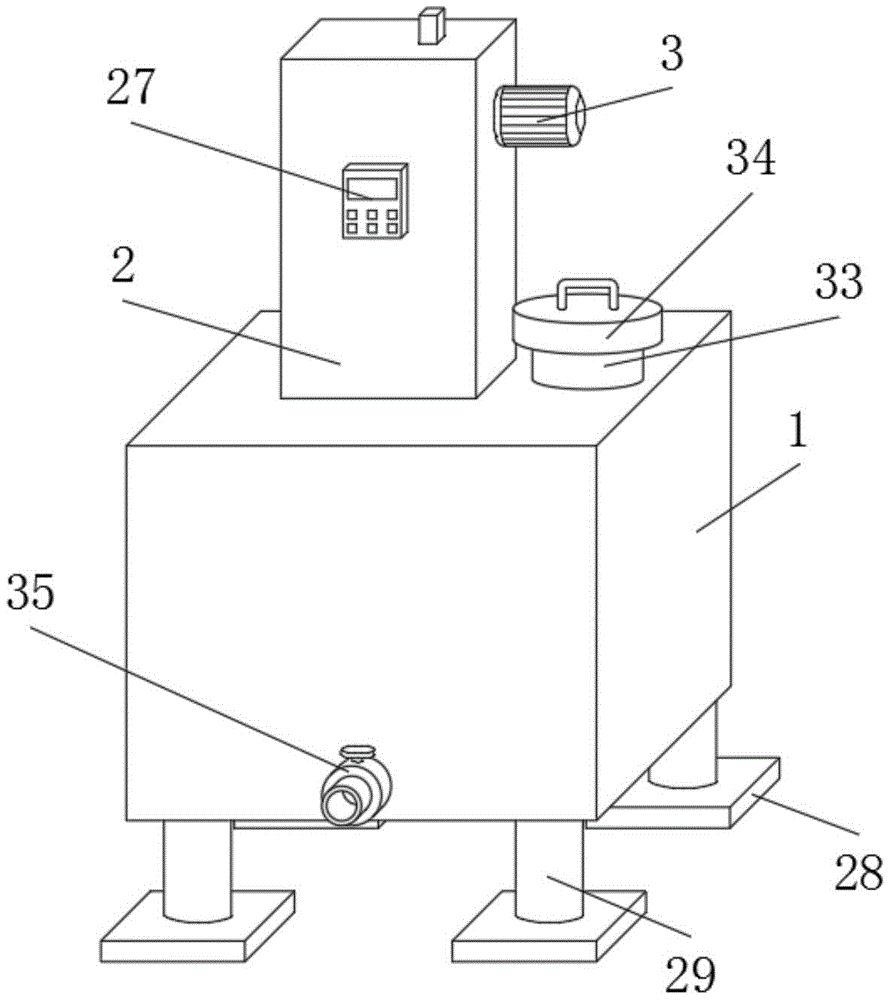

fig. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic cross-sectional view of the present invention;

FIG. 3 is an enlarged view of the point A of the present invention;

fig. 4 is a schematic structural view of the driving plate of the present invention;

fig. 5 is a schematic structural view of the lifting shaft of the present invention.

In the figure: 1. a box body; 2. a housing; 3. a motor; 4. fixing the sleeve; 5. rotating the sleeve; 6. a lifting shaft; 7. a stirring shaft; 8. a stirring rod; 9. a first bevel gear; 10. a second bevel gear; 11. a fixing plate; 12. rotating the rod; 13. a rotating plate; 14. a third bevel gear; 15. a rotating gear; 16. a first rack; 17. a second rack; 18. a limiting plate; 19. a drive plate; 20. a transmission rod; 21. a guide chute; 22. a first guide slide bar; 23. a first guide slide block; 24. a fixed block; 25. a second guide slide bar; 26. a second guide slide block; 27. a control panel; 28. a support plate; 29. fixing the rod; 30. a buffer plate; 31. a buffer rod; 32. a spring; 33. a feeding port; 34. a sealing cover; 35. and a discharging joint.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides a technical solution:

a coating production mixing mechanism comprises a box body 1, wherein the top of the box body 1 is fixedly connected with a shell 2, the outside of the shell 2 is fixedly connected with a motor 3, the inside of the shell 2 is fixedly connected with a fixed sleeve 4, the inside of the fixed sleeve 4 is rotatably connected with a rotating sleeve 5, the inside of the rotating sleeve 5 is slidably connected with a lifting shaft 6, the bottom of the lifting shaft 6 is fixedly connected with a stirring shaft 7, and stirring rods 8 are fixedly connected to two corresponding side edges of the stirring shaft 7 and positioned in the box body 1, so that coating can be stirred and mixed conveniently; the outside fixedly connected with bevel gear 9 of rotatory sleeve 5, the outside meshing of bevel gear 9 is connected with No. two bevel gear 10, and No. two bevel gear 10 and motor 3's output fixed connection are convenient for carry out the automatic stirring to coating and mix.

A fixed plate 11 is fixedly connected to the inside of the shell 2, a rotating rod 12 is rotatably connected to the inside of the fixed plate 11, a rotating plate 13 is fixedly connected to one end of the rotating rod 12, a third bevel gear 14 is fixedly connected to the other end of the rotating rod 12, the third bevel gear 14 is meshed with the first bevel gear 9, a rotating gear 15 is rotatably connected to the inside of the shell 2 and below the fixed plate 11, a first rack 16 is meshed with one side of the rotating gear 15, a second rack 17 is meshed with the other side of the rotating gear 15, an internal rotating limiting plate 18 is rotatably connected to the inside of the second rack 17, the limiting plate 18 is fixedly connected with the stirring shaft 7, a transmission plate 19 is fixedly connected to the top of the first rack 16, a transmission rod 20 is slidably connected to the inside of the transmission plate 19, and the transmission rod 20 is fixedly connected with the rotating plate 13, so that the stirring rod 8 can be moved up and down and the mixing effect can be improved; a guide sliding groove 21 is formed in the shell 2, a first guide sliding rod 22 is fixedly connected to the inner portion of the guide sliding groove 21, a first guide sliding block 23 is slidably connected to the outer portion of the first guide sliding rod 22, and the first guide sliding block 23 is fixedly connected with the first rack 16, so that the stability of the first rack 16 during up-and-down movement is enhanced; two fixed blocks 24 are symmetrically and fixedly connected to the inside of the shell 2, a second guide slide rod 25 is fixedly connected between the two fixed blocks 24, a second guide slide block 26 is slidably connected to the outside of the second guide slide rod 25, and the second guide slide block 26 is fixedly connected with the second rack 17, so that the stability of the second rack 17 during up-and-down movement is improved conveniently; a control panel 27 is fixedly connected to the outside of the shell 2, and the motor 3 is electrically connected with the control panel 27, so that the normal operation of the motor 3 can be conveniently controlled; supporting plates 28 are arranged at four corners of the bottom of the box body 1, fixing rods 29 are fixedly connected to the tops of the supporting plates 28, a buffer plate 30 is connected to the inside of each fixing rod 29 in a sliding mode, the buffer plate 30 is fixedly connected with the box body 1 through a buffer rod 31, and a spring 32 is sleeved outside the buffer rod 31 and between the box body 1 and the fixing rods 29 and is convenient for buffering external force generated when the stirring rod 8 moves up and down; a feeding port 33 is formed in the top of the box body 1, a sealing cover 34 is connected to the outer portion of the feeding port 33 in a threaded mode, and a discharging connector 35 is fixedly connected to the outer portion of the box body 1, so that coating can be conveniently injected and discharged.

Specifically, when the utility model is used, firstly, the sealing cover 34 at the top of the box body 1 is opened, the coating to be mixed is injected into the box body 1, and the sealing cover 34 is closed, the motor 3 is started through the control panel 27 outside the shell body 2, so that the motor 3 drives the second bevel gear 10 to rotate, thereby the rotating sleeve 5 is driven to rotate under the coordination of the first bevel gear 9, further the stirring shaft 7 is driven to rotate through the lifting shaft 6, finally the coating is stirred under the coordination of the stirring rod 8, thereby the purpose of automatic mixing is achieved, the operation is time-saving and labor-saving, the working efficiency is improved while the labor cost is reduced, meanwhile, the first bevel gear 9 drives the rotating rod 12 and the rotating plate 13 to rotate through the third bevel gear 14, thereby the first rack 16 is driven to move up and down under the coordination of the driving plate 19 and the driving rod 20, and further the second rack 17 is driven to move up and down under the coordination of the rotating gear 15, finally drive (mixing) shaft 7 and puddler 8 and reciprocate in box 1 under the cooperation of limiting plate 18 to promote the mixed effect of coating, in-process, box 1 drives buffer bar 31 and slides from top to bottom in dead lever 29, thereby compresses spring 32, makes the external force that produces when puddler 8 reciprocates under spring 32's elastic force can and by the buffering and disappear, and the practicality is strong.

In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, are used for indicating the orientation or position based on the orientation or position shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.

Furthermore, the terms "first", "second", "third", "fourth" are used for descriptive purposes only and are not to be construed as indicating or implying a relative importance or implicitly indicating the number of technical features indicated, whereby the features defined as "first", "second", "third", "fourth" may explicitly or implicitly include at least one such feature.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "disposed," "connected," "fixed," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, or they may be connected through the inside of two elements or through the interaction of two elements, unless otherwise specifically limited, and those skilled in the art will understand that the terms specifically mean the inside of the two elements or through the interaction of the two elements.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a coating production mixing mechanism, includes box (1), its characterized in that: the utility model discloses a gearbox casing, including the top fixedly connected with casing (2) of box (1), outside fixedly connected with motor (3) of casing (2), inside fixedly connected with fixed sleeve (4) of casing (2), the inside of fixed sleeve (4) is rotated and is connected with rotating sleeve (5), the inside sliding connection of rotating sleeve (5) has lift axle (6), the bottom fixedly connected with (mixing) shaft (7) of lift axle (6), the equal fixedly connected with puddler (8) in the inside that just is located box (1) in the corresponding both sides limit of (mixing) shaft (7), the outside fixedly connected with bevel gear (9) of rotating sleeve (5), the outside meshing of bevel gear (9) is connected with No. two bevel gear (10), the output fixed connection of No. two bevel gear (10) and motor (3).

2. A paint production mixing mechanism as claimed in claim 1, wherein: the inner part of the shell (2) is fixedly connected with a fixed plate (11), the inner part of the fixed plate (11) is rotatably connected with a rotating rod (12), one end of the rotating rod (12) is fixedly connected with a rotating plate (13), the other end of the rotating rod (12) is fixedly connected with a third bevel gear (14), the third bevel gear (14) is meshed with a first bevel gear (9), the lower part of the fixed plate (11) is rotatably connected with a rotating gear (15) positioned in the shell (2), one side of the rotating gear (15) is meshed with a first rack (16), the other side of the rotating gear (15) is meshed with a second rack (17), the inner part of the second rack (17) is rotatably connected with a limiting plate (18), the limiting plate (18) is fixedly connected with a stirring shaft (7), and the top of the first rack (16) is fixedly connected with a transmission plate (19), the inside sliding connection of driving plate (19) has transfer line (20), transfer line (20) and rotating plate (13) fixed connection.

3. A paint production mixing mechanism as claimed in claim 2, wherein: guide chute (21) have been seted up to the inside of casing (2), No. one guide slide bar (22) of inside fixedly connected with of guide chute (21), No. one guide slide bar's (22) outside sliding connection has a direction slider (23), a direction slider (23) and a rack (16) fixed connection.

4. A paint production mixing mechanism as claimed in claim 2, wherein: two fixed blocks (24) of inside symmetry fixedly connected with of casing (2), two fixedly connected with No. two direction slide bars (25) between fixed block (24), the outside sliding connection of No. two direction slide bars (25) has No. two direction slider (26), No. two direction slider (26) and No. two rack (17) fixed connection.

5. A paint production mixing mechanism as claimed in claim 1, wherein: the outside fixedly connected with control panel (27) of casing (2), motor (3) and control panel (27) electric connection.

6. A paint production mixing mechanism as claimed in claim 1, wherein: the bottom four corners of box (1) all is equipped with backup pad (28), the top fixedly connected with dead lever (29) of backup pad (28), the inside sliding connection of dead lever (29) has buffer board (30), buffer board (30) are through buffer beam (31) and box (1) fixed connection, the outside of buffer beam (31) just is located and has spring (32) between box (1) and dead lever (29).

7. A paint production mixing mechanism as claimed in claim 1, wherein: a feeding port (33) is formed in the top of the box body (1), a sealing cover (34) is connected to the outer portion of the feeding port (33) in a threaded mode, and a discharging connector (35) is fixedly connected to the outer portion of the box body (1).
