Abstract
本实用新型公开了一种高效组合式斜板沉淀器，包括箱体和沉淀机构，所述箱体一侧外侧面的上端贯通设置有进水管，所述箱体的外侧面上在进水管的下端贯通设置有出水管，所述箱体的内侧壁上设置有固定板，所述固定板的上端面上靠近进水管的一侧设置有若干个精密滤网，所述沉淀机构设置在箱体的内部，所述沉淀机构由若干个第一滑槽、若干个第一滑块、第一安装框、若干个第二滑槽、若干个第二滑块、若干个第二安装框、若干个V形板、台阶槽和若干个导流口组成；本实用新型结构简单，设计合理，通过将斜板设置为V形结构，并且设置有台阶槽，通过下行流通和上行流通沉淀，沉淀效率更高，效果更好，同时对污水进行过滤预处理，防止装置内部造成堵塞。
The utility model discloses a high-efficiency combined inclined plate settler, which comprises a box body and a settling mechanism. A water inlet pipe is arranged through the upper end of the outer side surface of one side of the box body. A water outlet pipe is arranged through the lower end, a fixing plate is arranged on the inner side wall of the box body, and a number of precision filters are arranged on the side of the upper end surface of the fixing plate close to the water inlet pipe, and the sedimentation mechanism is arranged in the box body. Inside, the sedimentation mechanism consists of several first chutes, several first sliders, first installation frames, several second chutes, several second sliders, several second installation frames, several The V-shaped plate, the stepped groove and a number of guide ports are composed; the utility model has a simple structure and a reasonable design. High, the effect is better, and the sewage is filtered and pretreated to prevent clogging inside the device.
Description
Technical Field
The utility model relates to a precipitator equipment technical field specifically is a high-efficient combination formula inclined plate precipitator.
Background
The inclined plate type sedimentation tank has the same structure as a common sedimentation tank, consists of an inlet, a sedimentation area, an outlet and a sludge collecting area, and is only provided with a plurality of inclined pipes or inclined plates in the sedimentation area. According to the shallow pool principle, under the condition of a certain effective volume of a sedimentation tank. The larger the area of the sedimentation tank is, the higher the sedimentation efficiency of the sedimentation tank is, and the sedimentation time is irrelevant; the shallower the sedimentation basin, the shorter the sedimentation time.
The defects of the prior art are as follows:
1. the sedimentation is carried out in a single mode, the sedimentation efficiency is low, and meanwhile, the sedimentation is carried out by arranging a plurality of layers of inclined plates, so that the sedimentation time is prolonged, and the volume and the cost of equipment are increased;
2. directly deposit the inside of leading-in equipment of sewage, great rubbish is easy with the inside jam of equipment, has increased subsequent clearance burden, has influenced the continuation work of device.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a high-efficient combination formula inclined plate settler to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a high-efficiency combined inclined plate precipitator comprises a box body and a precipitation mechanism, wherein a water inlet pipe is arranged at the upper end of the outer side surface of one side of the box body in a penetrating way, a water outlet pipe is arranged at the lower end of the water inlet pipe on the outer side surface of the box body in a penetrating way, a fixed plate is arranged on the inner side wall of the box body, a plurality of precise filter screens are arranged at one side, close to the water inlet pipe, on the upper end surface of the fixed plate, the precipitation mechanism is arranged in the box body and consists of a plurality of first chutes, a plurality of first sliding blocks, a first installation frame, a plurality of second chutes, a plurality of second sliding blocks, a plurality of second installation frames, a plurality of V-shaped plates, step grooves and a plurality of flow guide ports, a plurality of first chutes are symmetrically arranged on the inner side walls of two sides of one end of the box body, the first sliding blocks are connected inside the first chutes in a sliding way, and a first installation frame is arranged on the side surface of the other side surface of the first sliding blocks, the symmetry is provided with a plurality of second spout on the both sides inside wall of the box other end, the inside sliding connection of second spout has the second slider, be provided with the second installing frame on the side of first slider opposite side, be provided with a plurality of V-arrangement board on the inside wall of first installing frame and second installing frame, be provided with the step groove on the up end of V-arrangement board, all be provided with the water conservancy diversion mouth that a plurality of and V-arrangement board are corresponding on the side of first installing frame and second installing frame both sides.
Preferably, a supporting base is arranged on the lower end face of the box body, and a plurality of universal wheels are arranged on the lower end face of the supporting base.
Preferably, a sewage draining pipe is arranged on the side face of one side of the box body in a penetrating mode, and a conical block is arranged on the lower end face inside the box body.
Preferably, a plurality of supporting rods are arranged on the upper end face of the fixing plate, and gaskets are arranged at the upper ends of the supporting rods.
Preferably, a water outlet is arranged on one side, far away from the precision filter screen, of the upper end face of the fixing plate.
Preferably, one end of the sewage draining pipe, which is far away from the box body, is provided with an external thread and is in threaded connection with a sealing cover.
Preferably, a plurality of fixing rods are arranged on the upper end face of the conical block, and the upper ends of the fixing rods are arranged on the lower end face of the fixing plate.
Compared with the prior art, the beneficial effects of the utility model are that:
1. this high-efficient combination formula inclined plate settler, through being provided with sediment mechanism, sediment mechanism is by the first spout of a plurality of, the first slider of a plurality of, first installing frame, a plurality of second spout, a plurality of second slider, a plurality of second installing frame, a plurality of V-arrangement board, step groove and a plurality of water conservancy diversion mouth are constituteed and are set up the swash plate into V-arrangement structure, and be provided with the step groove, through down circulation and upward circulation sediment, precipitation efficiency is higher, the effect is better, carry out filtration pretreatment to sewage simultaneously, prevent to install inside and cause the jam, inclined plate structure installation dismantlement is convenient simultaneously, the periodic cleaning of being convenient for, the clearance effect is better, accord with actual operation demand more.
2. This high-efficient combination formula inclined plate settler is provided with a plurality of precision filter through the one side that is close to the inlet tube on the up end that is provided with the fixed plate, can filter the preliminary treatment to sewage, prevents to install inside and causes the jam.
Drawings

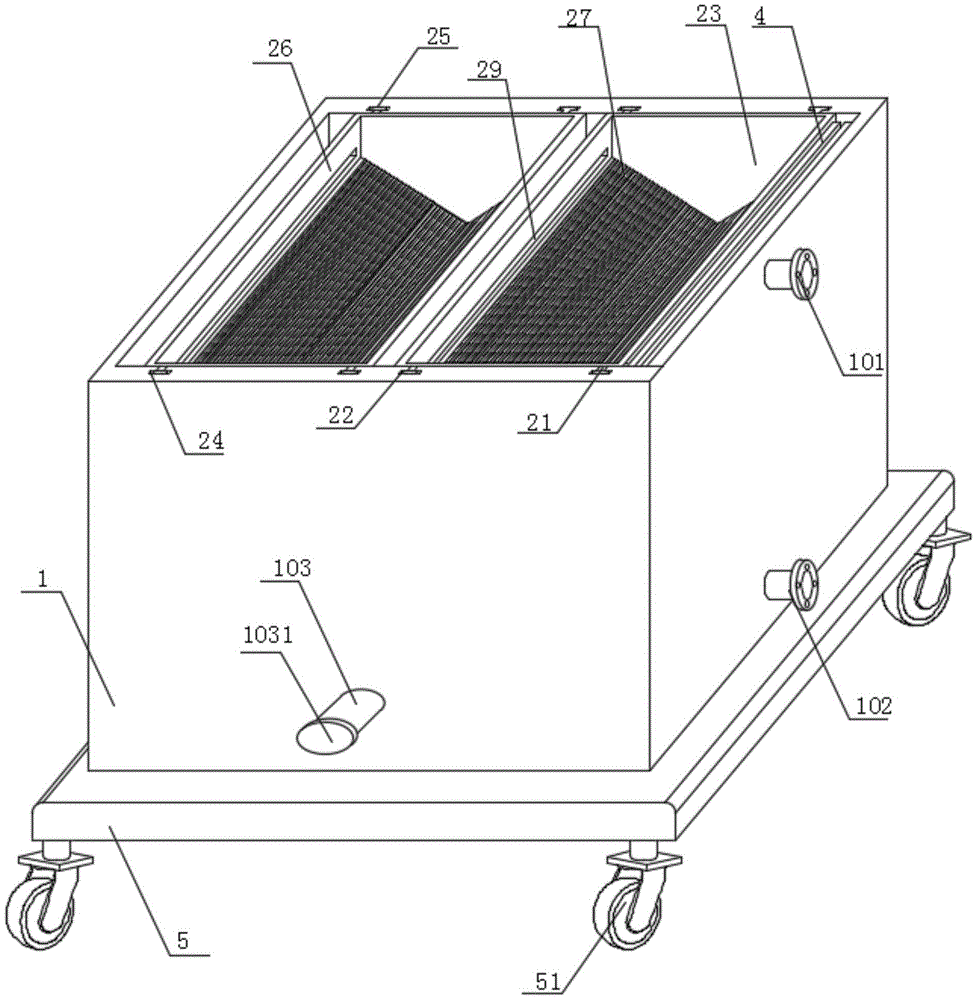

FIG. 1 is an overall perspective view of the present invention;
FIG. 2 is a schematic view of the internal structure of the case of the present invention;
fig. 3 is an enlarged schematic view of a position a in fig. 2 according to the present invention.
In the figure: 1. a box body; 101. a water inlet pipe; 102. a water outlet pipe; 103. a blow-off pipe; 1031. a sealing cover; 104. a conical block; 2. a precipitation mechanism; 21. a first chute; 22. a first slider; 23. a first mounting frame; 24. a second chute; 25. a second slider; 26. a second mounting frame; 27. a V-shaped plate; 28. a step groove; 29. a flow guide port; 3. a fixing plate; 31. a water outlet; 4. a precise filter screen; 5. a support base; 51. a universal wheel; 6. a support bar; 61. a gasket; 7. and (5) fixing the rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations or positional relationships based on the orientations or positional relationships illustrated in the drawings, and are used merely for convenience of description and for simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
Referring to fig. 1-3, the present invention provides a technical solution: a high-efficiency combined inclined plate precipitator comprises a box body 1 and a precipitation mechanism 2, wherein the upper end of the outer side surface of one side of the box body 1 is connected with a water inlet pipe 101 in a penetrating way, the lower end of the water inlet pipe 101 on the outer side surface of the box body 1 is connected with a water outlet pipe 102 in a penetrating way, a fixing plate 3 is installed on the inner side wall of the box body 1 through a bolt, a plurality of precise filter screens 4 are installed on one side, close to the water inlet pipe 101, of the upper end surface of the fixing plate 3, the precipitation mechanism 2 is installed inside the box body 1, the precipitation mechanism 2 comprises a plurality of first chutes 21, a plurality of first sliding blocks 22, a first installation frame 23, a plurality of second sliding grooves 24, a plurality of second sliding blocks 25, a plurality of second installation frames 26, a plurality of V-shaped plates 27, a step groove 28 and a plurality of flow guide ports 29, a plurality of first chutes 21 are symmetrically arranged on the inner side walls of two sides of one end of the box body 1, the first sliding connection of the first sliding blocks 22 is connected with the first sliding blocks 22, a first mounting frame 23 is welded on the side face of the other side of the first sliding block 22, a plurality of second sliding grooves 24 are symmetrically formed in the inner side walls of the two sides of the other end of the box body 1, a second sliding block 25 is connected to the inside of each second sliding groove 24 in a sliding manner, a second mounting frame 26 is welded on the side face of the other side of the first sliding block 22, a plurality of V-shaped plates 27 are mounted on the inner side walls of the first mounting frame 23 and the second mounting frame 26 through bolts, step grooves 28 are formed in the upper end faces of the V-shaped plates 27, and a plurality of flow guide openings 29 corresponding to the V-shaped plates 27 are formed in the side faces of the two sides of the first mounting frame 23 and the second mounting frame 26;
through the scheme, one side of the upper end face provided with the fixing plate 3 and close to the water inlet pipe 101 is provided with a plurality of precise filter screens 4, sewage is subjected to filtration pretreatment under the action of the filter screens, the blockage inside the device is prevented, meanwhile, the precipitation mechanism 2 consists of a plurality of first chutes 21, a plurality of first sliders 22, a first mounting frame 23, a plurality of second chutes 24, a plurality of second sliders 25, a plurality of second mounting frames 26, a plurality of V-shaped plates 27, a stepped groove 28 and a plurality of flow guide ports 29, the inclined plate is arranged into a V-shaped structure, the stepped groove 28 is arranged, the sewage is precipitated through downward circulation and upward circulation, the precipitation efficiency is higher, the effect is better, the sewage is subjected to filtration pretreatment simultaneously, the blockage inside of the device is prevented, meanwhile, the installation and the disassembly of the inclined plate structure are convenient, the cleaning is periodically convenient, and the cleaning effect is better, more meets the actual operation requirement.
In this embodiment, preferably, the lower end surface of the box body 1 is welded with a supporting base 5, and the lower end surface of the supporting base 5 is provided with a plurality of universal wheels 51 through bolts;
through the scheme, the supporting base 5 is arranged, and the plurality of universal wheels 51 are mounted on the lower end face of the supporting base 5 through bolts, so that the device can move integrally;
in the embodiment, preferably, a sewage discharge pipe 103 is connected to the side surface of one side of the box body 1 in a penetrating manner, and a conical block 104 is welded on the lower end surface inside the box body 1;
through the scheme, the sediment at the bottom of the box body 1 is conveniently discharged;
in this embodiment, preferably, a plurality of support rods 6 are welded on the upper end surface of the fixing plate 3, and the upper ends of the support rods 6 are provided with gaskets 61;
by the scheme, the supporting rod 6 is arranged, and the gasket 61 is arranged at the upper end of the supporting rod 6, so that the V-shaped plate 27 can be better supported;
in this embodiment, preferably, a drainage port 31 is formed on the upper end surface of the fixing plate 3 on the side away from the precision filter 4.
By the scheme, the water outlet 31 is arranged, so that the water body can circulate conveniently;
in the embodiment, preferably, one end of the sewage draining pipe 103 far away from the box body 1 is provided with an external thread and is in threaded connection with a sealing cover 1031;
through the above scheme, the discharge of the precipitate is conveniently controlled by providing the sealing cover 1031.
In this embodiment, preferably, a plurality of fixing rods 7 are welded on the upper end surface of the conical block 104, and the upper ends of the fixing rods 7 are mounted on the lower end surface of the fixing plate 3 through bolts;
through above-mentioned scheme, through setting up dead lever 7, can increase the stability of fixed plate 3.
The working principle of the utility model is as follows:
when the high-efficiency combined inclined plate precipitator is used, firstly, the water inlet pipe 101 and the water outlet pipe 102 are connected with corresponding pipelines, then sewage is led in from the water inlet pipe 101, firstly, the sewage is filtered through the precision filter screen 4, then, the sewage enters the V-shaped plate 27 in the first mounting frame 23 through the diversion port 29, the sewage is discharged from the diversion port 29 at the other end of the first mounting frame 23 after primary precipitation through the V-shaped plate 27, then, the sewage enters the V-shaped plate 27 in the second mounting frame 26 through the diversion port 29 of the second mounting frame 26, secondary precipitation is carried out through the V-shaped plate 27, meanwhile, the first mounting frame 23 and the second mounting frame 26 can be taken out at the later stage and cleaned, the device is provided with the step groove 28 by setting the inclined plate into a V-shaped structure, precipitation is carried out through downward circulation and upward circulation, the precipitation efficiency is higher, the effect is better, and the sewage is filtered and pretreated at the same time, prevent that the device is inside to cause the jam, the swash plate structure installation dismantles conveniently simultaneously, and the periodic cleaning of being convenient for, the clearance effect is better, accords with the operation demand of reality more, filters the preliminary treatment to sewage simultaneously, prevents that the device is inside to cause the jam.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (7)
1. The utility model provides a high-efficient combination formula inclined plate settler, includes box (1) and deposits mechanism (2), its characterized in that: the upper end of the outer side surface of one side of the box body (1) is provided with a water inlet pipe (101) in a penetrating manner, the lower end of the water inlet pipe (101) on the outer side surface of the box body (1) is provided with a water outlet pipe (102) in a penetrating manner, the inner side wall of the box body (1) is provided with a fixing plate (3), one side, close to the water inlet pipe (101), of the upper end surface of the fixing plate (3) is provided with a plurality of precision filter screens (4), the precipitation mechanism (2) is arranged in the box body (1), the precipitation mechanism (2) is composed of a plurality of first sliding grooves (21), a plurality of first sliding blocks (22), a first installation frame (23), a plurality of second sliding grooves (24), a plurality of second sliding blocks (25), a plurality of second installation frames (26), a plurality of V-shaped plates (27), a step groove (28) and a plurality of flow guide ports (29), the inner side walls of the two sides of one end of the box body (1) are symmetrically provided with a plurality of first sliding grooves (21), the utility model discloses a V-arrangement structure, including box (1), box (26), first spout (21), the inside sliding connection of first spout (21) has first slider (22), be provided with first installing frame (23) on the side of first slider (22) opposite side, the symmetry is provided with a plurality of second spout (24) on the both sides inside wall of box (1) other end, the inside sliding connection of second spout (24) has second slider (25), be provided with second installing frame (26) on the side of first slider (22) opposite side, be provided with a plurality of V-arrangement board (27) on the inside wall of first installing frame (23) and second installing frame (26), be provided with step groove (28) on the up end of V-arrangement board (27), all be provided with a plurality of and V-arrangement board (27) corresponding water conservancy diversion mouth (29) on the side of first installing frame (23) and second installing frame (26) both sides.
2. The high efficiency combined inclined plate settler of claim 1, wherein: the lower end face of the box body (1) is provided with a supporting base (5), and the lower end face of the supporting base (5) is provided with a plurality of universal wheels (51).
3. The high efficiency combined inclined plate settler of claim 1, wherein: a sewage discharge pipe (103) is arranged on the side surface of one side of the box body (1) in a penetrating way, and a conical block (104) is arranged on the lower end surface in the box body (1).
4. The high efficiency combined inclined plate settler of claim 1, wherein: the upper end face of the fixed plate (3) is provided with a plurality of supporting rods (6), and the upper ends of the supporting rods (6) are provided with gaskets (61).
5. The high efficiency combined inclined plate settler of claim 1, wherein: and a water outlet (31) is formed in one side, far away from the precision filter screen (4), of the upper end face of the fixing plate (3).
6. The high efficiency combined inclined plate settler of claim 3, wherein: one end of the sewage draining pipe (103) far away from the box body (1) is provided with an external thread and is connected with a sealing cover (1031) in a threaded manner.
7. The high efficiency combined inclined plate settler of claim 3, wherein: the upper end face of the conical block (104) is provided with a plurality of fixing rods (7), and the upper ends of the fixing rods (7) are arranged on the lower end face of the fixing plate (3).
