CN214339335U

CN214339335U - A fodder feeding device for breeding cattle and sheep fattening

Info

Publication number: CN214339335U
Application number: CN202022893477.0U
Authority: CN
Inventors: 张杲鹏; 张杲锋; 闫东
Original assignee: Henan Baiyun Guangmu Biotechnology Co ltd
Current assignee: Henan Baiyun Guangmu Biotechnology Co ltd
Priority date: 2020-12-02
Filing date: 2020-12-02
Publication date: 2021-10-08
Anticipated expiration: 2030-12-02

Abstract

The utility model discloses a feed supply device for fattening cattle and sheep, which relates to the technical field of breeding equipment, comprising a support seat, a feed trough is fixedly installed on the front of the support seat, and a processing A storage bin is fixedly connected to the top of the processing chamber. The utility model adopts the combination of a controller, a flow valve, an electromagnetic valve and an electromagnetic valve, and the amount of water and feed to be added is input through the controller, and the controller immediately controls the electromagnetic valve to open, and the feed is added into the mixing chamber. The controller controls the opening of the flow valve to transfer the water in the water storage tank to the mixing chamber, and then starts the driving motor to mix the feed and water. The addition of the feed avoids the problem that the user manually adds the feed and causes the user to consume a lot of physical strength, and improves the practicability of the present invention.

Description

A fodder feeding device for breeding cattle and sheep fattening

Technical Field

The utility model relates to a feed supply device relates to and breeds and equips technical field, concretely relates to feed supply device for breeding cattle and sheep fattening.

Background

The breeding industry refers to the production sector of raising livestock and poultry to obtain animal products or work animals, including livestock raising, poultry raising, economic domestication of animals, and the like, by grazing, housing or a combination thereof. The following problems exist in the prior art:

1. the conventional feed supply device for fattening cattle and sheep does not have the function of automatically adding feed, and when the feed is consumed, a user needs to manually add the feed, so that the user is prompted to consume a large amount of physical strength, and the feed supply device is inconvenient to use in daily life;

2. the feed supply device of current cattle and sheep fattening does not possess the function of catching flies, flies such as fly when cattle and sheep eat, causes the interference to cattle and sheep's feed, influences cattle and sheep's appetite, reduces cattle and sheep efficiency of gaining in weight, remains to improve.

SUMMERY OF THE UTILITY MODEL

The utility model provides a feed supply device for fattening breeding cattle and sheep, which has one purpose of having the function of automatically adding feed and solving the problem that the feed is manually added by a user to cause the consumption of a large amount of physical strength of the user; the other purpose is to solve the problem that the feed of cattle and sheep is interfered by flies and other winged insects when the cattle and sheep feed so as to achieve the effect of improving the appetite of the cattle and sheep.

In order to solve the technical problem, the utility model discloses the technical scheme who adopts is:

a feed supply device for fattening cattle and sheep breeding comprises a supporting seat, wherein a feed trough is fixedly arranged on the front side of the supporting seat, a processing chamber is fixedly arranged on the top of the supporting seat, a storage bin is fixedly connected to the top of the processing chamber, a water storage tank is fixedly arranged on the right side of the storage bin on the top of the processing chamber, a funnel is fixedly arranged in an inner cavity of the storage bin, a solenoid valve is fixedly connected to the middle of a conveying pipe at the bottom of the funnel, a feeding hose is fixedly connected to the conveying pipe at the bottom of the funnel, which extends into the inner cavity of the processing chamber, an extension pipe is fixedly connected to the bottom of the water storage tank, a flow valve is fixedly connected to the middle of the extension pipe, a water supply hose is fixedly connected to the bottom of the extension pipe, a processing base is fixedly arranged at the bottom of the inner cavity of the processing chamber, a weighing sensor is fixedly arranged at the top of the processing base, the utility model discloses a fly catcher, including weighing sensor, feed hose, extension pipe, processing chamber, fixed mounting, lamp holder, weighing sensor's top fixed mounting has the mixing chamber, the one end fixed connection that the funnel was kept away from to the feed hose is to the top of mixing chamber, the one end fixed connection that the extension pipe was kept away from to the water supply hose is to the top of mixing chamber, the left side fixed mounting of processing chamber has the controller, the bottom fixed mounting of processing chamber inner chamber has the fly catching mechanism that is located the mixing chamber right side, fly catching mechanism is including catching the fly shell, fly catching shell fixed mounting is in the bottom of processing chamber inner chamber, fly catching shell extends to the front of processing chamber, fixed mounting has the lamp of luring in the inner chamber of fly catching shell, fly catching shell's front fixed mounting has the fly electric wire netting.

The utility model discloses technical scheme's further improvement lies in: the left side fixed mounting of mixing chamber has driving motor, driving motor's output shaft extends to fixedly connected with pivot in the inner chamber of mixing chamber, the pivot is rotated and is connected in the inner chamber of mixing chamber, fixed mounting has stirring vane in the pivot.

The utility model discloses technical scheme's further improvement lies in: the bottom fixedly connected with solenoid valve of mixing chamber, the bottom fixed mounting of mixing chamber inner chamber has the guide plate that is located the solenoid valve both sides, the bottom fixed mounting of process chamber has the ejection of compact board that is located the solenoid valve below, the ejection of compact board of process chamber bottom extends to the top of manger.

Owing to adopted above-mentioned technical scheme, the utility model discloses relative prior art, the technological progress who gains is:

1. the utility model provides a fodder feeding device for breeding cattle and sheep fattening, adopt the controller, the flow valve, solenoid valve and solenoid valve's combination, through the volume of the water and the fodder that the controller input needs to add, the controller controls the solenoid valve immediately and opens, add the fodder in the mixing chamber, controller control flow valve opens after the fodder adds and accomplishes, carry the water in the retaining jar to the mixing chamber in, start driving motor immediately and mix fodder and water, mix the completion back, carry the fodder to the manger on through opening the solenoid valve, accomplish the interpolation to the fodder promptly, avoided the manual problem that adds and cause a large amount of physical demands of user to the fodder of user, promote the utility model discloses a practicality.

2. The utility model provides a fodder feeding device for breeding cattle and sheep and accelerating manure adopts the combination of lure lamp and catching fly electric wire netting the utility model discloses during the use, open the lure lamp and catch fly electric wire netting, the light that sends through the lure lamp attracts the fly, makes the fly to catching fly electric wire netting direction flight, and the fly falls on when catching fly electric wire netting, is hit by the produced electric current of fly electric wire netting to lose the ability of disturbing the feed of cattle and sheep, reduce the influence of fly to the appetite of cattle and sheep, promote the efficiency that cattle and sheep increased fertilizer, promote the utility model discloses a practicality.

Drawings

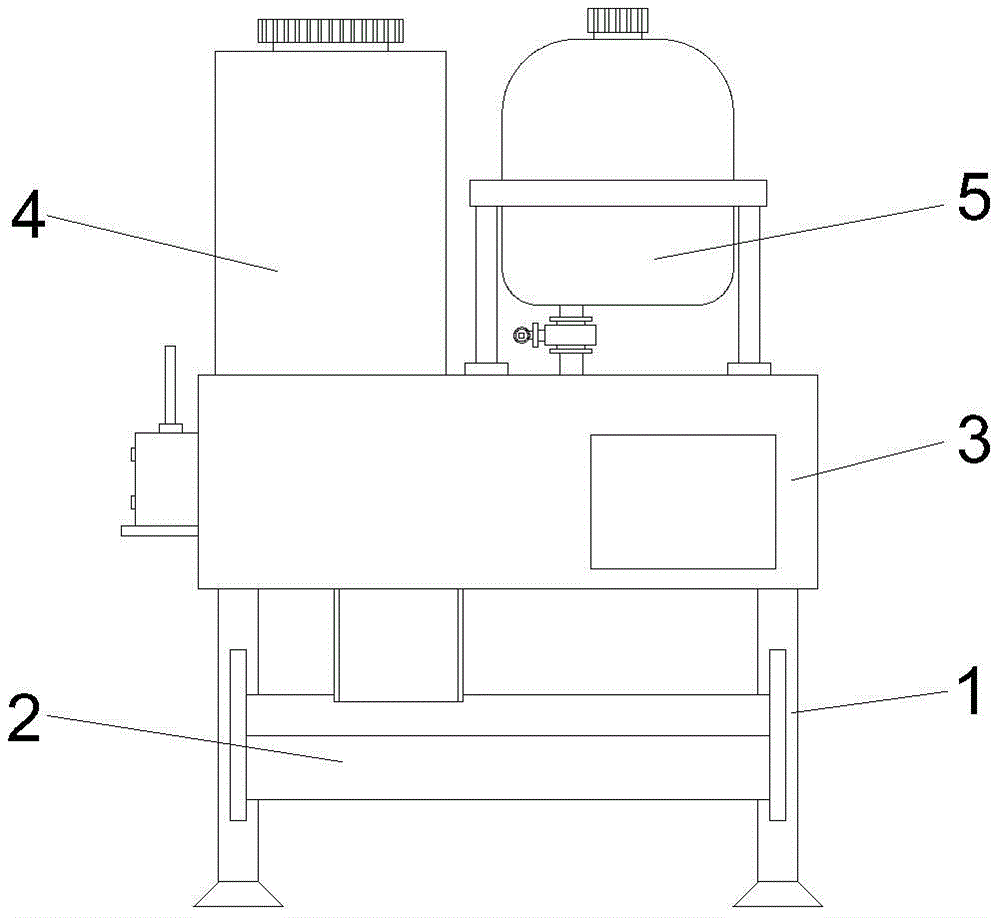

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of the processing chamber of the present invention;

FIG. 3 is a schematic structural view of the mixing chamber of the present invention;

fig. 4 is a schematic structural view of the fly catching mechanism of the present invention.

In the figure: 1. a supporting seat; 2. a feed trough; 3. a processing chamber; 4. a storage bin; 5. a water storage tank; 6. a funnel; 7. an electromagnetic valve; 8. a supply hose; 9. an extension pipe; 10. a flow valve; 11. a water supply hose; 12. Processing a base; 13. a weighing sensor; 14. a mixing chamber; 15. a controller; 16. a drive motor; 17. A rotating shaft; 18. a stirring blade; 19. an electromagnetic valve; 20. a fly catching mechanism; 21. a fly-catching shell; 22. An attractant lamp; 23. fly catching electric net.

Detailed Description

The present invention will be described in further detail with reference to the following examples:

example 1

As shown in fig. 1-4, the utility model provides a fodder feeding device for breeding cattle and sheep and fattening, including supporting seat 1, the positive fixed mounting of supporting seat 1 has manger 2, the top fixed mounting of supporting seat 1 has processing chamber 3, the top fixedly connected with storage bin 4 of processing chamber 3, the top fixed mounting of processing chamber 3 has the water storage tank 5 that is located storage bin 4 right side, fixed mounting has funnel 6 in the inner chamber of storage bin 4, the middle part fixedly connected with solenoid valve 7 of the conveyer pipe of funnel 6 bottom, the conveyer pipe of funnel 6 bottom extends to fixedly connected with feed hose 8 in the inner chamber of processing chamber 3.

In this embodiment, through being equipped with feed hose 8, reduce the pipeline weighing sensor 13 of feed and detect the influence of numerical value, increase weighing sensor 13 and measure the accuracy that adds the fodder in mixing chamber 14, promote the utility model discloses a practicality.

As shown in fig. 1-4, in this embodiment, preferably, a processing base 12 is fixedly installed at the bottom of the inner cavity of the processing chamber 3, a weighing sensor 13 is fixedly installed at the top of the processing base 12, a mixing chamber 14 is fixedly installed at the top of the weighing sensor 13, one end of the supply hose 8 far away from the funnel 6 is fixedly connected to the top of the mixing chamber 14, one end of the supply hose 11 far away from the extension pipe 9 is fixedly connected to the top of the mixing chamber 14, a controller 15 is fixedly installed at the left side of the processing chamber 3, a combination of the controller 15, the flow valve 10, the electromagnetic valve 7 and the electromagnetic valve 19 is adopted, the amount of water and feed to be added is input through the controller 15, the controller 15 immediately controls the electromagnetic valve 7 to be opened, feed is added into the mixing chamber 14, the flow valve 10 is controlled to be opened by the controller 15 after the feed is added, water in the water storage tank 5 is conveyed into the mixing chamber 14, start driving motor 16 and mix fodder and water immediately, mix the completion back, carry the fodder to manger 2 on through opening solenoid valve 19, accomplish the interpolation to the fodder promptly, avoided the manual problem that adds and cause a large amount of physical demands of user to the fodder of user, promoted the utility model discloses a practicality.

As shown in fig. 1-4, preferably, fixed mounting has lure lamp 22 in the inner chamber of fly catching shell 21, and the positive fixed mounting who catches fly shell 21 has the fly catching electric wire netting 23, adopts lure lamp 22 and the combination of fly catching electric wire netting 23 the utility model discloses during the use, open lure lamp 22 and fly catching electric wire netting 23, attract the fly through the light that lure lamp 22 sent, make the fly to fly electric wire netting 23 direction, when the fly falls on fly catching electric wire netting 23, hit by the electric current that fly electric wire netting 23 produced to lose the ability of disturbing cattle and sheep feed, reduce the influence of fly to the appetite of cattle and sheep, promote the efficiency that cattle and sheep increased fertilizer, promote the utility model discloses a practicality.

Example 2

As shown in fig. 1-4, on the basis of embodiment 1, the utility model provides a technical solution: preferably, the bottom fixedly connected with extension pipe 9 of water storage tank 5, the middle part fixedly connected with flow valve 10 of extension pipe 9, fixedly connected with water supply hose 11 in the inner chamber of extension pipe 9 extends to processing chamber 3, the left side fixed mounting of mixing chamber 14 has driving motor 16, driving motor 16's output shaft extends to fixedly connected with pivot 17 in the inner chamber of mixing chamber 14, pivot 17 rotates and connects in mixing chamber 14's inner chamber, fixed mounting has stirring vane 18 in the pivot 17, add back in mixing chamber 14 at water and fodder, start driving motor 16, driving motor 16 drives stirring vane 18 through pivot 17 and mixes the fodder, avoid the manual trouble problem of bringing its mixture of user, more even with fodder and water stirring, make things convenient for the cattle and sheep to eat, promote the utility model discloses a practicality.

Example 3

As shown in fig. 1-4, on the basis of embodiment 1, the utility model provides a technical solution: preferably, the bottom fixedly connected with solenoid valve 19 of mixing chamber 14, the bottom fixed mounting of the 14 inner chambers of mixing chamber has the guide plate that is located solenoid valve 19 both sides, the bottom fixed mounting of processing chamber 3 has the discharge plate that is located solenoid valve 19 below, the discharge plate of 3 bottoms of processing chamber extends to the top of manger 2, the bottom fixed mounting of the 3 inner chambers of processing chamber has the fly catching mechanism 20 that is located the 14 right sides of mixing chamber, fly catching mechanism 20 is including catching fly shell 21, catch fly shell 21 fixed mounting in the bottom of 3 inner chambers of processing chamber, the fly catching shell 21 extends to the front of processing chamber 3, guide plate that is located solenoid valve 19 both sides through the bottom fixed mounting at the 14 inner chambers of mixing chamber, after the completion of mixing, reduce the fodder after mixing and pile up the probability in mixing chamber 14, promote the utility model discloses a practicality.

The working principle of the feed supply device for fattening cattle and sheep is described in detail below.

As shown in fig. 1-4, when the feeding device of the present invention is used for feeding, the amount of water and feed to be fed is inputted through the controller 15, the controller 15 immediately controls the solenoid valve 7 to open, the feed in the inner cavity of the storage bin 4 is conveyed into the mixing chamber 14 through the hopper 6 and the feeding hose 8, the weight of the feed added into the mixing chamber 14 is detected by the weighing sensor 13, when the weight reaches a preset weight value, the weighing sensor 13 sends a signal to the controller 15, the controller 15 controls the solenoid valve 7 to close, the controller 15 immediately controls the flow valve 10 to open, the water in the water storage tank 5 is conveyed into the mixing chamber 14 through the extension pipe 9 and the water supply hose 11, the conveyed water amount is monitored by the flow valve 10, when the conveyed water amount reaches the preset value, the controller 15 controls the flow valve 10 to close, the driving motor 16 is immediately started, the driving motor 16 drives the stirring blade 18 to mix the feed through the rotating shaft 17, after the mixing is finished, the feed is conveyed to the feed trough 2 by opening the electromagnetic valve 19, namely the feed is added, so that the problem of large physical consumption of a user due to manual addition of the feed by the user is avoided, and the practicability of the feed mixing device is improved;

as shown in figures 1-4, when the utility model is used, the luring lamp 22 and the fly catching power grid 23 are turned on, the light emitted by the luring lamp 22 attracts the flies, so that the flies fly towards the fly catching power grid 23, and when the flies fall on the fly catching power grid 23, the current generated by the fly catching power grid 23 hits the flies, thereby losing the ability of interfering the cattle and sheep to eat.

The present invention has been described in detail with reference to the above general description, but it will be apparent to one of ordinary skill in the art that modifications and improvements can be made to the invention. Therefore, modifications or improvements without departing from the spirit of the invention are within the scope of the invention.

Claims

1. A feed supply device for fattening cattle and sheep, comprising a support seat (1), characterized in that: a feed trough (2) is fixedly installed on the front of the support seat (1), and the support seat (1) ), a processing chamber (3) is fixedly installed on the top of the processing chamber (3), a storage bin (4) is fixedly connected to the top of the processing chamber (3), and a storage bin (4) is fixedly installed on the top of the processing chamber (3). On the right side of the water storage tank (5), a funnel (6) is fixedly installed in the inner cavity of the storage bin (4), and a solenoid valve (7) is fixedly connected to the middle of the conveying pipe at the bottom of the funnel (6). The conveying pipe at the bottom of the funnel (6) extends to the inner cavity of the processing chamber (3) and is fixedly connected with a feeding hose (8), and the bottom of the water storage tank (5) is fixedly connected with an extension pipe (9). ), a flow valve (10) is fixedly connected to the middle of the extension pipe (9), and a water supply hose (11) is fixedly connected to the inner cavity of the processing chamber (3) from the bottom of the extension pipe (9), A processing base (12) is fixedly installed at the bottom of the inner cavity of the processing chamber (3), a load cell (13) is fixedly installed at the top of the processing base (12), and the top of the load cell (13) is fixed A mixing chamber (14) is installed, the end of the supply hose (8) away from the funnel (6) is fixedly connected to the top of the mixing chamber (14), and the water supply hose (11) is away from the extension pipe (9). One end is fixedly connected to the top of the mixing chamber (14), the left side of the processing chamber (3) is fixedly installed with a controller (15), and the bottom of the inner cavity of the processing chamber (3) is fixedly installed with a controller (15) located in the mixing chamber (14). ) the fly trapping mechanism (20) on the right side, the fly trapping mechanism (20) comprises a fly trapping shell (21), and the fly trapping shell (21) is fixedly installed at the bottom of the inner cavity of the processing chamber (3), and the The fly trap housing (21) extends to the front of the processing chamber (3), an attracting lamp (22) is fixedly installed in the inner cavity of the fly trap housing (21), and a front surface of the fly trap housing (21) is fixedly mounted with Fly Grid (23).

2. A feed supply device for cultivating cattle and sheep for fattening according to claim 1, characterized in that: a drive motor (16) is fixedly installed on the left side of the mixing chamber (14), and the drive motor ( The output shaft of 16) extends to the inner cavity of the mixing chamber (14) and is fixedly connected with a rotating shaft (17), the rotating shaft (17) is rotatably connected to the inner cavity of the mixing chamber (14), and the rotating shaft (17) is connected to the inner cavity of the mixing chamber (14). A stirring blade (18) is fixedly installed.

3. A feed supply device for cultivating cattle and sheep for fattening according to claim 1, characterized in that: the bottom of the mixing chamber (14) is fixedly connected with an electromagnetic valve (19), and the mixing chamber (14) ) The bottom of the inner cavity is fixedly installed with the guide plates located on both sides of the electromagnetic valve (19), the bottom of the processing chamber (3) is fixedly installed with the discharge plate located below the electromagnetic valve (19), the processing chamber ( 3) The discharge plate at the bottom extends above the feed trough (2).
