本实用新型公开了一种组合式陶瓷活动地板，包括框架、面板和底座，所述框架内壁设置有保护垫，所述保护垫一侧设置有所述面板，所述框架底端四周设置有连接板，所述连接板底端设置有第一支撑杆，所述第一支撑杆底端设置有第二支撑杆。有益效果在于：本实用新型通过设置凸起块、减震弹簧和导向杆，减震弹簧可以给活动地板提供弹力，提高活动地板的抗震性，从而提高活动地板整体的稳定性，且导向杆和凸起块可以对减震弹簧进行支撑导向，可以延长减震弹簧的使用寿命，通过设置保护垫，可以对面板进行保护，另外保护垫还可以填充面板与框架之间的间隙，从而使面板与框架安装更加稳定。
The utility model discloses a combined ceramic raised floor, comprising a frame, a panel and a base. A protection pad is arranged on the inner wall of the frame, the panel is arranged on one side of the protection pad, and a connection is arranged around the bottom end of the frame. The bottom end of the connecting plate is provided with a first support rod, and the bottom end of the first support rod is provided with a second support rod. The beneficial effect is: the utility model is provided with a raised block, a shock-absorbing spring and a guide rod, the shock-absorbing spring can provide elastic force to the movable floor, improve the shock resistance of the movable floor, thereby improving the overall stability of the movable floor, and the guide rod and The raised block can support and guide the shock-absorbing spring, which can prolong the service life of the shock-absorbing spring. By setting a protective pad, the panel can be protected. In addition, the protective pad can also fill the gap between the panel and the frame, so that the panel can be The frame installation is more stable.
Description
Technical Field
The utility model relates to a raised floor technical field, concretely relates to modular ceramic raised floor.
Background
The movable floor, also called assembled floor or false floor, its construction mode is that the early American appears in sixties, and eighties are widely used in computer technology facilities by our country, it is made up of panel block, stringer, adjustable support, etc. of various specification models and materials, the overhead space formed between the movable floor and the basic floor or floor can not only meet the need of laying criss-cross cable and various pipelines, but also can meet the requirements of air-conditioning such as static pressure air supply, etc. by design, the ventilation opening is set at the proper position of the overhead floor.
When the existing ceramic movable floor is used, the shock resistance of the movable floor is weak, the stability of the movable floor is easily reduced, the using effect is reduced, and in addition, when the existing ceramic movable floor is installed, the panel can be directly installed in the frame and easily collides with the frame, so that scratches are left on the surface of the panel, the attractiveness of the panel is reduced, and therefore the existing problem is solved by using the combined ceramic movable floor.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
In order to overcome the defects of the prior art, the combined ceramic movable floor is provided, and the problems that when the existing ceramic movable floor is used, the shock resistance of the movable floor is weak, the stability of the movable floor is easy to reduce, and the using effect is reduced, and in addition, when the existing ceramic movable floor is installed, a panel can be directly installed in a frame and is easy to collide with the frame, so that scratches are left on the surface of the panel, and the attractiveness of the panel is reduced are solved.
(II) technical scheme
The utility model discloses a following technical scheme realizes: the utility model provides a modular ceramic raised floor, including frame, panel and base, the frame inner wall is provided with the protection pad, protection pad one side is provided with the panel, the frame bottom is provided with the connecting plate all around, the connecting plate bottom is provided with first bracing piece, first bracing piece bottom is provided with the second bracing piece, be provided with the locking bolt on the lateral wall of second bracing piece, second bracing piece bottom is provided with the backup pad, the backup pad below sets up the base, the backup pad with the relative one side of base all is provided with protruding piece, the nested damping spring that has on the protruding piece, base upper end both sides are provided with the guide bar, the guide bar runs through the backup pad.
Furthermore, the protection pad is bonded with the frame, the panel is connected with the frame through a clamping groove, and the panel is made of ceramic materials.
By adopting the technical scheme, the protection pad can protect the panel, and in addition, the protection pad can also fill the gap between the panel and the frame, so that the panel and the frame are more stably installed.
Further, the connecting plate is connected with the frame through a bolt, and the first support rod is connected with the connecting plate through a screw.
By adopting the technical scheme, the connecting plate plays a role in connection, and the first supporting rod is connected to the bottom end of the frame.
Furthermore, the second support rod is connected with the first support rod in a sliding mode, and the locking bolt is connected with the second support rod through threads.
By adopting the technical scheme, the space between the movable floor and the ground can be flexibly adjusted, and the locking bolt is used for limiting and fixing, so that the flexibility is good.
Furthermore, the supporting plate is welded with the second supporting rod, the convex block is formed on the supporting plate, and the convex block is formed on the base.
By adopting the technical scheme, the shock absorption spring can be installed in the protruding block in a nested mode, so that the shock absorption spring is prevented from deforming, and the stability of the shock absorption spring is improved.
Furthermore, the guide rod is welded with the base, and the guide rod is connected with the supporting plate in a sliding mode.
Through adopting above-mentioned technical scheme, the guide bar has the guide effect, can improve the holistic shock attenuation stability of device.
(III) advantageous effects
Compared with the prior art, the utility model, following beneficial effect has:
1. in order to solve the problems that when the existing ceramic movable floor is used, the shock resistance of the movable floor is weaker, the stability of the movable floor is easy to reduce, and the using effect is reduced, the utility model discloses a set up protruding block, damping spring and guide bar, the damping spring can provide elasticity for the movable floor, improve the shock resistance of the movable floor, thereby improve the overall stability of the movable floor, and the guide bar and the protruding block can support and guide the damping spring, can prolong the service life of the damping spring;
2. when the installation for solving current ceramic raised floor, the panel can direct mount in the frame, collides with the frame easily to leave the mar on the panel surface, reduce the problem of the aesthetic property of panel, the utility model discloses a set up the protection pad, can protect the panel, the clearance between panel and the frame can also be filled to the protection pad in addition, thereby makes panel and frame mount more stable.
Drawings

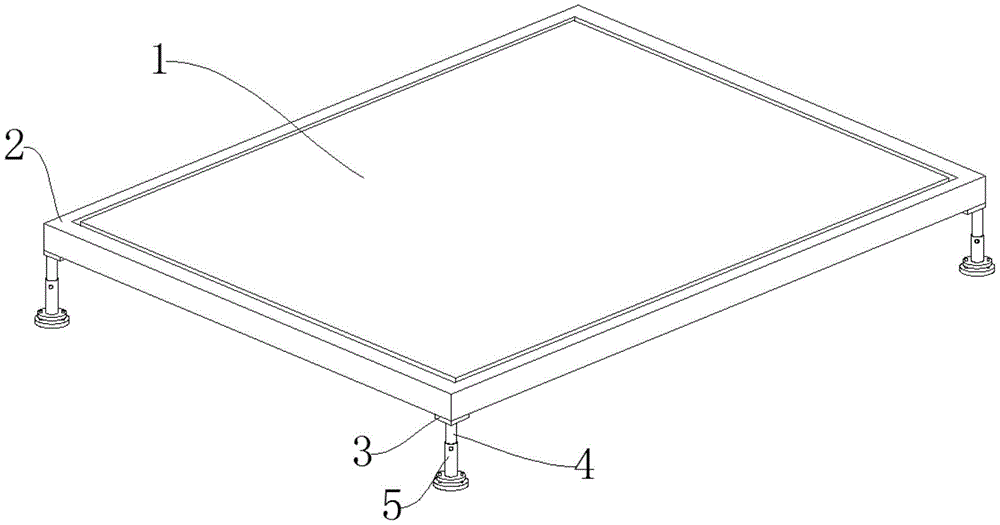

FIG. 1 is a schematic structural view of a combined ceramic raised floor according to the present invention;
FIG. 2 is a front sectional view of the composite ceramic raised floor of the present invention;
FIG. 3 is a schematic structural view of a frame in the composite ceramic raised floor according to the present invention;
fig. 4 is a connection relationship diagram of the first supporting rod and the second supporting rod in the combined ceramic raised floor of the present invention.
The reference numerals are explained below:
1. a panel; 2. a frame; 3. a connecting plate; 4. a first support bar; 5. a second support bar; 6. a support plate; 7. a base; 8. a guide bar; 9. a damping spring; 10. a raised block; 11. locking the bolt; 12. and (6) a protective pad.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
As shown in fig. 1-4, the combined ceramic raised floor in this embodiment comprises a frame 2, a panel 1 and a base 7, wherein a protective pad 12 is disposed on an inner wall of the frame 2, the panel 1 is disposed on one side of the protective pad 12, a connecting plate 3 is disposed around a bottom end of the frame 2, a first supporting rod 4 is disposed at a bottom end of the connecting plate 3, the connecting plate 3 plays a role in connecting the first supporting rod 4 to a bottom end of the frame 2, a second supporting rod 5 is slidably connected to a bottom end of the first supporting rod 4, a locking bolt 11 is disposed on a side wall of the second supporting rod 5, the second supporting rod 5 can slide along the first supporting rod 4, so as to adjust an interval between the raised floor and the ground, and is limited and fixed by the locking bolt 11, so that flexibility is good, a supporting plate 6 is disposed at a bottom end of the second supporting rod 5, the base 7 is disposed below the supporting plate 6, and a protruding block 10 is disposed on an opposite side of the supporting plate 6 and the base 7, the protruding block 10 is nested with damping spring 9, and base 7 upper end both sides are provided with guide bar 8, and guide bar 8 runs through backup pad 6.
As shown in fig. 1 to 4, in this embodiment, the protection pad 12 is bonded to the frame 2, the panel 1 is connected to the frame 2 through a slot, the panel 1 is made of ceramic, the protection pad 12 can protect the panel 1, and the protection pad 12 can fill a gap between the panel 1 and the frame 2, so that the panel 1 and the frame 2 are more stably mounted.
As shown in fig. 1-4, in this embodiment, the supporting plate 6 is welded to the second supporting rod 5, the protrusion 10 is formed on the supporting plate 6, the protrusion 10 is formed on the base 7, the damping spring 9 can be installed on the protrusion 10 in a nested manner, so as to prevent the damping spring 9 from deforming, and improve the stability of the damping spring 9, the guide rod 8 is welded to the base 7, the guide rod 8 is slidably connected to the supporting plate 6, and the guide rod 8 has a guiding function, so as to improve the damping stability of the whole device.
The specific implementation process of this embodiment is as follows: when the movable floor is used, the panel 1 is installed in the frame 2, the panel 1 is protected by the protection pad 12, in addition, the protection pad 12 can also fill the gap between the panel 1 and the frame 2, so that the installation of the panel 1 and the frame 2 is more stable, when the height needs to be adjusted, the locking bolt 11 can be loosened, the second support rod 5 can slide along the first support rod 4, the distance between the frame 2 and the ground is adjusted, then the locking bolt 11 is screwed, the height of the movable floor is fixed, then the frame 2 is assembled together in sequence, the bottom end of the second support rod 5 is provided with the support plate 6, the base 7 and the damping spring 9, the elasticity can be provided for the movable floor, the shock resistance of the movable floor is improved, the integral stability of the movable floor is improved, the guide rod 8 and the raised block 10 can support and guide the damping spring 9, the service life of the damping spring 9 can be prolonged, the practicability is good.
The above-described embodiments are merely illustrative of the preferred embodiments of the present invention and are not intended to limit the spirit and scope of the present invention. Without departing from the design concept of the present invention, various modifications and improvements made by the technical solution of the present invention by those skilled in the art should fall into the protection scope of the present invention, and the technical contents claimed by the present invention have been fully recorded in the claims.
