Abstract

The utility model discloses a multifunctional background curtain wall system, which comprises a base body, a curtain wall, sliding rails and wallpaper. The sliding rails are arranged horizontally and are fixedly connected with the base body; It includes a back plate and a front plate, the front plate is made of transparent material; a cavity is arranged between the front plate and the back plate, and an opening is arranged on the wall surface of the curtain wall, and the opening is communicated with the cavity, so The wallpaper is located in the cavity. By adopting the multifunctional background curtain wall system of the utility model, the wallpaper can be easily replaced without damaging the wall.

Description

Multifunctional background curtain wall system

Technical Field

The utility model belongs to the technical field of the curtain, particularly, relate to a multi-functional background curtain wall system.

Background

In decoration, curtain walls are often designed to serve as background walls for placing various devices in homes, so that the curtain walls can serve as supports and also serve as a part of attractiveness. Meanwhile, wallpaper is often used at home at present and is pasted on a wall to serve as decoration, and when the wallpaper is used together with a curtain wall, the wallpaper is often pasted on the surface of the curtain wall.

However, such a design still has some defects, for example, the wallpaper is adhered to the wall body by the glue, and once the wallpaper is adhered to the wall, the wallpaper is difficult to be torn off, and if the wallpaper is required to be changed due to mispasting or skewing pasting, the wallpaper is difficult to be handled, and the position of the wallpaper cannot be changed. Therefore, there is a need for a multifunctional backdrop wall system that can use both the wall and the wallpaper without interfering with each other.

Disclosure of Invention

The utility model discloses to the aforesaid is not enough, provides a multi-functional background curtain wall system, can guarantee when not destroying the wall body, change wall paper that can be simple and convenient.

In order to solve the technical problem, the embodiment of the utility model provides an adopt following technical scheme:

a multifunctional background curtain wall system comprises a base body, a curtain wall, slide rails and wallpaper, wherein the slide rails are horizontally arranged and fixedly connected with the base body; the curtain wall is connected with the sliding rail through the sliding block and comprises a back plate and a front plate, and the front plate is made of a transparent material; a cavity is arranged between the front plate and the back plate, an opening is formed in the wall surface of the curtain wall and communicated with the cavity, and the wallpaper is located in the cavity.

Preferably, the opening is one and is located at the side of the curtain wall.

Preferably, the number of the openings is two, and the openings are respectively positioned at two sides of the curtain wall.

Preferably, the height of the opening is less than the height of the curtain wall side wall.

Preferably, the top of the opening is flush with the top of the curtain wall.

Preferably, the distance between the top of the front plate and the top of the back plate is less than 0.3 mm.

Preferably, the curtain wall is a cambered surface.

Preferably, the material of the back plate is plastic.

Compared with the prior art, the utility model discloses a multi-functional background curtain wall system can guarantee when not destroying the wall body, change wall paper that can be simple and convenient. The multifunctional background curtain wall system comprises a base body, a curtain wall, a slide rail and wallpaper, wherein the slide rail is horizontally arranged and is fixedly connected with the base body; the curtain wall is connected with the sliding rail through the sliding block and comprises a back plate and a front plate, and the front plate is made of a transparent material; a cavity is arranged between the front plate and the back plate, an opening is formed in the wall surface of the curtain wall and communicated with the cavity, and the wallpaper is located in the cavity. The curtain wall is arranged on the wall body base body through the sliding rails, the cavity is formed by the front plate and the back plate of the curtain wall, the wallpaper is placed in the cavity, the wallpaper can be taken out of the cavity to be replaced at any time, and the position of the curtain wall can be changed at any time, so that the wallpaper can be conveniently taken out, placed and adjusted.

Drawings

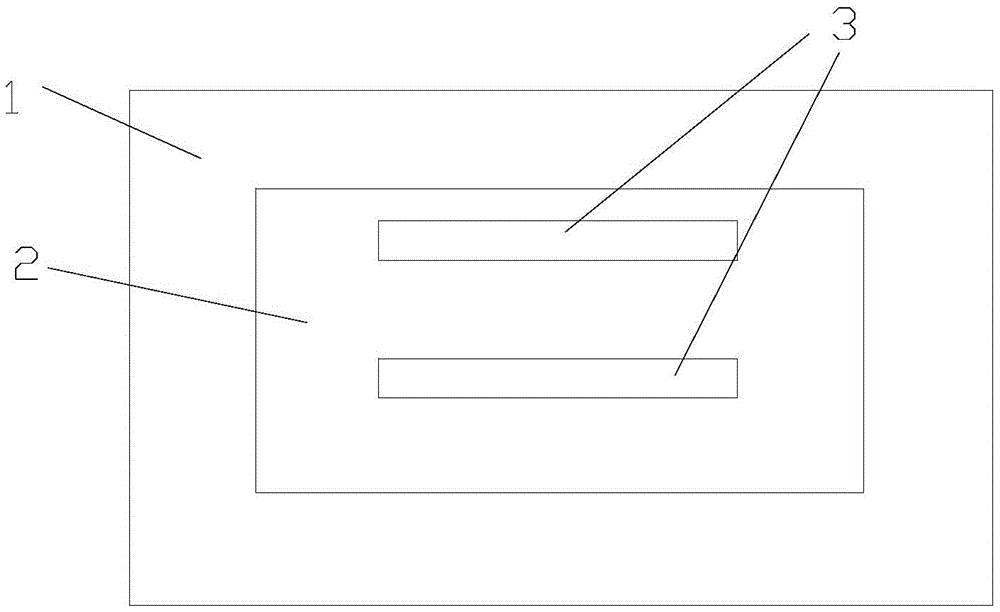

Fig. 1 is a schematic structural diagram of an embodiment of the present invention;

fig. 2 is a side view of an embodiment of the invention.

The figure shows that: the wall-mounted building comprises a base body 1, a curtain wall 2, a sliding rail 3, wallpaper 4, an opening 5, a front plate 6 and a back plate 7.

Detailed Description

The following description is merely exemplary in nature and is not intended to limit the present disclosure, application, or uses. It should be understood that throughout the drawings, corresponding reference numerals indicate like or corresponding parts and features.

As shown in fig. 1 and fig. 2, the utility model discloses a multi-functional background curtain wall system of embodiment, including base member 1, curtain 2, slide rail 3 and wall paper 4, slide rail 3 level is laid, and with base member 1 fixed connection. The curtain wall 2 is connected with the slide rail 3 through a slide block. The curtain wall 2 comprises a back panel 7 and a front panel 6. The front plate 6 is made of a transparent material, for example, glass or plastic. A cavity is arranged between the front plate 6 and the back plate 7. The wall surface of the curtain wall 2 is provided with an opening 5. The opening 5 communicates with the cavity. The wallpaper 4 is located in the cavity.

The curtain wall 2 is installed on the wall body base body 1 through the sliding blocks and the sliding rails 3, so that the curtain wall 2 can horizontally slide on the base body 1 at any time. The front plate 6 and the back plate 7 of the curtain wall 2 form a cavity, the wallpaper 4 is placed in the cavity, the wallpaper 4 can be taken out of the cavity at any time for replacement, and the position of the curtain wall 2 can be changed at any time, so that the wallpaper 4 can be conveniently taken and placed and adjusted.

It should be noted that, because the front plate 6 is made of a transparent material, the wallpaper 4 can be placed in the cavity to serve as an aesthetic background for the wallpaper 4.

In the multifunctional backdrop wall system of the above embodiment, preferably, the opening 5 is one and is located at the side of the backdrop wall 2. The wallpaper 4 is penetrated into the cavity by arranging an opening 5 at the side of the curtain wall 2. When the wallpaper 4 needs to be replaced, the wallpaper 4 in the cavity can be directly drawn out from the opening 5, and the wallpaper 4 is convenient to replace.

Preferably, the openings 5 are two and are located on either side of the curtain wall 2. The two openings 5 are arranged and respectively arranged at the two sides of the curtain wall 2; when the wallpaper 4 is placed, the wallpaper 4 can be inserted into one opening 5 and withdrawn from the other opening 5. Meanwhile, the wallpaper 4 is adjusted by utilizing the openings 5 at the two ends, so that the installation efficiency can be improved.

Preferably, the height of said opening 5 is less than the height of the side walls of the curtain wall 2. By limiting the height of the opening 5, the wallpaper 4 is not easy to move out of the cavity after being inserted into the cavity, and the stability of the wallpaper 4 is ensured.

Preferably, the top of the opening 5 is flush with the top of the curtain wall 2. Through the top position of restriction opening 5 for when installing wall paper 4, can embed wall paper 4 top in the gap at front bezel 6 top and back plate top, easy to assemble improves the convenience.

Preferably, the distance between the top of the front plate 6 and the top of the back plate 7 is less than 0.3 mm. The wallpaper 4 is clamped by the gap between the top of the front plate 6 and the top of the back plate. By limiting the distance, it is not necessary to apply glue on the back of the wallpaper 4. Meanwhile, the wallpaper 4 is convenient to replace, and only the original wallpaper 4 needs to be taken out during replacement.

Preferably, the curtain wall 2 is a cambered surface. The curtain wall 2 of cambered surface can strengthen and the base member 1's third dimension.

Preferably, the material for making the back plate 7 is plastic.

The working process of the multifunctional backdrop wall system of the embodiment is as follows: when the wallpaper 4 is placed, the curtain wall 2 slides out of the position of the base body 1 through the sliding block and the sliding rail 3, the wallpaper 4 penetrates into the cavity from the opening 5, and the curtain wall 2 slides back to the original position after the position of the wallpaper 4 is adjusted by the openings 5 at the two ends; if the wallpaper 4 needs to be replaced or the position of the wallpaper 4 needs to be adjusted, the wallpaper 4 can be directly drawn out from the opening 5.

Compared with the prior art, adopt the utility model discloses a multi-functional background curtain wall system is through installing the slide rail for the curtain on the wall body base member to constitute the cavity through curtain front bezel and backplate, place the wall paper in the cavity, make the wall paper can follow the cavity at any time and take out the change, and the curtain also can change the position at any time, is convenient for get and puts wall paper and adjustment.

The embodiments of the present invention are merely preferred embodiments of the present invention, and are not intended to limit the scope of the present invention. All equivalent changes and modifications made according to the content of the claims of the present invention should be regarded as the technical scope of the present invention.

Claims (8)

1. The multifunctional background curtain wall system is characterized by comprising a base body (1), a curtain wall (2), a sliding rail (3) and wallpaper (4), wherein the sliding rail (3) is horizontally arranged and is fixedly connected with the base body (1); the curtain wall (2) is connected with the sliding rail (3) through a sliding block, the curtain wall (2) comprises a back plate (7) and a front plate (6), and the front plate (6) is made of transparent materials; a cavity is arranged between the front plate (6) and the back plate (7), an opening (5) is formed in the wall surface of the curtain wall (2), the opening (5) is communicated with the cavity, and the wallpaper (4) is located in the cavity.

2. A multifunctional backdrop wall system according to claim 1, wherein said opening (5) is one and located at the side of the wall (2).

3. A multifunctional backdrop wall system according to claim 1, wherein said openings (5) are two and located on either side of the wall (2).

4. A multifunctional backdrop wall system according to claim 2 or 3, wherein the height of the opening (5) is less than the height of the side walls of the wall (2).

5. A multifunctional backdrop wall system according to claim 4, wherein the top of the opening (5) is flush with the top of the wall (2).

6. A multi-function backdrop wall system according to claim 1, wherein the distance between the top of the front panel (6) and the top of the back panel (7) is less than 0.3 mm.

7. A multifunctional backdrop wall system according to claim 1, wherein the curtain wall (2) is cambered.

8. A multi-function backdrop wall system according to claim 1, wherein said back plate (7) is made of plastic.
