Abstract
本实用新型属于数控机床技术领域，尤其为一种定位精准的高剪折卷数控机床，包括工作台，所述工作台的顶部开设有凹槽，所述凹槽的内部转动连接有螺纹杆，所述螺纹杆贯穿所述工作台并延伸至所述工作台的外部，所述工作台的顶部设有相对称的两个夹板，两个所述夹板均贯穿所述凹槽滑动在所述凹槽的内部并传动在所述螺纹杆的外壁；能够先将工件固定后再根据两个刻度表来对剪折机构的纵向和横向的位置进行调节，可以让工件的待加工位置处于剪折机构的正下方，提高了工件待加工位置的精确性，避免了人工调节工件位置后在对工件进行固定而导致工件的位置出现偏移的情况发生，省时省力，提高了工作效率。
The utility model belongs to the technical field of numerically-controlled machine tools, in particular to a high-shearing and rolling numerically-controlled machine tool with accurate positioning, comprising a worktable, a groove is formed on the top of the worktable, and a threaded rod is rotatably connected inside the groove. The threaded rod penetrates the workbench and extends to the outside of the workbench. The top of the workbench is provided with two relatively symmetrical clamping plates, and the two clamping plates pass through the groove and slide in the groove. The inside of the groove is driven on the outer wall of the threaded rod; the workpiece can be fixed first, and then the longitudinal and lateral positions of the shearing and folding mechanism can be adjusted according to the two scales, so that the workpiece to be processed is in the shearing and folding mechanism. It improves the accuracy of the workpiece position to be processed, avoids the situation that the workpiece position is offset after fixing the workpiece manually after adjusting the workpiece position, saves time and effort, and improves work efficiency.
Description
Technical Field
The utility model relates to a digit control machine tool technical field specifically is a digit control machine tool is rolled up in accurate high shear in location.
Background
The numerical control machine tool is a digital control machine tool for short, and is an automatic machine tool with a program control system, the control system can logically process a program with control codes or other symbol instructions, decode the program, represent the decoded program by coded numbers, input the coded number into a numerical control device through an information carrier, send various control signals by the numerical control device through operation processing, control the action of the machine tool, and automatically machine parts according to the shape and size required by a drawing.
When a workpiece is machined by the conventional numerical control machine tool, the position of the workpiece is usually manually adjusted to enable the position of the workpiece to be machined to be positioned under a shearing and folding mechanism, and then the workpiece is machined by the shearing and folding mechanism.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a fix a position accurate high shear and roll up digit control machine tool to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a fix a position accurate high shear roll digit control machine tool, includes the workstation, the top of workstation is seted up flutedly, the inside rotation of recess is connected with the threaded rod, the threaded rod runs through the workstation and extends to the outside of workstation, the top of workstation is equipped with two symmetrical splint, two splint all run through the recess slides in the inside of recess and the transmission is in the outer wall of threaded rod, just the top of workstation is located and has the centre gripping groove that is used for the centre gripping work piece between two splint, the inboard of two splint all fixedly connected with first graduation apparatus, the top of workstation is located the left side sliding connection of recess has the support arm, the top fixedly connected with motor of workstation, the output fixedly connected with lead screw of motor, the lead screw runs through the support arm and extends to the outside of support arm, just the support arm transmission is in the outer wall of lead screw, the top sliding connection of support arm has the driving plate, the bottom fixedly connected with of driving plate is used for the shearing of work piece processing to roll over the mechanism, it runs through to cut a roll over the mechanism the support arm extends to the below of shrinking the support arm, the bottom block of support arm is fixed with the L template, the outer wall fixedly connected with second graduation apparatus of L template, the bottom fixedly connected with connecting rod of L template, the connecting rod runs through splint and slide the top of splint, just the L template passes through the connecting rod slides the top of splint, motor and external power source electric connection.
As a further aspect of the present invention: the bottom fixedly connected with journal stirrup of splint, the journal stirrup with the recess cooperatees, splint pass through the journal stirrup with the cooperation of recess slides and is in the top of workstation.
As a further aspect of the present invention: the support lug is provided with a first thread groove matched with the threaded rod, and the support lug is driven on the outer wall of the threaded rod through the first thread groove.
As a further aspect of the present invention: the top of splint seted up with connecting rod matched with spout, the L template passes through the connecting rod with the cooperation of spout slides in the top of splint.
As a further aspect of the present invention: the top of support arm has seted up logical groove, cut a mechanism and pass through the logical groove the support arm and extend to the top of support arm.
As a further aspect of the present invention: the L-shaped plate is provided with a clamping groove matched with the supporting arm, and the L-shaped plate is clamped and fixed at the bottom of the supporting arm through the clamping groove.
As a further aspect of the present invention: and the support arm is provided with a second thread groove matched with the screw rod, and the support arm is transmitted on the outer wall of the screw rod through the second thread groove.
Compared with the prior art, the beneficial effects of the utility model are that:
the L-shaped plate of the utility model slides on the top of the clamping plate through the connecting rod, when a workpiece is processed, a worker firstly places the workpiece between the two clamping plates, then twists the threaded rod to drive the two clamping plates which are driven on the threaded rod to displace, so that the two clamping plates are tightly attached to the two sides of the workpiece, the size of the clamping groove can be adjusted according to the size of the workpiece, thereby limiting the workpieces with different models, meanwhile, when the clamping plates slide on the top of the workbench, the clamping plates can drive the L-shaped plate which slides on the clamping plates to displace, the L-shaped plate can slide on the outer wall of the supporting arm, the position of the second dial gauge can be adjusted according to the size of the workpiece, the transverse position of the shearing and folding mechanism can be conveniently adjusted according to the position of the second dial gauge, moreover, after the workpiece is fixed, the motor works to drive the screw rod which is fixed at the output end to rotate, and drive the support arm of transmission above that and carry out the displacement, the staff can come to adjust the position of support arm according to first graduation apparatus, adjust the longitudinal position of cutting a book mechanism with this, can adjust the longitudinal and horizontal position of cutting a book mechanism according to two graduation apparatus after fixing the work piece, can let the position of treating of work piece be in under cutting a book mechanism, the accuracy nature of work piece processing position has been improved, the condition of fixing the work piece after having avoided artifical regulation work piece position takes place, time saving and labor saving, and the work efficiency is improved.
Drawings
FIG. 1 is a schematic diagram of a high shear roll numerically controlled machine tool with precise positioning;

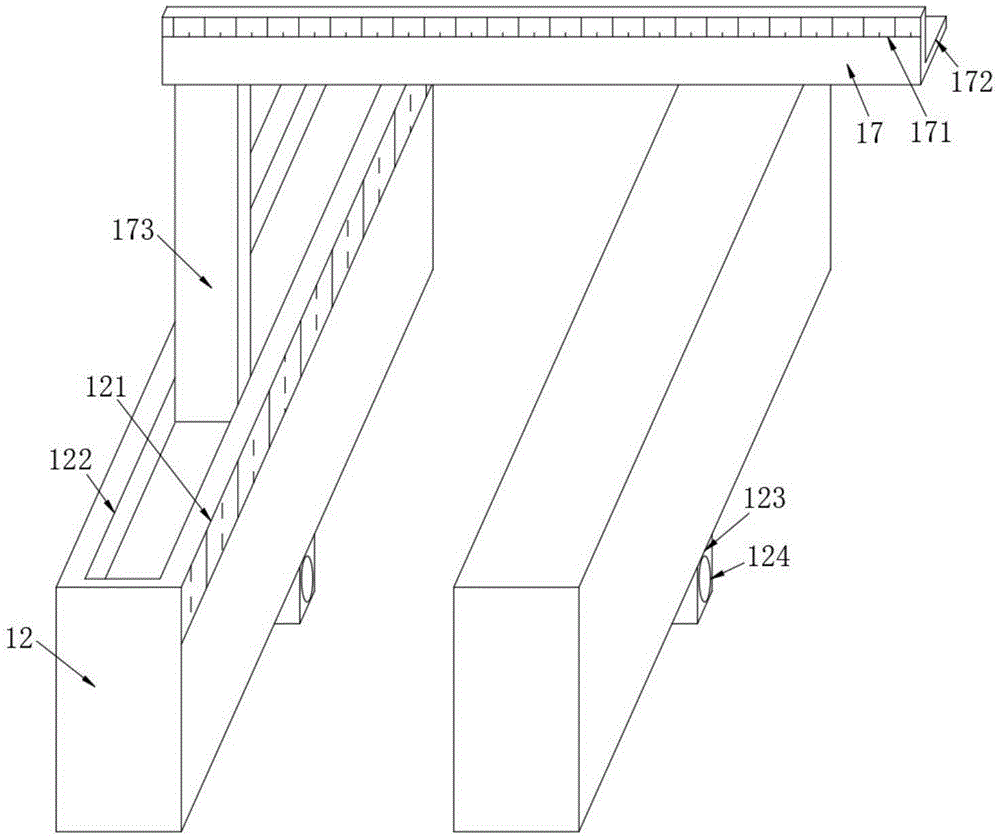

FIG. 2 is a schematic structural diagram of an L-shaped plate and a clamping plate in a high shear roll numerical control machine tool with accurate positioning;
FIG. 3 is a schematic structural diagram of a threaded rod and a clamping plate in a high shear roll numerical control machine tool with precise positioning;
FIG. 4 is a schematic structural diagram of an L-shaped plate and a supporting arm in a high shear roll numerical control machine tool with accurate positioning.
In the figure: 1. a work table; 101. a groove; 102. a clamping groove; 11. a threaded rod; 12. a splint; 121. a first scale; 122. a chute; 123. supporting a lug; 124. a first thread groove; 13. a motor; 131. a screw rod; 14. a support arm; 141. a second thread groove; 142. a through groove; 15. a drive plate; 16. a shearing and folding mechanism; 17. an L-shaped plate; 171. a second scale table; 172. a card slot; 173. a connecting rod.
Detailed Description
Referring to fig. 1 to 4, in an embodiment of the present invention, a high-shear roll numerical control machine tool with precise positioning comprises a worktable 1, a groove 101 is formed at the top of the worktable 1, a threaded rod 11 is rotatably connected to the inside of the groove 101, the threaded rod 11 penetrates through the worktable 1 and extends to the outside of the worktable 1, two symmetrical clamping plates 12 are arranged at the top of the worktable 1, both the clamping plates 12 penetrate through the groove 101 and slide inside the groove 101 and are driven to the outer wall of the threaded rod 11, a clamping groove 102 for clamping a workpiece is formed between the two clamping plates 12 at the top of the worktable 1, a first scale 121 is fixedly connected to the inner sides of the two clamping plates 12, a support arm 14 is slidably connected to the left side of the groove 101 at the top of the worktable 1, a motor 13 is fixedly connected to the top of the worktable 1, a lead screw 131 is fixedly connected to an output end of the motor 13, the lead screw 131 penetrates through the support arm 14 and extends to the outside of the support arm 14, and the transmission of support arm 14 is at the outer wall of lead screw 131, the top sliding connection of support arm 14 has driving plate 15, the bottom fixedly connected with of driving plate 15 is used for the shearing and folding mechanism 16 of work piece processing, shearing and folding mechanism 16 runs through support arm 14 and extends to the below of shrinking support arm 14, the bottom block of support arm 14 is fixed with L template 17, the outer wall fixedly connected with second graduation apparatus 171 of L template 17, the bottom fixedly connected with connecting rod 173 of L template 17, connecting rod 173 runs through splint 12 and slides at the top of splint 12, and L template 17 slides at the top of splint 12 through connecting rod 173, motor 13 and external power source electric connection.
In fig. 1, 2 and 3: when a workpiece is machined, a worker firstly places the workpiece between the two clamping plates 12, then twists the threaded rod 11 to drive the two support lugs 123 driven by the first threaded groove 124 to displace in the groove 101 and drive the two clamping plates 12 to displace towards the inner side at the top of the workbench 1, so that the two clamping plates 12 can be tightly attached to two sides of the workpiece, the size of the clamping groove 102 can be adjusted according to the size of the workpiece, thereby limiting workpieces of different models, meanwhile, when the clamping plates 12 slide at the top of the workbench 1, the clamping plates 12 can drive the L-shaped plate 17 sliding on the clamping plates to displace, the L-shaped plate 17 can slide on the outer wall of the support arm 14 through the clamping groove 172, the position of the second scale 171 can be adjusted according to the size of the workpiece, and the transverse position of the shearing and folding mechanism 16 can be adjusted in the through groove 142 according to the position of the second scale 171, moreover, after the workpiece is fixed, the motor 13 (the model is YL-7112) works to drive the screw rod 131 fixed at the output end to rotate, and drive the support arm 14 driven by the second thread groove 141 to displace, and a worker can adjust the position of the support arm 14 according to the first scale table 121, so as to adjust the longitudinal position of the shearing and folding mechanism 16, and can adjust the longitudinal and transverse positions of the shearing and folding mechanism 16 according to the two scale tables after the workpiece is fixed, so that the position of the workpiece to be processed is positioned under the shearing and folding mechanism 16, thereby improving the accuracy of the processing position of the workpiece, avoiding the situation that the workpiece is fixed after the position of the workpiece is manually adjusted, saving time and labor, and improving the working efficiency.
In fig. 2 and 4: adjusting the position of splint 12, L template 17 slides at the outer wall of support arm 14 through draw-in groove 172, can advance the regulation according to the size of work piece to the position of second graduation apparatus 171, be convenient for adjust the transverse position of cutting and folding mechanism 16 in logical groove 142 according to the position of second graduation apparatus 171, when adjusting the position of support arm 14, L template 17 slides at the top of splint 12 through the cooperation of connecting rod 173 with spout 122, L template 17 can not produce the interference with support arm 14, splint 12 between, the practicality is strong.
The utility model discloses a theory of operation is: when a workpiece is machined, a worker firstly places the workpiece between the two clamping plates 12, then twists the threaded rod 11 to drive the two support lugs 123 driven by the first threaded groove 124 to displace in the groove 101 and drive the two clamping plates 12 to displace towards the inner side at the top of the workbench 1, so that the two clamping plates 12 can be tightly attached to two sides of the workpiece, the size of the clamping groove 102 can be adjusted according to the size of the workpiece, thereby limiting workpieces of different models, meanwhile, when the clamping plates 12 slide at the top of the workbench 1, the clamping plates 12 can drive the L-shaped plate 17 sliding on the clamping plates to displace, the L-shaped plate 17 can slide on the outer wall of the support arm 14 through the clamping groove 172, the position of the second scale 171 can be adjusted according to the size of the workpiece, and the transverse position of the shearing and folding mechanism 16 can be adjusted in the through groove 142 according to the position of the second scale 171, moreover, after the workpiece is fixed, the motor 13 works to drive the screw rod 131 fixed at the output end to rotate, and drive the support arm 14 driven by the second thread groove 141 to displace, and a worker can adjust the position of the support arm 14 according to the first scale meter 121, so as to adjust the longitudinal position of the shearing and folding mechanism 16, and can adjust the longitudinal and transverse positions of the shearing and folding mechanism 16 according to the two scale meters after the workpiece is fixed, so that the workpiece to be processed is positioned under the shearing and folding mechanism 16, the accuracy of the processing position of the workpiece is improved, the workpiece is prevented from being fixed after the position of the workpiece is manually adjusted, time and labor are saved, and the working efficiency is improved.
The above-mentioned, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. The utility model provides a fix a position accurate high shear roll digit control machine tool, includes workstation (1), its characterized in that, recess (101) are seted up at the top of workstation (1), the inside of recess (101) is rotated and is connected with threaded rod (11), threaded rod (11) run through workstation (1) and extend to the outside of workstation (1), the top of workstation (1) is equipped with symmetrical two splint (12), two splint (12) all run through recess (101) slide in the inside of recess (101) and the transmission is in the outer wall of threaded rod (11), and the top of workstation (1) is located two centre gripping groove (102) that are used for the centre gripping work piece have between splint (12), two the inboard of splint (12) all fixedly connected with first graduation apparatus (121), the top of workstation (1) is located the left side sliding connection of recess (101) has support arm (14), the top fixedly connected with motor (13) of workstation (1), the output fixedly connected with lead screw (131) of motor (13), lead screw (131) run through support arm (14) and extend to the outside of support arm (14), just support arm (14) transmission is in the outer wall of lead screw (131), the top sliding connection of support arm (14) has driving plate (15), the bottom fixedly connected with of driving plate (15) is used for the shearing and folding mechanism (16) of work piece processing, shearing and folding mechanism (16) run through support arm (14) and extend to the below of shrink support arm (14), the bottom block of support arm (14) is fixed with L template (17), the outer wall fixedly connected with second scale (171) of L template (17), the bottom fixedly connected with connecting rod (173) of L template (17), the connecting rod (173) penetrates through the clamping plate (12) and slides on the top of the clamping plate (12), the L-shaped plate (17) slides on the top of the clamping plate (12) through the connecting rod (173), and the motor (13) is electrically connected with an external power supply.
2. The high-shear roll numerical control machine tool with precise positioning according to claim 1, characterized in that a supporting lug (123) is fixedly connected to the bottom of the clamping plate (12), the supporting lug (123) is matched with the groove (101), and the clamping plate (12) slides on the top of the workbench (1) through the matching of the supporting lug (123) and the groove (101).
3. The high-shear roll numerical control machine tool with precise positioning according to claim 2, characterized in that the support lug (123) is provided with a first thread groove (124) matched with the threaded rod (11), and the support lug (123) is driven on the outer wall of the threaded rod (11) through the first thread groove (124).
4. The numerically controlled machine tool for high-shear bending and rolling with precise positioning according to claim 1, wherein the top of the clamping plate (12) is provided with a sliding groove (122) matched with the connecting rod (173), and the L-shaped plate (17) slides on the top of the clamping plate (12) through the matching of the connecting rod (173) and the sliding groove (122).
5. The numerically controlled machine tool for high-shear roll bending with precise positioning according to claim 1, wherein a through slot (142) is formed at the top of the supporting arm (14), and the shearing and folding mechanism (16) penetrates through the supporting arm (14) through the through slot (142) and extends to the top of the supporting arm (14).
6. The high-shear bending and rolling numerical control machine tool with accurate positioning according to claim 1, wherein a clamping groove (172) matched with the supporting arm (14) is formed in the L-shaped plate (17), and the L-shaped plate (17) is clamped and fixed at the bottom of the supporting arm (14) through the clamping groove (172).
7. The high-shear roll numerical control machine tool with precise positioning according to claim 1, wherein the support arm (14) is provided with a second thread groove (141) matched with the screw rod (131), and the support arm (14) is driven on the outer wall of the screw rod (131) through the second thread groove (141).
