CN214313615U

CN214313615U - Novel wiring terminal

Info

Publication number: CN214313615U
Application number: CN202023159832.8U
Authority: CN
Inventors: 张灶桂
Original assignee: Shenzhen Deke Electric Co ltd
Current assignee: Shenzhen Deke Electric Co ltd
Priority date: 2020-12-24
Filing date: 2020-12-24
Publication date: 2021-09-28
Anticipated expiration: 2030-12-24

Abstract

The utility model discloses a novel wiring terminal, which relates to the technical field of wiring terminals. A female end is connected, a mounting groove is opened on one side of the sub-end, a first fixing block is installed on one side of the sub-end, and a chute is opened on one side of the sub-end. In the utility model, the product is installed with a first fixing block and a second fixing block on one side of the sub-terminal and the female end. After the personnel installs the wire into the installation groove, the bottom of the wire interferes with the placement groove of the first fixing block. Inside, the personnel slide the second fixing block through the chute so that the second fixing block abuts the first fixing block, and install the fixing bolts on both sides of the second fixing block into the inside of the mounting blocks on both sides of the first fixing block, Therefore, the two fixing blocks are fixed, and the cotton pad can abut the electric wire through the spring frame, so that the electric wire can be installed more stably.

Description

Novel wiring terminal

Technical Field

The utility model relates to a binding post technical field especially relates to a novel binding post.

Background

The wiring terminal is an accessory product for realizing electrical connection, is industrially divided into the category of connectors, and along with the increasingly high industrial automation degree and the increasingly strict and accurate industrial control requirements, the use amount of the wiring terminal gradually rises, and along with the development of the electronic industry, the use range and the variety of the wiring terminal are increasingly more and more.

Current novel binding post, after installing the electric wire into the mounting groove inside, the electric wire if fixed unstability, lead to electric wire and binding post to break away from easily, lead to the short circuit, danger very, and install the electric wire into binding post inside back, personnel can fix the electric wire through the bolt at wrench movement binding post top, if inside having water entering bolt, lead to the bolt to rust easily, unable wrench movement to can't fix the electric wire.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving current novel binding post, installing the electric wire into the inside back of mounting groove, the electric wire is if fixed unstability, lead to electric wire and binding post to break away from easily, lead to the short circuit, danger very, and install the electric wire into binding post inside back, personnel can fix the electric wire through the bolt at wrench movement binding post top, if inside there is water entering bolt, lead to the bolt to rust easily, unable wrench movement to can't carry out the shortcoming of fixing to the electric wire, and the novel binding post who proposes.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a novel wiring terminal, includes the son end, the installation head is installed to one side of son end, and one side of installation head is connected with the connector, one side of connector is connected with female end, the mounting groove has been seted up to one side of son end, and one side of son end installs first fixed block, the spout has been seted up to one side of son end, and the outside of spout is connected with the second fixed block, the standing groove has been seted up to one side of second fixed block, and the inboard of standing groove installs the spring frame, the cotton pad is installed to the one end of spring frame, the installation piece is installed to the both sides of second fixed block, and installs fixing bolt at the top of installation piece, the cell body has been seted up at the top of son end, and the internally mounted of cell body has the bolt, the pivot is installed to top one side of son end, and one side of pivot is connected with the apron, the magnetic path is installed at the top of son end.

Preferably, the male end is connected with the female end through the mounting head and the connecting head, and the outer diameter of the mounting head is consistent with the inner diameter of the connecting head.

Preferably, the second fixed block and the sub-end form a sliding structure through the sliding groove, and the outer diameter of the second fixed block is consistent with that of the first fixed block.

Preferably, the first fixing block and the second fixing block form a dismounting structure through a fixing bolt, and the fixing bolt is equally distributed on two sides of the second fixing block.

Preferably, the cover plate and the sub-end form a rotating structure through the rotating shaft, and the area of the cover plate is consistent with the area of the top of the sub-end.

Preferably, the cotton pad constitutes elevation structure through spring frame and first fixed block, and the spring frame is equallyd divide the standing groove.

To sum up, owing to adopted above-mentioned technical scheme, the beneficial effects of the utility model are that:

1. the utility model discloses in, first fixed block and second fixed block are installed to one side of this product at son end and female end, personnel are installing the electric wire into the inside back of mounting groove, the bottom of electric wire is contradicted inside the standing groove of first fixed block, pass through the spout slip second fixed block by personnel again, make second fixed block and first fixed block looks butt, install into the mounting block of first fixed block both sides inside with the fixing bolt of second fixed block both sides, thereby fix two fixed blocks, the cotton pad can carry out the butt to the electric wire through the spring bracket, make the installation of electric wire more stable.

2. The utility model discloses in, the apron is installed at the top of son end and female end to this product, and personnel can wrench movement the bolt at son end and female end top after having installed the electric wire, fixes well the back, and personnel can rotate the apron through the pivot, rotatory to with son end and female end top laminating back, the apron can be fixed rather than through the magnetic path, can prevent that water from getting into to the bolt inside, prevents that the bolt from rustting, protects the bolt.

3. The utility model discloses in, cotton pad is installed to the one end of spring frame in this product, installs the back with the electric wire, and spring frame avoids spring frame and electric wire direct contact through cotton pad and electric wire looks butt, prevents that the electric wire surface from being protected the electric wire by spring frame fish tail.

Drawings

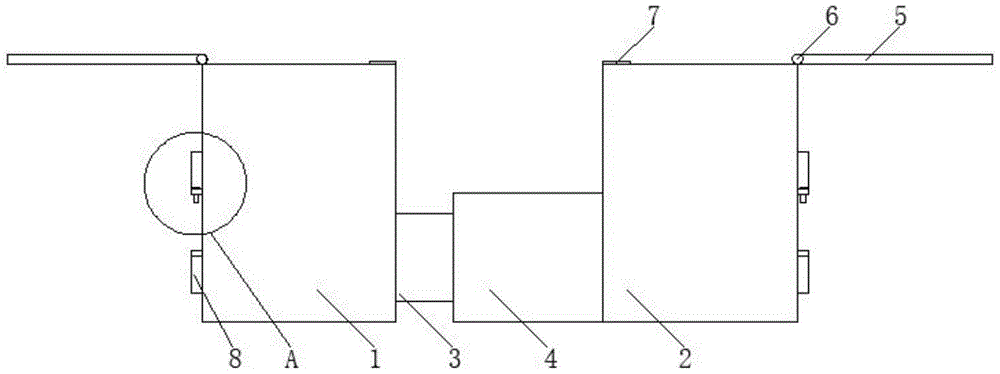

Fig. 1 is a schematic view of a front structure of a connecting terminal of the present invention;

FIG. 2 is an enlarged schematic view of the structure at A in FIG. 1;

fig. 3 is a schematic side view of the connecting terminal of the present invention;

FIG. 4 is an enlarged view of the structure at B in FIG. 2;

fig. 5 is a schematic top view of the middle connection terminal of the present invention.

Illustration of the drawings:

1. a sub-terminal; 2. a female end; 3. a mounting head; 4. a connector; 5. a cover plate; 6. a rotating shaft; 7. a magnetic block; 8. a first fixed block; 9. a second fixed block; 10. mounting blocks; 11. fixing the bolt; 12. mounting grooves; 13. a chute; 14. a spring holder; 15. a cotton pad; 16. a trough body; 17. a bolt; 18. and (6) placing the groove.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.

Referring to fig. 1-5, a novel connecting terminal comprises a sub-end 1, a female end 2, an installing head 3, a connecting head 4, a cover plate 5, a rotating shaft 6, a magnetic block 7, a first fixing block 8, a second fixing block 9, an installing block 10, a fixing bolt 11, an installing groove 12, a sliding groove 13, a spring frame 14, a cotton pad 15, a groove body 16, a bolt 17 and a placing groove 18, wherein the installing head 3 is installed at one side of the sub-end 1, the connecting head 4 is connected to one side of the installing head 3, the female end 2 is connected to one side of the connecting head 4, the installing groove 12 is installed at one side of the sub-end 1, the first fixing block 8 is installed at one side of the sub-end 1, the sliding groove 13 is installed at one side of the sub-end 1, the second fixing block 9 is connected to the outer side of the sliding groove 13, the placing groove 18 is installed at one side of the second fixing block 9, the spring frame 14 is installed at the inner side of the placing groove 18, the cotton pad 15 is installed at one end of the spring frame 14, installation piece 10 is installed to the both sides of second fixed block 9, and fixing bolt 11 is installed at the top of installation piece 10, and cell body 16 has been seted up at the top of son end 1, and the internally mounted of cell body 16 has bolt 17, and pivot 6 is installed to top one side of son end 1, and one side of pivot 6 is connected with apron 5, and magnetic path 7 is installed at the top of son end 1.

As shown in fig. 1, the male terminal 1 is connected to the female terminal 2 through the mounting head 3 and the connecting head 4, and the mounting head 3 has an outer diameter corresponding to the inner diameter of the connecting head 4, and the male terminal 1 and the female terminal 2 can be detached through the mounting head 3 and the connecting head 4.

As shown in fig. 3, the second fixing block 9 and the terminal 1 form a sliding structure through the sliding groove 13, and the outer diameter of the second fixing block 9 is the same as the outer diameter of the first fixing block 8, and after the second fixing block 9 slides to abut against the first fixing block 8 through the sliding groove 13, the second fixing block 9 is fixed, and the first fixing block 8 and the second fixing block 9 can fix the electric wire.

As shown in fig. 3, the first fixing block 8 and the second fixing block 9 form a detachable structure through the fixing bolt 11, the fixing bolts 11 are respectively arranged on two sides of the second fixing block 9, and the fixing bolt 11 can be fixed after being installed into the installation blocks 10 on two sides of the first fixing block 8 and the second fixing block 9.

As shown in fig. 1 and 5, the cover plate 5 forms a rotating structure with the sub-terminal 1 through the rotating shaft 6, the area of the cover plate 5 is consistent with the area of the top of the sub-terminal 1, the cover plate 5 is rotated through the rotating shaft 6, and after the cover plate is rotated to be attached to the top of the sub-terminal 1, the cover plate 5 can be fixed with the magnetic block 7 through the magnetic block, so that water can be prevented from entering the bolt 17.

As shown in fig. 3 and 4, the cotton pad 15 and the first fixing block 8 form a lifting structure through the spring frame 14, the spring frame 14 evenly divides the placing groove 18, and the spring frame 14 abuts against the electric wire through the cotton pad 15, so that the spring frame 14 is prevented from directly contacting the electric wire, and the outer surface of the electric wire is prevented from being scratched by the spring frame 14.

The working principle is as follows: when in use, after a person installs the electric wire into the installation groove 12, the bottom of the electric wire is abutted against the inside of the placing groove 18 of the first fixing block 8, and then the person slides the second fixing block 9 through the sliding groove 13, the second fixing block 9 is abutted against the first fixing block 8, then the fixing bolts 11 at both sides of the second fixing block 9 are installed into the installation blocks 10 at both sides of the first fixing block 8, thereby fixing the two fixing blocks, the cotton pad 15 can butt against the electric wire through the spring frame 14 to fix the electric wire, after the electric wire is installed, namely, the bolts 17 at the tops of the male end 1 and the female end 2 can be twisted to fix the electric wire, after the electric wire is fixed, the cover plate 5 can be rotated by a person through the rotating shaft 6 until the cover plate is jointed with the tops of the male end 1 and the female end 2, the cover plate 5 can be fixed with the magnetic block 7, and water can be prevented from entering the bolt 17.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A novel wiring terminal comprises a sub-end (1) and is characterized in that an installing head (3) is installed on one side of the sub-end (1), a connecting head (4) is connected to one side of the installing head (3), a female end (2) is connected to one side of the connecting head (4), an installing groove (12) is formed in one side of the sub-end (1), a first fixing block (8) is installed on one side of the sub-end (1), a sliding groove (13) is formed in one side of the sub-end (1), a second fixing block (9) is connected to the outer side of the sliding groove (13), a placing groove (18) is formed in one side of the second fixing block (9), a spring frame (14) is installed on the inner side of the placing groove (18), a cotton pad (15) is installed at one end of the spring frame (14), installing blocks (10) are installed on two sides of the second fixing block (9), and a fixing bolt (11) is installed at the top of the installing block (10), cell body (16) have been seted up at the top of son end (1), and the internally mounted of cell body (16) has bolt (17), pivot (6) are installed to top one side of son end (1), and one side of pivot (6) is connected with apron (5), magnetic path (7) are installed at the top of son end (1).

2. A novel connecting terminal according to claim 1, characterized in that the male terminal (1) is connected with the female terminal (2) through the mounting head (3) and the connecting head (4), and the outer diameter of the mounting head (3) is consistent with the inner diameter of the connecting head (4).

3. A novel connecting terminal according to claim 1, characterized in that the second fixing block (9) forms a sliding structure with the terminal (1) through a sliding groove (13), and the outer diameter of the second fixing block (9) is consistent with the outer diameter of the first fixing block (8).

4. The novel connecting terminal as claimed in claim 1, wherein the first fixing block (8) and the second fixing block (9) form a detachable structure through a fixing bolt (11), and the fixing bolt (11) is equally distributed on two sides of the second fixing block (9).

5. A novel connecting terminal according to claim 1, characterized in that the cover plate (5) forms a rotary structure with the sub-terminal (1) through the rotating shaft (6), and the area of the cover plate (5) is consistent with the top area of the sub-terminal (1).

6. A novel connecting terminal according to claim 1, characterized in that the cotton pad (15) forms a lifting structure with the first fixed block (8) through the spring frame (14), and the spring frame (14) divides the placing groove (18) equally.
