Abstract

The utility model discloses a can improve dust remover of air, including the dust removal module, the dust removal module is including first wind channel, first filter core and the first fan that induced drafts that have first air intake and first air outlet, first filter core with first fan that induced drafts all locates in the first wind channel, the last composite mounting of dust removal module has the new air module, the new air module is including second wind channel, second filter core, second fan and the new air passageway that induced drafts that has second air intake and second air outlet, the second filter core with the second fan that induced drafts all locates in the second wind channel, the new air passageway is connected second air intake and outdoor air. When removing dust to the room air through dust removal module, can also adopt dust removal module to release behind the clean outdoor fresh air filtration indoor to reduce indoor harmful gas's concentration, maintain indoor air circumstance.

Description

Dust remover capable of improving air
Technical Field
The utility model relates to an air purification field especially relates to a can improve dust remover of air.
Background
In order to improve the indoor air condition of families, small dust collectors are purchased by many families, the small dust collectors mainly absorb indoor suspended particles in the market, and the products only reduce the indoor tiny particles and cannot reduce the concentration of indoor harmful gases. In order to change indoor air, the long-term window opening is not good for maintaining the family sanitation; if the window is closed for half an hour, the carbon dioxide in the indoor air is increased, the oxygen content is reduced, and the concentration of indoor decoration and furniture pollutants (formaldehyde, benzene and the like) is increased.
In view of the above, the present inventors have made extensive studies on the structure of an indoor dust collector, and have made this disclosure.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a can clean dust remover of indoor outer air in real time.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a can improve dust remover of air, includes the dust removal module, the dust removal module is including first wind channel, first filter core and the first fan that induced drafts that have first air intake and first air outlet, first filter core with first fan that induced drafts all locates in the first wind channel, the last combined mounting of dust removal module has new air module, new air module is including second wind channel, second filter core, the second fan and the new air passageway of induced drafts that have second air intake and second air outlet, the second filter core with the second fan that induced drafts all locates in the second wind channel, the new air passageway is connected second air intake and outdoor air.
Further, the dust removal module and the fresh air module are suspended on an indoor wall, and the fresh air channel penetrates through the indoor wall.
Furthermore, a first filter screen is arranged in the new air channel and close to the outdoor, a second filter screen is arranged in the new air channel and close to the second air inlet, and meshes of the first filter screen are larger than those of the second filter screen.
Further, the first filter element is close to the first air inlet, the first air suction fan is internally close to the first air outlet, the second filter element is close to the second air inlet, and the second air suction fan is close to the second air outlet.
Further, first air intake first air outlet with the second air outlet is loudspeaker form, just first air intake with first air outlet is close to its radial dimension in the outside of first wind channel is big more, the second air outlet is close to more its radial dimension in the outside of second wind channel is big more.
Furthermore, the fresh air module is installed at the top of the dust removal module, the first air inlet is fixedly arranged on the side wall of the dust removal module, the first air outlet is fixedly arranged at the bottom of the dust removal module, and the second air outlet is fixedly arranged at the top of the fresh air module.
Further, a smoke early warning device is arranged between the first filter element and the first air inlet in the first air channel, and the smoke early warning device comprises a conventional smoke sensor and an alarm device.
Adopt above-mentioned technical scheme, the utility model discloses a can improve dust remover of air when removing dust to the room air through dust removal module, can also adopt new air module to release after outdoor fresh air filters cleanness indoor in real time to reduce indoor harmful gas's concentration, maintain indoor air circumstance.
Drawings

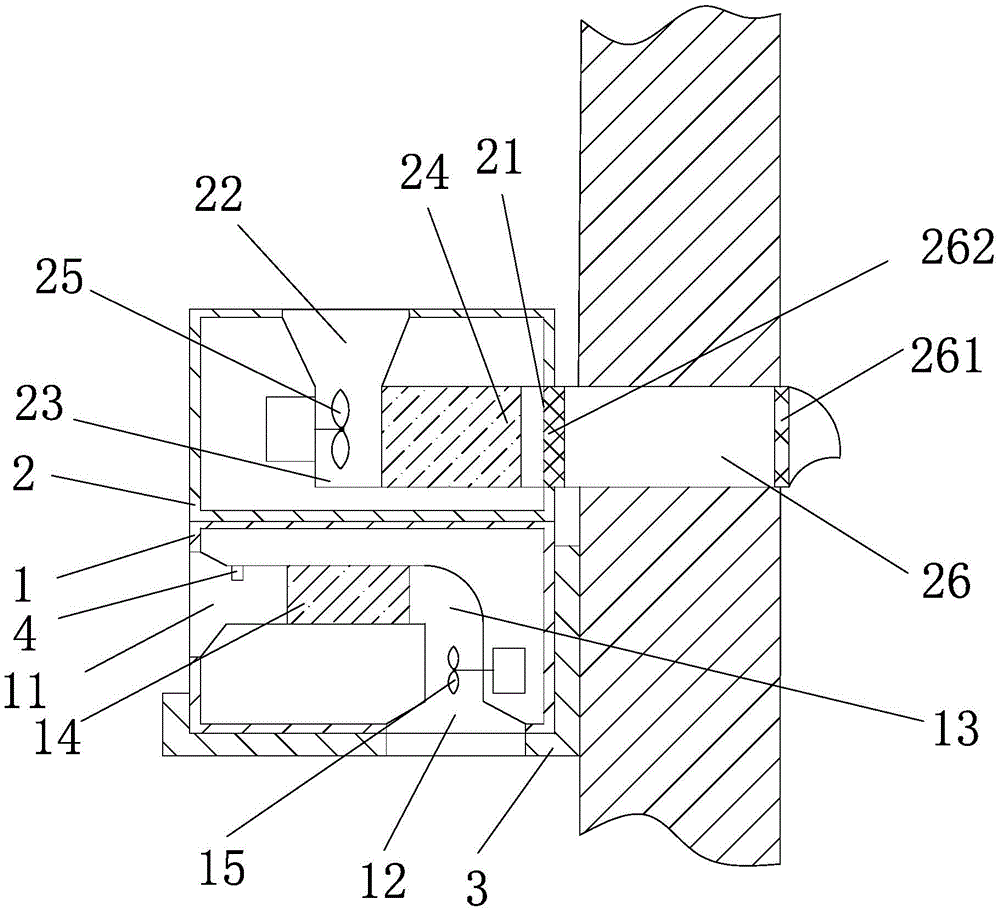

Fig. 1 is a schematic structural diagram of the present invention.
Description of reference numerals:
first air inlet 11 of dust removal module 1
First air outlet 12 and first air duct 13
First filter element 14 first suction fan 15
Second air inlet 21 of fresh air module 2
Second air outlet 22 and second air duct 23
Second filter element 24 and second suction fan 25
Fresh air channel 26 first filter 261
Second filter 262 bearing seat 3
A smoke early warning device 4.
Detailed Description
In order to further explain the technical solution of the present invention, the present invention is explained in detail with reference to the accompanying drawings and specific embodiments.
In order to make the implementation purpose, technical solution and advantages of the present invention clearer, the following will combine the drawings in the embodiments of the present invention to clearly and completely describe the technical solution in the embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention. Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention.
In the description of the present invention, it is to be understood that the terms "corresponding", "between", "parallel", "upper", "lower", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention.
In the present invention, unless otherwise expressly stated or limited, the terms "connected" and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection or a removable connection, or as an integral part; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
The utility model relates to a can improve dust remover of air, as shown in fig. 1, including dust removal module 1, dust removal module 1 is including first wind channel 13, first filter core 14 and the first fan 15 that absorbs air that has first air intake 11 and first air outlet 12, and first filter core 14 and first fan 15 that absorbs air all locate first wind channel 13 in, and first fan 15 that absorbs air can follow first air intake 11 and inhale and discharge from first air outlet 12 behind first wind channel 13.
The dust removal module 1 is provided with a fresh air module 2 in a combined manner, the fresh air module 2 comprises a second air channel 23 with a second air inlet 21 and a second air outlet 22, a second filter element 24, a second suction fan 25 and a fresh air channel 26, the second filter element 24 and the second suction fan 25 are arranged in the second air channel 23, and the fresh air channel 26 is connected with the second air inlet 21 and outdoor air.
The second suction fan 25 can suck the airflow from the outdoor into the new air channel 26, and then the airflow is sucked into the second air duct 23 through the second air inlet 21 and then discharged from the second air outlet 2.
The first filter element 14, the first suction fan 15, the second filter element 24 and the second suction fan 25 are all conventional products available on the market, and the structure thereof will not be described herein.
When removing dust through dust removal module 1 to the room air, can also adopt new air module 2 to release behind the clean outdoor fresh air filtration indoor to reduce indoor harmful gas's concentration, maintain indoor air circumstance.
The dust removal module 1 and the fresh air module 2 can be assembled, installed and used by adopting a modular structure, and can also be used by being separated independently, so that the application range is wider.
The dust removal module 1 and the fresh air module 2 are suspended from an indoor wall through which the fresh air duct 26 penetrates. Specifically, the method comprises the following steps: the indoor wall is fixedly provided with a bearing seat 3, and the dust removal module 1 and the fresh air module 2 are arranged on the bearing seat 3.
A first filter screen 261 is disposed near the outside in the fresh air passage 26, a second filter screen 262 is disposed near the second air inlet 21 in the fresh air passage 26, and the mesh of the first filter screen 261 is larger than that of the second filter screen 262. First filter screen 261 filters outdoor bulky debris earlier during the use to prevent that bulky debris from blockking up new air passageway 26, filter the tiny particle dust in the air through second filter screen 262, compare in the cost of changing second filter core 24, the cost of changing second filter screen 262 is many that need be little, sets up second filter screen 262 and can protect second filter core 24, prolongs the life of second filter core 24.
Preferably: the first filter element 14 is close to the first air inlet 11, the first suction fan 15 is close to the first air outlet 12, the second filter element 24 is close to the second air inlet 21, and the second suction fan 25 is close to the second air outlet 22.
A smoke early warning device 4 is arranged between the first filter element 14 and the first air inlet 11 in the first air duct 13, and the smoke early warning device 4 comprises a conventional smoke sensor and a warning device.
This dust remover is installed on higher wall, and indoor production smog granule can upwards float along with updraft, and smog early warning device 4 that is located first air intake 11 department can be easier senses smog, and then carries out the early warning.
The first air inlet 11, the first air outlet 12 and the second air outlet 22 are trumpet-shaped, and the radial size of the first air inlet 11 and the first air outlet 12 is larger closer to the outer part of the first air duct 13, and the radial size of the second air outlet 22 is larger closer to the outer part of the second air duct 23.
The trumpet-shaped structure has the advantages that the air flow rate is smaller at the end with the large radial size, and the air flow rate is larger at the end with the small radial size. Thus, the first air inlet 11 is trumpet-shaped, which is beneficial for indoor air to rapidly enter the first air duct 13; the first outlet 12 and the second outlet 22 are trumpet shaped, which is beneficial to the clean air to spread into the room in a large range.
The fresh air module 2 is installed at the top of the dust removal module 1, the first air inlet 11 is fixedly arranged on the side wall of the dust removal module 1, the first air outlet 12 is fixedly arranged at the bottom of the dust removal module 1, and the second air outlet 22 is fixedly arranged at the top of the fresh air module 2.
The first air inlet 11, the first air outlet 12 and the second air outlet 22 are located in different directions, which is beneficial to separating the air flows at the first air inlet 11, the first air outlet 12 and the second air outlet 22, so that interference between the air flows is reduced, and the working efficiency of the dust remover is improved.
The present invention has been described in detail with reference to the accompanying drawings, but the embodiments of the present invention are not limited to the above embodiments, and those skilled in the art can make various modifications according to the prior art, and all belong to the protection scope of the present invention.

Claims (7)

1. The utility model provides a can improve dust remover of air, includes the dust removal module, the dust removal module is including the first wind channel, first filter core and the first fan that absorbs air that have first air intake and first air outlet, first filter core with the first fan that absorbs air all locates in the first wind channel, its characterized in that: the last composite mounting of dust removal module has fresh air module, fresh air module is including second wind channel, second filter core, second induced draft fan and the fresh air passageway that has second air intake and second air outlet, the second filter core with second induced draft fan all locates in the second wind channel, the fresh air passageway is connected second air intake and outdoor air.
2. A precipitator capable of improving air, according to claim 1, wherein: the dust removal module and the fresh air module are suspended on an indoor wall, and the fresh air channel penetrates through the indoor wall.
3. A precipitator capable of improving air, according to claim 1, wherein: a first filter screen is arranged in the fresh air channel close to the outdoor, a second filter screen is arranged in the fresh air channel close to the second air inlet, and meshes of the first filter screen are larger than those of the second filter screen.
4. A precipitator capable of improving air, according to claim 1, wherein: the first filter element is close to the first air inlet, the first air suction fan is internally close to the first air outlet, the second filter element is close to the second air inlet, and the second air suction fan is close to the second air outlet.
5. A precipitator capable of improving air, according to claim 1, wherein: the first air inlet, the first air outlet and the second air outlet are trumpet-shaped, the first air inlet and the first air outlet are closer to the larger the radial size of the outside of the first air channel, and the second air outlet is closer to the larger the radial size of the outside of the second air channel.
6. A precipitator capable of improving air, according to claim 1, wherein: the fresh air module is arranged at the top of the dust removal module, the first air inlet is fixedly arranged on the side wall of the dust removal module, the first air outlet is fixedly arranged at the bottom of the dust removal module, and the second air outlet is fixedly arranged at the top of the fresh air module.
7. A precipitator capable of improving air, according to claim 4, wherein: a smoke early warning device is arranged between the first filter element and the first air inlet in the first air channel and comprises a smoke sensor and an alarm device.
