Abstract
本实用新型涉及建筑后浇带止水技术领域，具体为厂房地下室后浇带超前止水隔离结构，包括后浇带主体以及底板，底板上设置有封堵模板，底板的上端面对称开设有安装槽，安装槽的顶部固定设置有挡环，封堵模板的底部固定连接有立块，立块通过定位组件固定于安装槽内，定位组件包括移动条、两组限位块、斜切杆、匚形架、螺纹杆、固定筒以及弹簧，立块的侧壁上开设有容纳移动条的滑槽，弹簧一端固定设置在滑槽的底壁上，弹簧另一端固定连接移动条。本实用新型结构新颖，易于装配，便于后期对封堵模板的独立拆卸及更换，大大降低预算成本。
The utility model relates to the technical field of water-stopping with post-casting belts in buildings, in particular to an advanced water-stopping isolation structure with post-casting belts in a basement of a workshop, comprising a main body of a post-casting belt and a bottom plate. Installation groove, the top of the installation groove is fixed with a retaining ring, the bottom of the blocking template is fixedly connected with a vertical block, and the vertical block is fixed in the installation groove through a positioning assembly. The positioning assembly includes a moving bar, two sets of limit blocks, and an oblique cutting rod , tumbler, threaded rod, fixed cylinder and spring, the side wall of the vertical block is provided with a chute for accommodating the moving bar, one end of the spring is fixedly arranged on the bottom wall of the chute, and the other end of the spring is fixedly connected to the moving bar. The utility model has a novel structure, is easy to assemble, facilitates the independent disassembly and replacement of the blocking template in the later stage, and greatly reduces the budget cost.
Description
Technical Field
The utility model relates to a building post-cast strip stagnant water field specifically is leading stagnant water isolation structure of factory building basement post-cast strip.
Background
The invention discloses an advanced water stop post-cast strip structure of a basement and a construction method thereof, which are disclosed by the invention patent CN201710781124.1, and the advanced water stop post-cast strip structure comprises a left basement main body structure, a right basement main body structure, a post-cast strip area and a cast-in-place concrete trapezoidal groove structure arranged below the post-cast strip, wherein a waterproof coil layer, a polyurethane waterproof coating layer, a waterproof protective layer and a concrete cushion layer are sequentially arranged below the basement main body structure and the cast-in-place concrete trapezoidal groove structure; the waterproof coating has the advantages of good anti-permeability and waterproof effects, strong contraction and deformation capabilities, difficulty in generating adverse phenomena such as slurry accumulation and water accumulation, capability of effectively preventing accumulated water of sundries from entering a post-pouring belt area and capability of avoiding secondary cleaning; however, the detection device has some problems in use;
according to the invention, the high-strength bolts are reserved at the two ends of the side wall and are used for fixing the plugging template, so that the fixing mode is complex in operation, and once the plugging template is damaged, the whole device is required to be disassembled and replaced, so that the budget cost is greatly increased.
In view of this, we propose the advanced water-stop isolation structure of the post-cast strip of the basement of the factory building.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a leading stagnant water isolation structure in factory building basement post-cast strip to solve the problem of proposing in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: leading stagnant water isolation structure in factory building basement post-cast strip, including post-cast strip main part and the bottom plate of setting in post-cast strip main part upper end, be provided with the shutoff template on the bottom plate, the mounting groove has been seted up to the up end symmetry of bottom plate, the fixed fender ring that is provided with in top of mounting groove, the bottom fixedly connected with of shutoff template founds the piece, found the piece and be fixed in the mounting groove through locating component, locating component is including removing strip, two sets of stopper, oblique pole, Contraband shape frame, threaded rod, fixed section of thick bamboo and spring, oblique pole is perpendicular form and mutual sliding fit with removing the strip, set up the spout that holds removal strip on the lateral wall of founding the piece, the fixed setting of spring one end is on the diapire of spout, spring other end fixed connection removes the strip.
Preferably, remove the middle part of strip and seted up the rectangle recess with stopper matched with, the stopper is the structure of falling T, and the middle part of stopper is rotated through the round pin axle and is installed on founding the piece, and stopper one end is inconsistent with the fender ring, and the stopper other end is contradicted at the top of rectangle recess.
Preferably, the inside holding tank that has with oblique pole sliding fit of shutoff template, the fixed setting of fixed cylinder is on the lateral wall of shutoff template, threaded rod one end fixed connection runner, the threaded rod other end runs through fixed cylinder and stretches into the holding tank and with the v 21274, the frame threaded connection of shape, the oblique pole of Contraband shape frame other end fixed connection.
Preferably, the plugging template is provided with a through hole for accommodating the moving strip in a penetrating manner, the through hole and the accommodating groove are in a cross shape, the side wall of the top of the moving strip is provided with a driving groove with the lower end in an inclined plane shape, and the inclined part of the inclined cutting rod is in sliding fit with the driving groove.
Compared with the prior art, the beneficial effects of the utility model are that:
1. through setting up removal strip, oblique cutting rod, Contraband shape frame, threaded rod, fixed section of thick bamboo and spring cooperation use, can drive the stopper upwards deflect and stably contradict in the bottom that keeps off the ring to realize the fixed effect between shutoff template and the bottom plate.
2. The utility model discloses novel structure, reasonable in design, easily assembly, it is rotatory to drive the threaded rod through handheld runner, and the threaded rod acts on again with its threaded connection's \21274, the shape frame, when \21274, the shape frame drives oblique cutting pole when removing left, make the movable block rebound under the effect of spring, rectangle recess bottom on the movable block acts on the stopper this moment, make the stopper deflect downwards and remove the conflict effect to keeping off the ring, make upright the piece can easily take out in the mounting groove, the later stage of being convenient for is to the independent dismantlement and the change of shutoff template, greatly reduced budget cost.
Drawings
FIG. 1 is a schematic structural view of the present invention;

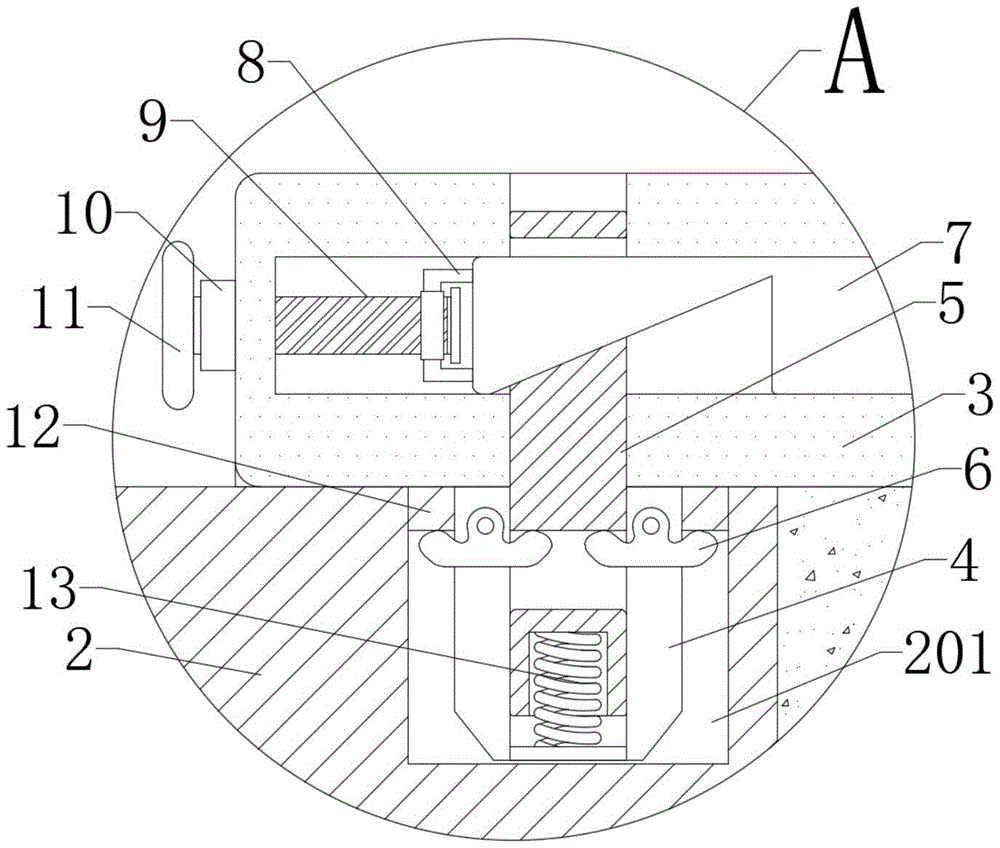

fig. 2 is an enlarged schematic view of region a in fig. 1.
In the figure: the post-cast strip comprises a post-cast strip main body 1, a bottom plate 2, a mounting groove 201, a plugging template 3, a vertical block 4, a moving strip 5, a limiting block 6, a beveling rod 7, a lifting 21274, a shaped frame 8, a threaded rod 9, a fixed cylinder 10, a rotating wheel 11, a baffle ring 12 and a spring 13.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 to 2, the present invention provides a technical solution: leading stagnant water isolation structure in factory building basement post-cast strip, including post-cast strip main part 1 and the bottom plate 2 of setting in post-cast strip main part 1 upper end, be provided with shutoff template 3 on bottom plate 2, mounting groove 201 has been seted up to the up end symmetry of bottom plate 2, the fixed fender ring 12 that is provided with in top of mounting groove 201, the bottom fixedly connected with of shutoff template 3 founds piece 4, found piece 4 is fixed in mounting groove 201 through locating component, locating component is including removing strip 5, two sets of stopper 6, oblique pole 7, v 21274, shape frame 8, threaded rod 9, solid fixed cylinder 10 and spring 13, oblique pole 7 is vertical form and mutual sliding fit with removing strip 5, set up the spout that holds removal strip 5 on the lateral wall of founding piece 4, the fixed setting of spring 13 one end is on the diapire of spout, spring 13 other end fixed connection removes strip 5.
As shown in fig. 2, the rectangular groove matched with the limiting block 6 is formed in the middle of the moving strip 5, the limiting block 6 is of an inverted T-shaped structure, the middle of the limiting block 6 is rotatably installed on the vertical block 4 through a pin shaft, one end of the limiting block 6 is abutted to the baffle ring 12, and the other end of the limiting block 6 is abutted to the top of the rectangular groove. Through the arrangement of the movable strip 5, the beveling rods 7, 21274, the shape frame 8, the threaded rod 9, the fixing barrel 10 and the spring 13, the limiting block 6 can be driven to deflect upwards and stably abut against the bottom of the baffle ring 12, and therefore the fixing effect between the plugging template 3 and the bottom plate 2 is achieved.
As shown in fig. 2, a through hole for accommodating the moving bar 5 is formed in the plugging template 3 in a penetrating manner, the through hole and the accommodating groove are in a cross shape, a driving groove with an inclined lower end in an inclined plane shape is formed in the side wall of the top of the moving bar 5, and the inclined part of the inclined cutting rod 7 is in sliding fit with the driving groove; the holding tank with bevel pole 7 sliding fit is seted up to shutoff template 3 inside, and the fixed setting of fixed cylinder 10 is on the lateral wall of shutoff template 3, and 9 one end fixed connection runners 11 of threaded rod, the threaded rod 9 other end run through fixed cylinder 10 and stretch into holding tank and Contraband shape frame 8 threaded connection, Contraband shape frame 8 other end fixed connection bevel pole 7. Drive threaded rod 9 through handheld runner 11 and rotate, and threaded rod 9 acts on again with its threaded connection's \21274, shape frame 8, when Contraband shape frame 8 drives oblique pole 7 and move left, make movable block 5 upwards move under the effect of spring 13, the rectangle recess bottom on the movable block 5 acts on stopper 6 this moment, make stopper 6 deflect downwards and remove the conflict effect to fender ring 12, make upright piece 4 can easily take out from mounting groove 201, the later stage of being convenient for is to independent dismantlement and the change of shutoff template 3, greatly reduced budget cost.
The working principle is as follows: in practical use, the vertical block 4 at the bottom of the plugging template 3 is firstly inserted along the installation groove 201, at the moment, the threaded rod 9 is rotated by a hand-held rotating wheel, the threaded rod 9 acts on the v 21274in threaded connection with the threaded rod 9, the shape frame 8 is used, when the Contraband shape frame 8 drives the bevel cutting rod 7 to move rightwards, the inclined part of the bevel cutting rod 7 acts on the driving groove on the moving strip 5, the moving strip 5 is stressed and extrudes the spring 13 to move downwards, at the moment, the top of the rectangular groove on the moving block 5 acts on the limiting block 6, the limiting block 6 deflects upwards and stably abuts against the bottom of the blocking ring 12, and therefore the fixing effect between the plugging template 3 and the bottom plate 2 is achieved.
And when Contraband shape frame 8 drives oblique cutting rod 7 and moves left, make movable block 5 upwards move under the effect of spring 13, the rectangular groove bottom on the movable block 5 acts on stopper 6 this moment, make stopper 6 deflect downwards and remove the conflict effect to fender ring 12, make upright piece 4 can easily take out from mounting groove 201, the later stage of being convenient for is to independent dismantlement and the change of shutoff template 3, greatly reduced budget cost.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (4)
