Abstract
The utility model discloses a high accuracy server terminal continuous stamping workpiece mould, including the lower mould base, the outside of lower mould base is fixed with the sleeve, the sleeve symmetry is provided with two, telescopic inboard is provided with the pivot, the sleeve is connected for rotating with the pivot, the outside of pivot is fixed with first belt pulley, first belt pulley symmetry is provided with two, the outside of first belt pulley is provided with track, another the outside of first belt pulley is fixed with the second belt pulley, first belt pulley passes through the track and is connected for rotating with the second belt pulley, the outside of lower mould base is fixed with the layer board, the layer board symmetry is provided with two. This high accuracy server terminal continuous stamping spare mould sets up out a second nib, repeats above-mentioned operation, has realized handling the continuous stamping of raw and other materials, and the last cutting knife is punching press downwards, and with the product from raw and other materials die-cut, realized handling with accurate punching press to the continuous stamping of raw and other materials.
Description
Technical Field
The utility model relates to a stamping die technical field specifically is a high accuracy server terminal continuous stamping workpiece mould.
Background
The stamping die device is a special process device for processing materials (metal or nonmetal) into parts (or semi-finished products) in cold stamping processing, and is called a cold stamping die commonly called a cold stamping die, wherein stamping is a pressure processing method for obtaining required parts by applying pressure to the materials by using a die arranged on a press machine at room temperature to enable the materials to generate separation or plastic deformation, and specifically relates to a terminal stamping die.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a high accuracy server terminal continuous stamping workpiece mould to current terminal stamping die device that the solution above-mentioned background art provided can not carry out continuous punching press and the not accurate problem of punching press to the material in the use.
In order to achieve the above object, the utility model provides a following technical scheme: a high-precision server terminal continuous stamping part die comprises a lower die base, wherein a sleeve is fixed on the outer side of the lower die base, two sleeves are symmetrically arranged, a rotating shaft is arranged on the inner side of each sleeve, the sleeve is rotatably connected with the rotating shaft, a first belt pulley is fixed on the outer side of the rotating shaft, two first belt pulleys are symmetrically arranged, a crawler belt is arranged on the outer side of each first belt pulley, a second belt pulley is fixed on the outer side of the other first belt pulley, the first belt pulley is rotatably connected with the second belt pulley through the crawler belt, a supporting plate is fixed on the outer side of the lower die base, two supporting plates are symmetrically arranged, a plurality of limiting clamping blocks are fixed on the outer side of the crawler belt, an upper die plate is arranged above the lower die base, and a first limiting groove is formed in the bottom end of the upper die plate, the first limiting groove is symmetrically provided with a plurality of limiting clamping blocks, and the limiting clamping blocks are connected with the first limiting groove in a clamping mode.
Preferably, the upper end of lower mould base is provided with raw and other materials, the second spacing groove has been seted up to raw and other materials upper end, the second spacing groove symmetry is provided with a plurality ofly, the second spacing groove is connected for the block with spacing fixture block, the bottom mounting of cope match-plate pattern has first fixture block, first draw-in groove has been seted up to the upper end of lower mould base, first fixture block is sliding connection with first draw-in groove.
Preferably, a second clamping block is fixed at the bottom end of the upper die plate, a second clamping groove is formed in the upper end of the lower die base, the second clamping block is in sliding connection with the second clamping groove, a third clamping block is fixed at the bottom end of the upper die plate, a third clamping groove is formed in the upper end of the lower die base, and the third clamping block is in sliding connection with the third clamping groove.
Preferably, a fourth clamping block is fixed at the bottom end of the upper die plate, a fourth clamping groove is formed in the upper end of the lower die base, the fourth clamping block is in sliding connection with the fourth clamping groove, a fifth clamping block is fixed at the bottom end of the upper die plate, a fifth clamping groove is formed in the upper end of the lower die base, and the fifth clamping block is in sliding connection with the fifth clamping groove.
Preferably, a sixth clamping block is fixed at the bottom end of the upper die plate, a sixth clamping groove is formed in the upper end of the lower die base, the sixth clamping block is in sliding connection with the sixth clamping groove, a seventh clamping block is fixed at the bottom end of the upper die plate, a seventh clamping groove is formed in the upper end of the lower die base, and the seventh clamping block is in sliding connection with the seventh clamping groove.
Preferably, an eighth clamping block is fixed at the bottom end of the upper die plate, an eighth clamping groove is formed in the upper end of the lower die base, the eighth clamping block is in sliding connection with the eighth clamping groove, a cutting knife is fixed at the bottom end of the upper die plate, a cutting groove is formed in the upper end of the lower die base, and the cutting knife is in sliding connection with the cutting groove.
Compared with the prior art, the beneficial effects of the utility model are that: the high-precision server terminal continuous stamping part die is characterized in that a second limiting groove on a raw material is clamped into a limiting clamping block, the raw material is limited, the upper die plate drives the first clamping block to move downwards to stamp the raw material, the first clamping block stamps out the material on the raw material, the material drops from the first clamping groove, after stamping, the rotating shaft drives the first belt pulley to rotate, the first belt pulley drives the track to rotate, the track drives the raw materials to be transmitted to the next station through the limiting clamping block, the upper die plate is pressed downwards again, the second clamping block is driven by the upper die plate to punch downwards, the second clamping block punches the raw materials again, a second die hole is formed, the operations are repeated, continuous punching processing of the raw materials is achieved, the cutting knife punches downwards at last, the product is punched and cut from the raw materials, and continuous punching and accurate punching processing of the raw materials are achieved.
Drawings
FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic diagram of the upper plate structure of the present invention;

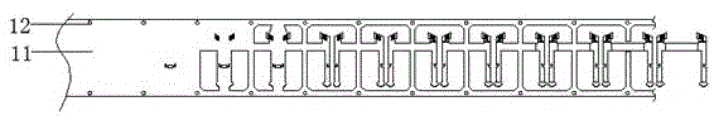

fig. 3 is a schematic view of the raw material structure of the present invention.
In the figure: 1. a lower die base; 2. a sleeve; 3. a rotating shaft; 4. a first pulley; 5. a crawler belt; 6. a second pulley; 7. a support plate; 8. a limiting clamping block; 9. mounting a template; 10. a first limit groove; 11. raw materials; 12. a second limit groove; 13. a first clamping block; 14. a first card slot; 15. a second fixture block; 16. a second card slot; 17. a third fixture block; 18. a third card slot; 19. a fourth fixture block; 20. a fourth card slot; 21. a fifth clamping block; 22. a fifth card slot; 23. a sixth clamping block; 24. a sixth card slot; 25. a seventh fixture block; 26. a seventh card slot; 27. an eighth fixture block; 28. an eighth card slot; 29. a cutting knife; 30. and cutting the groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a high-precision server terminal continuous stamping part die comprises a lower die base 1, wherein a sleeve 2 is fixed on the outer side of the lower die base 1, two sleeves 2 are symmetrically arranged, a rotating shaft 3 is arranged on the inner side of each sleeve 2, the sleeve 2 is rotatably connected with the rotating shaft 3, a first belt pulley 4 is fixed on the outer side of the rotating shaft 3, two first belt pulleys 4 are symmetrically arranged, a crawler belt 5 is arranged on the outer side of each first belt pulley 4, a second belt pulley 6 is fixed on the outer side of the other first belt pulley 4, the first belt pulley 4 is rotatably connected with the second belt pulley 6 through the crawler belt 5, a supporting plate 7 is fixed on the outer side of the lower die base 1, two supporting plates 7 are symmetrically arranged, a plurality of limiting clamping blocks 8 are fixed on the outer side of the crawler belt 5, a plurality of limiting clamping blocks 8 are symmetrically arranged, an upper die plate 9 is arranged above the lower die base 1, a first limiting groove 10 is formed in the bottom end of the upper die plate 9, and a plurality of first limiting grooves 10 are symmetrically arranged, the limiting clamping block 8 is connected with the first limiting groove 10 in a clamping manner.
Further, the upper end of lower mould base 1 is provided with raw and other materials 11, second spacing groove 12 has been seted up to raw and other materials 11 upper ends, second spacing groove 12 symmetry is provided with a plurality ofly, second spacing groove 12 is connected for the block with spacing fixture block 8, the bottom mounting of cope match-plate pattern 9 has first fixture block 13, first draw-in groove 14 has been seted up to lower mould base 1's upper end, first fixture block 13 is sliding connection with first draw-in groove 14, be connected through second spacing groove 12 and spacing fixture block 8's block and realized the spacing processing to raw and other materials 11, improve the precision of punching press.
Further, a second clamping block 15 is fixed at the bottom end of the upper die plate 9, a second clamping groove 16 is formed in the upper end of the lower die base 1, the second clamping block 15 is in sliding connection with the second clamping groove 16, a third clamping block 17 is fixed at the bottom end of the upper die plate 9, a third clamping groove 18 is formed in the upper end of the lower die base 1, the third clamping block 17 is in sliding connection with the third clamping groove 18, and the punching processing of the raw material 11 is achieved through the second clamping block 15 and the third clamping block 17.
Further, a fourth clamping block 19 is fixed at the bottom end of the upper die plate 9, a fourth clamping groove 20 is formed in the upper end of the lower die base 1, the fourth clamping block 19 and the fourth clamping groove 20 are in sliding connection, a fifth clamping block 21 is fixed at the bottom end of the upper die plate 9, a fifth clamping groove 22 is formed in the upper end of the lower die base 1, the fifth clamping block 21 and the fifth clamping groove 22 are in sliding connection, and the fourth clamping block 19 and the fifth clamping block 21 are used for achieving stamping processing on the raw material 11.
Further, a sixth fixture block 23 is fixed to the bottom end of the upper die plate 9, a sixth clamping groove 24 is formed in the upper end of the lower die base 1, the sixth fixture block 23 is in sliding connection with the sixth clamping groove 24, a seventh fixture block 25 is fixed to the bottom end of the upper die plate 9, a seventh clamping groove 26 is formed in the upper end of the lower die base 1, the seventh fixture block 25 is in sliding connection with the seventh clamping groove 26, and the sixth fixture block 23 and the seventh fixture block 25 are used for achieving stamping processing on the raw material 11.
Further, the bottom mounting of cope match-plate pattern 9 has eighth fixture block 27, and eighth draw-in groove 28 has been seted up to the upper end of lower mould base 1, and eighth fixture block 27 is sliding connection with eighth draw-in groove 28, and the bottom mounting of cope match-plate pattern 9 has cutting knife 29, and cutting groove 30 has been seted up to the upper end of lower mould base 1, and cutting knife 29 is sliding connection with cutting groove 30, has realized carrying out the punching press through eighth fixture block 27 and cutting knife 29 and has handled raw and other materials 11.
The working principle is as follows: the second limit groove 12 on the raw material 11 is clamped into the limit fixture block 8 to limit the raw material 11, the upper template 9 drives the first fixture block 13 to move downwards, the raw material 11 is punched, the first clamping block 13 punches the material on the raw material 11 out, the material falls from the first clamping groove 14, after punching, rotating shaft 3 and driving first belt pulley 4 to rotate, first belt pulley 4 drives track 5 to rotate, track 5 drives raw and other materials 11 through spacing fixture block 8 and transmits to next station, punch upper die plate 9 downwards again, upper die plate 9 drives second fixture block 15 and punches downwards, second fixture block 15 punches raw and other materials 11 once more, set up out the second nib, repeat above-mentioned operation, the continuous punching press of having realized raw and other materials 11 is handled, cutting knife 29 punches downwards at last, cut the product from raw and other materials 11, the continuous punching press of raw and other materials 11 and accurate punching press are handled has been realized.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a high accuracy server terminal continuous stamping workpiece mould, includes the lower mould base, its characterized in that: the outer side of the lower die base is fixed with two sleeves which are symmetrically arranged, the inner side of each sleeve is provided with a rotating shaft, the sleeve is rotationally connected with the rotating shaft, the outer side of the rotating shaft is fixed with two first belt pulleys which are symmetrically arranged, a crawler belt is arranged on the outer side of the first belt pulley, a second belt pulley is fixed on the outer side of the other first belt pulley, the first belt pulley is rotationally connected with the second belt pulley through a track, a supporting plate is fixed on the outer side of the lower die base, two supporting plates are symmetrically arranged, a plurality of limiting clamping blocks are fixed on the outer side of the crawler belt, a plurality of limiting clamping blocks are symmetrically arranged, an upper template is arranged above the lower die base, a first limit groove is arranged at the bottom end of the upper template, the first limiting groove is symmetrically provided with a plurality of limiting clamping blocks, and the limiting clamping blocks are connected with the first limiting groove in a clamping mode.
2. The high-precision server terminal continuous stamping part die as claimed in claim 1, wherein: the upper end of lower mould base is provided with raw and other materials, the second spacing groove has been seted up to raw and other materials upper end, the second spacing groove symmetry is provided with a plurality ofly, the second spacing groove is connected for the block with spacing fixture block, the bottom mounting of cope match-plate pattern has first fixture block, first draw-in groove has been seted up to the upper end of lower mould base, first fixture block is sliding connection with first draw-in groove.
3. The high-precision server terminal continuous stamping part die as claimed in claim 1, wherein: the bottom end of the upper die plate is fixedly provided with a second clamping block, the upper end of the lower die base is provided with a second clamping groove, the second clamping block is in sliding connection with the second clamping groove, the bottom end of the upper die plate is fixedly provided with a third clamping block, the upper end of the lower die base is provided with a third clamping groove, and the third clamping block is in sliding connection with the third clamping groove.
4. The high-precision server terminal continuous stamping part die as claimed in claim 1, wherein: the bottom mounting of cope match-plate pattern has the fourth fixture block, the fourth draw-in groove has been seted up to the upper end of lower mould base, fourth fixture block and fourth draw-in groove are sliding connection, the bottom mounting of cope match-plate pattern has the fifth fixture block, the fifth draw-in groove has been seted up to the upper end of lower mould base, the fifth fixture block is sliding connection with the fifth draw-in groove.
5. The high-precision server terminal continuous stamping part die as claimed in claim 1, wherein: the bottom end of the upper die plate is fixedly provided with a sixth clamping block, the upper end of the lower die base is provided with a sixth clamping groove, the sixth clamping block is in sliding connection with the sixth clamping groove, the bottom end of the upper die plate is fixedly provided with a seventh clamping block, the upper end of the lower die base is provided with a seventh clamping groove, and the seventh clamping block is in sliding connection with the seventh clamping groove.
6. The high-precision server terminal continuous stamping part die as claimed in claim 1, wherein: an eighth clamping block is fixed at the bottom end of the upper die plate, an eighth clamping groove is formed in the upper end of the lower die base, the eighth clamping block is in sliding connection with the eighth clamping groove, a cutting knife is fixed at the bottom end of the upper die plate, a cutting groove is formed in the upper end of the lower die base, and the cutting knife is in sliding connection with the cutting groove.
