Abstract
本实用新型公开了一种建筑施工用砂石搅拌装置，包括底板和搅拌桶，所述底板上方设有所述搅拌桶，所述搅拌桶为圆柱筒状结构；本实用新型通过第一电机驱动搅拌轴转动，带动搅拌叶转动，从而达到对建筑砂石进行高效搅拌的目的；搅拌完成后，通过第二电机驱动丝杆转动，进而驱动滑动块左右移动，当滑动块向右移动时，滑动块与连接杆之间夹角增大，搅拌桶右侧被抬起，从而使得搅拌桶左侧低、右侧高，达到建筑砂石快速流出的目的；投料过程中，在压力的作用下，进料斗上的建筑砂石会将进料斗向下压，测力弹簧拉伸，通过拉力传感器测得进料斗上的建筑砂石重量，当达到一定数值时，电磁阀打开，将建筑砂石引入搅拌桶内进行搅拌，达到定量搅拌的目的。
The utility model discloses a sand and gravel stirring device for building construction, which comprises a bottom plate and a stirring barrel, the stirring barrel is arranged above the bottom plate, and the stirring barrel is a cylindrical structure; the utility model is driven by a first motor The rotation of the stirring shaft drives the stirring blades to rotate, so as to achieve the purpose of efficiently stirring the building sand and gravel; after the stirring is completed, the second motor drives the screw to rotate, and then drives the sliding block to move left and right. When the sliding block moves to the right, it slides The angle between the block and the connecting rod increases, and the right side of the mixing bucket is lifted, so that the left side of the mixing bucket is lower and the right side is higher, so as to achieve the purpose of rapid outflow of building sand; during the feeding process, under the action of pressure, The building sand on the feeding hopper will press down the feeding hopper, the force measuring spring will stretch, and the weight of the building sand on the feeding hopper will be measured by the tension sensor. The sand and gravel are introduced into the mixing tank for mixing to achieve the purpose of quantitative mixing.
Description
Technical Field
The utility model relates to a construction machinery technical field specifically is a grit agitating unit for construction.
Background
In civil engineering, grit material is one of indispensable raw and other materials, can often use grit material concrete, and the method that traditional grit material mixes is that the workman is artifical to stir and mixes, and intensity of labour is big, and is inefficient, and owing to stir by the manual work, easily leads to grit material to stir inhomogeneous to influence building quality.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a grit agitating unit for construction to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a grit agitating unit for construction, includes bottom plate and agitator, the bottom plate top is equipped with the agitator, the cylinder tubular structure of agitator for keeping flat, the feed inlet has been seted up on agitator top surface right side, the discharge gate has been seted up to agitator left surface bottom.
As a further aspect of the present invention: the agitator inner chamber left side wall fixedly connected with motor case, fixed mounting has first motor in the motor case, the output shaft fixedly connected with (mixing) shaft of first motor, the (mixing) shaft is kept away from the one end of first motor pass through the bearing frame with agitator inner chamber right side wall rotates to be connected, a plurality of stirring leaves have been arranged to (mixing) shaft surface equidistance.
As a further aspect of the present invention: two support rods are symmetrically and fixedly connected to the front and the back of the left side of the top surface of the bottom plate, and the top ends of the two support rods are hinged to the left side of the bottom surface of the stirring barrel through hinges; bottom plate top surface right side interval fixedly connected with first fixed plate and second fixed plate, first fixed plate is close to one side fixedly connected with second motor of second fixed plate, the output shaft fixedly connected with lead screw of second motor, the lead screw is kept away from the one end of second motor pass through the bearing with the second fixed plate rotates to be connected, lead screw surface thread bush is equipped with the sliding block, the sliding block bottom is articulated with the one end of connecting rod, the other end of connecting rod articulate in agitator bottom surface right side.
As a further aspect of the present invention: when the stirring barrel is horizontal, the top surface of the second fixing plate is attached to the bottom surface of the stirring barrel.
As a further aspect of the present invention: fixedly connected with guide bar between first fixed plate and the second fixed plate, the spout of lateral wall about link up is seted up to the sliding block bottom, the guide bar runs through the spout and with sliding block sliding connection.
As a further aspect of the present invention: four universal wheels are movably connected with four corners of the bottom surface of the bottom plate.
As a further aspect of the present invention: a feeding cylinder is fixedly connected to the top surface of the stirring barrel at the feeding port, and a feeding hopper is arranged in the feeding cylinder; the feeding section of thick bamboo inner wall top bilateral symmetry is equipped with two sets of mounting brackets, the mounting bracket includes mounting panel and lower mounting panel, go up mounting panel bottom surface fixedly connected with force sensor, force sensor with fixedly connected with slide bar between the mounting panel down, feeder hopper surface top symmetrical fixedly connected with two with slide bar complex sleeve, just sleeve cover is established the slide bar surface, just the sleeve with slide bar sliding connection, the sleeve with fixedly connected with force cell spring between force sensor's the output, just the paralysed cover of dynamometry is established the slide bar surface.
As a further aspect of the present invention: the lower port of feeder hopper extends to in the agitator, and its internal surface fixed mounting has the solenoid valve.
As a further aspect of the present invention: the outer wall of the stirring barrel is provided with a controller, and the controller is electrically connected with the electromagnetic valve, the tension sensor, the first motor and the second motor.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model drives the stirring shaft to rotate through the first motor, and further drives the stirring blades to rotate, thereby achieving the purpose of efficiently stirring the building sandstone; after stirring is finished, the second motor drives the screw rod to rotate, so that the sliding block is driven to move left and right, when the sliding block moves right, an included angle between the sliding block and the connecting rod is increased, and the right side of the stirring barrel is lifted, so that the left side of the stirring barrel is low, the right side of the stirring barrel is high, the aim of quickly flowing out building sand stones is fulfilled, and the working efficiency is improved; under the effect of pressure, the building grit on the feeder hopper can be with feeder hopper pushing down, and the dynamometry spring is tensile, surveys the building grit weight on the feeder hopper through force transducer, and when reaching certain numerical value, the solenoid valve is opened, introduces the building grit and stirs in the agitator, reaches the purpose of quantitative stirring.
Drawings

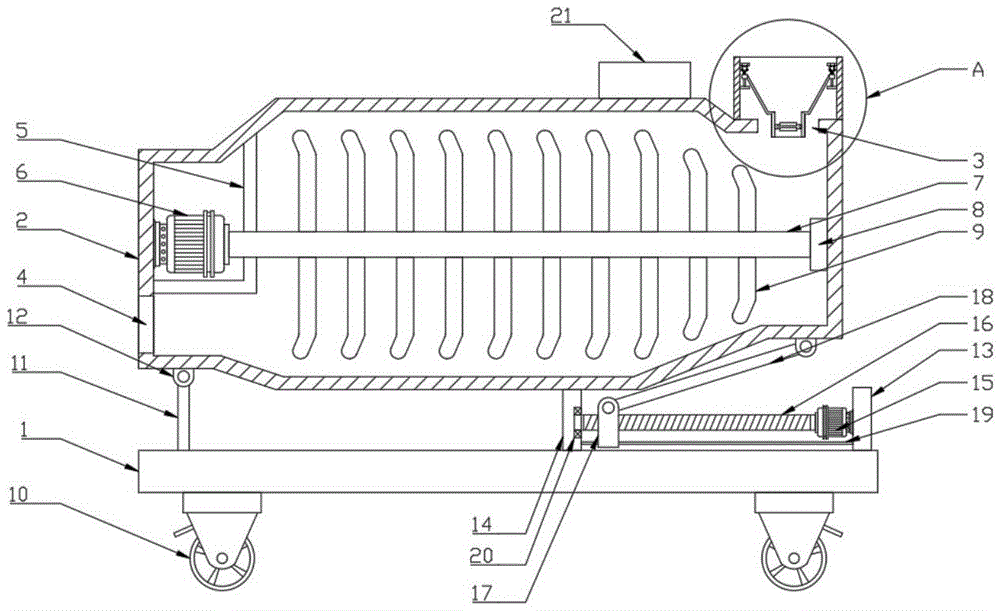

FIG. 1 is a schematic structural view of a sand and stone stirring device for building construction.
Fig. 2 is a schematic structural diagram of a in fig. 1.
FIG. 3 is a left side view of a sand and stone stirring apparatus for construction.
FIG. 4 is a perspective view of a second motor, a screw rod, a sliding block and a guide rod in the sand-stone stirring device for building construction.
The labels in the figures are respectively: the device comprises a bottom plate 1, a stirring barrel 2, a feeding hole 3, a discharging hole 4, a motor box 5, a first motor 6, a stirring shaft 7, a bearing seat 8, a stirring blade 9, a universal wheel 10, a supporting rod 11, a hinge 12, a first fixing plate 13, a second fixing plate 14, a second motor 15, a screw rod 16, a sliding block 17, a connecting rod 18, a guide rod 19, a bearing 20, a controller 21, a feeding barrel 22, a feeding hopper 23, an upper mounting plate 24, a lower mounting plate 25, a tension sensor 26, a sliding rod 27, a sleeve 28, a force measuring spring 29 and an electromagnetic valve 30.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Example 1
Referring to fig. 1-4, a gravel stirring device for building construction comprises a bottom plate 1 and a stirring barrel 2, wherein the stirring barrel 2 is arranged above the bottom plate 1, the stirring barrel 2 is a horizontally-placed cylindrical structure, a feeding hole 3 is formed in the right side of the top surface of the stirring barrel 2, and a discharging hole 4 is formed in the bottom of the left side surface of the stirring barrel 2.
2 inner chamber left side wall fixedly connected with motor case 5 of agitator, fixed mounting has first motor 6 in the motor case 5, the output shaft fixedly connected with (mixing) shaft 7 of first motor 6, (mixing) shaft 7 is kept away from the one end of first motor 6 pass through the bearing frame 8 with 2 inner chamber right side walls of agitator rotate to be connected, (mixing) shaft 7 surface equidistance has arranged a plurality of stirring leaves 9.
Two support rods 11 are symmetrically and fixedly connected to the left side of the top surface of the bottom plate 1 in a front-back manner, and the top ends of the two support rods 11 are hinged to the left side of the bottom surface of the stirring barrel 2 through hinges 12; the utility model discloses a stirring barrel, including bottom plate 1 top surface right side interval fixedly connected with first fixed plate 13 and second fixed plate 14, first fixed plate 13 is close to one side fixedly connected with second motor 15 of second fixed plate 14, the output shaft fixedly connected with lead screw 16 of second motor 15, lead screw 16 keeps away from the one end of second motor 15 pass through bearing 20 with second fixed plate 14 rotates and is connected, 16 outer surface thread bush of lead screw is equipped with sliding block 17, sliding block 17 bottom is articulated with the one end of connecting rod 18, the other end of connecting rod 18 articulate in 2 bottom surfaces right sides of stirring barrel.
When agitator 2 is the level form, second fixed plate 14 top surface with the laminating of 2 bottom surfaces of agitator, when stirring state, agitator 2 is the level form, and the laminating of 2 bottom surfaces of 14 top surfaces of second fixed plate and agitator this moment to having played the supporting role to agitator 2, through the common support of bracing piece 11 with second fixed plate 14, increased the device's stability.
Fixedly connected with guide bar 19 between first fixed plate 13 and the second fixed plate 14, the spout that link up the lateral wall about is seted up to sliding block 17 bottom, guide bar 19 runs through the spout and with sliding block 17 sliding connection, through setting up guide bar 19, when offsetting lead screw 16 and rotating, to the circumference power that sliding block 17 produced, ensure that sliding block 17 only controls.
Four universal wheels 10 are movably connected to four corners of the bottom surface of the bottom plate 1, and the device is convenient to move by arranging the universal wheels 10.
A controller 21 is installed on the outer wall of the stirring barrel 2, and the controller 21 is electrically connected with the first motor 6 and the second motor 15.
The utility model discloses a theory of operation is: when the stirring device is used, the stirring shaft 7 is driven to rotate by the first motor 6, and then the stirring blades 9 are driven to rotate, so that the aim of efficiently stirring the building gravel is fulfilled; after the stirring is accomplished, rotate through second motor 15 drive lead screw 16, and then control about drive sliding block 17, when sliding block 17 moved right, contained angle increase between sliding block 17 and the connecting rod 18, 2 right sides of agitator were lifted up to make 2 left sides of agitator low, the right side high, make things convenient for the building grit in the agitator 2 to flow from discharge gate 4, the utility model discloses rational in infrastructure, easy operation, the practicality is strong.
Example 2
The present embodiment is a further improvement on the basis of embodiment 1, and specifically includes the following steps:
referring to fig. 1-4, a feeding cylinder 22 is fixedly connected to the top surface of the mixing tank 2 at the position of the feeding port 3, and a feeding hopper 23 is arranged in the feeding cylinder 22; two groups of mounting frames are symmetrically arranged at the top end of the inner wall of the feeding barrel 22 in a bilateral mode, each mounting frame comprises an upper mounting plate 24 and a lower mounting plate 25, the bottom surface of each upper mounting plate 24 is fixedly connected with a tension sensor 26, a sliding rod 27 is fixedly connected between each tension sensor 26 and the corresponding lower mounting plate 25, two sleeves 28 matched with the sliding rods 27 are symmetrically and fixedly connected to the top end of the outer surface of the feeding hopper 23, the sleeves 28 are sleeved on the outer surfaces of the sliding rods 27, the sleeves 28 are slidably connected with the sliding rods 27, force measuring springs 29 are fixedly connected between the sleeves 28 and the output ends of the tension sensors 26, and the force measuring paralyzed sleeves are sleeved on the outer surfaces of the sliding rods 27; the lower port of the feed hopper 23 extends into the stirring barrel 2, and the inner surface of the feed hopper is fixedly provided with an electromagnetic valve 30; a controller 21 is installed on the outer wall of the stirring barrel 2, and the controller 21 is electrically connected with the electromagnetic valve 30 and the tension sensor 26.
When the quantitative stirring device is used, building gravel is poured into the feeding barrel 22, at the moment, the building gravel firstly falls into the upper portion of the feeding hopper 23, the feeding hopper 23 faces downwards under the action of pressure, the force measuring spring 29 stretches, the weight of the building gravel on the feeding hopper 23 is measured through the tension sensor 26, when a certain numerical value is reached, the electromagnetic valve 30 is opened, the building gravel is introduced into the stirring barrel 2 to be stirred, and the purpose of quantitative stirring is achieved.
Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.
