Abstract
本实用新型公开一种污水处理用污水处理剂喷洒装置，属于污水处理技术领域，包括底座，所述底座的底部安装有移动轮，且底座顶部的一侧安装有蓄电池，所述底座顶部的中间位置处设置有支柱，所述支柱的顶部安装有处理剂仓，所述处理剂仓的顶部固定有安装板。本实用新型安装板顶部电机的设置，通过电机带动伸缩板上固定柱的转动，配合横板上的通槽进行使用，使得电机的持续转动过程中，能够带动横板上的喷头进行扇形的喷射，提高了装置使用中的喷洒面积，实用性更高，且通过伸缩板的伸长，能够改变固定柱的旋转直径，继而调节喷头喷洒的扇形角度，便于对不同大小的污水池进行使用，提高了装置的实用性。
The utility model discloses a sewage treatment agent spraying device for sewage treatment, which belongs to the technical field of sewage treatment. The position is provided with a pillar, the top of the pillar is installed with a treatment agent tank, and a mounting plate is fixed on the top of the treatment agent tank. The installation of the motor on the top of the mounting plate of the utility model drives the rotation of the fixed column on the telescopic plate through the motor, and is used in conjunction with the through slot on the horizontal plate, so that the nozzle on the horizontal plate can be driven to perform fan-shaped spraying during the continuous rotation of the motor. , which improves the spraying area of the device in use, and has higher practicability. The extension of the telescopic plate can change the rotation diameter of the fixed column, and then adjust the fan angle of the spray nozzle, which is convenient for sewage pools of different sizes. the usability of the device.
Description
Technical Field
The utility model relates to a sprinkler especially relates to a sewage treatment agent sprinkler for sewage treatment, belongs to sewage treatment technical field.
Background
The sewage treatment is a process for purifying sewage to meet the water quality requirement of discharging the sewage into a certain water body or reusing the sewage, the sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, the sewage treatment also increasingly enters the daily life of common people, and in order to accelerate the precipitation of impurities in the sewage, a sewage treatment agent is required to be sprayed;
the sewage treatment machine that has now sprays the in-process and adopts the manual work to spray more, wastes time and energy, and adopts the machine to spray, and the area of spraying is less, and the practicality is lower, consequently, the utility model provides a sewage treatment agent sprinkler for sewage treatment is in order to solve the problem that exists among the prior art.
SUMMERY OF THE UTILITY MODEL
The utility model mainly aims at providing a sewage treatment agent sprinkler for sewage treatment to solve among the prior art sewage treatment machine and spray the lower problem of speed.
The purpose of the utility model can be achieved by adopting the following technical scheme:
a sewage treatment agent spraying device for sewage treatment comprises a base, wherein moving wheels are installed at the bottom of the base, a storage battery is installed on one side of the top of the base, a support column is arranged at the middle position of the top of the base, a treatment agent bin is installed at the top of the support column, a mounting plate is fixed at the top of the treatment agent bin, a rotating rod is rotatably installed on one side of the top of the mounting plate, a transverse plate is fixed at the top of the rotating rod, a spray head is installed at one end of the top of the transverse plate, a through groove is formed in one end, away from the spray head, of the transverse plate, a motor is installed on one side, away from the rotating rod, of the top of the mounting plate, a telescopic plate is installed at the output end of the motor, a fixing column is fixed at the end of the telescopic plate and penetrates through the through groove, a water pump is installed at the middle position of the top of the mounting plate, and the input end of the water pump is communicated with the interior of the treatment agent bin, the output end of the water pump is communicated with the spray head through a guide pipe.
Preferably: the pillar includes first sleeve pipe, support column and screw rod, first sleeve pipe is fixed at the top of base, first sheathed tube inside slidable mounting has the support column, the top and the treatment agent storehouse fixed connection of support column, the screw rod is installed in first sheathed tube bottom rotation, the bottom mounting of screw rod has the worm wheel, screw rod and support column threaded connection, the outside meshing of worm wheel has the worm, the one end of worm extends to the first sheathed tube outside, and is fixed with the adjustment disk on the worm.
Preferably: and a wear-resistant coating is arranged on the outer side of the fixing column.
Preferably: the telescopic plate comprises a second sleeve, a sliding plate and a fixing bolt, the bottom of the second sleeve is fixedly connected with the output end of the motor, the sliding plate is slidably mounted inside the second sleeve, the fixing bolt is mounted at the top of the second sleeve, and one end, far away from the second sleeve, of the sliding plate is fixedly connected with the bottom of the fixing column.
Preferably: one end of the treating agent bin is provided with a transparent window, and a liquid level line is arranged on the transparent window.
Preferably: and a handle is arranged on one side of the treating agent bin, which is far away from the spray head.
The utility model has the advantages that:
the utility model provides a sewage treatment agent spraying device for sewage treatment, which is provided with a motor at the top of a mounting plate, the motor drives the fixed column on the expansion plate to rotate and is matched with the through groove on the transverse plate for use, so that in the process of continuous rotation of the motor, can drive the spray head on the transverse plate to spray in a fan shape, improves the spraying area in the use of the device, has higher practicability, the rotating diameter of the fixed column can be changed by extending the retractable plate, and then the fan-shaped angle sprayed by the spray head is adjusted, so that sewage pools with different sizes can be conveniently used, the practicability of the device is improved, the device is more convenient to move due to the arrangement of the movable wheels at the bottom of the base, through the setting of the support that first sleeve pipe, support column, screw rod, worm wheel, worm constitute, can improve spraying height of device, improve the distance that sprays, increase the practicality of device.
Drawings

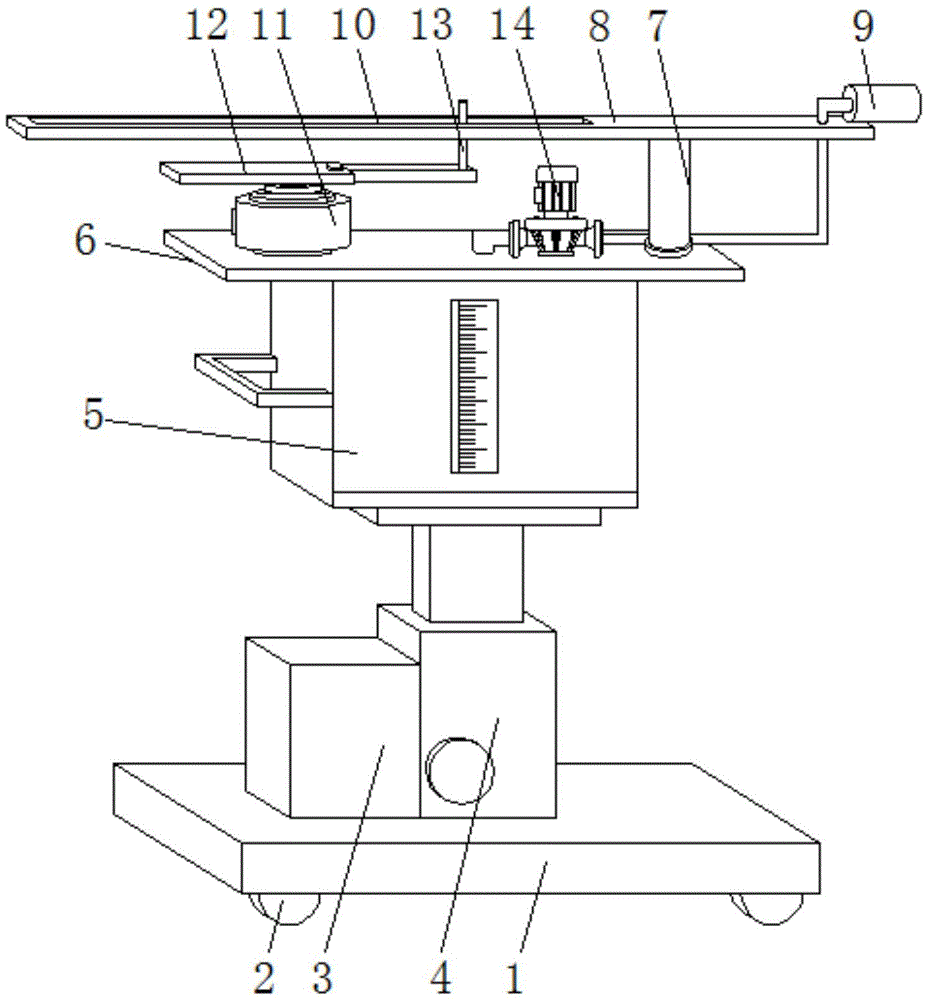

Fig. 1 is a front view of the present invention;
FIG. 2 is a view showing the structure of the support of the present invention;
fig. 3 is a structure view of the retractable plate of the present invention.
In the figure: 1. a base; 2. a moving wheel; 3. a storage battery; 4. a pillar; 5. a treating agent bin; 6. mounting a plate; 7. a rotating rod; 8. a transverse plate; 9. a spray head; 10. a through groove; 11. a motor; 12. a retractable plate; 13. fixing a column; 14. a water pump; 15. a first sleeve; 16. a support pillar; 17. a screw; 18. a worm gear; 19. a worm; 20. a second sleeve; 21. a slide plate; 22. and (5) fixing the bolt.
Detailed Description
In order to make the technical solutions of the present invention clearer and clearer for those skilled in the art, the present invention will be described in further detail with reference to the following embodiments and drawings, but the embodiments of the present invention are not limited thereto.
As shown in fig. 1-3, the present embodiment provides a sewage treatment agent spraying device for sewage treatment, which comprises a base 1, a moving wheel 2 is installed at the bottom of the base 1, a storage battery 3 is installed at one side of the top of the base 1, a pillar 4 is arranged at the middle position of the top of the base 1, a treatment agent bin 5 is installed at the top of the pillar 4, a mounting plate 6 is fixed at the top of the treatment agent bin 5, a rotating rod 7 is rotatably installed at one side of the top of the mounting plate 6, a transverse plate 8 is fixed at the top of the rotating rod 7, a nozzle 9 is installed at one end of the top of the transverse plate 8, a through groove 10 is formed at one end of the transverse plate 8 far away from the nozzle 9, a motor 11 is installed at one side of the top of the mounting plate 6 far away from the rotating rod 7, an expansion plate 12 is installed at the output end of the motor 11, a fixed column 13 is fixed at the end of the expansion plate 12, the fixed column 13 passes through the through groove 10, a water pump 14 is installed at the middle position of the top of the mounting plate 6, the input end of the water pump 14 is communicated with the inside of the treating agent bin 5, and the output end of the water pump 14 is communicated with the spray head 9 through a guide pipe.
In the embodiment, as shown in fig. 2, the pillar 4 comprises a first sleeve 15, a supporting column 16 and a screw 17, the first sleeve 15 is fixed on the top of the base 1, the supporting column 16 is slidably mounted inside the first sleeve 15, the top of the supporting column 16 is fixedly connected with the treating agent bin 5, the screw 17 is rotatably mounted on the inner bottom of the first sleeve 15, a worm wheel 18 is fixed on the bottom end of the screw 17, the screw 17 is in threaded connection with the supporting column 16, a worm 19 is meshed with the outer side of the worm wheel 18, one end of the worm 19 extends to the outer side of the first sleeve 15, and the worm 19 is fixed with an adjusting disk, in the process of adjusting the spraying distance of the spray head 9, the adjusting disc is rotated to drive the worm 19 to rotate, the worm 19 drives the worm wheel 18 on the screw rod 17 to rotate, due to the threaded connection between the screw 17 and the supporting column 16, the rotation of the screw 17 controls the lifting of the supporting column 16.
In the embodiment, as shown in fig. 1, the outer side of the fixing post 13 is provided with a wear-resistant coating, so that the wear of the fixing post 13 in use is reduced.
In this embodiment, as shown in fig. 3, the expansion plate 12 includes a second sleeve 20, a sliding plate 21 and a fixing bolt 22, the bottom of the second sleeve 20 is fixedly connected with the output end of the motor 11, the sliding plate 21 is slidably mounted inside the second sleeve 20, the fixing bolt 22 is mounted at the top of the second sleeve 20, one end of the sliding plate 21, which is far away from the second sleeve 20, is fixedly connected with the bottom of the fixing column 13, when the fan-shaped angle sprayed by the spray head 9 needs to be enlarged, the sliding plate 21 slides inside the second sleeve 20, the overall length of the expansion plate 12 is increased, and when the fan-shaped angle sprayed by the spray head 9 needs to be changed, the overall length of the expansion plate 12 is reduced.
In this embodiment, as shown in fig. 1, one end of the treating agent bin 5 is provided with a transparent window, and the transparent window is provided with a liquid level line, so that the liquid level inside the treating agent bin 5 can be observed conveniently.
In this embodiment, as shown in fig. 1, a handle is disposed on a side of the treating agent bin 5 away from the spray head 9, so as to facilitate the movement of the pushing device.
As shown in fig. 1 to 3, the present embodiment provides a sewage treatment agent spraying apparatus for sewage treatment, which operates as follows:
step 1: injecting a treating agent into the treating agent bin 5, pushing the device to the side of a sewage pool after the treating agent is injected, then starting a motor 11 to drive a telescopic plate 12 to rotate, shifting a transverse plate 8 by using a fixed column 13 at the top of the telescopic plate 12, and controlling a spray head 9 to spray in a fan shape;
step 2: when the fan-shaped angle sprayed by the spray head 9 needs to be enlarged, the sliding plate 21 slides in the second sleeve 20, so that the overall length of the telescopic plate 12 is increased, and when the fan-shaped angle sprayed by the spray head 9 needs to be changed, the overall length of the telescopic plate 12 is reduced;
and step 3: in the process of adjusting the spraying distance of the spray head 9, the adjusting disc is rotated to drive the worm 19 to rotate, the worm 19 drives the worm wheel 18 on the screw 17 to rotate, and the screw 17 is in threaded connection with the support column 16, so that the rotation of the screw 17 controls the lifting of the support column 16 and the height of the device.
The above description is only a further embodiment of the present invention, but the scope of protection of the present invention is not limited thereto, and any person skilled in the art can replace or change the technical solution and the concept of the present invention within the scope of the present invention.
Claims (6)
1. The utility model provides a sewage treatment agent sprinkler for sewage treatment which characterized in that: comprises a base (1), a movable wheel (2) is installed at the bottom of the base (1), a storage battery (3) is installed on one side of the top of the base (1), a support column (4) is arranged at the middle position of the top of the base (1), a treating agent bin (5) is installed at the top of the support column (4), a mounting plate (6) is fixed at the top of the treating agent bin (5), a rotating rod (7) is rotatably installed on one side of the top of the mounting plate (6), a transverse plate (8) is fixed at the top of the rotating rod (7), a spray head (9) is installed at one end of the top of the transverse plate (8), a through groove (10) is formed in one end, far away from the spray head (9), of the transverse plate (8), a motor (11) is installed on one side, far away from the rotating rod (7), of the top of the mounting plate (6), a telescopic plate (12) is installed at the output end of the motor (11), a fixed column (13) is fixed at the end of the telescopic plate (12), the fixed column (13) penetrates through the through groove (10), a water pump (14) is installed in the middle of the top of the mounting plate (6), the input end of the water pump (14) is communicated with the inside of the treating agent bin (5), and the output end of the water pump (14) is communicated with the spray head (9) through a guide pipe.
2. The sewage treatment agent spraying apparatus of claim 1, wherein: pillar (4) include first sleeve pipe (15), support column (16) and screw rod (17), the top at base (1) is fixed in first sleeve pipe (15), the inside slidable mounting of first sleeve pipe (15) has support column (16), the top and the processing agent storehouse (5) fixed connection of support column (16), screw rod (17) are installed in the interior bottom rotation of first sleeve pipe (15), the bottom mounting of screw rod (17) has worm wheel (18), screw rod (17) and support column (16) threaded connection, the outside meshing of worm wheel (18) has worm (19), the one end of worm (19) extends to the outside of first sleeve pipe (15), and is fixed with the adjustment disk on worm (19).
3. The sewage treatment agent spraying apparatus of claim 1, wherein: and a wear-resistant coating is arranged on the outer side of the fixing column (13).
4. The sewage treatment agent spraying apparatus of claim 1, wherein: the telescopic plate (12) comprises a second sleeve (20), a sliding plate (21) and a fixing bolt (22), the bottom of the second sleeve (20) is fixedly connected with the output end of the motor (11), the sliding plate (21) is arranged inside the second sleeve (20) in a sliding mode, the fixing bolt (22) is arranged at the top of the second sleeve (20), and one end, far away from the second sleeve (20), of the sliding plate (21) is fixedly connected with the bottom of the fixing column (13).
5. The sewage treatment agent spraying apparatus of claim 1, wherein: one end of the treating agent bin (5) is provided with a transparent window, and a liquid level line is arranged on the transparent window.
6. The sewage treatment agent spraying apparatus of claim 1, wherein: a handle is arranged on one side of the treating agent bin (5) far away from the spray head (9).
