CN214249881U - Air conditioner shell, air condensing units and air conditioner - Google Patents
Air conditioner shell, air condensing units and air conditioner Download PDFInfo
- Publication number
- CN214249881U CN214249881U CN202120351985.8U CN202120351985U CN214249881U CN 214249881 U CN214249881 U CN 214249881U CN 202120351985 U CN202120351985 U CN 202120351985U CN 214249881 U CN214249881 U CN 214249881U
- Authority
- CN
- China
- Prior art keywords
- air conditioner
- valve
- bracket
- side plate
- outdoor unit
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Other Air-Conditioning Systems (AREA)
Abstract
本实用新型提供一种空调外壳、空调室外机和空调器，空调外壳包括侧板和阀门支架，侧板上开设有支架安装口，阀门支架安装在支架安装口中，阀门支架上设有阀门安装口。侧板设置有两个滑槽，两个滑槽分别位于支架安装口在水平方向上相对的两侧，滑槽沿着竖直方向延伸，滑槽的下端设置有插入口。阀门支架的两个侧部边缘从插入口插入对应的滑槽内。该空调外壳能够提高安装效率、降低生产成本。
The utility model provides an air conditioner casing, an air conditioner outdoor unit and an air conditioner. The air conditioner casing comprises a side plate and a valve bracket, the side plate is provided with a bracket installation opening, the valve bracket is installed in the bracket installation opening, and the valve bracket is provided with a valve installation opening . The side plate is provided with two chutes, the two chutes are respectively located on opposite sides of the bracket installation opening in the horizontal direction, the chutes extend along the vertical direction, and the lower ends of the chutes are provided with insertion openings. The two side edges of the valve bracket are inserted into the corresponding chutes from the insertion openings. The air conditioner housing can improve installation efficiency and reduce production cost.
Description
Technical Field
The utility model belongs to the technical field of the air conditioning technology and specifically relates to an air conditioner shell, air condensing units and air conditioner is related to.
Background
The valve support of air condensing units usually needs to use a plurality of screws to fix on the right side board, when assembling through the screw, operating personnel need hold the valve support on one hand, beat the screw on the other hand, it is inconvenient to operate, the assembly efficiency is low, and the valve support easily drops when after sales installation and has danger, still has the undulant screw hole dislocation that leads to of part machining size and difficult fixed problem in addition, from this, there is the problem that the reliability is low, the installation effectiveness is low, manufacturing cost is high during the valve support installation.
Disclosure of Invention
The utility model discloses a first purpose provides an air conditioner shell that can improve installation effectiveness, reduction in production cost.
A second object of the present invention is to provide an outdoor unit of an air conditioner having the above air conditioning casing.
A third object of the present invention is to provide an air conditioner with the above air conditioner outdoor unit.
In order to realize the first purpose, the utility model provides an air conditioner shell includes curb plate and valve support, has seted up the support mounting mouth on the curb plate, and the valve support mounting is equipped with the valve installation mouth in the support mounting mouth on the valve support. The curb plate is provided with two spouts, and two spouts are located the relative both sides in the horizontal direction of support mounting mouth respectively, and the spout extends along vertical direction, and the lower extreme of spout is provided with the inserted hole. The two side edges of the valve bracket are inserted into the corresponding sliding grooves from the insertion openings.
According to the scheme, during assembly, the two side edges of the valve support are inserted into the sliding groove from the insertion opening and slide along the sliding groove, so that the assembly of the side plates and the valve support is completed. Carry out the cooperation through valve bracket and spout and be connected the fix with screw who replaces among the prior art to avoided in the production process, injure the curb plate when using set screw in batches, influenced appearance quality, stopped simultaneously and led to the problem that the screw hole dislocation is difficult to fix because of the fluctuation of part machining size, and improved assembly efficiency, reduced man-hour consumption, practiced thrift cost of labor, material cost, thereby improve the comprehensive competitiveness of product on market greatly.
One preferred scheme is that the side plate is further provided with a limiting groove, the limiting groove is located on the upper side of the support mounting opening, and the top edge of the valve support is inserted into the limiting groove.
Therefore, the limiting groove is used for limiting the top of the valve support, and the stability of installation of the valve support is guaranteed.
The further scheme is that two ends of the limiting groove are respectively connected with the upper ends of the two sliding grooves.
Therefore, the side edge of the valve support is completely wrapped by the sliding groove and the limiting groove, and the connection stability is guaranteed.
According to a preferred scheme, the side plate is further provided with a top limiting piece, a limiting groove is formed by the top limiting piece and the inner surface of the side plate in a surrounding mode, and a reinforcing rib is arranged at the joint of the top limiting piece and the side plate.
Therefore, the reinforcing ribs can improve the strength and reliability of the chute structure, and the phenomenon that the root of the chute is deformed and cannot be effectively fixed with a valve support to avoid causing quality problems when the problems of road jolting, irregular installation and the like occur in the transportation process of the whole machine is avoided.
One preferred scheme is that the side plate is further provided with a side limiting piece, and a sliding groove is formed by the side limiting piece and the inner surface of the side plate in a surrounding mode.
The further scheme is that the lateral limiting piece is provided with a guide part at the insertion opening, and the guide part extends towards the direction far away from the side plate.
Therefore, the insertion hole is approximately horn-shaped, so that the valve support can be conveniently inserted, the side plate can be directly clamped on the valve support during assembly, the side plate can be positioned according to the structure, the lean production idea is met, and a solid foundation is laid for subsequent pushing automatic assembly.
Preferably, the inner wall of the chute is provided with a raised point which contacts the surface of the side edge of the valve holder.
Preferably, the surface of the side edge of the valve holder is provided with a convex point, and the convex point is contacted with the inner wall of the sliding groove.
Therefore, the salient point structure changes the surface-to-surface contact between the side plate and the valve support into the point-to-surface contact, so that when the air conditioner outdoor unit operates, the noise generated by the relative motion between the side plate and the valve support can be reduced, and the use experience and the product quality of a user are improved.
In order to achieve the second objective, the present invention provides an outdoor unit of an air conditioner, including the above-mentioned air conditioner case.
One preferred scheme is that the air conditioner outdoor unit further comprises a condenser, a four-way valve, a first valve and a second valve, wherein the first valve is connected to the condenser, and the second valve is connected to the four-way valve; the number of the valve mounting openings is two, and the first valve and the second valve are respectively supported in the two valve mounting openings.
In a preferred embodiment, the outdoor unit of the air conditioner further includes a bottom plate, and the bottom plate is provided with a latch. The valve support comprises a support main body part and a chassis connecting part, the edge of the side part is located on the support main body part, the chassis connecting part is connected to the lower side of the support main body part and bent along the horizontal direction, the chassis connecting part is provided with a jack, and the inserting tongue extends into the jack.
Therefore, the valve support can be positioned by matching the insertion holes with the insertion tongues, and the problem that the valve support is difficult to assemble due to unstable fixation when a side plate is installed is solved.
In order to achieve the third objective, the present invention provides an air conditioner, which comprises the outdoor unit of the air conditioner.
Drawings
Fig. 1 is a structural view of an outdoor unit of an air conditioner according to a first embodiment of the present invention.

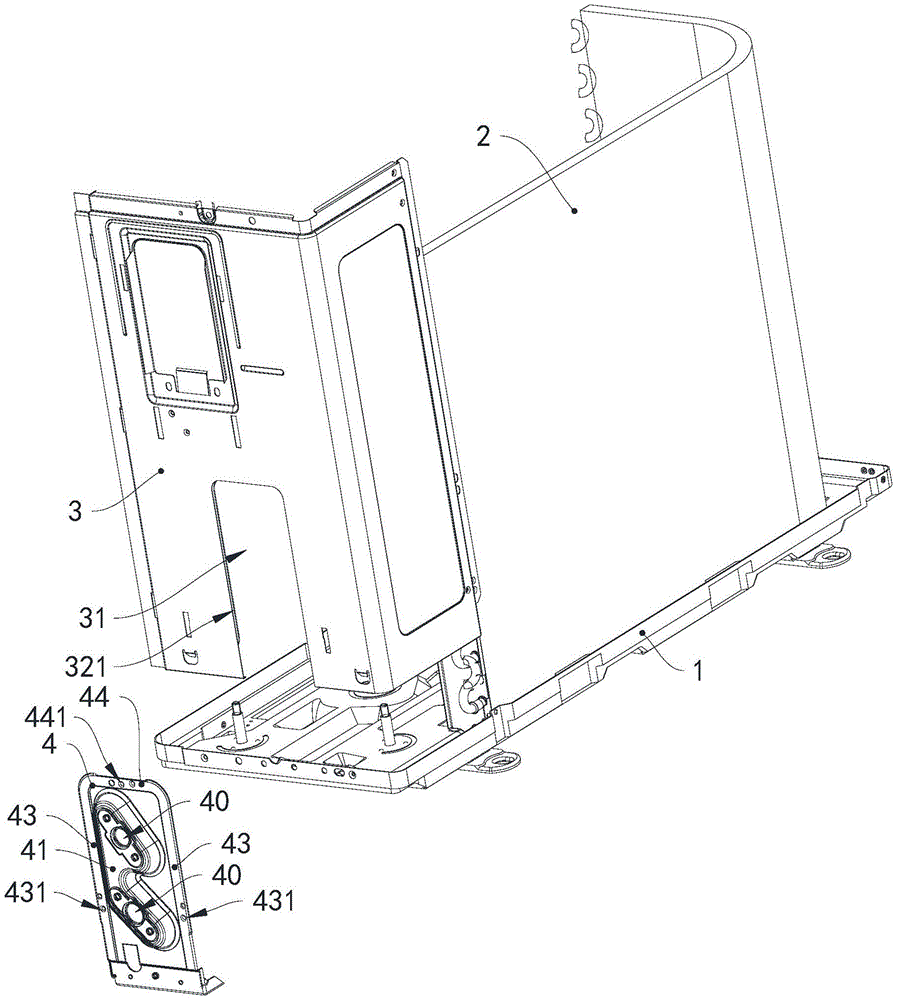

Fig. 2 is an exploded view of the side plate, the valve holder, the bottom plate and the condenser at a first viewing angle according to the first embodiment of the present invention.
Fig. 3 is an exploded view of the side plate, the valve holder, the bottom plate and the condenser at a second viewing angle in the first embodiment of the air conditioner of the present invention.
Fig. 4 is a structural diagram of the air conditioner of the present invention after the valve bracket and the side plate are assembled.
Fig. 5 is a sectional view of the air conditioner of the present invention after the valve bracket and the side plate are assembled.
Fig. 6 is a structural view of a side plate in a second embodiment of the air conditioner of the present invention.
The present invention will be further explained with reference to the drawings and examples.
Detailed Description
Air conditioner case and air conditioner first embodiment:
the air conditioner of the embodiment comprises an air conditioner indoor unit and an air conditioner outdoor unit which are connected with each other.
Referring to fig. 1 to 4, the outdoor unit of the air conditioner includes an air conditioner casing, a base plate 1, a condenser 2, a four-way valve, a first valve and a second valve, wherein the condenser 2 is installed on the base plate 1, the first valve is connected to the condenser 2, and the second valve is connected to the four-way valve.
The air conditioner shell comprises a side plate 3 and a valve support 4, a support mounting opening 31 is formed in the side plate 3, the valve support 4 is installed in the support mounting opening 31, two valve mounting openings 40 are formed in the valve support 4, and a first valve and a second valve are respectively supported in the two valve mounting openings 40.
The chassis 1 is provided with the insertion tongue 11, the valve bracket 4 includes a bracket main body portion 41 and a chassis connecting portion 42, the chassis connecting portion 42 is connected to the lower side of the bracket main body portion 41 and is bent along the horizontal direction, the chassis connecting portion 42 is provided with an insertion hole 421, and the insertion tongue 11 extends into the insertion hole 421.
The side plate 3 is provided with two side limiting pieces 32 and a top limiting piece 33, the side limiting pieces 32 and the inner surface of the side plate 3 enclose a sliding groove 321, the top limiting piece 33 and the inner surface of the side plate 3 enclose a limiting groove 331, the two sliding grooves 321 are respectively located on two opposite sides of the bracket mounting port 31 in the horizontal direction, the sliding grooves 321 extend along the vertical direction, and the lower ends of the sliding grooves 321 are provided with insertion holes 322. The two side edges 43 of the bracket main body portion 41 are engaged with the corresponding slide grooves 321, and when assembled, the side edges 43 of the bracket main body portion 41 are inserted upward into the slide grooves 321 from the corresponding insertion openings 322. The limiting groove 331 is located at the upper side of the bracket mounting opening 31, two ends of the limiting groove 331 are respectively connected with the upper ends of the two sliding grooves 321, and the top edge 44 of the valve bracket 4 is inserted into the limiting groove 331.
The surface of the side edge 43 of the valve bracket 4 is provided with a salient point 431, the salient point 431 is contacted with the inner wall of the sliding groove 321, the surface of the top edge 44 of the valve bracket 4 is provided with a salient point 441, and the salient point 441 is contacted with the inner wall of the limiting groove 331. Referring to fig. 5, the side stopper 32 is provided with a guide 323 at the insertion opening 322, and the guide 323 extends in a direction away from the side plate 3, so that the insertion opening 322 is substantially flared to facilitate insertion of the valve holder 4.
Therefore, during assembly, the two side edges of the valve support are inserted into the sliding grooves from the insertion openings and slide along the sliding grooves, and therefore the assembly of the side plates and the valve support is completed. The lateral part edge and the sliding groove of the valve support are connected in a plug-in matching mode to replace screw fixation in the prior art, so that the side plate is damaged when batch fixing screws are used in the production process, the appearance quality is influenced, the problem that the screw holes are staggered and difficult to fix due to fluctuation of machining sizes of parts is solved, the assembly efficiency is improved, the labor cost and the material cost are reduced, and the comprehensive competitiveness of products on the market is greatly improved.
Air conditioner case and air conditioner second embodiment:
as the explanation of the second embodiment of the air conditioner casing and the air conditioner of the present invention, only the differences from the first embodiment of the air conditioner casing and the air conditioner will be explained below.
Referring to fig. 6, in the present embodiment, the raised points 2431 are disposed on the inner wall of the sliding slot 2321, and the raised points 2431 contact the surface of the side edge of the valve holder. Three reinforcing ribs 234 are arranged at the joints of the top limiting pieces 233 and the side plates 23, and the three reinforcing ribs 234 are arranged along the length direction of the top limiting pieces 233.
In addition, the number and arrangement of the salient points and the reinforcing ribs can be changed according to requirements. The two ends of the top limiting piece also can not be connected with the side limiting piece, and the top limiting piece limits the valve support in the middle of the top of the valve support. The top limiting sheet can also be a bulge protruding outwards from the inner surface of the side plate. The top limiting sheet is not arranged above the support mounting opening of the side plate, and the bottom plate connecting part of the valve support is fixedly connected with the bottom plate. Above-mentioned scheme also can realize the utility model discloses an aim.
Finally, it should be emphasized that the above-described preferred embodiments of the present invention are merely examples of implementations, and are not intended to limit the scope of the present invention, as those skilled in the art will appreciate that various changes and modifications may be made without departing from the spirit and scope of the invention, and it is intended to cover all such modifications, equivalents, and improvements as fall within the true spirit and scope of the invention.
