CN214249293U - Cabinet lighting lamp and cabinet - Google Patents
Cabinet lighting lamp and cabinet Download PDFInfo
- Publication number
- CN214249293U CN214249293U CN202120366362.8U CN202120366362U CN214249293U CN 214249293 U CN214249293 U CN 214249293U CN 202120366362 U CN202120366362 U CN 202120366362U CN 214249293 U CN214249293 U CN 214249293U
- Authority
- CN
- China
- Prior art keywords
- cabinet
- lamp
- sets
- installation
- light
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Non-Portable Lighting Devices Or Systems Thereof (AREA)
Abstract
本实用新型涉及家具技术领域，公开了一种柜用照明灯及柜子，所述柜用照明灯设置在两个柜体之间的前端，包括灯体、灯盖和两组灯源，所述灯体的后表面设有固定支架，所述灯体的左右两侧分别设有安装腔，且所述安装腔朝柜体的内部倾斜设置，两组所述灯源分别设置在所述安装腔内，所述灯盖设于所述安装腔内，并盖合在所述灯源的前方。本实用新型提供的柜用照明灯及柜子，通过将照明灯设置在柜体的前端，安装走线时直接从照明灯顶部走线即可，不用再开槽钻孔，简化了安装过程。同时，由于灯体的两侧分别设有安装腔，且安装腔朝柜体的内部倾斜设置，并将灯源设置在安装腔内，使得一组灯源可为两个柜体提供照明，降低了使用成本。
The utility model relates to the technical field of furniture, and discloses a cabinet lighting lamp and a cabinet. The cabinet lighting lamp is arranged at the front end between two cabinet bodies and comprises a lamp body, a lamp cover and two sets of light sources. The rear surface of the lamp body is provided with a fixing bracket, the left and right sides of the lamp body are respectively provided with installation cavities, and the installation cavities are inclined towards the interior of the cabinet body, and the two sets of the light sources are respectively arranged in the installation cavities Inside, the lamp cover is arranged in the installation cavity and covered in front of the lamp source. The lighting lamp for the cabinet and the cabinet provided by the utility model, by arranging the lighting lamp at the front end of the cabinet body, can directly run the wiring from the top of the lighting lamp during installation and wiring, without the need for slotting and drilling, which simplifies the installation process. At the same time, since the two sides of the lamp body are respectively provided with installation cavities, and the installation cavities are inclined to the inside of the cabinet, and the lamp source is arranged in the installation cavity, a set of lamp sources can provide illumination for the two cabinets, reducing the cost of use.
Description
Technical Field
The utility model relates to the technical field of furniture, especially, relate to a light and cupboard for cabinet.
Background
The cabinet is furniture articles for daily use, and the application is very extensive, and in order to improve its convenient to use nature, some cabinets can install the light now, and present mounting means mainly has following several: slotting a board in the cabinet, and drilling holes in the cabinet and installing wires; the cabinet is exposed, and plates are drilled and wired; the cabinet inner-layer plate is clamped and fixed, and the wiring installation is carried out by drilling in the cabinet. The following ways inevitably need to open and drill holes in advance, which results in a complex installation process. In addition, the existing illuminating lamp can only provide illumination for a single cabinet, and cannot provide illumination for two cabinets simultaneously, so that the use cost is increased, and certain waste is also caused.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model provides a light and cupboard for cabinet avoids drilling in the cabinet, simplifies the installation, and a light can provide the illumination for two cupboards simultaneously, has reduced use cost.
The utility model provides a technical scheme that its technical problem adopted is:
the utility model provides a light for cabinet, sets up the front end between two cabinets bodies, includes lamp body, lamp lid and two sets of lamp sources, the rear surface of lamp body is equipped with the fixed bolster, the left and right sides of lamp body is equipped with the installation cavity respectively, just the installation cavity sets up towards the inside slope of the cabinet body, and is two sets of the lamp source sets up respectively in the installation cavity, the lamp lid is located in the installation cavity to the lid closes the place ahead in lamp source.
Preferably, the mounting cavity includes a mounting portion and a light-emitting portion, the light source is disposed in the mounting portion, and the light-emitting portion is disposed in an inclined manner toward the inside of the cabinet body.
Preferably, an included angle between the inner surface of the light emergent portion and the side surface of the lamp body is a, and a is 55-70 degrees.
Preferably, the lamp cover is disposed between the mounting portion and the light emitting portion, and the lamp cover is perpendicular to the light emitting portion.
Preferably, the lamp body is in a strip shape and extends from the upper end of the cabinet body to the lower end of the cabinet body.
Preferably, the light source is a light strip.
Preferably, the fixing bracket is perpendicular to a rear surface of the lamp body.
The utility model provides a cabinet, is including two cabinet bodies and the light for cabinet that set up side by side, two the junction of the front end of the cabinet body is equipped with the mounting groove, the cabinet body sets up in the mounting groove, fixed bolster is connected two between the cabinet body.
The embodiment of the utility model provides a light and cupboard for cabinet, compare with prior art, its beneficial effect lies in: through setting up the light at the front end of the cabinet body, the installation directly when walking the line walk the line from the light top can, need not slot drilling again, simplified the installation. Simultaneously, because the both sides of lamp body are equipped with the installation cavity respectively, and the installation cavity sets up towards the inside slope of the cabinet body to set up the lamp source in the installation cavity, make a set of lamp source can provide the illumination for two cabinet bodies, reduced use cost. The utility model discloses simple structure, excellent in use effect easily uses widely.
Drawings

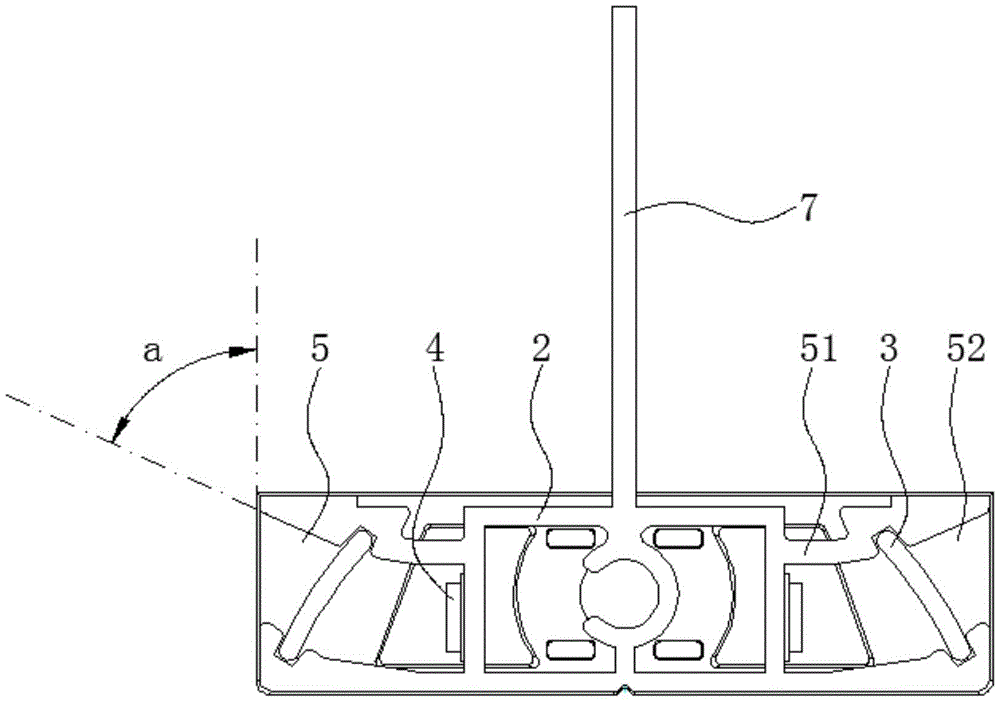

Fig. 1 is a schematic structural view of the lighting lamp for a cabinet of the present invention.
Fig. 2 is a schematic structural diagram of the cabinet of the present invention.
Fig. 3 is an exploded view of the cabinet of the present invention.
Wherein: 1-cabinet body, 2-lamp body, 3-lamp cover, 4-lamp source, 5-installation cavity, 51-installation part, 52-light-emitting part, 6-installation groove and 7-fixed support.
Detailed Description
The following detailed description of the embodiments of the present invention is provided with reference to the accompanying drawings and examples. The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention.
As shown in fig. 1, the utility model provides a preferred embodiment's a light for cabinet sets up the front end between two cabinets body 1, including lamp body 2, lamp lid 3 and two sets of lamp sources 4, the preferred lamp area in lamp sources 4. The rear surface of lamp body 2 is equipped with fixed bolster 7, the left and right sides of lamp body 2 is equipped with installation cavity 5 respectively, just installation cavity 5 sets up towards the inside slope of the cabinet body 1, and is two sets of lamp source 4 sets up respectively in the installation cavity 5, lamp lid 3 is located in the installation cavity 5 to the lid closes the place ahead of lamp source 4.
Based on the light for cabinet of above-mentioned technical characteristic, through setting up the light at the front end of the cabinet body 1, the installation directly when walking the line walk the line from the light top walk the line can, need not slot drilling again, simplified the installation. Simultaneously, because the both sides of lamp body 2 are equipped with installation cavity 5 respectively, and installation cavity 5 sets up towards the inside slope of the cabinet body 1 to set up lamp source 4 in installation cavity 5, make a set of lamp source 4 can provide the illumination for two cabinet bodies 1, reduced use cost. The utility model discloses simple structure, excellent in use effect easily uses widely.
In this embodiment, the mounting cavity 5 includes a mounting portion 51 and a light emitting portion 52, the light source 4 is disposed in the mounting portion 51 and fixed to the cabinet 1, and the light emitting portion 52 is disposed to be inclined toward the inside of the cabinet 1. Since the illumination lamp is disposed at the front end of the cabinet 1, the light can be completely introduced into the cabinet 1 to provide illumination by inclining the light emitting portion 52 toward the inside of the cabinet 1. Specifically, an angle between the inner surface of the light emergent portion 52 and the side surface of the lamp body 2 is a, and a is 55 to 70 degrees. Meanwhile, in order to further ensure the illumination effect, the lamp cover 3 is disposed between the mounting portion 51 and the light emitting portion 52, and the lamp cover 3 is perpendicular to the light emitting portion 52.
In this embodiment, the lamp body 2 is a strip shape and extends from the upper end of the cabinet body 1 to the lower end of the cabinet body 1. Thereby can provide the illumination for the inside of the whole cabinet body 1, the plywood can not appear and blocks the condition that light leads to the blind area to appear, has improved the result of use, and the installation of also being convenient for simultaneously is walked the line, and the direct top of following the cabinet body 1 of wire during walking the line is connected to the top of light can.
Referring to fig. 2-3, in order to solve the above technical problem, in this embodiment, the present invention further provides a cabinet, the cabinet includes two cabinet bodies 1 arranged side by side and the lighting lamp for cabinet provided by the present invention, a mounting groove 6 is arranged at a joint of front ends of the two cabinet bodies 1, the cabinet bodies 1 are arranged in the mounting groove 6, which is not only convenient for installation, but also does not affect closing of the cabinet doors. Fixed bolster 7 is connected two between the cabinet body 1, simultaneously, fixed bolster 7 with the rear surface looks of lamp body 2 is mutually perpendicular, installs the back promptly fixed bolster 7 has guaranteed the aesthetic property after the installation with the side of the cabinet body 1 laminating completely. After the cabinet is installed, the fixing support 7 can be connected with the cabinet body 1 through screws, so that the installation strength of the illuminating lamp for the cabinet is guaranteed, and the illuminating lamp is prevented from falling off.
In addition, during actual setting, the mounting groove 6 is formed by splicing the L-shaped grooves which are respectively arranged on the two cabinets.
The cabinet based on the technical characteristics has the advantages that the illuminating lamp is arranged at the front end of the cabinet body 1, the wiring can be directly conducted from the top of the illuminating lamp when the wiring is installed, the groove drilling is not needed, and the installation process is simplified. Simultaneously, because the both sides of lamp body 2 are equipped with installation cavity 5 respectively, and installation cavity 5 sets up towards the inside slope of the cabinet body 1 to set up lamp source 4 in installation cavity 5, make a set of lamp source 4 can provide the illumination for two cabinet bodies 1, reduced use cost.
The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of modifications and replacements can be made without departing from the technical principle of the present invention, and these modifications and replacements should also be regarded as the protection scope of the present invention.
Claims (8)
1. The utility model provides a light for cabinet, sets up the front end between two cabinets bodies, its characterized in that: including lamp body, lamp lid and two sets of lamp sources, the rear surface of lamp body is equipped with the fixed bolster, the left and right sides of lamp body is equipped with the installation cavity respectively, just the installation cavity sets up towards the inside slope of the cabinet body, and is two sets of the lamp sources sets up respectively in the installation cavity, the lamp lid is located in the installation cavity to the lid closes the place ahead of lamp source.
2. The illumination lamp for the cabinet as claimed in claim 1, wherein: the installation cavity includes installation department and light-emitting portion, the light source sets up in the installation department, light-emitting portion sets up towards the inside slope of the cabinet body.
3. The illumination lamp for the cabinet as claimed in claim 2, wherein: an included angle a between the inner surface of the light emergent part and the side surface of the lamp body is 55-70 degrees.
4. The illumination lamp for the cabinet as claimed in claim 2, wherein: the lamp cover is arranged between the mounting part and the light emergent part, and the lamp cover is vertical to the light emergent part.
5. The illumination lamp for the cabinet as claimed in claim 1, wherein: the lamp body is in a strip shape and extends from the upper end of the cabinet body to the lower end of the cabinet body.
6. The illumination lamp for the cabinet as claimed in claim 1, wherein: the lamp source is a lamp strip.
7. The illumination lamp for the cabinet as claimed in claim 1, wherein: the fixed support is perpendicular to the rear surface of the lamp body.
8. A cabinet, characterized in that: the cabinet lighting lamp comprises two cabinet bodies arranged in parallel and a cabinet lighting lamp according to any one of claims 1 to 7, wherein a mounting groove is formed in the joint of the front ends of the two cabinet bodies, the cabinet bodies are arranged in the mounting groove, and the fixing support is connected between the two cabinet bodies.
