CN214244993U

CN214244993U - Clothes hanger and floor type drying rack

Info

Publication number: CN214244993U
Application number: CN202022484345.2U
Authority: CN
Inventors: 史普芹
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-10-31
Filing date: 2020-10-31
Publication date: 2021-09-21
Anticipated expiration: 2030-10-31

Abstract

The utility model discloses a clothes drying rack. The clothes drying rack comprises a long support rod and a plurality of clothes drying supports which are arranged at intervals along the length direction of the support rod. The clothes hanger includes left and right wings for spreading the clothes. The support rod is provided with a plurality of guide rods extending in the height direction, the guide rods are respectively arranged on opposite sides of the support rod, and each of the guide rods is respectively matched with one of the left or right wings. Both the right wing and the right wing can move up and down along the axial direction of the guide rod. It has a compact structure after storage, can have a large drying space when unfolded, and is easy to carry. The utility model also discloses a floor drying rack, which comprises a retractable center rod, a plurality of supporting feet hinged on the bottom of the center rod, and a plurality of the clothes drying racks hinged on the top of the center rod. The utility model also discloses a floor drying rack.

Description

Clothes hanger and floor type drying rack

Technical Field

The utility model relates to a clothes and luggage utensil technical field that dries in the air especially relates to clothes hanger and fall to the ground sunning frame.

Background

The existing clothes hangers have various styles, and have more styles no matter from the aspects of airing space, unfolding and folding difficulty. However, as people are increasingly keen on traveling, the clothes hanger also becomes a necessary tool for traveling so as to solve the problems of insufficient clothes hangers in hotels or personal requirements of users. However, the conventional clothes hanger for traveling still has a problem that the airing space is very limited, and the clothes hanger for traveling is inconvenient to carry because a large space is required for storage.

SUMMERY OF THE UTILITY MODEL

In order to overcome the defects of the prior art, one of the purposes of the utility model is to provide a clothes hanger which has a compact structure after being stored, can have a larger airing space when being unfolded and is convenient to carry.

The second purpose of the utility model is to provide a floor drying rack.

The utility model discloses an one of the purpose adopts following technical scheme to realize:

the clothes hanger comprises a long-strip-shaped supporting rod and a plurality of clothes hanging supports arranged along the length direction of the supporting rod at intervals, the clothes hanging supports comprise a left wing and a right wing which are used for supporting clothes, the supporting rod is provided with a plurality of guide rods extending along the height direction, the guide rods are arranged on two opposite sides of the supporting rod respectively and are matched with one of the left wing or the right wing respectively, and the left wing and the right wing can be lifted and moved along the axial direction of the guide rods.

Further, a plurality of the guide bars are uniformly arranged at opposite sides of the support bar.

Furthermore, the support rod is provided with a plurality of first orientation blocks, each of the left wing and the right wing is provided with a second orientation block matched with the first orientation block, and when the clothes hanger is positioned at the bottom of the guide rod, each of the first orientation blocks is matched with one of the second orientation blocks respectively so as to prevent the clothes hanger from swinging.

Furthermore, the support rod is provided with a plurality of accommodating grooves which are arranged at intervals along the length direction of the support rod, and when the clothes airing support is positioned at the top of the guide rod, the second orientation block can swing relative to the support rod and be accommodated in the accommodating grooves.

Furthermore, the support rod is provided with a plurality of hanging holes arranged at intervals along the length direction of the support rod, and the clothes drying supports and the hanging holes are arranged in a staggered mode along the length direction of the support rod.

Furthermore, the end part of the supporting rod is connected with a sucker.

Furthermore, a strip-shaped cavity is formed in one end, far away from the sucker, of the clothes airing support, and the strip-shaped cavity is connected with a pulling and inserting rod capable of moving relative to the strip-shaped cavity.

Furthermore, the plugging rod is provided with a plurality of clamps arranged at intervals along the length direction of the plugging rod.

Further, each of the clips is detachably attached to the inserting and extracting rod.

The second purpose of the utility model is realized by adopting the following technical scheme:

the floor type drying rack comprises a telescopic center rod, a plurality of supporting legs hinged to the bottom of the center rod and a plurality of drying racks hinged to the top of the center rod.

Compared with the prior art, the beneficial effects of the utility model reside in that:

1. through set up a plurality of clothes of drying in the air and propping on rectangular form bracing piece, can be so that the bracing piece directly the sunning clothing, and a plurality of clothes of drying in the air prop and can improve clothes and dry in the air efficiency effectively.

2. The left wing and the right wing can move up or down along the axial direction of the guide rod, so that when the clothes hanger is in an unfolded state, space interference between the aired clothes and the support rod can be avoided; and when the clothes hanger is in a storage state, the space occupied by the clothes hanger in the height direction is reduced, so that the clothes hanger is convenient to carry.

3. The left wing and the right wing of the clothes hanger are connected in a guiding mode through the guide rods, so that the left wing and the right wing of the clothes hanger can move in the height direction and can swing in the horizontal direction, and the unfolding state and the storage state of the clothes hanger can be switched rapidly.

Drawings

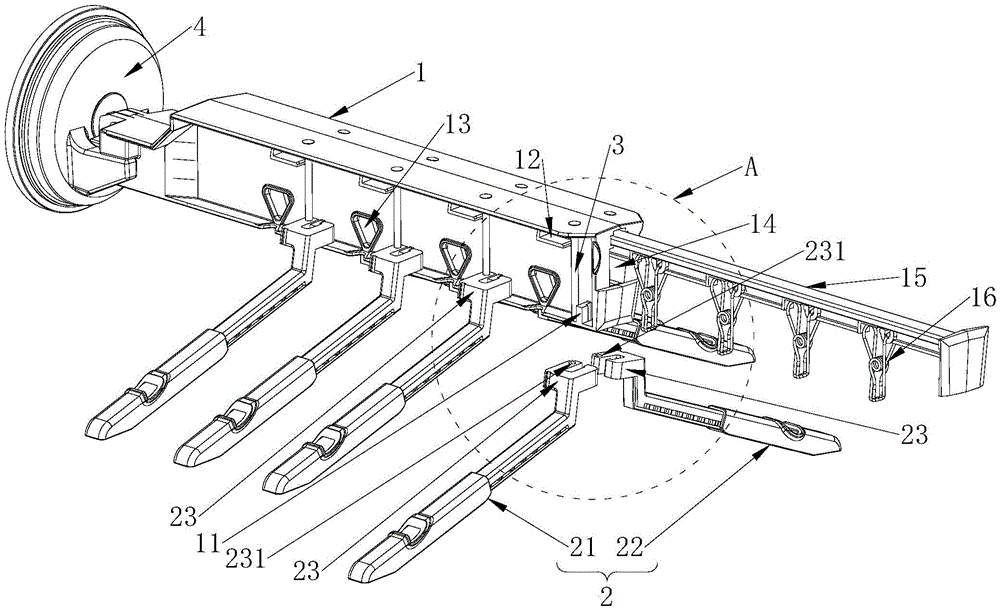

Fig. 1 is a schematic structural view of the clothes hanger of the present invention, wherein the clothes hanger is in an expanded state;

FIG. 2 is an enlarged view of a portion of FIG. 1 at A;

FIG. 3 is a schematic structural view of the laundry rack shown in FIG. 1, wherein the laundry rack is in a storage state;

fig. 4 is a partial enlarged view of fig. 3 at B;

fig. 5 is a schematic structural view of the floor drying rack of the present invention.

In the figure: 1. a support bar; 11. a first orientation block; 12. a containing groove; 13. a hanging hole; 14. a strip-shaped cavity; 15. pulling out the insertion rod; 16. a clip; 2. airing the clothes support; 21. a left wing; 22. a right wing; 23. a second orientation block; 231. a guide hole; 3. a guide bar; 4. a suction cup; 5. a center pole; 6. support the feet.

Detailed Description

The present invention will be further described with reference to the accompanying drawings and the detailed description, and it should be noted that the embodiments or technical features described below can be arbitrarily combined to form a new embodiment without conflict.

It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may be present. As used herein, "vertical," "horizontal," "left," "right," and similar expressions are for purposes of illustration only and do not represent the only embodiments.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used herein in the description of the invention is for the purpose of describing particular embodiments only and is not intended to be limiting of the invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

Fig. 1-4 show the clothes hanger of the present invention, which comprises a strip-shaped support rod 1 and a plurality of clothes hangers 2 arranged along the length direction of the support rod 1 at intervals. The clothes hanger 2 comprises a left wing 21 and a right wing 22 for opening clothes. The utility model discloses a supporting rod, including bracing piece 1, bracing piece, a plurality of guide bar 3 that extend along the direction of height, a plurality of guide bar 3 sets up respectively the relative both sides of bracing piece 1, each guide bar 3 matches one of them left wing 21 or right wing 22 respectively, left wing 21 and right wing 22 all can carry out lifting movement along the axial of guide bar 3. When the clothes hanger 2 is at a low position (i.e. a relatively low height), the clothes hanger 2 is in an unfolded state so that the clothes hanger 2 can open clothes; when the clothes hanger 2 is at a high position (i.e. a relatively high height), the left wing 21 and the right wing 22 can swing relative to the support rod 1, so that the left wing 21 and the right wing 22 are both close to the support rod 1 until the clothes hanger 2 is in a storage state.

Specifically, the end of the support rod 1 is connected with a sucker 4, so that the clothes hanger 2 can be fixed on a wall surface or a cabinet surface. Or, as an alternative, the end of the support rod 1 may be provided with a hook, and the hook may lean against an external fixture.

It should be noted that, when the clothes hanger 2 is in the storage state, the whole clothes hanger is in a strip structure, so that the clothes hanger is very convenient to carry, occupies a small space, and is very suitable for traveling. When the clothes hanger 2 is switched from the storage state to the unfolding state, the left wing 21 and the right wing 22 of the clothes hanger 2 swing relative to the support rod 1 and then move downwards relative to the support rod 1 (which is equivalent to the guide rod 3), and at the moment, the clothes hanger 2 can prop up clothes; in particular, since the clothes hanger 2 needs to be moved in the height direction when being switched between the storage state and the expansion state, when the clothes hanger 2 is in the low position (i.e., when the clothes hanger 2 is in the expansion state), the top of the clothes or the trousers does not abut against the support rod 1 or interfere spatially after the clothes or the trousers are spread by the clothes hanger 2. However, when the clothes hanger 2 is in the high position, the left wing 21 and the right wing 22 approach the support bar 1 to make the clothes hanger 2 in the storage state, and at this time, the size of the whole clothes hanger in the height direction is reduced, so that the space occupied by the clothes hanger can be reduced, and the clothes hanger is very convenient to carry.

That is to say, through set up a plurality of clothes hangers 2 that dry in the air on rectangular shape bracing piece 1, can be so that bracing piece 1 directly sunning clothing, and a plurality of clothes hangers 2 that dry in the air can improve clothes drying efficiency effectively. The left wing 21 and the right wing 22 can move up or down along the axial direction of the guide rod 3, so that when the clothes hanger 2 is in an unfolded state, space interference between the aired clothes and the support rod 1 is avoided; and when the clothes hanger 2 is in the storage state, the space occupied by the clothes hanger in the height direction is reduced, thereby being convenient for carrying. The left wing 21 and the right wing 22 of the clothes hanger 2 are connected in a guiding mode through the guide rod 3, so that the left wing 21 and the right wing 22 of the clothes hanger 2 can move in the height direction and can swing in the horizontal direction, and switching between the unfolding state and the storage state of the clothes hanger 2 is achieved rapidly.

As a further preferred embodiment: the guide rods 3 are uniformly arranged on two opposite sides of the support rod 1.

As a further preferred embodiment: the supporting rod 1 is provided with a plurality of first orientation blocks 11, each of the left wing 21 and the right wing 22 is provided with a second orientation block 23 matched with the first orientation block 11, and when the clothes hanger 2 is positioned at the bottom of the guide rod 3, each of the first orientation blocks 11 is respectively matched with one of the second orientation blocks 23 to prevent the clothes hanger 2 from swinging, so that clothes aired on the clothes hanger 2 cannot swing greatly to avoid falling off of the clothes hanger. Preferably, each second orientation block 23 is provided with a guide hole 231, and is slidably fitted with the guide bar 3 through the guide hole 231.

As a further preferred embodiment: the support rod 1 is provided with a plurality of accommodating grooves 12 arranged at intervals along the length direction, and when the clothes hanger 2 is positioned at the top of the guide rod 3, the second orientation block 23 can swing relative to the support rod 1 and be accommodated in the accommodating grooves 12. Set up like this, can be so that the clothes hanger 2 that dries in the air accomodate the back, the clothes hanger structure of drying in the air is comparatively compact, and shared space is littleer. Meanwhile, the clothes hanger 2 can be prevented from being unfolded accidentally. Further, the accommodating groove 12 is in snap fit with the second orientation block 23, so that the clothes hanger 2 is further prevented from being unfolded artificially.

As a further preferred embodiment: in order to further expand the airing space, the support rod 1 is provided with a plurality of hanging holes 13 arranged at intervals along the length direction of the support rod, and the clothes drying supports 2 and the hanging holes 13 are arranged in a staggered manner along the length direction of the support rod 1.

As a further preferred embodiment: in order to further expand the airing space, a strip-shaped cavity 14 is formed in one end, away from the suction disc 4, of the clothes support 2, the strip-shaped cavity 14 is connected with an inserting and pulling rod 15 capable of moving relative to the strip-shaped cavity 14, and preferably, the inserting and pulling rod 15 is provided with a plurality of clamps 16 arranged at intervals along the length direction of the inserting and pulling rod 15. Each clip 16 is detachably attached to the insertion/removal lever 15.

Fig. 5 shows the floor-type drying rack of the present invention, which comprises a telescopic central rod 5, a plurality of supporting legs 6 hinged to the bottom of the central rod 5 and a plurality of drying racks hinged to the top of the central rod 5. Wherein, when the clothes hanger is arranged on the floor type drying rack, the sucking discs 4 can be abandoned, or the sucking discs 4 are arranged at one end of the support rod 1 far away from the floor type drying rack. In addition, the utility model discloses a clothes hanger dries in air can assemble on the electronic clothes hanger that dries in the air.

The above embodiments are only preferred embodiments of the present invention, and the protection scope of the present invention cannot be limited thereby, and any insubstantial changes and substitutions made by those skilled in the art based on the present invention are all within the protection scope of the present invention.

Claims

1. Clothes hanger dries in air, including rectangular form bracing piece and follow a plurality of clothes hangers that the length direction of bracing piece set up at an interval each other, clothes hangers including the left wing and the right wing that are used for strutting the clothing, its characterized in that: the utility model discloses a wing aircraft comprises a bracing piece, including bracing piece, a plurality of guide bar that the bracing piece is equipped with and extends along the direction of height, a plurality of the guide bar sets up respectively the relative both sides of bracing piece, each the guide bar matches one of them left wing or right wing respectively, left wing and right wing all can carry out the lift removal along the axial of guide bar.

2. A laundry rack according to claim 1 in which: the guide rods are uniformly arranged on two opposite sides of the supporting rod.

3. A laundry rack according to claim 1 in which: the support rod is provided with a plurality of first orientation blocks, each left wing and each right wing are provided with second orientation blocks matched with the first orientation blocks, and when the clothes airing support is located at the bottom of the guide rod, each first orientation block is matched with one second orientation block so as to prevent the clothes airing support from swinging.

4. A laundry rack according to claim 3 in which: the support rod is provided with a plurality of accommodating grooves which are arranged at intervals along the length direction, and when the clothes airing support is positioned at the top of the guide rod, the second orientation blocks can swing relative to the support rod and are accommodated in the accommodating grooves.

5. A laundry rack according to claim 1 in which: the support rod is provided with a plurality of hanging holes arranged at intervals along the length direction of the support rod, and the clothes airing supports and the hanging holes are arranged in a staggered mode along the length direction of the support rod.

6. A laundry rack according to claim 1 in which: the end of the supporting rod is connected with a sucker.

7. A laundry rack according to claim 6 in which: the clothes airing support is characterized in that one end, far away from the sucker, of the clothes airing support is provided with a strip-shaped cavity, and the strip-shaped cavity is connected with a pulling and inserting rod capable of moving relative to the strip-shaped cavity.

8. A laundry rack according to claim 7 in which: the pulling and inserting rod is provided with a plurality of clamps arranged at intervals along the length direction of the pulling and inserting rod.

9. A laundry rack according to claim 8 in which: each clip is detachably connected to the plugging rod.

10. Floor drying rack, its characterized in that: comprises a telescopic central rod, a plurality of supporting feet hinged at the bottom of the central rod and a plurality of clothes horses hinged at the top of the central rod, wherein the clothes horses are as claimed in any one of claims 1 to 5.
