Pupil distance adjusting equipment on glasses reach

Technical Field

The utility model relates to a glasses technical field especially relates to a interpupillary distance adjusting equipment on glasses reach.

Background

Spectacles are known to be lens or plano lenses inserted in a frame and worn in front of the eyes in use for improving vision, protecting the eyes or for decorative purposes. The lenses can correct a variety of vision problems including myopia, hyperopia, astigmatism, presbyopia or strabismus, amblyopia, and the like. With the increase of age, particularly after the age of 40, with the gradual fiber hardening of crystalline lens of human eyes, ciliary muscles are gradually paralyzed, so that the human eyes cannot effectively adjust the shapes of eyeballs, and only by adjusting the distance between the eyes and an object to be seen, the human eyes must move far to see clearly when seeing a near object, the eye state is called presbyopia, and the presbyopia needs to wear presbyopic glasses to supplement the eyesight to see the near clearly again when using the eyesight at the original customary distance. However, the existing glasses are improved in a portable way, for example, adjustment is made in the aspects of folding or narrowing, so that each pair of glasses can only be suitable for a specific individual to wear, but the existing finished presbyopic glasses circulated in the market are manufactured when the lenses and the interpupillary distance are delivered from a factory and cannot be adjusted, and the interpupillary distance of each individual is different, so that when different people wear the glasses, the near-eye position set is excessive or insufficient due to inaccurate interpupillary distance, and discomfort is caused due to the image fusion problem.

In view of the foregoing, there is a need for improvement in the shortcomings of the prior art presbyopic glasses.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a glasses, it not only can oneself adjust the lens and be used for realizing reaching the purpose that is fit for everyone's interpupillary distance, the lens can be convenient dismantlement and change on the mirror holder moreover, only need change the lens when the number of degrees increases and can not change the purpose of mirror holder, thereby reduce the wasting of resources, and when different people wear, only need change the lens that is fit for oneself number of degrees can, reach the purpose that a mirror can many people use, can oneself adjust the facial width that is used for being fit for different people simultaneously.

(II) technical scheme

In order to realize the purpose, the utility model adopts the technical scheme that:

the utility model provides a pair of glasses, includes lens and picture frame, install on the picture frame the lens between the lens be provided with the nose on the picture frame and hold in the palm, and the mirror leg is installed to the terminal surface of picture frame, the lens with for dismantling the connection between the picture frame, the lens with be provided with the adjustment between the picture frame the interpupillary distance guiding mechanism of lens interpupillary distance.

Preferably, the glasses frame further comprises an adjusting telescopic mechanism which is arranged between the glasses frame and the glasses legs and can adapt to different human face widths, the adjusting telescopic mechanism comprises mounting holes which are formed in two ends of the glasses frame, correspondingly, pins are arranged at one end of each glasses leg, and each pin is inserted into the corresponding mounting hole and is fixedly locked through a fixing and locking assembly.

Preferably, fixed locking component is including setting up locating hole that the interval is even on the picture frame both ends, the embodiment of the utility model provides an in the picture frame both ends all the interval evenly have a plurality of locating hole, with it correspondingly, participate in be provided with on the foot at least one with the bump of locating hole looks block.

Preferably, the distance between the adjacent salient points is consistent with the distance between the adjacent positioning holes.

Preferably, the fixed locking assembly comprises locking grooves formed in two ends of the mirror frame, the locking grooves are located on the mirror frame above the mounting holes, and locking screws are mounted in the locking grooves.

Preferably, the lens with for dismantling the connection between the picture frame, specifically, be provided with on the picture frame and supply the chucking the mounting groove of lens, the top edge of lens is provided with the installation limit, the installation limit parcel is in on the top edge of lens, the width of mounting groove with the thickness of lens is unanimous. This kind of setting can be fit for all glasses, is favorable to more changing the lens through dismantling, and this kind is favorable to solving extravagant whole scrapped glasses, greatly reduced the cost, especially to the more main indispensable effect on presbyopic glasses.

Preferably, the pupil distance adjusting mechanism comprises a track arranged on the upper wall of the mounting groove, and correspondingly, a sliding block is arranged on the lens and fixedly arranged on the lens, and the sliding block can slide back and forth and be clamped on the track.

Preferably, be provided with the bar card post on the lateral wall of mounting groove, with it correspondingly, be provided with the bar draw-in groove on the side of installation limit, the bar draw-in groove with the bar card post cooperatees.

Preferably, interpupillary distance guiding mechanism is including setting up but round trip movement's guide rail on the mounting groove, the guide rail with it is fixed through the mounting between the picture frame, and be provided with the connecting piece on the guide rail, the terminal surface is provided with the draw-in groove under the connecting piece, the draw-in groove is used for the block to fix the lens upper edge, just the connecting piece with the guide rail is fixed through at least one compact piece.

Preferably, the nose pad extends in an upper direction of a bridge of the nose.

The conventional presbyopic glasses have the same frame as common myopia glasses, so that the myopia glasses are mainly used for seeing far when worn and are called far use, and the presbyopic glasses are mainly used for seeing near when worn and are called near use. If make presbyopic glasses with ordinary myopia mirror holder, if the nose holds in the palm wears at the inboard position of canthus when seeing near then, the sight can be through the regional perpendicular prism effect occasionally of seeing that can cause seeing near of watching of lens below, it is very uncomfortable to wear to use, if lens and glasses move down, the nose holds in the palm can cause the trigeminal nerve at oppression bridge of the nose middle part because of moving down to bridge of the nose middle part when watching near through optical center, cause vertigo, the headache more discomfort, then can not oppress the bridge of the nose through this kind of setting, wear more comfortablely, and satisfy the user demand more.

The utility model has the advantages that:

firstly, the lens and the glasses frame are detachably connected, so that the lens can be replaced, the phenomena of wasting the glasses frame and the whole glasses are solved, the purchase cost is reduced, the glasses frame can be suitable for all glasses, not only presbyopic glasses, and the application range is wider;

secondly, the pupil distance adjusting mechanism capable of adjusting the pupil distance of the lenses is arranged between the lenses and the lens frames, and because the width of the conventional presbyopic glasses is fixed, the presbyopic glasses with a plurality of sizes need to be manufactured and tried on the spot for sale due to different sizes of head and/or face of each person, and the old people who are inconvenient to move need a pair of proper presbyopic glasses, which is inconvenient;

thirdly, the utility model discloses a presbyopic glasses can let the middle aged and old people wear accurate and be fit for oneself glasses, reduces or has solved the uncomfortable symptom that wears ordinary presbyopic glasses and bring, and reduces because the number of degrees increases, and presbyopic glasses can not continue the wasting of resources who uses and bring problem again.

The utility model discloses there is the outward appearance unaesthetic in the prior art, can produce uncomfortable during the use, will produce other functional problem or bring other harm etc. when realizing the function again. By finding out the main inducement of the formation and development of the visual fatigue and the myopia and utilizing the brand new structural design, the defect design is avoided, and the problems of the visual fatigue and the myopia are fundamentally solved.

The utility model also provides a interpupillary distance adjustment equipment on glasses, include as above-mentioned arbitrary glasses, still include the shielding plate, the shielding plate with the shape of lens is the same, just the central point of shielding plate puts and opens there is a round hole, the round hole is in the geometric centre of shielding plate puts, the shielding plate is attached correspond on the lens, this moment the optical center of lens with the round hole coincides mutually on the shielding plate.

The utility model has the advantages that: compared with the prior art, the utility model discloses an its reasonable in design of interpupillary distance adjusting equipment on glasses, it is suitable for the glasses of optical product, like myopia glasses and presbyopic glasses etc. do not have the substitute of professional interpupillary distance appearance when can regard as or solve the optometry through this kind of setting, the key is low cost, the practicality is high, be difficult to make mistakes, and the user can measure and adjust by oneself, be favorable to solving needs to be equipped with special people and equipment and measure and adjust, more person of facilitating the use's use, also be favorable to the popularization of presbyopic glasses more.

Drawings

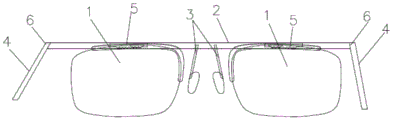

Fig. 1 is a schematic structural diagram of the present invention.

Fig. 2 is an exploded view of the embodiment of the fixing and locking assembly of the present invention.

Fig. 3 is an installation diagram of the fixing and locking assembly according to the embodiment of the present invention.

Fig. 4 is a locking diagram of an embodiment of the fixing and locking assembly of the present invention.

Fig. 5 is a side view of the second embodiment of the fixing and locking assembly of the present invention.

Fig. 6 is a top view of the embodiment two of the fixing and locking assembly of the present invention.

Fig. 7 is a side view of the third embodiment of the securing lock assembly of the present invention.

Fig. 8 is a top view of the embodiment of the fixing and locking assembly of the present invention.

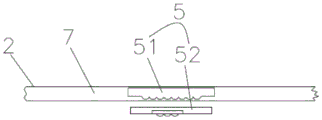

Fig. 9 is a schematic view of the pupil distance adjusting mechanism according to the present invention.

Fig. 10 is an exploded schematic view of an embodiment of the pupil distance adjusting mechanism of the present invention.

Fig. 11 is an installation schematic diagram of an embodiment of the interpupillary distance adjusting mechanism of the present invention.

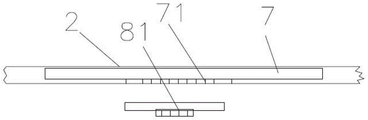

Fig. 12 is a schematic diagram of the decomposition of the bar-shaped clamping groove and the bar-shaped clamping column of the present invention.

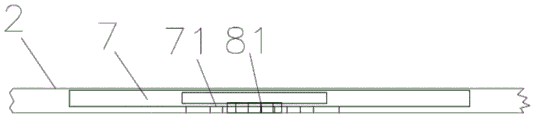

Fig. 13 is the installation schematic diagram of the bar-shaped clamping groove and the bar-shaped clamping column of the present invention.

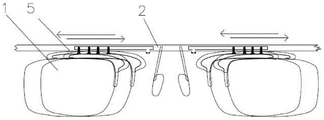

Fig. 14 is an operation schematic diagram of the pupil distance adjusting machine of the present invention.

Fig. 15 is a schematic view of a second embodiment of the interpupillary distance adjusting mechanism of the present invention.

Fig. 16 is a schematic diagram of the second operation of the pupil distance adjusting machine of the present invention.

Fig. 17 is a schematic view of a state of use of a nose pad in the prior art.

Fig. 18 is a schematic view of the usage state of the nose pad of the present invention.

Fig. 19 is an exploded view of the interpupillary distance adjusting device of the present invention.

Fig. 20 is a schematic view of the installation of the interpupillary distance adjusting device on the glasses of the present invention.

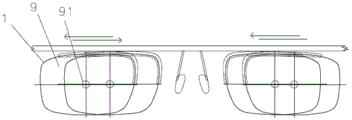

Fig. 21 is a schematic view of the using state of the interpupillary distance adjusting device of the present invention.

In the figure: 1, a lens; 2, a mirror frame; 3, a nose pad; 4, the glasses legs; 5, a pupil distance adjusting mechanism; 6, adjusting the telescopic mechanism; 7, mounting a groove; 8, mounting edges; 9, a shielding plate; 51, a track; 52, a slide block; 53, guide rails; 54, a fixing piece; 55 a connecting piece; 56, a card slot; 57, a fastener; 61, mounting holes; 62, pins; 63, fixing the locking assembly; 71, strip-shaped clamping columns; 81, strip-shaped clamping grooves; 91, circular hole 631, positioning hole; 632, bumps; 633, a locking groove; 634, locking screw.

Detailed Description

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings or orientations or positional relationships that the products of the present invention are usually placed in when used, and are only used for convenience of describing the present invention and simplifying the description, but do not indicate or imply that the devices or elements indicated must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," "third," and the like are used solely to distinguish one from another and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

In order to make the objects, technical solutions and advantages of the present invention more clear, the present invention is further described in detail through the accompanying drawings and embodiments. It should be understood, however, that the description herein of specific embodiments is only intended to illustrate the invention and not to limit the scope of the invention. Moreover, in the following description, descriptions of well-known structures and techniques are omitted so as to not unnecessarily obscure the concepts of the present invention.

Referring to fig. 1, the utility model relates to a pair of glasses, including lens 1 and picture frame 2, install lens 1 on picture frame 2, be provided with nose support 3 on picture frame 2 between lens 1, and install mirror leg 4 at the terminal surface of picture frame 2, be connected for dismantling between lens 1 and the picture frame 2, be provided with the interpupillary distance guiding mechanism 5 of adjustable lens 1 interpupillary distance between lens 1 and picture frame 2.

As shown in fig. 1, the glasses frame further comprises an adjusting and telescoping mechanism 6 which is arranged between the glasses frame 2 and the glasses legs 4 and can be suitable for different face widths. The adjusting telescopic mechanism 6 comprises mounting holes 61 arranged at two ends of the spectacle frame 2, correspondingly, one end of each temple 4 is provided with a pin 62, each pin 62 is inserted into the corresponding mounting hole 61 and is fixedly locked through a fixed locking component 63, and in the using process, the temples 4 of the temples 4 are inserted into the corresponding mounting holes 61 at different depths, so that the temples 4 can stretch in the corresponding mounting holes, and the size of the spectacles can be adjusted conveniently to fit the face widths of different people. Wherein, the mounting holes 61 which are arranged at both ends of the spectacle frame 2 are hollow structures. Two ways can be taken for securing the locking assembly 63:

wherein, firstly, as shown in fig. 2, fig. 3 and fig. 4, the fixed locking component 63 includes the positioning holes 631 disposed at the two ends of the lens frame 2, the embodiment of the present invention provides six positioning holes 631 uniformly disposed at the two ends of the lens frame 2, and correspondingly, the pins 62 are provided with at least one protruding point 632 engaged with the positioning holes 631, wherein the mounting holes 61 disposed at the two ends of the lens frame 2 are hollow structures of the injection mold, and the distance between the adjacent protruding points 632 is consistent with the distance between the adjacent positioning holes 631, so as to form the purpose of fixing and extending gears when inserting.

Secondly, as shown in fig. 5, 6, 7 and 8, the fixing and locking assembly 63 includes locking grooves 633 provided at both ends of the frame 2, and the locking grooves 633 are located on the frame 2 above the mounting holes 61, the locking grooves 633 are in a shape of a strip (as shown in fig. 5 and 6) or a circle (as shown in fig. 7 and 8), locking screws 634 are installed in the locking grooves 633, the locking screws 634 move back and forth in the mounting holes 61 through the pins 62, then the locking screws 634 on the locking grooves 633 are rotated, when the locking screws 634 are rotated clockwise, the locking screws 634 move downward, at this time, the locking screws 634 press the pins 62, so as to fix the frame 2 to the temple 4, when the locking screws 634 are rotated counterclockwise, the locking screws 634 move upward, at this time, the locking screws 634 leave the pins 62, the pins 62 can slide back and forth in the corresponding mounting holes 61, so as to adjust the size of the glasses, to fit the width of different persons' faces.

As shown in fig. 2, 3, 4 and 9, the lens 1 and the frame 2 are detachably connected, specifically, the frame 2 is provided with a mounting groove 7 for clamping the lens 1, the upper edge of the lens 1 is provided with a mounting edge 8, the mounting edge 8 is wrapped on the upper edge of the lens 1, and the width of the mounting groove 7 is consistent with the thickness of the lens 1. When the lens 1 is installed, one hand holds the lens 1 and the other hand holds the frame 2, wherein the upper end of the lens 1 is aligned with the installation groove 7 of the frame 2, and then the lens 1 is forcibly extruded into the installation groove 7 of the frame 2, so that the installation of the lens 1 and the frame 2 can be realized; when the lens 1 needs to be replaced, only one hand is needed to hold the lens 1, one hand is needed to hold the frame 2, and then the lens 1 is pulled out from the mounting groove 7 of the frame 2 with force, so that the lens 1 and the frame 2 can be detached. The setting of installation limit 8 is favorable to being convenient for more on the one hand the installation and dismantles lens 1, and the setting up on the other hand of installation limit 8 is favorable to reducing the damage to lens 1 in installation and dismantlement process. Wherein the mounting groove 7 is positioned at the upper brow of the spectacle frame 2, thus better facilitating the mounting of the lens 1 through the mounting groove 7. Lens 1 can be convenient dismantlement and change on picture frame 2, is favorable to solving the number of degrees and reaching the purpose of only changing lens 1 and not changing picture frame 2 when increasing to reduce the wasting of resources, and different people only need change when wearing suitable oneself number of degrees lens 1 can, reach the purpose that a mirror can many people use. This kind of setting can be fit for all glasses, is favorable to more changing lens 2 through dismantling, and this kind is favorable to solving extravagant whole scrapped glasses, greatly reduced the cost, especially to the more main indispensable effect on presbyopic glasses.

As shown in fig. 2, 3, 4, 9, 10, 11 and 14, the pupil distance adjusting mechanism 5 includes a rail 51 disposed on the upper wall of the mounting groove 7, correspondingly, a slide block 52 is arranged on the lens 1, the slide block 52 is fixedly arranged on the lens 1, the slide block 52 can slide back and forth on the track 51, specifically, the track 51 adopts a rack, a salient point corresponding to the rack is arranged on the slide block 52, the positioning and clamping of the left and right back and forth movement are realized through the salient point and the rack, thereby continuously adjusting the interpupillary distance of the two lenses 1, achieving the purposes of left-right movement, stability and gear adjustment, the purpose of adjusting the pupil distance can be achieved, the pupil distance adjusting device is favorable for being used for adjusting according to the difference of the pupil distance of each person, and finally the problem that the near-eye position set is excessive or insufficient due to inaccurate pupil distance is solved, so that discomfort caused by image fusion is avoided. The track 51 and the slider 52 are matched by the convex points and the grooves, so that the purposes of left-right movement and stability, gear adjustment and pupil distance adjustment are achieved.

Further, as shown in fig. 12 and 13, the side wall of the mounting groove 7 is provided with a bar-shaped clamping column 71, and correspondingly, the side edge of the mounting edge 8 is provided with a bar-shaped clamping groove 81, and the bar-shaped clamping groove 81 is matched with the bar-shaped clamping column 71, so that when the lens 1 is mounted in the mounting groove 7, the lens 1 is prevented from falling, and the bar-shaped clamping groove 81 of the mounting edge 8 can move back and forth on the bar-shaped clamping column 71.

As shown in fig. 15 and 16, the interpupillary distance adjusting mechanism 5 includes a guide rail 53 disposed on the mounting groove 7 and capable of moving back and forth, the guide rail 53 is fixed to the frame 2 by a fixing member 54, a connecting member 55 is disposed on the guide rail 53, a clamping groove 56 is disposed on a lower end surface of the connecting member 55, the clamping groove 56 is used for clamping and fixing an upper edge (or the mounting edge 8) of the lens 1, and the connecting member 55 and the guide rail 53 are fixed by at least one tightening member 57. The fixing member 54 and the tightening member 57 are screws. The fixing member 54 is penetrated from the lower surface of the lens frame 2, so that the fixing and releasing of the fixing member 54 in the mounting groove 7 of the lens frame 2 are accomplished by rotating the fixing member 54 clockwise and counterclockwise. For example, when the fixing member 54 is rotated clockwise, the fixing member 54 moves upward, and the fixing member 54 presses the guide rail 53, and the guide rail 53 is fixed to the frame 2; when the fixing member 54 is rotated counterclockwise, the fixing member 54 moves downward, and the guide rail 53 can move back and forth on the mounting groove 7, which is beneficial to adjusting the interpupillary distance. The embodiment of the present invention provides two tightening members 57, which are mounted by first mounting the connecting members 55 on the corresponding guide rails 53, and then fixing the connecting members 55 on the guide rails 53 through the two tightening members 57. Fix guide rail 53 on guide rail 53 of the upper eyebrow of picture frame 2 through mounting 54, lens 1 just can move about at mounting groove 7 through guide rail 53 like this to realize the coincidence of lens 1 optical center and pupil, reach the purpose of adjustment interpupillary distance, the terminal surface is provided with draw-in groove 56 under the connecting piece 55 simultaneously, draw-in groove 56 is used for the fixed lens 1 top edge of block (also can be installation limit 8), this kind can realize the convenient purpose of trading lens 1.

As shown in fig. 17 and 18, the nose pad 3 extends towards the upper part of the nose bridge, and the arrangement of the nose pad 3 and the reduction of the height of the nose pad can ensure that the position of the nose pad is matched with the corners of the eyes of the face when the nose pad is seen closely, thereby achieving the purpose of comfortable wearing.

As shown in fig. 19, 20 and 21, the utility model provides a interpupillary distance adjusting equipment on glasses still, include like foretell glasses, still include shielding plate 9, shielding plate 9 is the same with lens 1's shape, and shielding plate 9's central point puts and opens and have a round hole 91, and round hole 91 is in shielding plate 9's geometric center puts, and shielding plate 9 is attached on corresponding lens 1, and the optical center of lens 1 this moment coincides with round hole 91 on shielding plate 9, and the plastics or the paper material preparation that shielding plate 9 adopted form, and the cost of manufacture is cheap, and the practicality is high. When the glasses are used, the corresponding shielding plate 9 is attached to the glasses lens 1, at the moment, the optical center of the glasses lens 1 is overlapped with the round hole 91 on the shielding plate 9, and by moving the glasses lens 1 left and right, when the respective front eye images of the two eyes are overlapped and fused into a clear image, the pupil distance of the eye of the person is the moment. It is suitable for the glasses of optical products, like myopia glasses and presbyopic glasses etc. through this kind of setting can regard as or solve the substitute that does not have professional interpupillary distance appearance when optometry, the key is low cost, and the practicality is high, is difficult to make mistakes, and the user can measure and adjust by oneself, is favorable to solving needs to be equipped with special people and equipment and measures and adjust, and more person's of facilitating the use also is favorable to presbyopic glasses popularization more.

It should be noted that, although the above embodiments have been described herein, the scope of the present invention is not limited thereby. Therefore, based on the innovative concept of the present invention, the changes and modifications of the embodiments described herein, or the equivalent structure or equivalent process changes made by the contents of the specification and the drawings of the present invention, directly or indirectly apply the above technical solutions to other related technical fields, all included in the protection scope of the present invention.

Claims

1. The utility model provides a pair of glasses, includes lens (1) and picture frame (2), install on picture frame (2) lens (1) between lens (1) be provided with nose on picture frame (2) and hold in the palm (3), and mirror leg (4), its characterized in that are installed to the terminal surface of picture frame (2): the lens (1) with be connected for dismantling between picture frame (2), lens (1) with be provided with adjustable between picture frame (2) interpupillary distance adjustment mechanism (5) of lens (1) interpupillary distance.

2. An eyeglass according to claim 1, wherein: still including setting up picture frame (2) with but be fit for the adjustment telescopic machanism (6) of different people's face width between mirror leg (4), adjustment telescopic machanism (6) are including setting up mounting hole (61) at picture frame (2) both ends, and with it correspondingly, every the one end of mirror leg (4) is provided with participates in (62), every participate in (62) insert corresponding mounting hole (61) are fixed locking through fixed locking Assembly (63).

3. An eyeglass according to claim 2, wherein: the fixed locking component (63) comprises positioning holes (631) which are arranged at two ends of the mirror frame (2) and are evenly spaced, and correspondingly, at least one salient point (632) clamped with the positioning holes (631) is arranged on the pin (62).

4. An eyeglass according to claim 3, wherein: the distance between the adjacent salient points (632) is consistent with the distance between the adjacent positioning holes (631).

5. An eyeglass according to claim 2, wherein: fixed locking Assembly (63) is including setting up locking groove (633) on picture frame (2) both ends, just locking groove (633) are located mounting hole (61) top position on picture frame (2), install locking screw (634) in locking groove (633).

6. An eyewear according to claim 1, 2, 3, 4 or 5, wherein: lens (1) with be connected for dismantling between picture frame (2), specifically, be provided with on picture frame (2) and supply the chucking mounting groove (7) of lens (1), the top edge of lens (1) is provided with installation limit (8), installation limit (8) parcel is in on the top edge of lens (1), the width of mounting groove (7) with the thickness of lens (1) is unanimous mutually.

7. An eyeglass according to claim 6, wherein: pupil distance adjustment mechanism (5) are including setting up track (51) of mounting groove (7) upper wall, correspond with it, be provided with slider (52) on lens (1), slider (52) fixed the setting is in on lens (1), slider (52) can make a round trip to slide and block on track (51).

8. An eyeglass according to claim 6, wherein: pupil distance guiding mechanism (5) is including setting up guide rail (53) that can round trip movement on mounting groove (7), guide rail (53) with it is fixed through mounting (54) between picture frame (2), and be provided with connecting piece (55) on guide rail (53), the terminal surface is provided with draw-in groove (56) under connecting piece (55), draw-in groove (56) are used for the block to fix lens (1) upper edge, just connecting piece (55) with guide rail (53) are fixed through at least one compact piece (57).

9. An eyeglass according to claim 7 or 8, wherein: the nose pad (3) extends towards the upper part of the nose bridge.

10. An interpupillary distance adjusting device on glasses, characterized in that: the pair of spectacles as claimed in any one of claims 1 to 9, further comprising a shielding plate (9), wherein the shielding plate (9) has the same shape as the lens (1), a circular hole (91) is formed in the center of the shielding plate (9), the circular hole (91) is located in the geometric center of the shielding plate (9), the shielding plate (9) is attached to the corresponding lens (1), and the optical center of the lens (1) coincides with the circular hole (91) in the shielding plate (9).
