CN214216499U

CN214216499U - A data storage device for geographic information

Info

Publication number: CN214216499U
Application number: CN202022711047.2U
Authority: CN
Inventors: 王然; 梁彩萍; 项鑫鑫; 张东阳; 王青松; 徐海超
Original assignee: Shandong Huadi Surveying And Mapping Geographic Information Co ltd
Current assignee: Shandong Huadi Surveying And Mapping Geographic Information Co ltd
Priority date: 2020-11-21
Filing date: 2020-11-21
Publication date: 2021-09-17
Anticipated expiration: 2030-11-21

Abstract

The utility model discloses a data storage device for geographic information, which comprises a box body, a placement cavity, a slide rail, a drawer, a handle, a slider and a label board, and the name of the data category to be placed is written on the label board on the drawer, Then, the same type of data is placed in the corresponding drawer to facilitate the classification of the data. With the sliding cooperation of the slide rail and the slider, the drawer is pulled out from the placement cavity through the handle, and the geographic information data is placed in the drawer. Then, connect the slider with the slide rail, and then place the drawer in the placement cavity, and then press the push handle downwards, through the connecting block, under the active cooperation of the movable groove, drive the driving block to move down to its position. The top is lower than the top of the drawer, continue to push the drawer so that the card block corresponds to the card slot, release the push handle, and under the elastic cooperation of the spring, the spring stretches and pushes the card block upward, so that the card block and the card groove are engaged, and then The drawer is placed in the placement cavity so that it is not easy to slip out.

Description

Data storage device for geographic information

Technical Field

The utility model relates to a storage device specifically is a data storage device for geographic information.

Background

Currently, a geographic information model refers to various types of abstract expressions that can integrate information of a geographic environment, rationally conceptualize an entity, find physical attributes, mechanical attributes, chemical attributes, biological attributes, and the like that are similar as much as possible, and finally highly generalize the abstract expressions. The geographic information model can intuitively reflect geographic conditions and has irreplaceable important role in understanding different geographic characteristics of people.

Present data storage device for geographic information, the structure is comparatively single, is not convenient for classify to multiple data and deposits, and the personnel of the different heights of not being convenient for simultaneously are to taking and depositing of data, consequently need carry out further improvement to it.

SUMMERY OF THE UTILITY MODEL

An object of the present invention is to provide a data storage device for geographic information to solve the problem proposed in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a data storage device for geographic information comprises a box body, wherein four supporting mechanisms are symmetrically arranged at the bottom of the box body, each supporting mechanism comprises a base, a sleeve and a sliding rod, the top end of each sliding rod is fixedly connected with the bottom of the box body, the bottom end of each sliding rod extends into the inner side of the sleeve, the side wall of each sliding rod is slidably connected with the inner wall of the sleeve, the bottom end of each sleeve is fixedly connected with the top end of the base, an X-shaped plate is arranged under the box body, a threaded rod penetrates through the middle of the X-shaped plate and is sleeved with the middle of the X-shaped plate, the top end of each threaded rod is rotatably connected with the bottom of the box body through a threaded through hole, a rotating handle is fixedly connected with the bottom end of each threaded rod and is arranged under the X-shaped plate, four placing cavities are uniformly arranged on the box body, drawers are arranged on the inner sides of the four placing cavities, and sliding blocks are symmetrically arranged on the two sides of the drawers, the sliding block is connected with a sliding rail in a sliding mode, and one side of the sliding rail is fixedly connected with the inner wall of the placing cavity.

As a further aspect of the present invention: the drawer is characterized in that a placing groove is formed in the top of the drawer, a clamping block is arranged on the inner side of the placing groove, the side wall of the clamping block is in sliding connection with the inner wall of the placing groove, a spring is fixedly connected to the bottom of the clamping block, and the bottom of the spring is fixedly connected with the inner wall of the placing groove.

As a further aspect of the present invention: the front surface of the drawer is provided with a movable groove corresponding to the position of the clamping block, the movable groove is connected with a connecting block in a sliding mode, one end of the connecting block is fixedly connected with the front surface of the clamping block, and the other end of the connecting block extends out of the movable groove and then is fixedly connected with a push handle.

As a further aspect of the present invention: the top of the inner side of the placing cavity is provided with a clamping groove corresponding to the clamping block, the clamping block is clamped with the clamping groove, and the clamping groove is matched with the clamping block.

As a further aspect of the present invention: the front surface of the drawer is fixedly connected with a handle and a label plate.

Compared with the prior art, the beneficial effects of the utility model are that:

1. writing the data category names to be placed on the label plates on the drawers, and then placing the data of the same category in the corresponding drawers, thereby facilitating the classification of the data by personnel.

2. The threaded rod is rotated through the rotating handle, the threaded rod is matched with the thread of the X-shaped plate, the sliding rod slides in the sleeve, the height of the box body is adjusted, the height of the drawer is adjusted, and therefore people with different heights can take and store data in the drawer conveniently.

3. Push away the handle through pressing down, under the clearance fit of activity groove through the connecting block, drive and drive the fixture block and move down to its top and be less than the drawer top, simultaneously under the sliding fit of slide rail and slider, conveniently take out the drawer through the handle, through the elastic fit of spring for fixture block and draw-in groove joint, and then make the drawer stably place and be placing the difficult landing of intracavity and get off.

Drawings

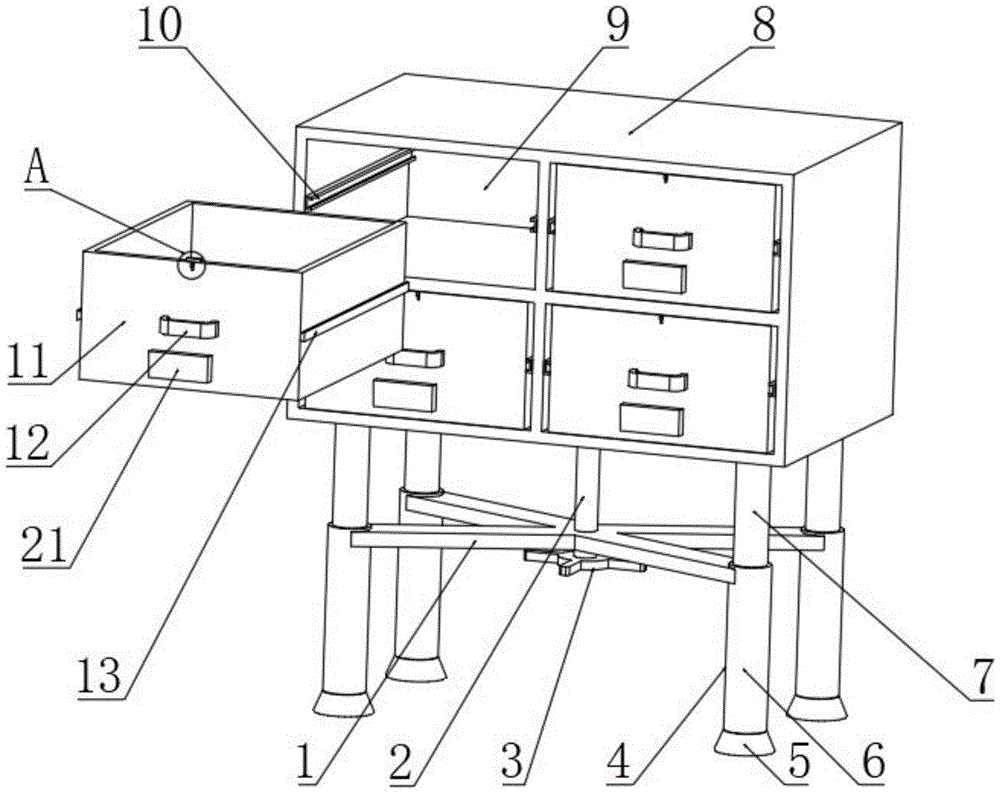

Fig. 1 is a schematic structural diagram of a geographic information data storage device.

Fig. 2 is an enlarged schematic view of a portion a of fig. 1 in the geographic information data storage device.

FIG. 3 is a schematic cross-sectional view of a case of the geographic information data storage device.

Fig. 4 is an enlarged schematic view of the geographic information data storage device at the position B in fig. 3.

FIG. 5 is a schematic cross-sectional view of a support mechanism of the geographic information data storage device.

Shown in the figure: the automatic labeling machine comprises an X-shaped plate 1, a threaded rod 2, a rotating handle 3, a supporting mechanism 4, a base 5, a sleeve 6, a sliding rod 7, a box body 8, a placing cavity 9, a sliding rail 10, a drawer 11, a handle 12, a sliding block 13, a clamping block 14, a pushing handle 15, a movable groove 16, a connecting block 17, a spring 18, a placing groove 19, a clamping groove 20 and a label plate 21.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, in the embodiment of the present invention, a data storage device for geographic information comprises a box 8, four support mechanisms 4 are symmetrically arranged at the bottom of the box 8, each support mechanism 4 comprises a base 5, a sleeve 6 and a slide bar 7, the top end of the slide bar 7 is fixedly connected with the bottom of the box 8, the bottom end of the slide bar 7 extends into the inner side of the sleeve 6, the side wall of the slide bar 7 is slidably connected with the inner wall of the sleeve 6, the bottom end of the sleeve 6 is fixedly connected with the top end of the base 5, an X-shaped plate 1 is arranged under the box 8, a threaded rod 2 is sleeved in the middle of the X-shaped plate 1, the X-shaped plate 1 is in threaded connection with the threaded rod 2 through a threaded through hole, the top end of the threaded rod 2 is rotatably connected with the bottom of the box 8, a rotating handle 3 is fixedly connected with the bottom end of the threaded rod 2, and the rotating handle 3 is arranged under the X-shaped plate 1, the box body 8 is uniformly provided with four placing cavities 9, drawers 11 are arranged on the inner sides of the four placing cavities 9, sliding blocks 13 are symmetrically arranged on two sides of each drawer 11, sliding rails 10 are connected on the sliding blocks 13 in a sliding manner, one sides of the sliding rails 10 are fixedly connected with the inner walls of the placing cavities 9, a placing groove 19 is formed in the top of each drawer 11, a clamping block 14 is arranged on the inner side of the placing groove 19, the side wall of the clamping block 14 is connected with the inner wall of the placing groove 19 in a sliding manner, a spring 18 is fixedly connected to the bottom of the clamping block 14, the bottom end of the spring 18 is fixedly connected with the inner wall of the placing groove 19, a movable groove 16 is formed in the front surface of each drawer 11 corresponding to the clamping block 14, a connecting block 17 is connected in the movable groove 16 in a sliding manner, one end of the connecting block 17 is fixedly connected with the front surface of the clamping block 14, and a push handle 15 is fixedly connected to the other end of the connecting block 17 after extending out of the movable groove 16, the top of the inner side of the placing cavity 9 is provided with a clamping groove 20 corresponding to the clamping block 14, the clamping block 14 is clamped with the clamping groove 20, the clamping groove 20 is matched with the clamping block 14, and the front surface of the drawer 11 is fixedly connected with a handle 12 and a label plate 21.

The utility model discloses a theory of operation is:

when the device is used, the names of the categories of the data to be placed are written on the label plate 21 on the drawer, the data of the same category are placed in the corresponding drawer 11, the data are conveniently classified by personnel, under the sliding fit of the sliding rail 10 and the sliding block 13, the drawer 11 is drawn out from the placing cavity 9 through the handle 12, the geographic information data are placed in the drawer 11, then the sliding block 13 is correspondingly connected with the sliding rail 10, the drawer 11 is placed in the placing cavity 9, the push handle 15 is pressed downwards, the connecting block 17 is in movable fit with the movable groove 16, the clamping block 14 is driven to move downwards until the top of the clamping block 14 is lower than the top of the drawer 11, the drawer 11 is continuously pushed, after the clamping block 14 corresponds to the clamping groove 20, the push handle 15 is released, under the elastic fit of the spring 18, the spring 18 extends to push the clamping block 14 upwards, and the clamping groove 20 are clamped, and then make drawer 11 place and be difficult for the roll-off in placing chamber 9, rotate threaded rod 2 through turning handle 3, under the screw-thread fit of threaded rod 2 and X template 1 for slide bar 7 slides in sleeve 6, highly adjust box 8, and then make things convenient for personnel to adjust the height of drawer 11.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims

1. A data storage device for geographic information, comprising a box (8), characterized in that: the bottom of the box (8) is symmetrically provided with four support mechanisms (4), and the support mechanism (4) comprises a base (5), a sleeve (6) and a sliding rod (7), the top end of the sliding rod (7) is fixedly connected to the bottom of the box (8), and the bottom end of the sliding rod (7) extends into the sleeve (6) ), the side wall of the sliding rod (7) is slidably connected to the inner wall of the sleeve (6), the bottom end of the sleeve (6) is fixedly connected to the top of the base (5), and the box (8) An X-shaped plate (1) is arranged directly below, a threaded rod (2) is provided through the middle of the X-shaped plate (1), and a threaded through hole and a threaded rod ( 2) Threaded connection, the top end of the threaded rod (2) is rotatably connected to the bottom of the box (8), the bottom end of the threaded rod (2) is fixedly connected with a turning handle (3), and the turning handle (3) is arranged on the Below the X-shaped plate (1), the box body (8) is evenly provided with four placement cavities (9), and drawers (11) are provided on the inner sides of the four placement cavities (9). Sliders (13) are symmetrically arranged on both sides of (11), slide rails (10) are slidably connected to the slide blocks (13), and one side of the slide rails (10) is connected to the placement cavity (9). The inner wall is fixedly connected.

2. The data storage device for geographic information according to claim 1, wherein a placement groove (19) is provided on the top of the drawer (11), and a clamping block is provided on the inner side of the placement groove (19). (14), the side wall of the blocking block (14) is slidably connected with the inner wall of the placement groove (19), the bottom of the blocking block (14) is fixedly connected with a spring (18), and the bottom of the spring (18) The end is fixedly connected with the inner wall of the placement groove (19).

3. The data storage device for geographic information according to claim 1, wherein a movable slot (16) is provided on the front surface of the drawer (11) corresponding to the position of the clamping block (14), and the movable slot ( 16) A connecting block (17) is slidably connected inside, one end of the connecting block (17) is fixedly connected to the front surface of the clamping block (14), and the other end of the connecting block (17) protrudes from the movable slot (16) The rear is fixedly connected with a push handle (15).

4. The data storage device for geographic information according to claim 1, characterized in that: a card slot (20) corresponding to a card block (14) is provided on the inner top of the placement cavity (9), and the card block (14) is clamped with the card slot (20), and the card slot (20) is adapted to the card block (14).

5 . The data storage device for geographic information according to claim 1 , wherein a handle ( 12 ) and a label plate ( 21 ) are fixedly connected to the front surface of the drawer ( 11 ). 6 .
